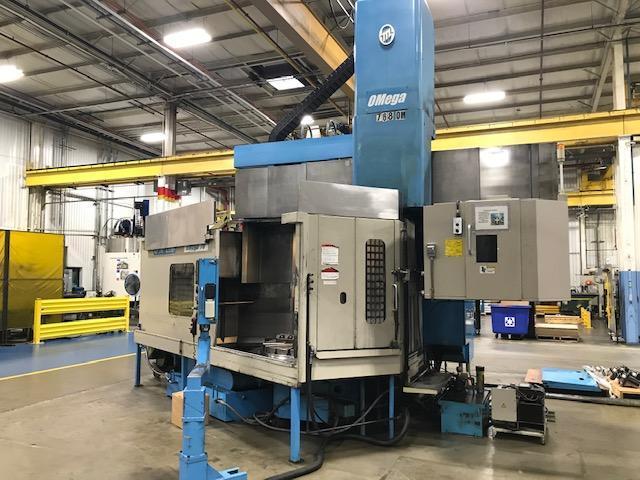

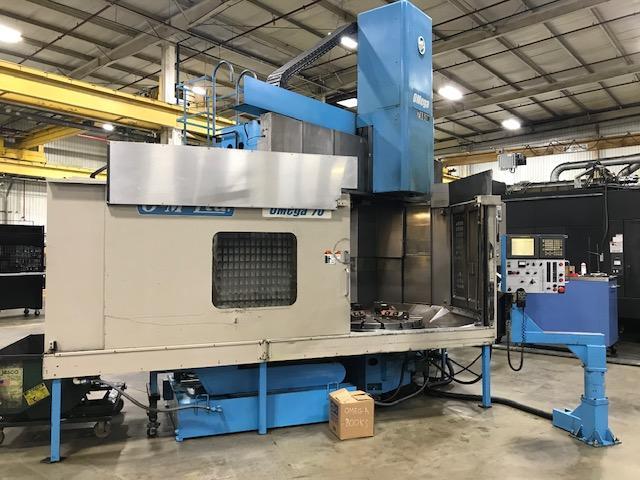

O-M Omega 70 Vertical CNC Lathe

Manufacturer

O-M

Category

Boring Mills

Type

BORING MILLS, VERTICAL - (Including Vertical Turret Lathes)

Stock

13418

Model

Omega 70

Dealer Location

Michigan

Request a Quote
View Contact Information

Spec Sheet

CNC Control - yes
Type of CNC Control - Fanuc 18iT
Table Dia - 49.25 inches
Max Table Load - 17600 pounds
Swing - 63 inches
Turning Diameter - 63 inches
Max Turning Height - 49.25 inches
Chuck Size - 49 inches
Max Height Under Rail - 61.62 inches
Min Height Under Rail - 38 inches
Ram Size - 8.25" x 8.25"
Crossrail Positioning Step (4 Steps) - 7.87" x 4 Steps
X-Axis Travel - 65.68 inches
Ram Travel Right of Center - 61.75 inches
Ram Travel Left of Center - 3.93 inches
Z-Axis Travel - 35.5 inches
X-Axis Rapid Traverse - 474 ipm
Z-Axis Rapid Traverse - 393 ipm
Table Speed (RPM) - 400
Table Motor (HP) - 60 horsepower
Milling - no
ATC Capacity - 16 Stations
Weight - 33000 pounds


- Fanuc 18iT Control
- 49" 4-Jaw Manual Chuck

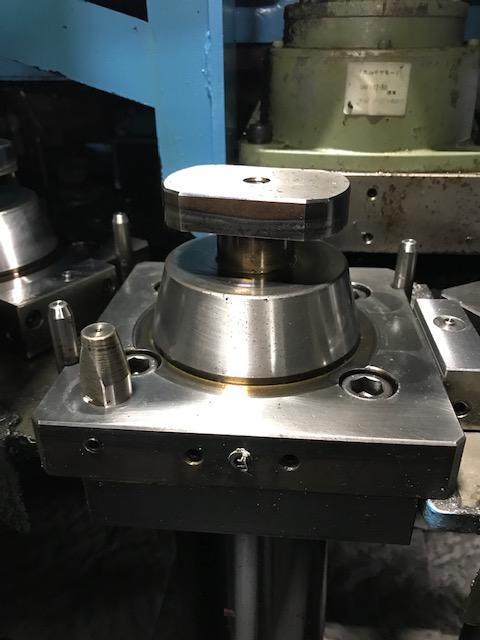

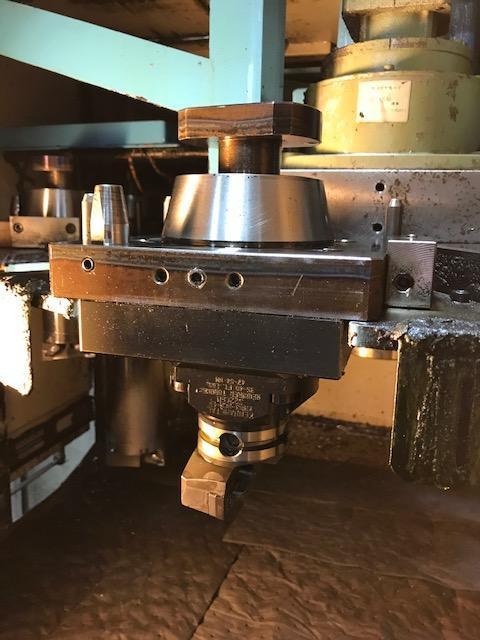

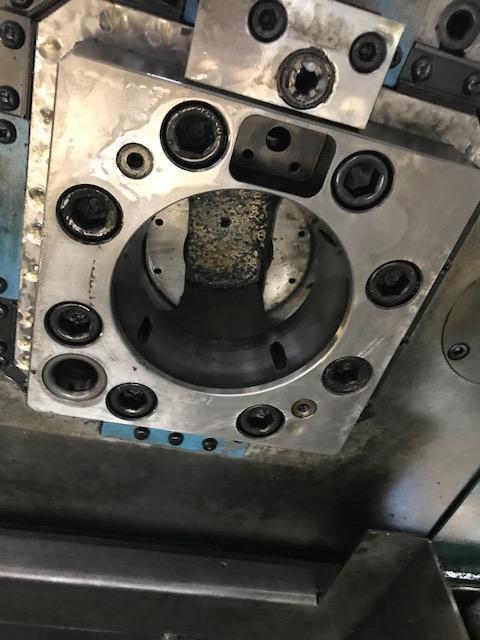

- Vertical Ram with 16 Station Automatic Tool Changer

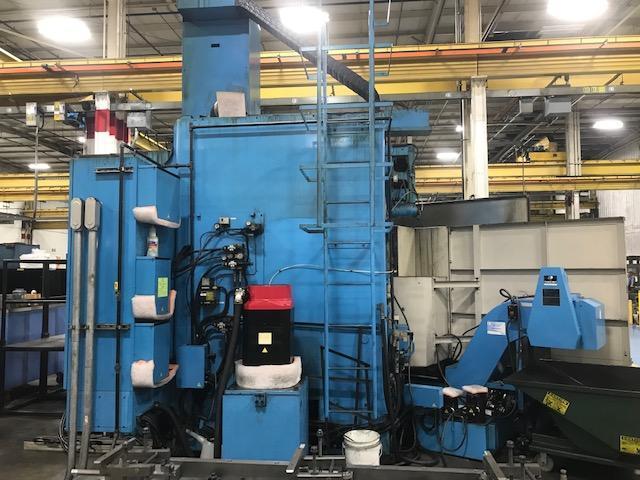

- Chip Conveyor
- Misc. Tooling Available
- 32 Tool Offset Pairs
- 125 Registered Programs
- Tool Geometry/Wear Compensation
- Tool Nose Radius Compensation
- Constant Surface Speed Control
- MACROS
- Champfering
