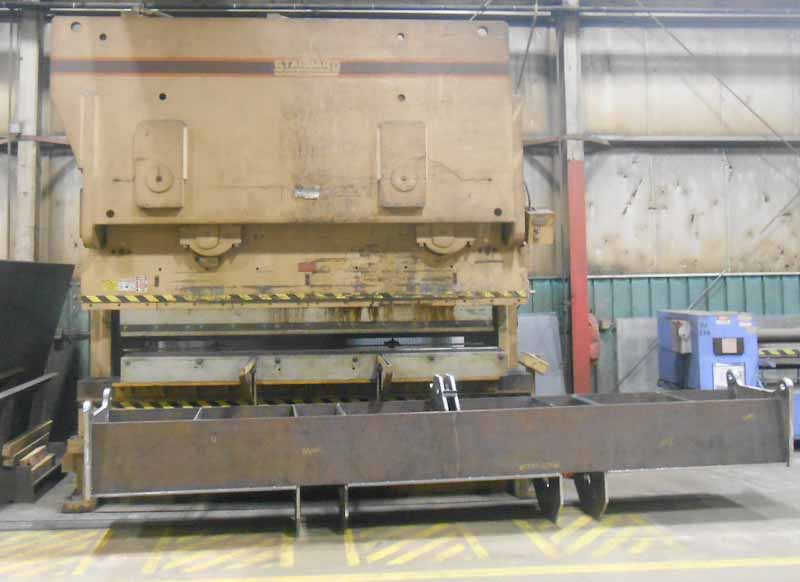

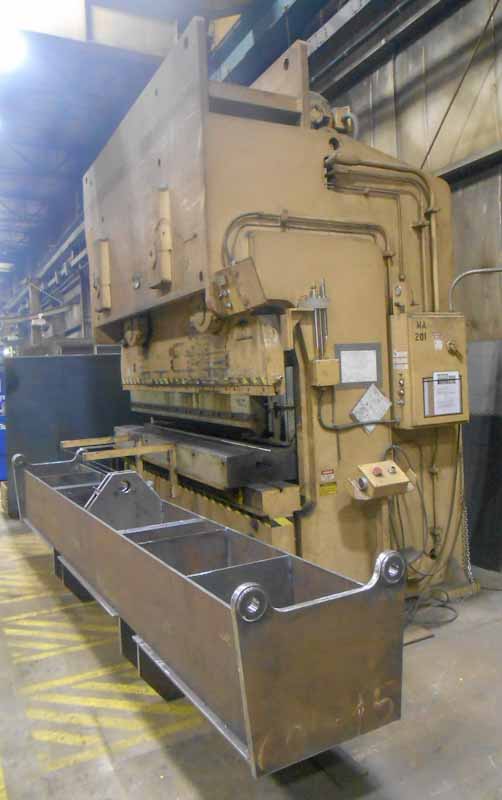

500-Ton Standard Model AB500-12 Hydraulic Press Brake

Stock

bras500x

Model

AB500-12

Dealer Location

Illinois

Spec Sheet

Forming Tonnage - 500 tons
Punching Tonnage - 330 tons
Overall Length of Bed and Ram - 12 feet
Distance between Housing - 10' 5"
Open Height - 28 inches
Stroke - 8 inches
Closed Height - 20 inches
Throat Depth - 10 inches
Overall Shipping Dimensions - 13' LR X 7' FB x 13' 1" Height (with Lower Beam Removed)
Approximate Weight - 82000 pounds

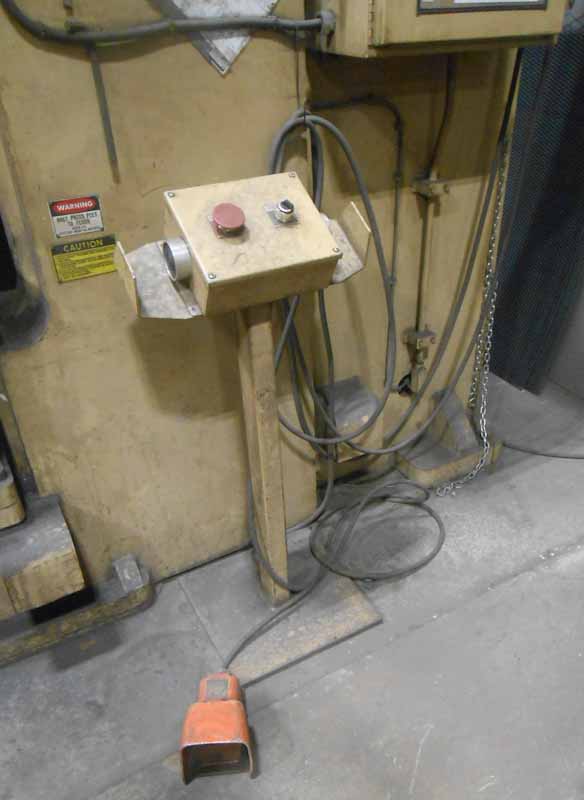

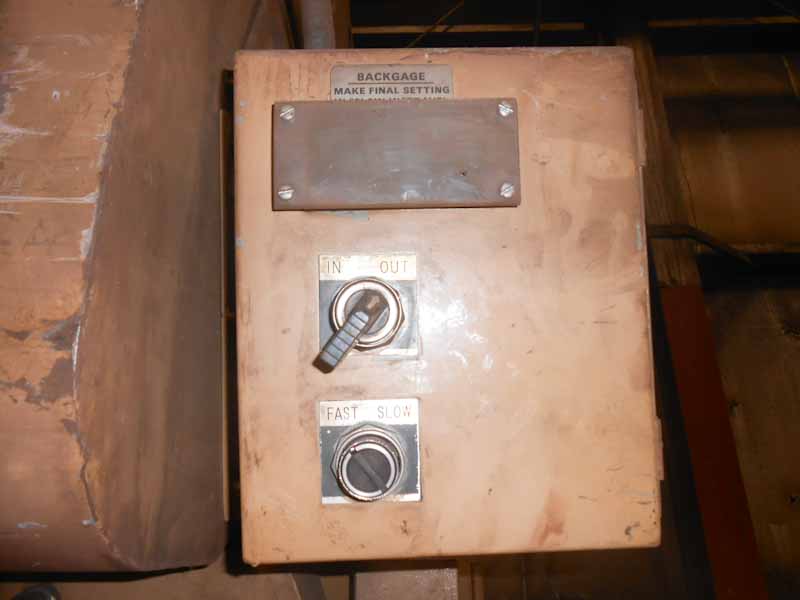

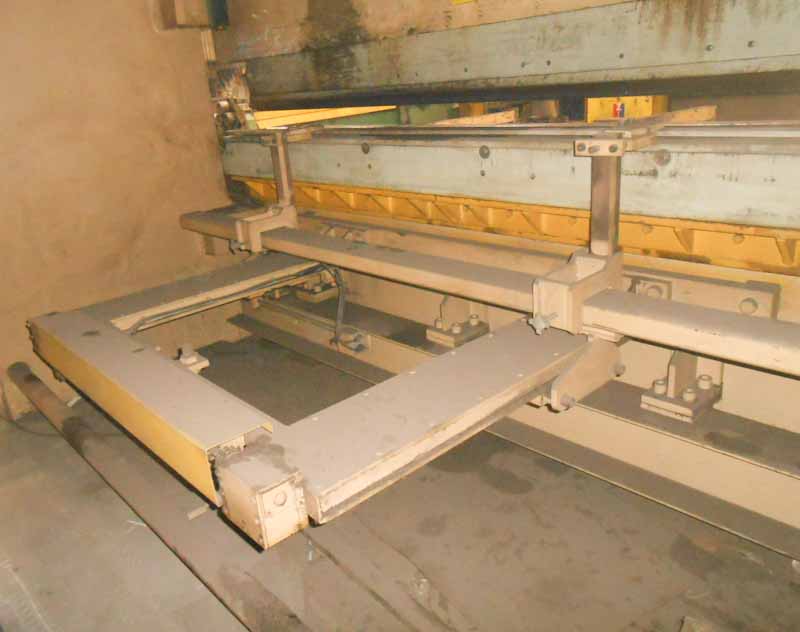

30" Front Operated Power Back Gauge. T-Stand with Dual Palms and E-Stop. Electric Foot Control. Hydraulic Pressure Adjustment with Pressure Gauge. Bed Machined for Flanges. 6" Extra Open Height. Bolt-In Lower Beam (Designed to be Removed for Shippment.)

**Approximately 18" deep Pit Required for Bed**
