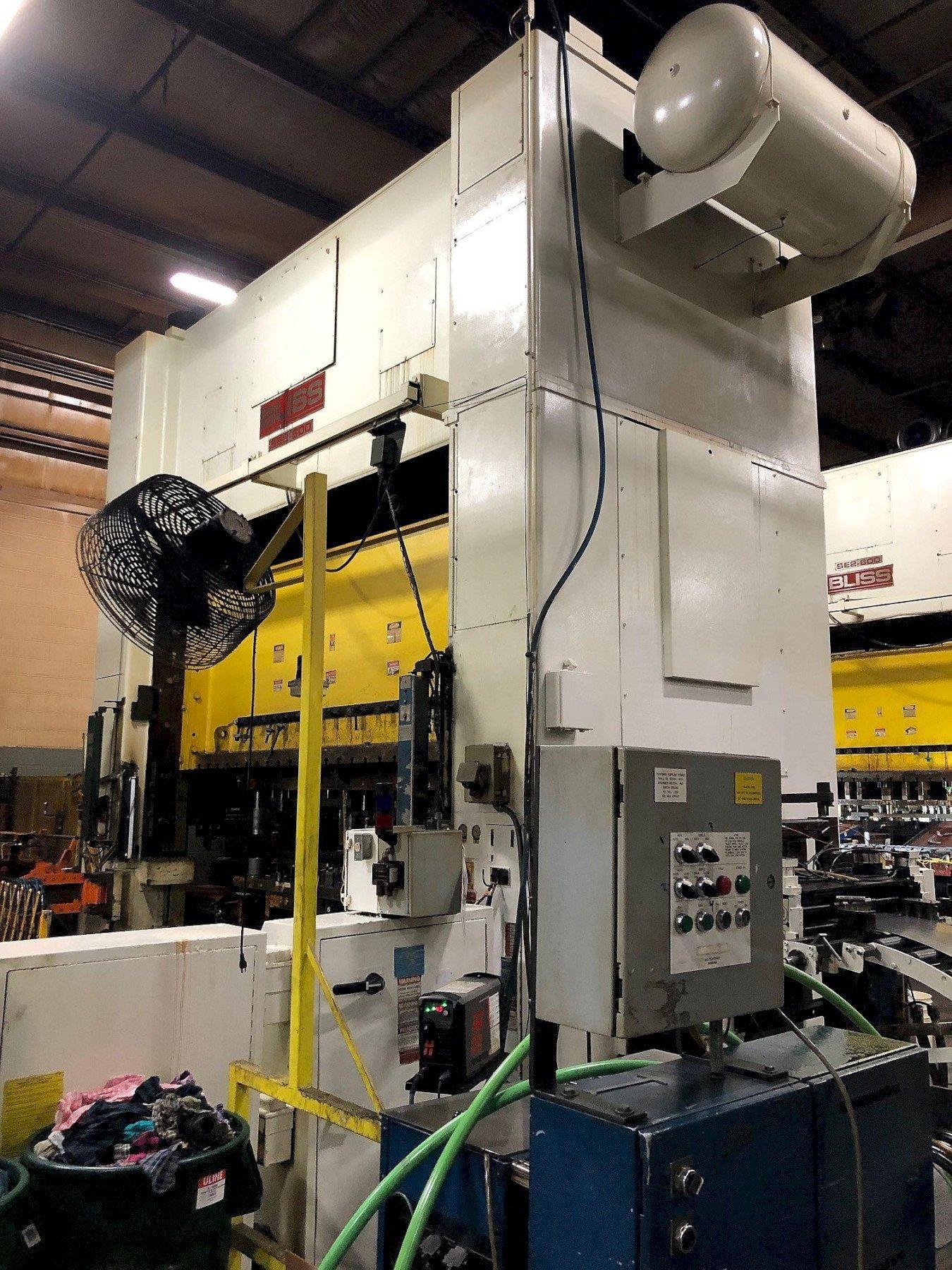

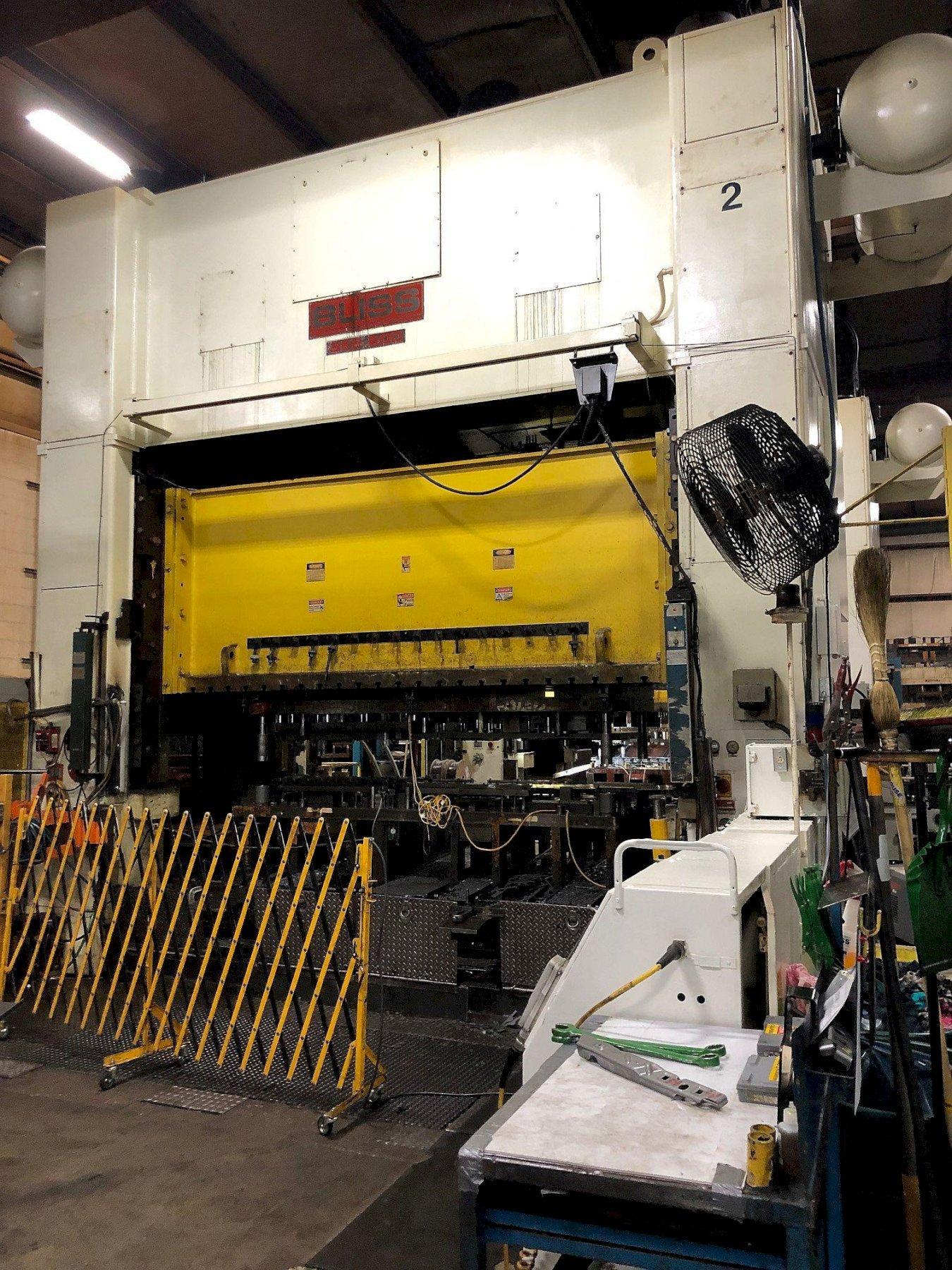

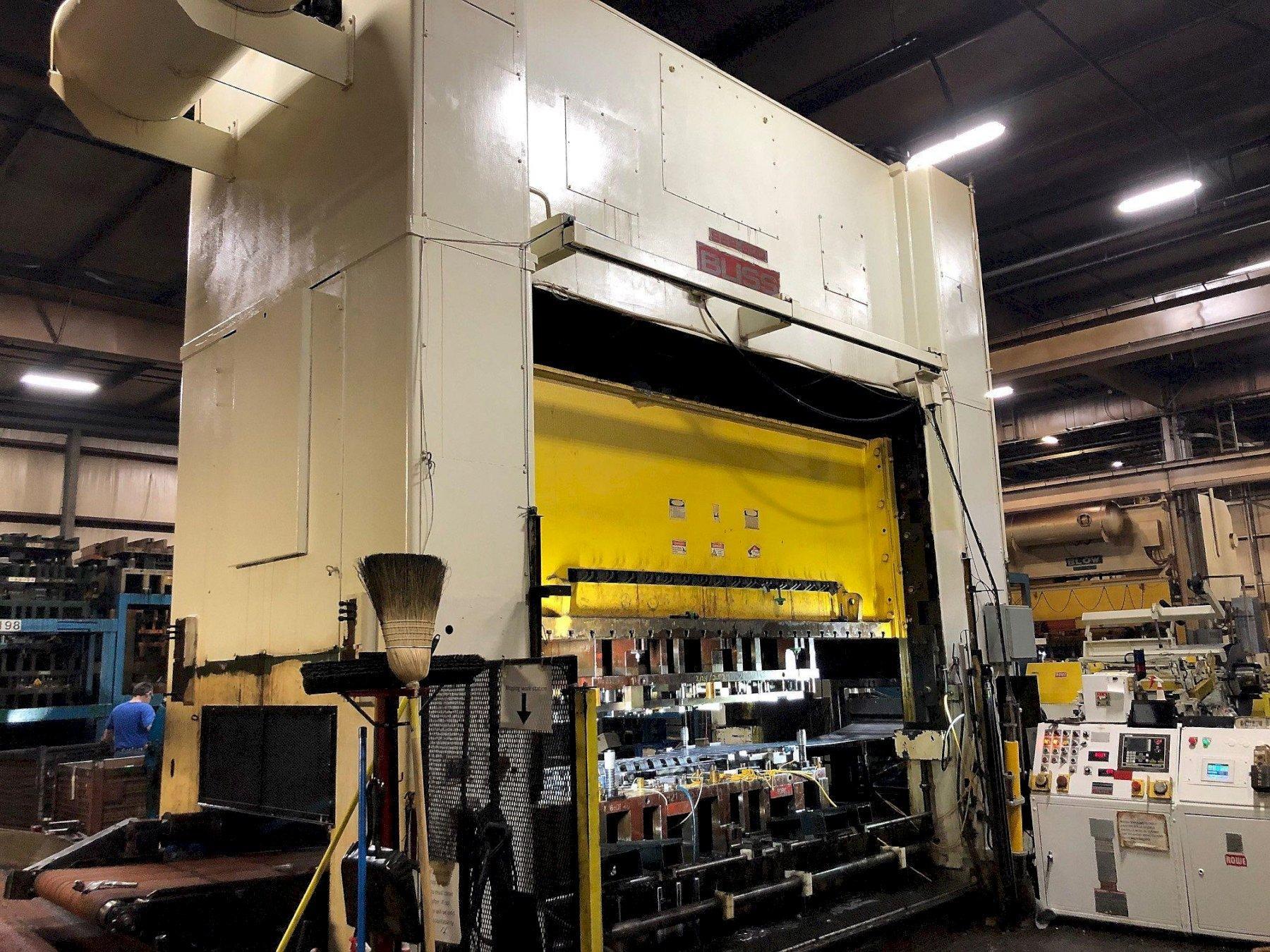

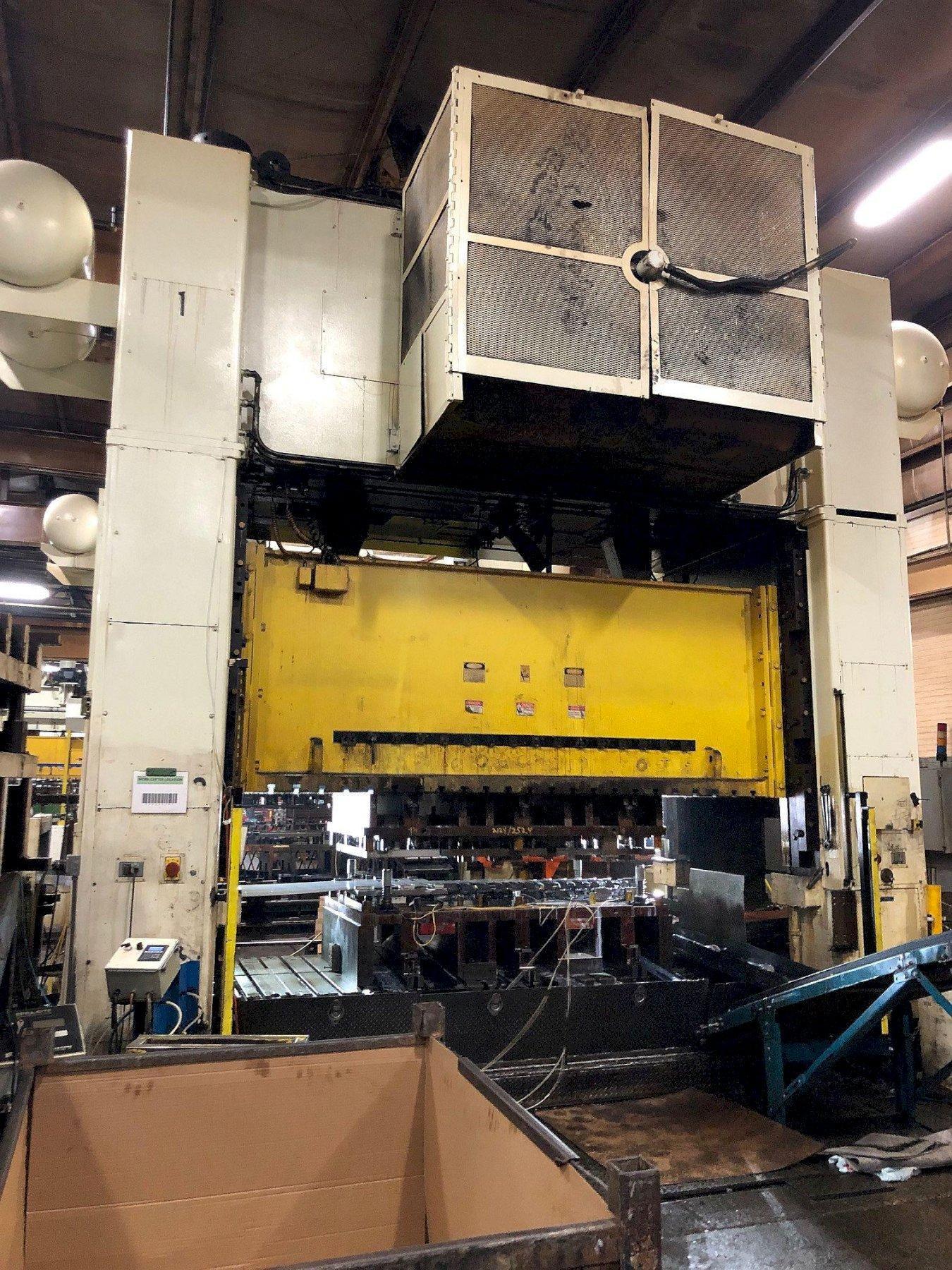

600 ton Bliss SE2-600-144-60 Straight Side Press, New 1996

Stock

2629

Model

SE2-600-144-60

Dealer Location

Michigan

Spec Sheet

Tonnage - 600
Stroke - 18 inches
Shut Height - 48.5 inches
Adjustment - 12 inches
Bed Size - 144" LR x 60" FB
Ram Area - 144" LR x 60 FB
SPM - 14-39


Standard Specifications
600 ton Capacity
18" Stroke
48.5" Shut Height
12" Motorized Adjustment
144" LR x 60" FB Bed Area
144" LR x 60" FB Slide Area
14-39 VSPM

Equipment and Features
Air Clutch and Brake
Air Counterbalances
Trabon Recirculating Lube System
T-Slotted Ram and Bolster
8.5" Bolster Plate
Free Standing Press Control

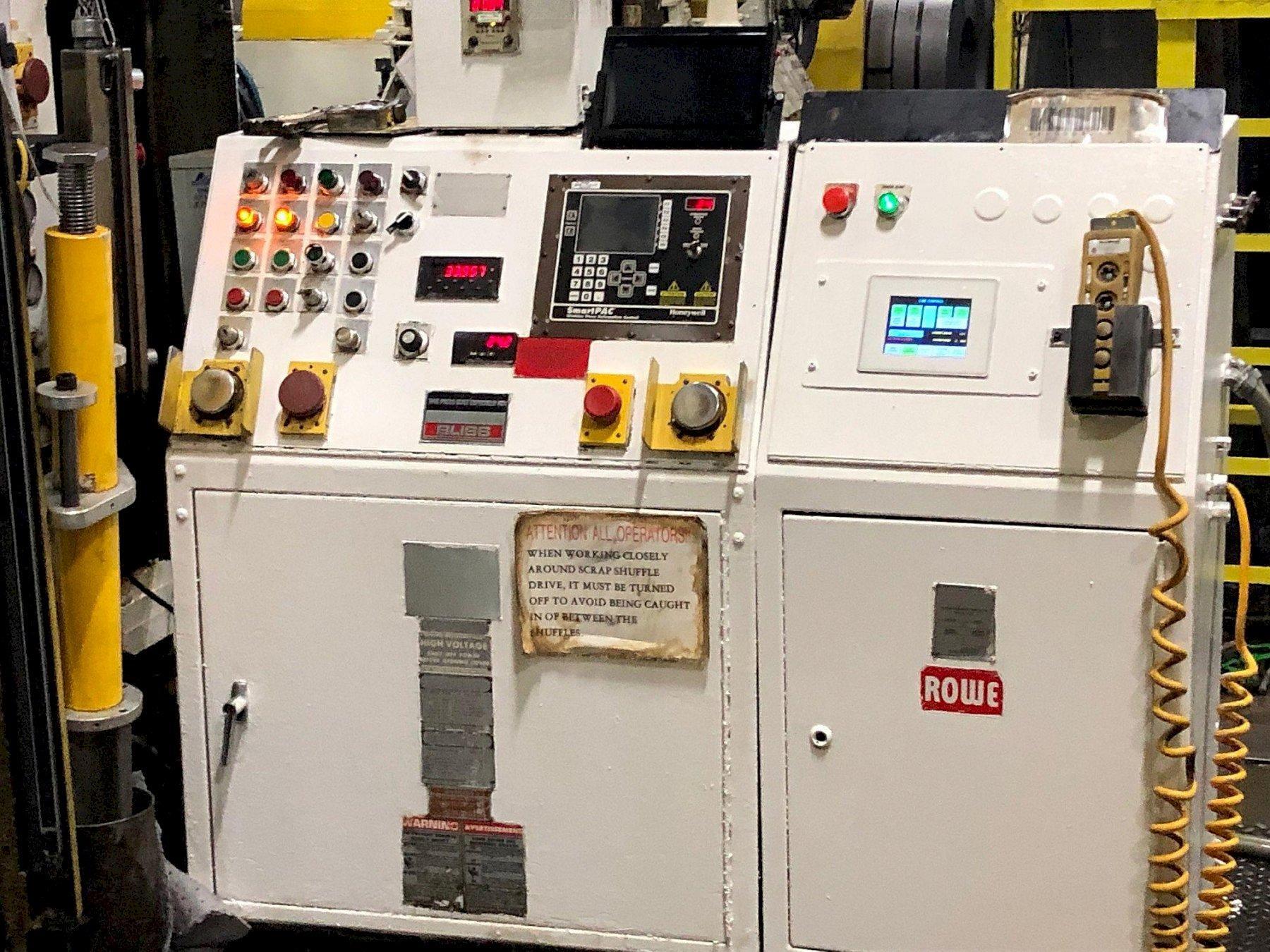

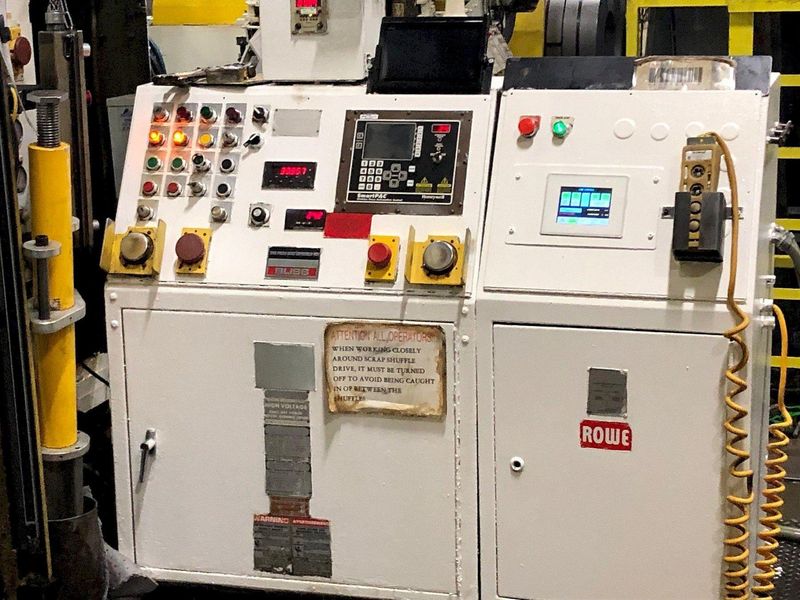

Wintriss Smart Pak Press Control
53" Wide Windows
Main Motor:  100 HP @ 560-1875 RPM
Set of Vibratory Isolation Levelers
Knockout in Slides
8 Point Gibbing
Single / Inch / Continuous
Hydraulic Tie Rod Nuts

Floor to Top of Bolster 24"
Footprint:  226" LR x 98" FB
