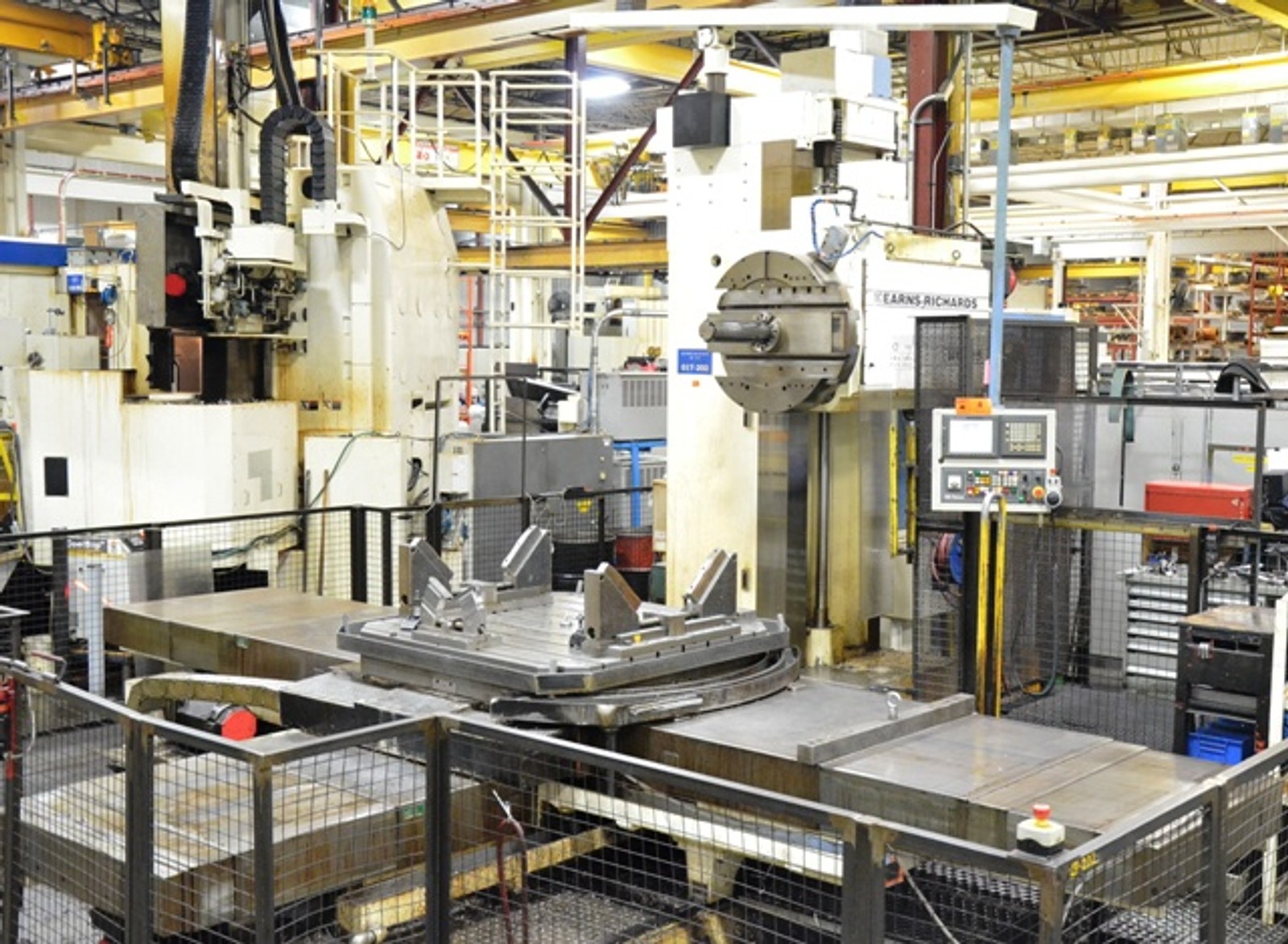

Kearns & Richards 4.92" 5-Axis CNC Table Type Horizontal Boring Mill ReMan & Retrofit 2002

Manufacturer

KEARNS & RICHARDS

Category

Boring Mills

Type

BORING MILLS, HORIZONTAL, TABLE TYPE, (Universal), CNC

Stock

22278

Model

125L

Dealer Location

North Carolina

Request a Quote
View Contact Information

Spec Sheet

#22278 Kearns & Richards 4.92” 5-Axis CNC Table Type Horizontal Boring Mill
Model: 125L
Sn:7312
Mfg: 2002

Specifications:
Spindle Diameter 4.92"
Spindle Taper #50
Spindle Speeds To 1,120 RPM
Table Size 60" x 60"
X-Axis Travel (Table Cross) 90.98"
Y-Axis Travel (Vertical) 71.20"
Z-Axis Travel (Spindle Quill) 28"
W-Axis Travel (Table Longitudinal) 58.70"

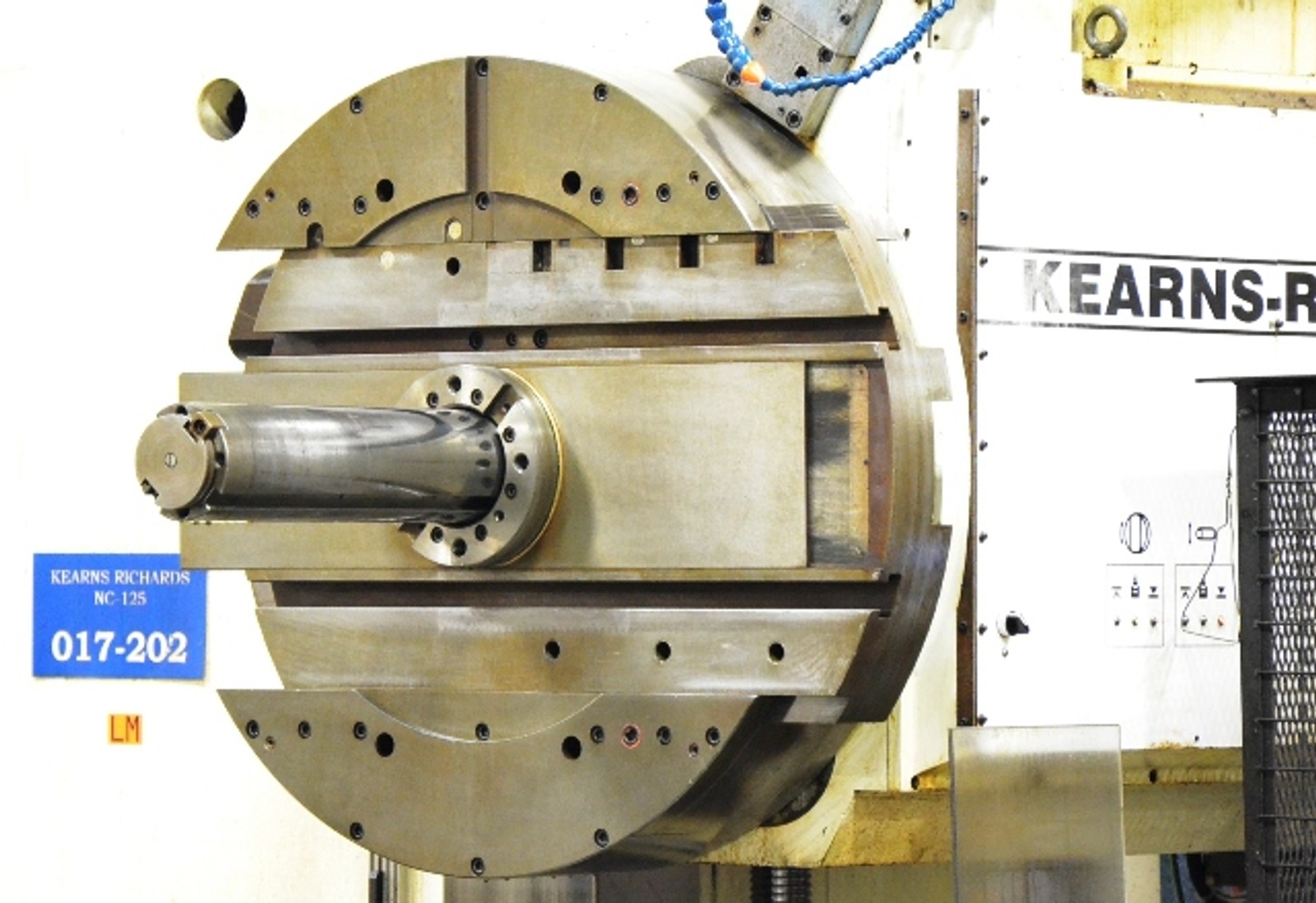

U-Axis Travel (Facing Head Slide) 7.60"

Equipped With:

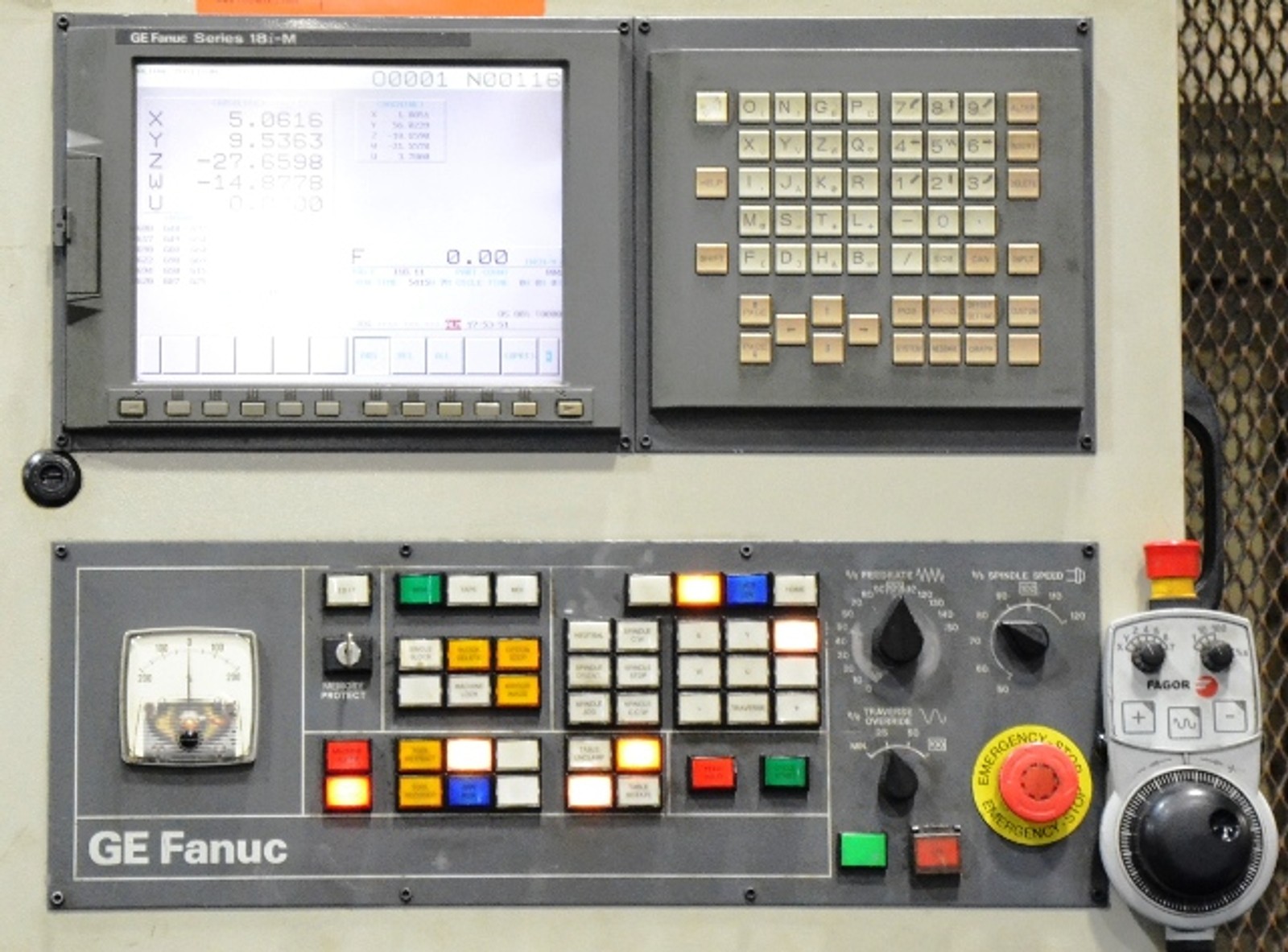

FANUC 18I-M 5-Axis CNC Control, Coolant, Chip Conveyor, Outboard Supports, 600V/3PH/50-60HZ, Re-Manufactured and Retrofit 2002
