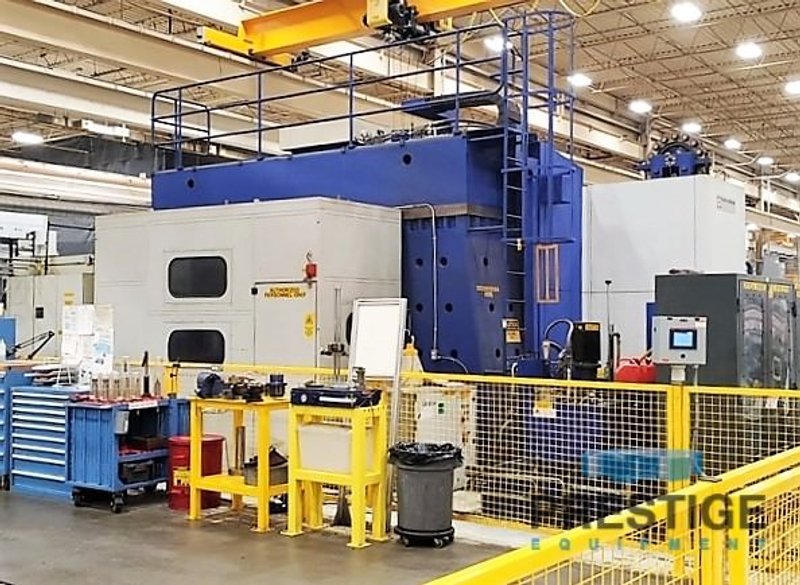

Tos FOQ 80-VR2,6, X-98",Y-63",Z-31.5",W-20", 78" x 78" Tbl, 25 Ton Tbl Cap, 7-Axis, Siemens 840D, 2008, #30936

Manufacturer

TOS

Category

Machining Centers

Type

MACHINING CENTERS, HORIZONTAL, CNC (Incl. Pallet Changers)

Stock

30936

Model

FOQ 80-VR2,6

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #30936

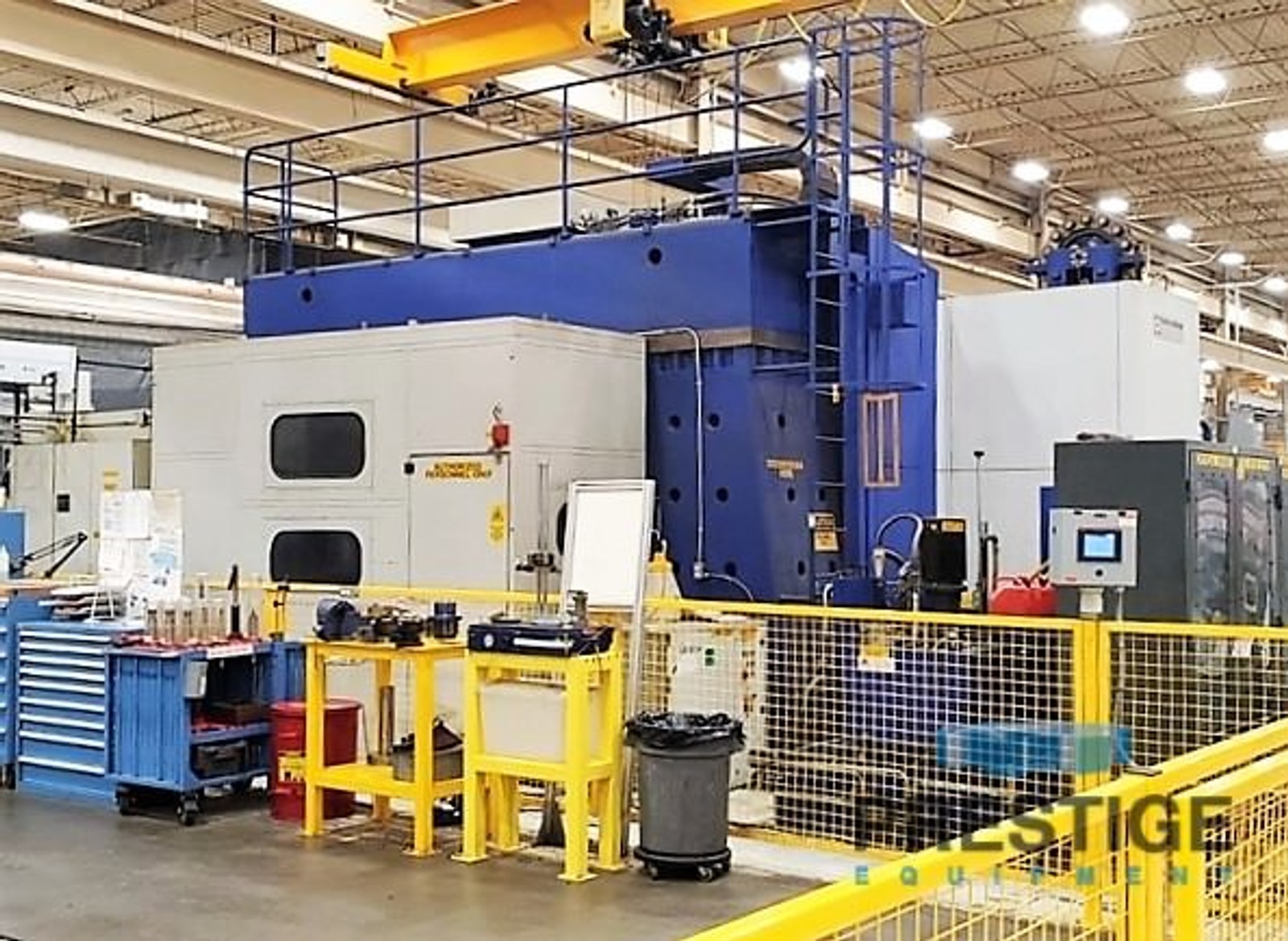

Tos FOQ 80-VR2,6 7-Axis Horizontal Machining Center

FEATURES:
Siemens 840D 7-Axis CNC Control
60-Station Automatic Tool Changer
4-Spindle Head Attachments
25 Ton Table Workpiece Capacity

CAPACITY:
X-Axis Travel ......................... 98.42"
Y-Axis Travel ......................... 62.99"
Z-Axis Travel ......................... 31.49"
W-Axis Travel ......................... 19.68"
A-Axis Rotation ....................... +90 / -120 Deg.
B-Axis Rotation ....................... .001 Deg.
C-Axis Rotation ....................... +/- 180 Deg.

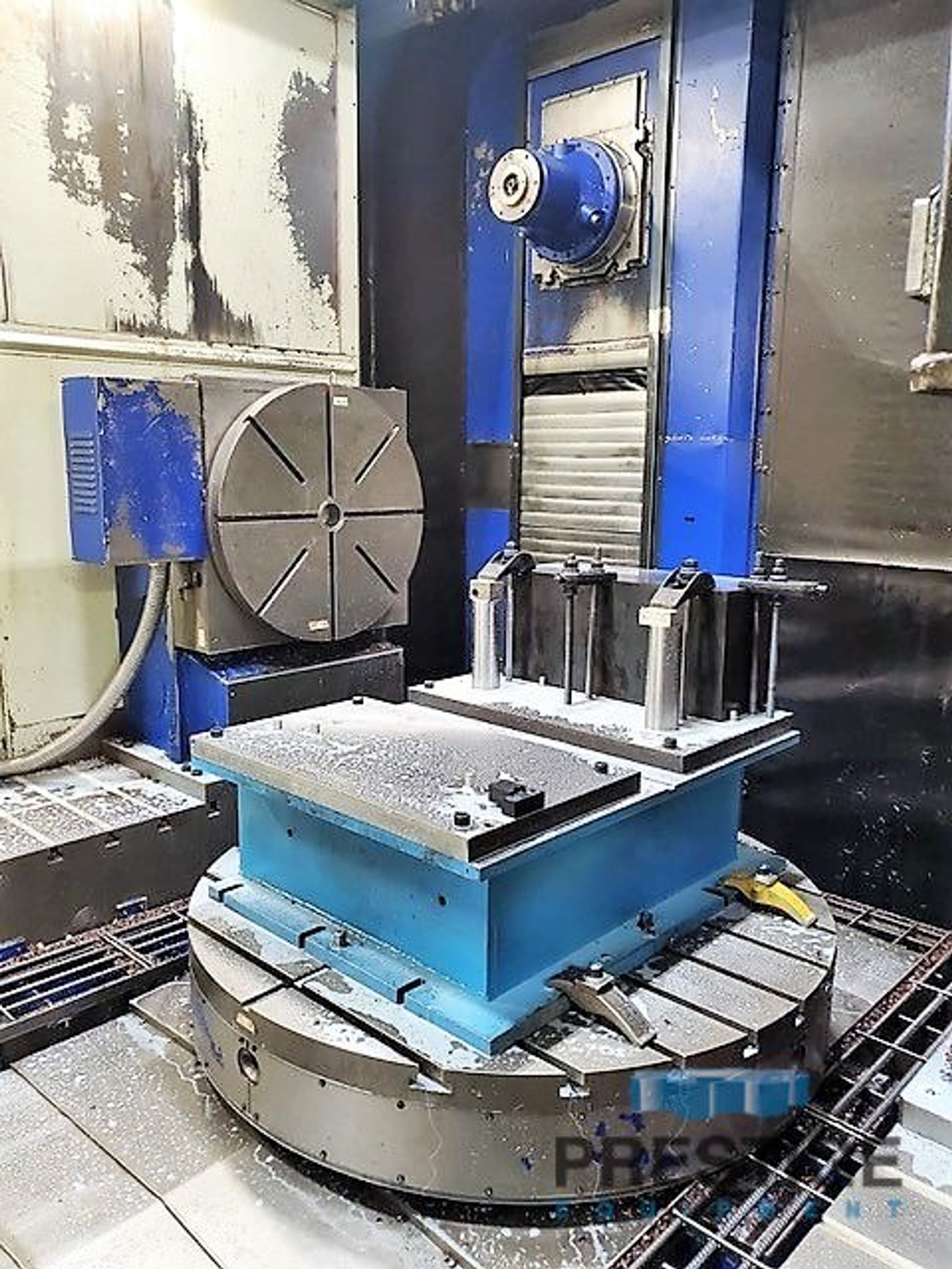

Table Dimensions ...................... 78.74" x 78.74"
Table Weight Capacity ................. 25 Ton
Working Feed Rate, X/Y/Z Axes ......... .039 - 1,181 IPM
Working Feed Rate, W-Axis ............. .039 - 196.85 IPM
Rapid Traverse, X/Y/Z-Axes ............ 1,181 IPM
Rotational Speed, A-Axis .............. 1 - 5400 Deg/Min
Rotational Speed, B-Axis .............. 1 - 1800 Deg/Min
Rotational Speed, C-Axis .............. 1 - 720 Deg/Min

VKE SPINDLE HEAD ATTACHMENT:
Maximum Spindle Speed ................. 16,000 RPM
Spindle Taper ......................... HSK-A 63
Motor ................................. 33.5 HP

VA1 SPINDLE HEAD ATTACHMENT:
Maximum Spindle Speed ................. 4000 RPM
Spindle Taper ......................... HSK-A 100
Maximum Motor Output .................. 40 HP
Maximum Spindle Torque ................ 2000 Nm

VO SPINDLE HEAD ATTACHMENT:
Maximum Spindle Speed ................. 4000 RPM
Spindle Taper ......................... HSK-A 100
Maximum Motor Output .................. 40 HP
Maximum Spindle Torque ................ 1250 Nm

VK SPINDLE HEAD ATTACHMENT:
Maximum Spindle Speed ................. 4000 RPM
Spindle Taper ......................... HSK-A 100
Maximum Motor Output .................. 40 HP
Maximum Spindle Torque ................ 1000 Nm

MACHINE DIMENSIONS:
Machine Footprint ..................... 425.19" x 294.37"
Machine Height ........................ 218.30"
Overall Machine Weight ................ 138,600 Lbs

EQUIPPED WITH:

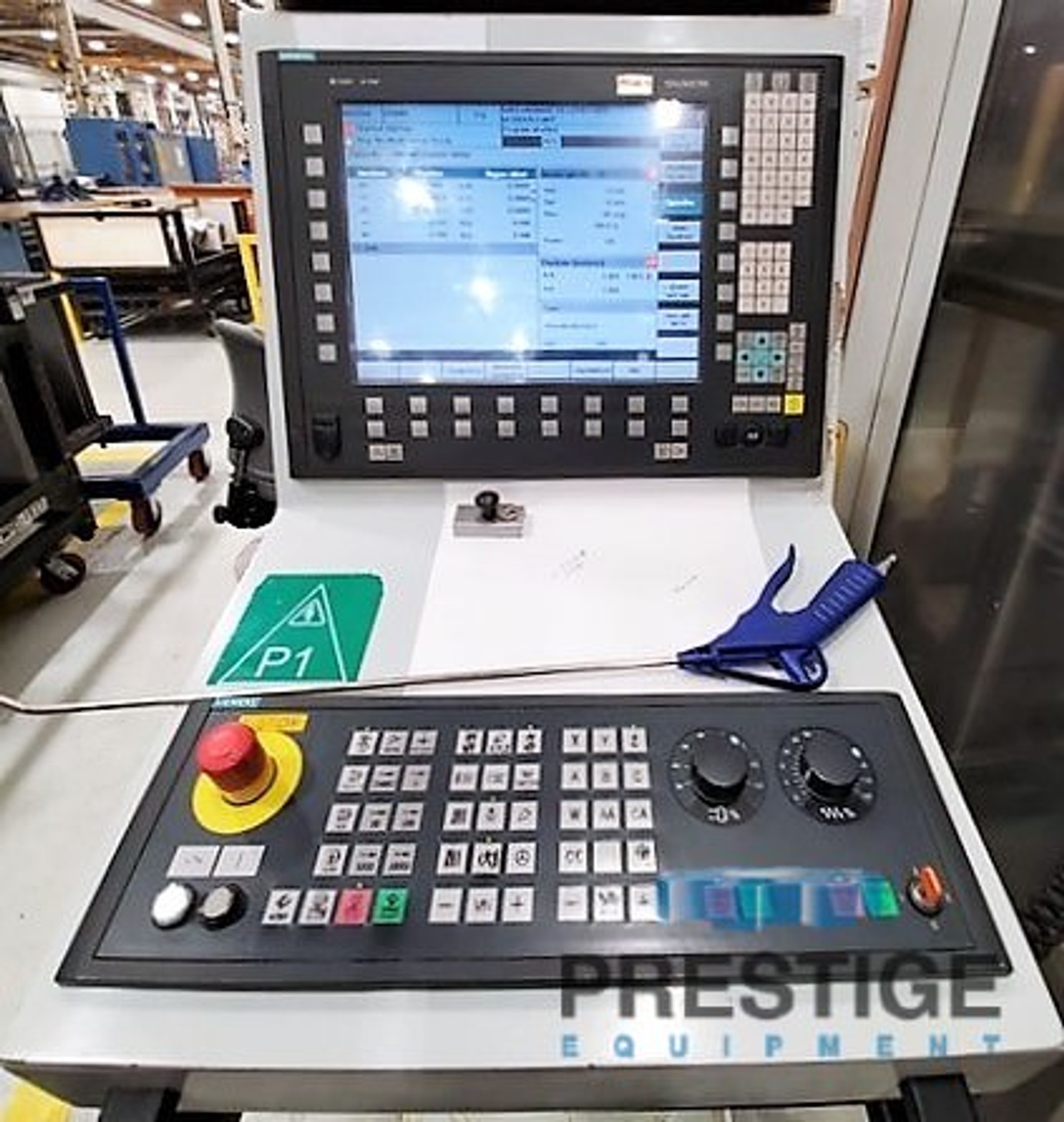

Siemens 840D 7-Axis CNC control
60-Station Automatic Tool Changer (HSK-A 100)

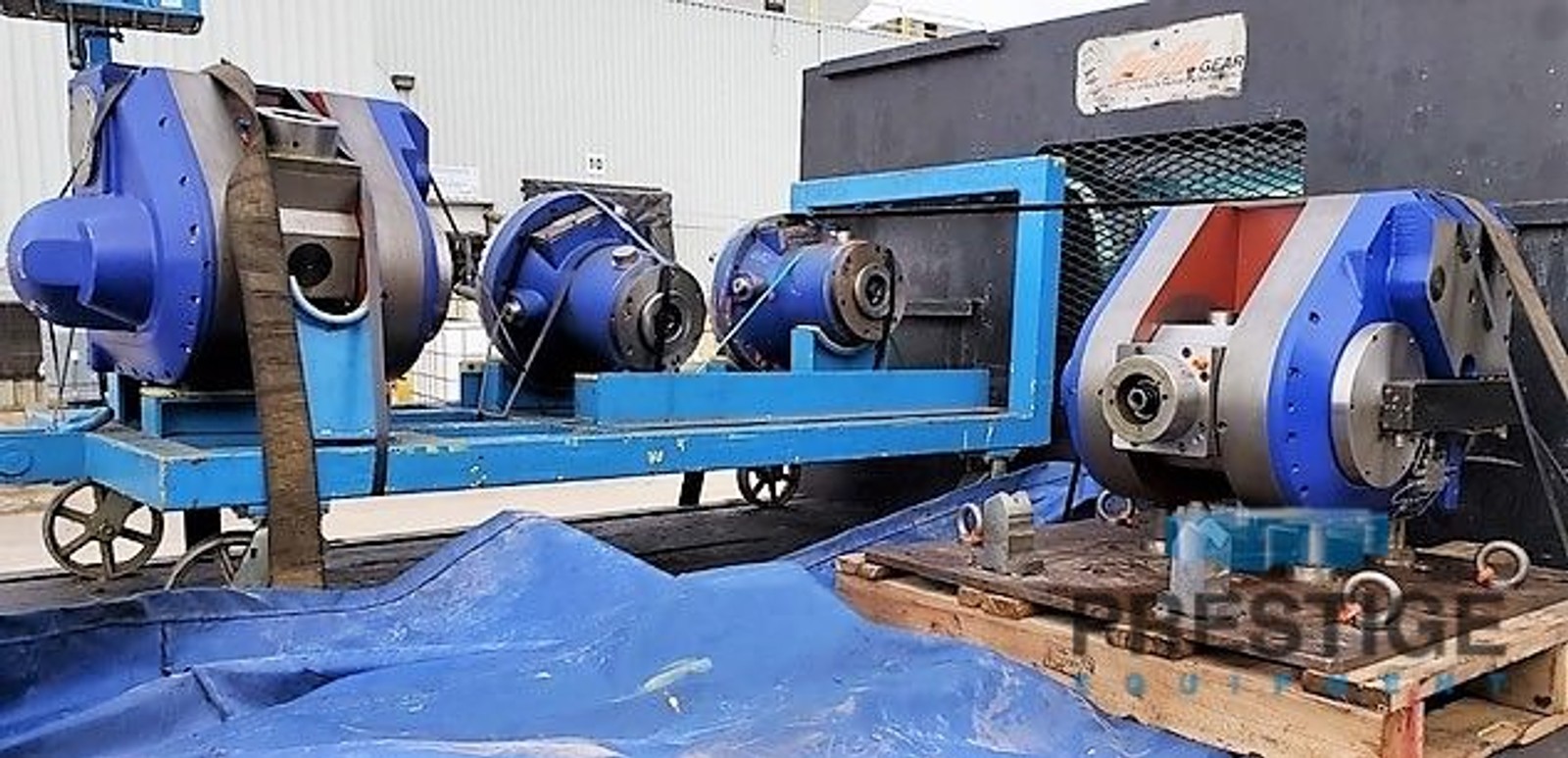

VKE Spindle Head Attachment
VA1 Spindle Head Attachment
VO Spindle Head Attachment
Chip Conveyor

NOTE:
Inspect In Plant Under Power

No Video Available
