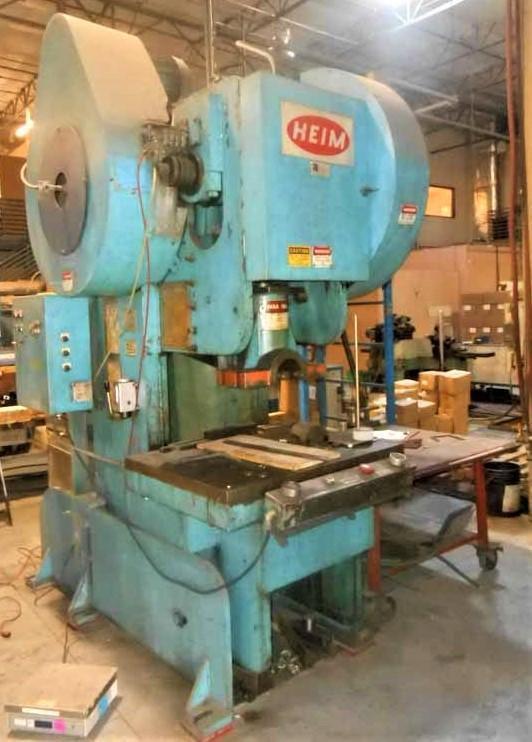

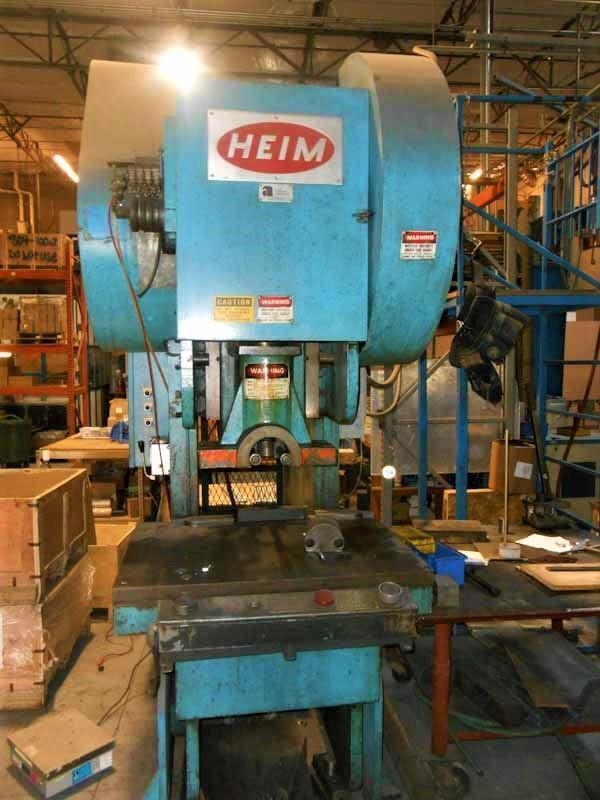

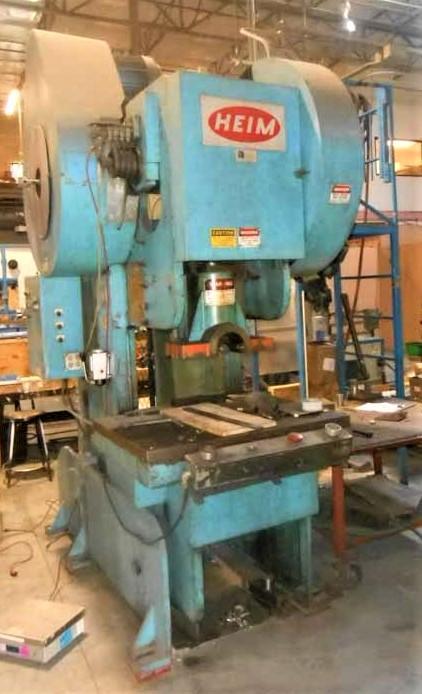

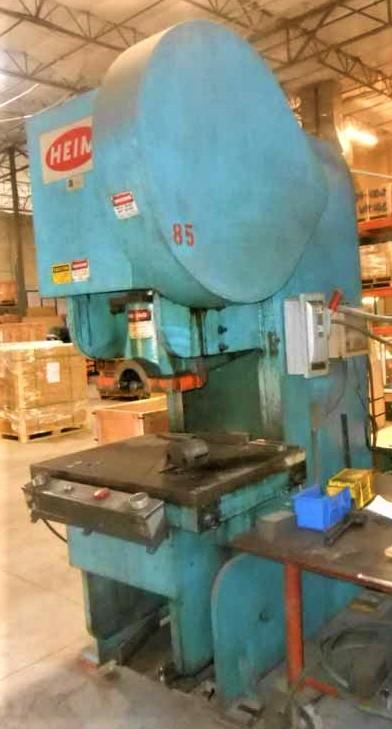

120-Ton HEIM Model 12-OBI-BG, Back Geared OBI Punch Press

Stock

PPH12X

Model

12-OBI-BG

Dealer Location

Illinois

Spec Sheet

Capacity - 120 tons
Stroke - 3 inches
Shut Height of Bed (SDAU) - 14 inches
Ram Adjustment - 4 inches
Bed Area - 30" x 40"
Face of Ram - 14" x 18"
Speed - 45 SPM
Width of Opening in Back - 20 inches
Hole in Ram - 2.5 inches
Main Motor - 10 HP
Electrics - 3/60/230/460v
Approximate Dimensions - 64"LR x 97"FB x 118"H
Approximate Weight - 16500 pounds


Air Clutch and Brake. Dual Palm Buttons. E-Stop. Controls for Inch-Single and Continuous Operation. 1 shot Lubrication. 2” Thick Bolster Plate. Brake Monitor.

The 120-Ton Press is represented as being in good operating condition and can be inspected under power.
