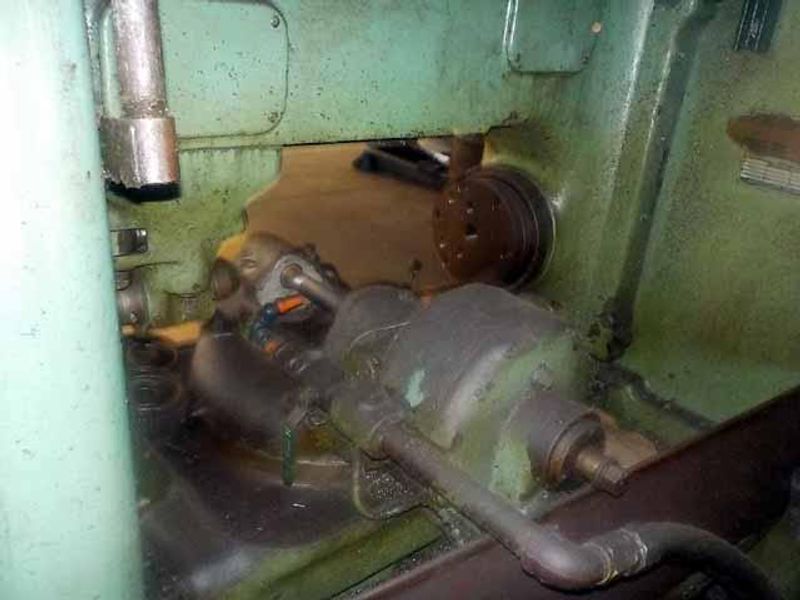

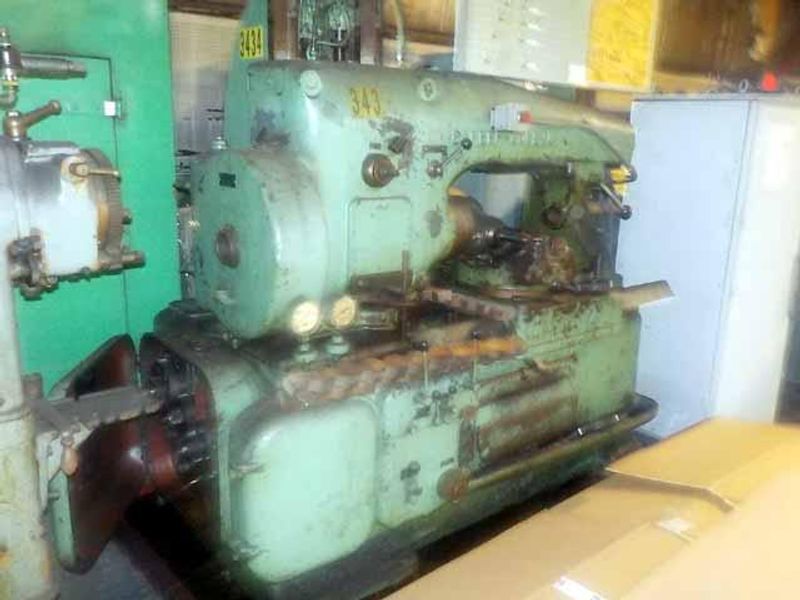

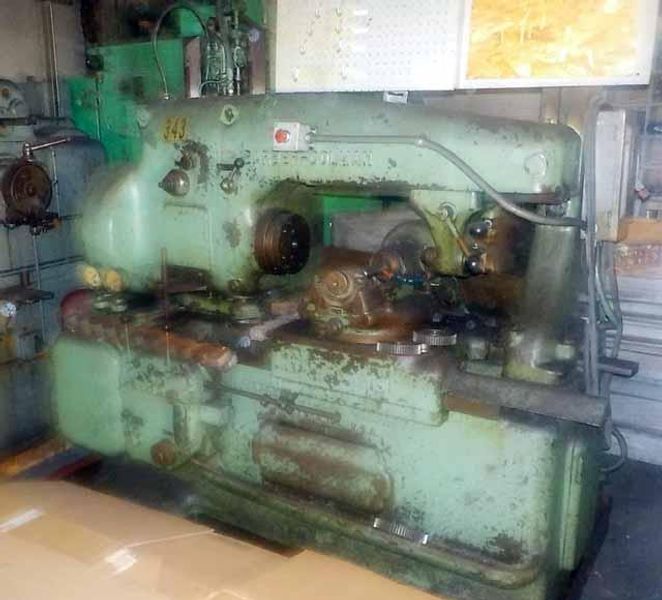

Barber-Colman Type D Gear Hobbing Machine

Manufacturer

BARBER COLMAN

Category

Gear Machines

Type

GEAR HOBBERS, VERTICAL, CNC

Stock

ghdx2

Model

D

Dealer Location

Illinois

Request a Quote
View Contact Information

Spec Sheet

Diameter, maximum - 14"
Face, maximum - 14"
Diametral pitch, steel - 3
Max. travel of hob slide - 15"
Max. dist. C/L work spindle to C/L hob spindle - 9-3/4"
Distance C/L work spindle to surface of overarm - 7-1/4"
Hob diameter, maximum - 5-1/2"
Hob length, maximum, taper spindle - 4"
Hob length, maximum, straight spindle - 5"
Hob spindle slide axial adjustment - 3"
Hob spindle speeds (8) - 62-240 RPM
Work spindle, taper in nose - No. 18 B &S
Diameter of hole thru spindle - 3-1/8"
Feed, max. inches per minute - 2"
Motor - 10 HP, 1800 RPM
Floor space, occupied by base - 70-11/16" x 38-3/4"
Length overall, doors closed - 80"
Width overall, doors closed - 43"
Width overall, doors open - 59"
Weight, approximate - 10,000 lbs


Single Thread Index. Universal Hob Slide. Lever Operated Tailstock.

This machine is being offered "As Taken From Service". It can be inspected at your convenience.
