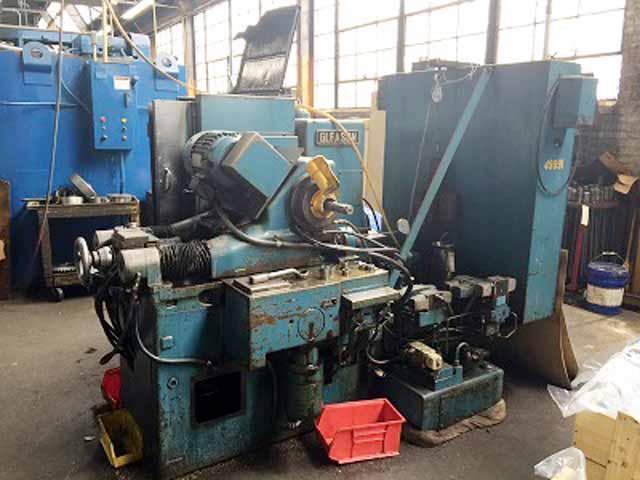

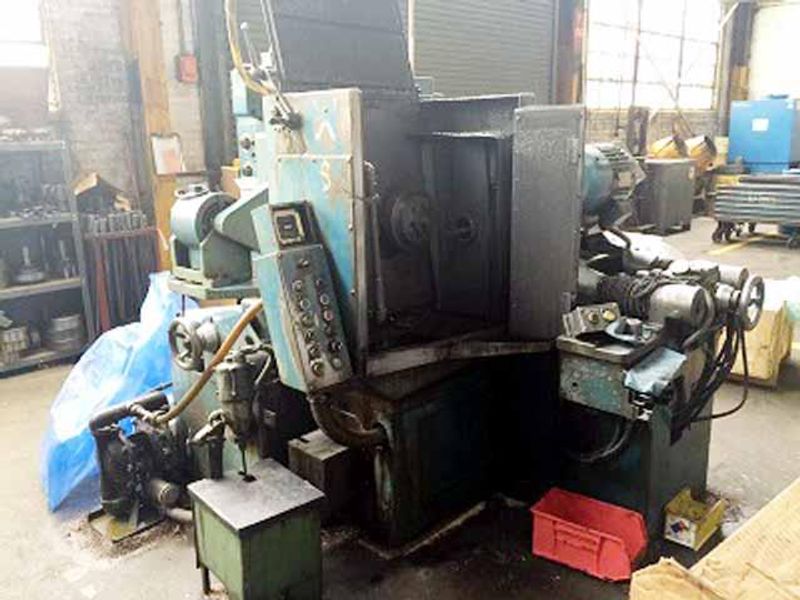

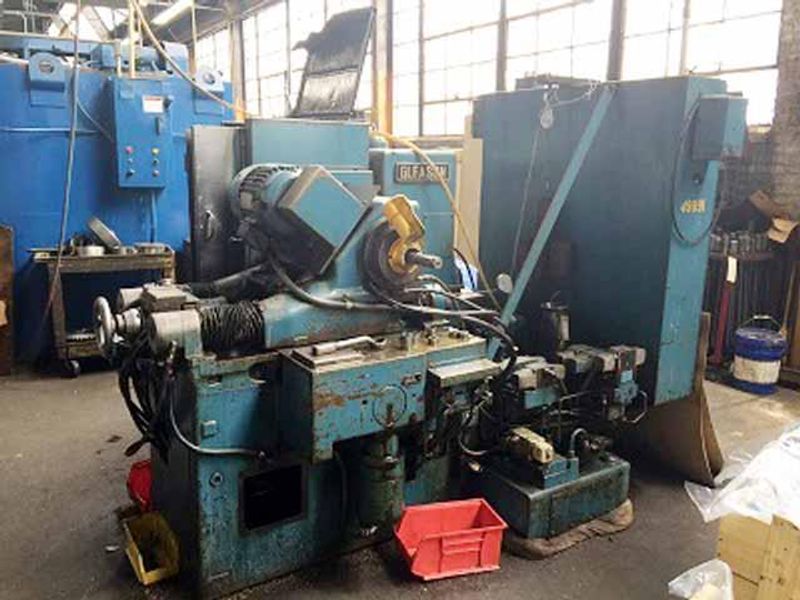

Gleason Model 516 Gear Lapper

Manufacturer

GLEASON

Category

Gear Machines

Type

GEAR LAPPERS

Stock

gh516x

Model

516

Dealer Location

Illinois

Request a Quote
View Contact Information

Spec Sheet

Diameter of Gear (Max) - 24"
Diameter of Pinion (Max) - 12"
Offset of Gear Spindle Above or Below Center of Pinion Spindle (Max.) - 6"
Speed - 1200 RPM
Diameter of Taper at Large End - 3-29/32"
Taper per Foot - 39/64"
Depth of Taper - 3"
Diameter of Taper at Large End - 2-19/64"
Taper per Foot - 1/2"
Depth of Taper - 3"
Main Motor, Standard - 5 HP, 1800 RPM
Hydraulic Pump Motor - 1 HP, 1800 RPM
Floor Space - 80" x 90" x 72"
Net Weight - 11,200 lbs

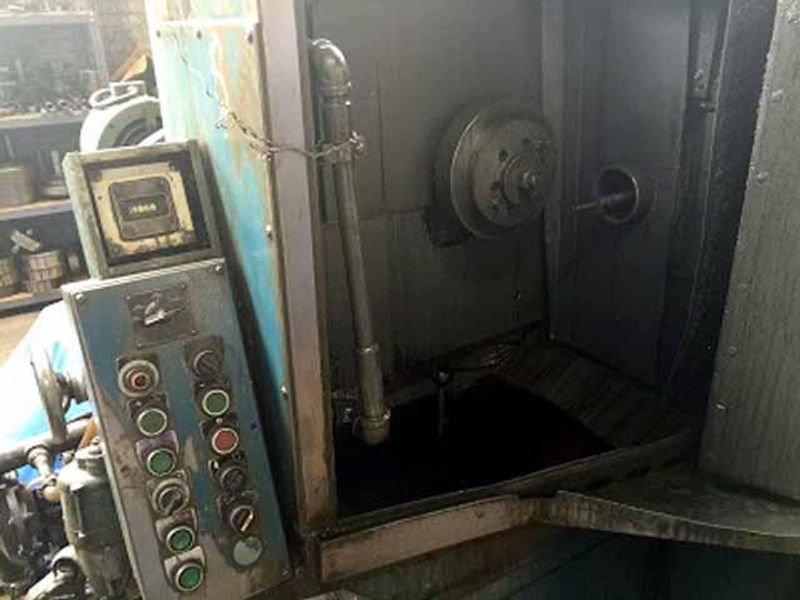

Hydraulic Chucking. Lapping System. Drawbar. Work Holding.

This machine is being offered cleaned and cycled and may be inspected at your convenience.
