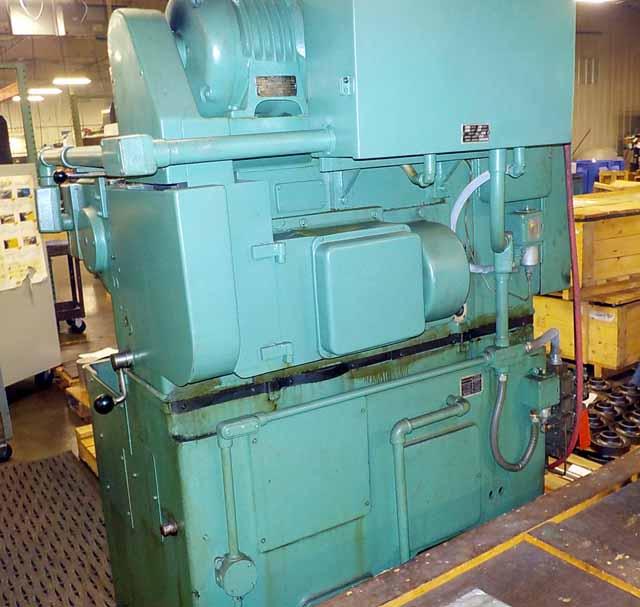

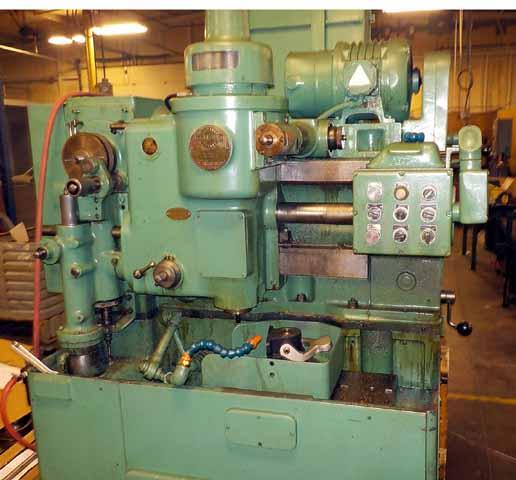

4GS, Fellows Model 4GS High Speed Gear Shaper

Manufacturer

FELLOWS

Category

Gear Machines

Type

SHAPERS, GEAR

Stock

gh4gbx

Model

4GS

Dealer Location

Illinois

Request a Quote
View Contact Information

Spec Sheet

Maximum Pitch Diameter External - 6"
Maximum Pitch Diameter Internal - 6"
Maximum Diametral Pitch Spur - 4
Maximum Diametral Pitch Helical - 5
Maximum Face Width External & Internal - 2"
Maximum Helix Angle w/Standard Guides (using 5" cutter) - 45°
Spindle Speed - 37-635 SPM
Approximate Dimensions - 56" LR x 44" FB x 82"H
Approximate Weight - 6,500 lbs

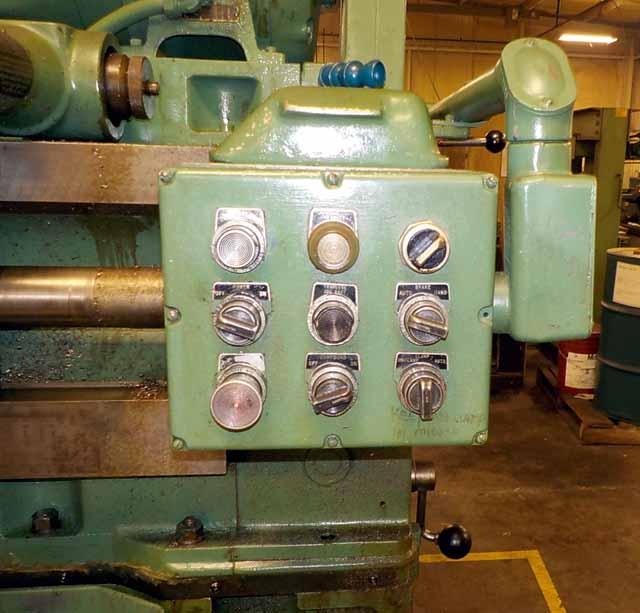

For External And Internal Spur And Helical Gears Splines Clutches Cams And Other Non-Involute Shapes. Motor Driven With 3 HP 3 Phase 60 Cycle 220 Volt Main Motor. ¾ HP Coolant Pump Motor. MD Lubrication System. Complete Electrical Controls.Straight Spur Guide. Manual Semi-Automatic And Fully Automatic Cycles. Coolant System Automatic Lubrication System. Change And Feed Gears.

This machine appears to be in good operating condition and can be inspected under power.
