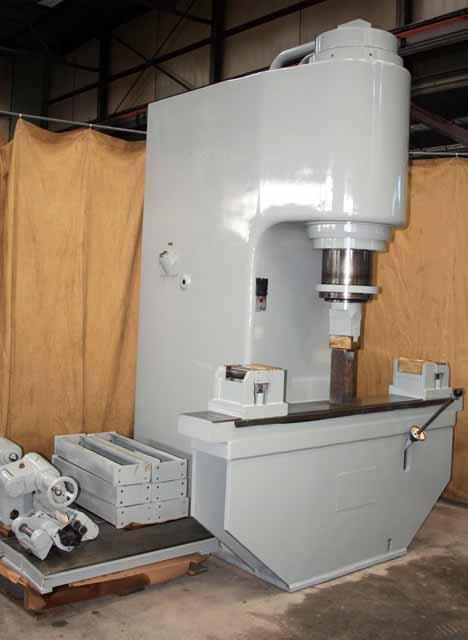

Eitel Model RP-160 Straightening Press

Manufacturer

EITEL

Category

Presses

Type

PRESSES, STRAIGHTENING

Stock

pp1274

Model

RP-160

Dealer Location

Illinois

Request a Quote
View Contact Information

Spec Sheet

Maximum Straightening Pressure - 175 Ton
Straightening Bed (L x W) - 79" x 10.75"
Bed Width Extensions - 279"
Length of Pressure Bearing Bed - 72"
Ram Speed Up - 375 IPM
Ram Speed Down - 90 IPM
Total Stroke - 10"
Controllable Straightening Stroke (Adjustable) - 7/8"
Daylight to Table, Maximum - 31.5"
Daylight to Table, Minimum - 13-3/4"
Depth of Throat - 13.75"
Front of Table to Face of Machine - 19.75"
Height of Table - 35"
Height of Centers - 9.5"
Maximum Swing - 14-1/8"
Distance between Centers - 249"
Maximum Weight Workpiece - 1,770 lbs
Overall Height - 120"
Approximate Weight - 16,000 lbs.

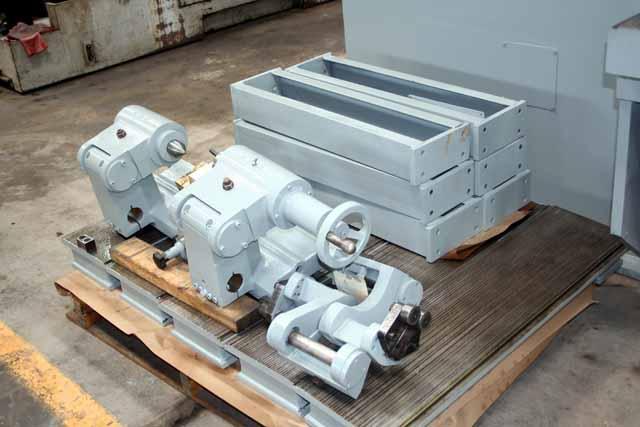

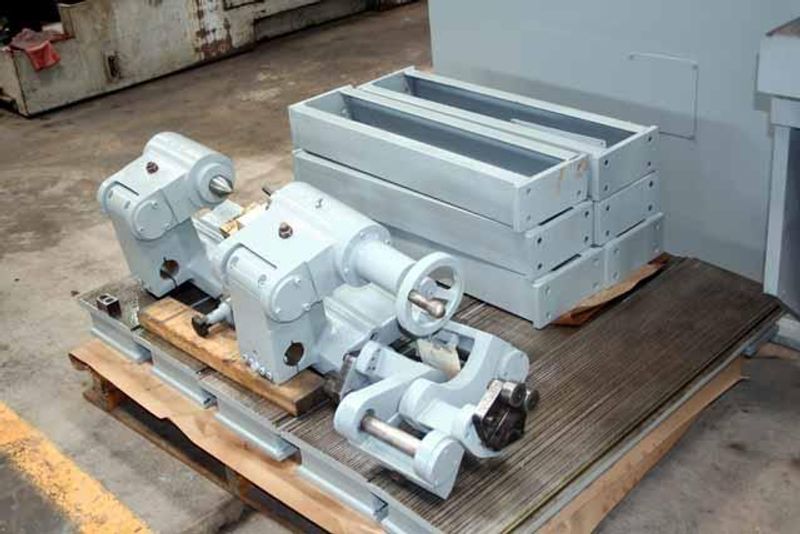

Motor Driven With 25 HP 3 Phase 60 Cycle AC Hydraulic Pump Drive. Complete Electrical Controls.Stroke Control Allowing For Fine Adjustment Of The Lowest Position Of The Ram Within The Last 20mm Of The Set Ram Stroke. Limitation Of Return Stroke For Presetting The Shortest Stroke To Suit The Job Thereby Reducing Operating Time. WR3 Shaft Straightening Attachment Complete With Center Supports With Right Hand Handwheel For Center Adjustment. Roller Type Work Rests For Uncentered Workpieces. Turret Stop For Minimizing Stroke. Swinging Measuring Bracket Mounted To Frame Complete With Dial Indicator. (4) 40 Table Extension With Supports. (2) 20 Table Extensions With End Stops And Supports.

This machine is being offered thoroughly checked out, cleaned and cycled.  It is being offered with a 30-Day Return Privilege and may be inspected under power.
