Niles A96BT, 116" Swing, 960" C.C, 60 RPM, 200 ton Wieght Cap., Threading, Taper Attachment, 200 HP, #30753

Manufacturer

NILES

Category

Lathes

Type

LATHES, ENGINE

Stock

30753

Model

A96BT

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #30753

Niles A96BT 108" X 85' Heavy Duty Conventional Lathe

FEATURES:
Taper Attachment
Inch Threading
Hardened V-Type Ways
Tailstock with Power Feed
3-Way Bed (4-Sections)
200 HP DC Spindle Drive 440/3/60

CAPACITY:
Maximum Swing ......................... 116"
Max. Swing Over Carriage Bridge ....... 77"
Center Distance, Turning .............. 960"
Spindle Speeds: (3-Ranges) ............ .75-60 RPM
Weight Capacity ....................... 200 Ton
Threading Range ....................... 1-46 TPI
Range Of Threading (64) ............... 5.33-1"

EQUIPPED WITH:

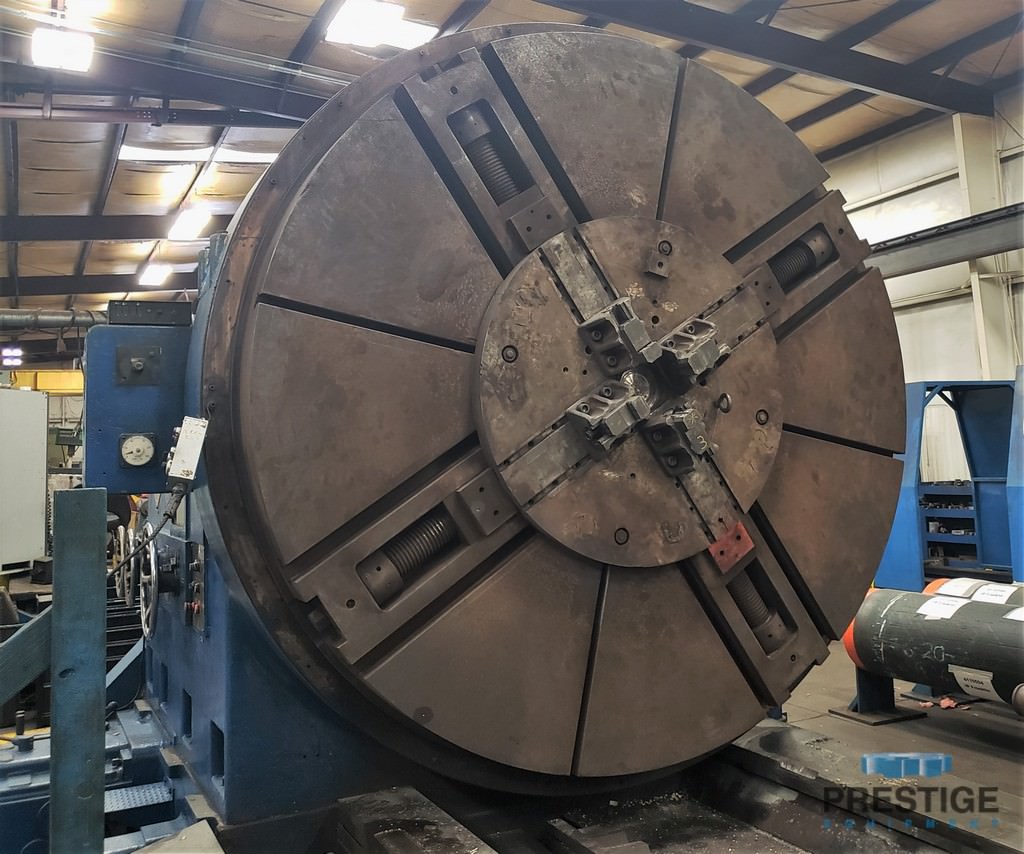

100" 4-Jaw Chuck

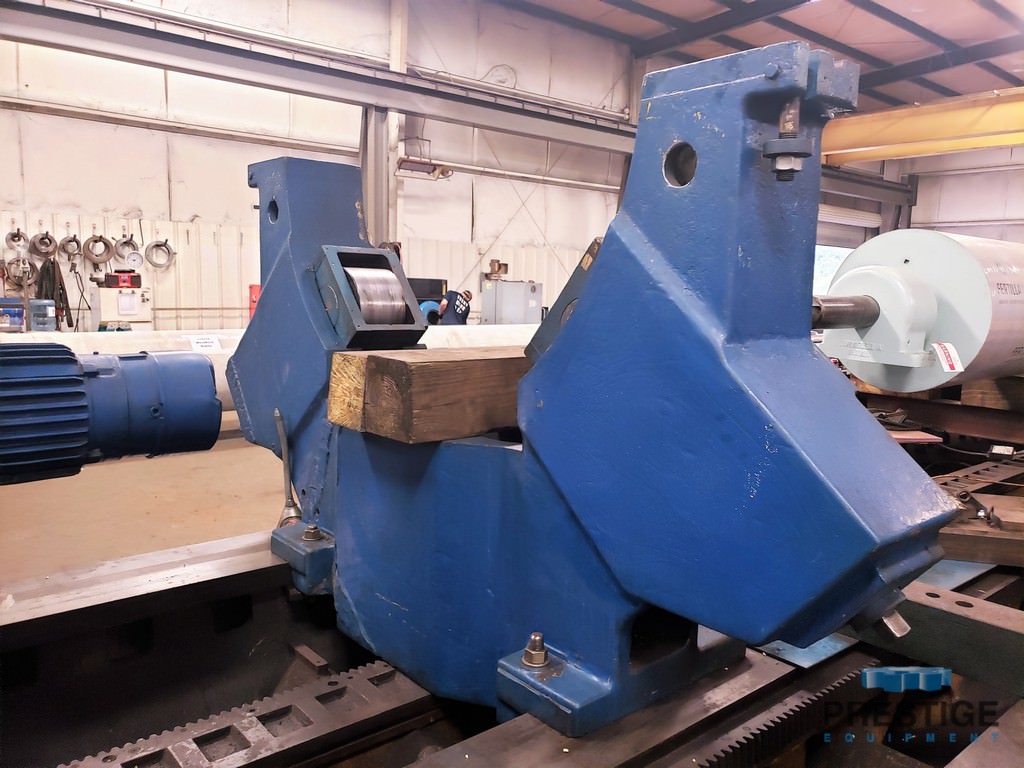

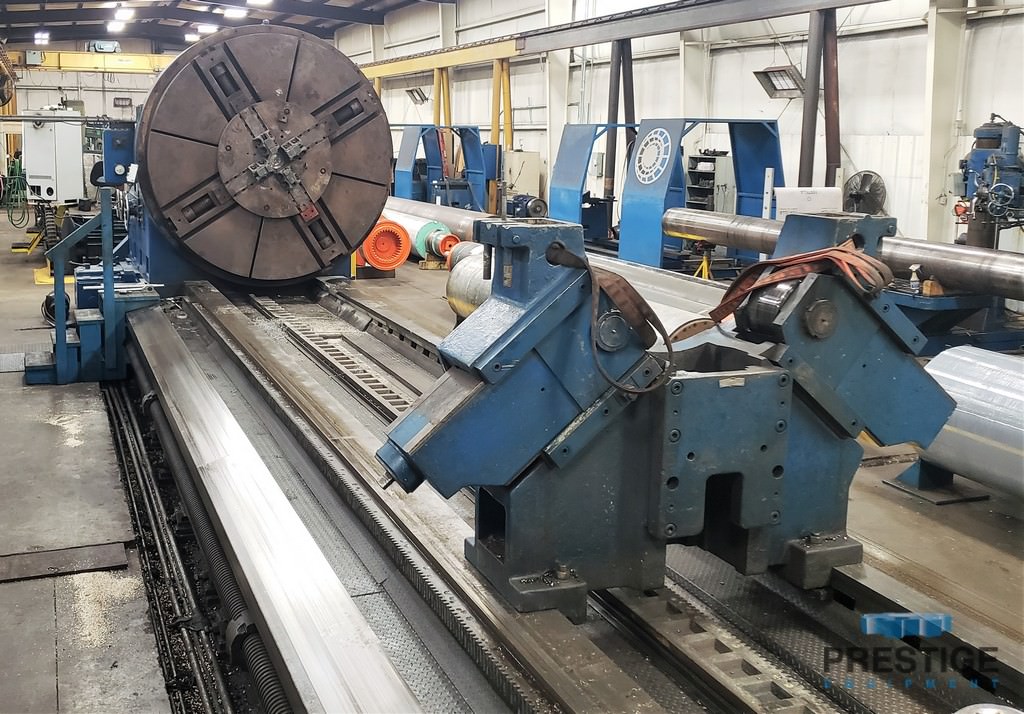

2-Steady Rests
Tailstock with Power Feed
3-Way Bed (4-Sections)
Chip Conveyor
Taper Attachment
Inch Threading
Hardened V-Type Ways
200 HP DC Spindle Drive 440/3/60

NOTE:
Inspect In Plant Under Power
