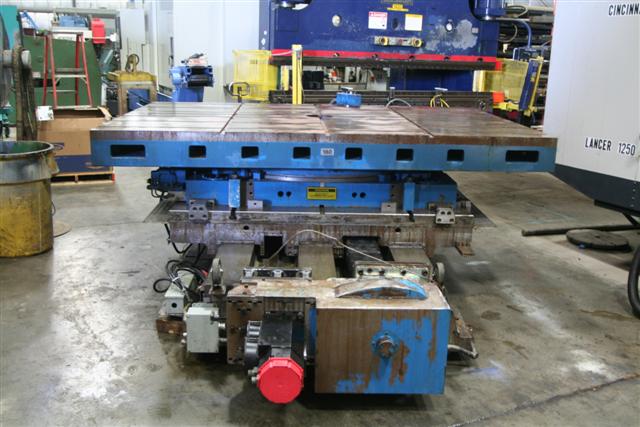

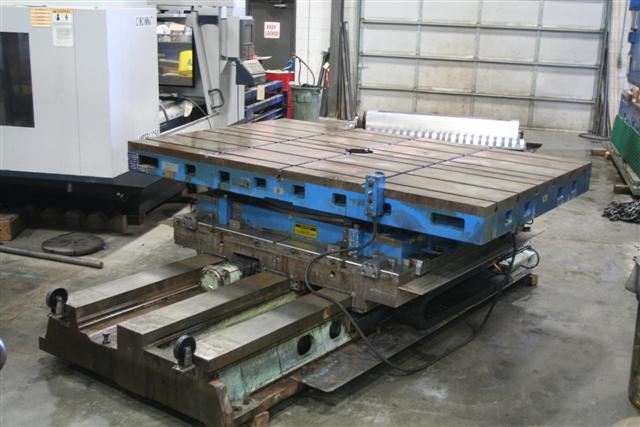

72" x 108" GIDDING & LEWIS HYDROSTATIC, 72" CNC CONTROLLED 3 WAY CROSS SLIDE, 40,000 LB. PART CA

Manufacturer

GIDDINGS & LEWIS

Category

Tables

Type

TABLES, ROTARY/LIFT

Stock

8410

Model

72 x 108

Dealer Location

Wisconsin

Request a Quote
View Contact Information

Spec Sheet



GENERAL SPECIFICATIONS:

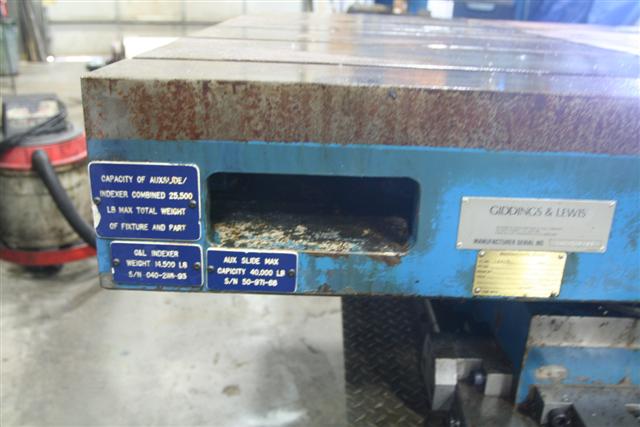

ROTARY TABLE INFORMATION
MANUFACTURER........................ GIDDING & LEWIS

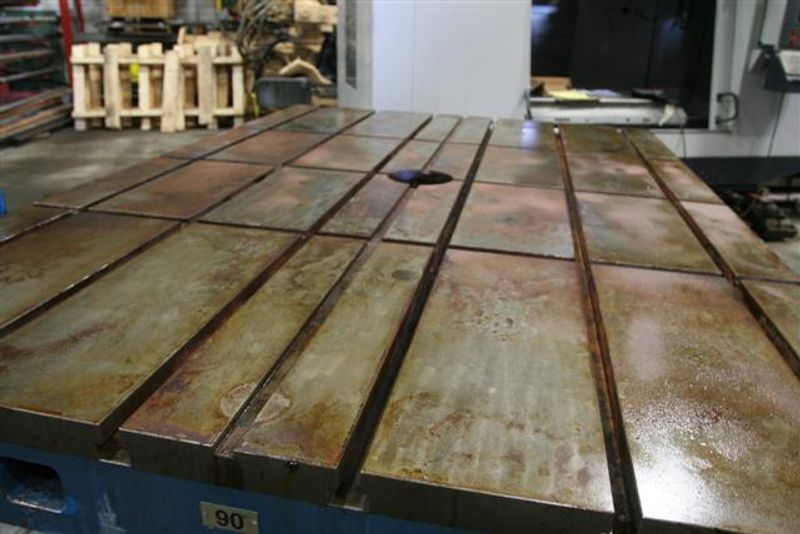

TABLE SIZE.......................... 72" X 108" (1828MM X 2743MM)
TABLE SERIAL NUMBER................. 040-2118-93
ROTATION TYPE....................... AIRLIFT/HYDROSTATIC/MANUAL
TABLE CAPACITY...................... 40,000 LBS
TABLE WEIGHT........................ 14,500 LBS

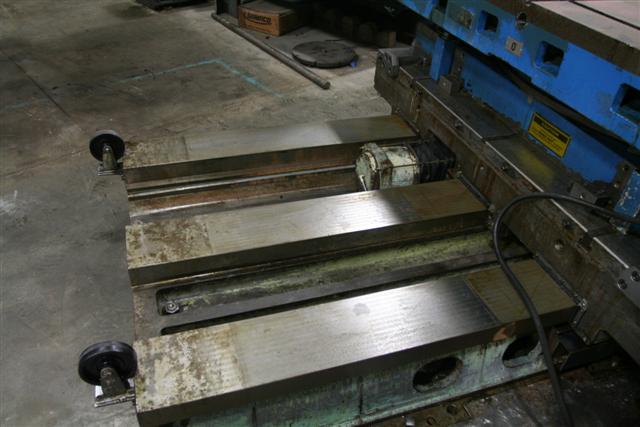

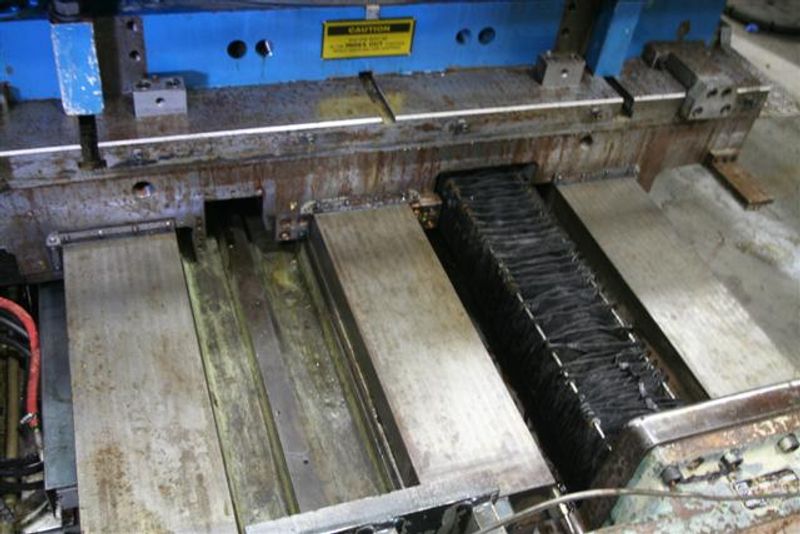

AUXILIARY SLIDE INFORMATION

MANUFACTURER........................ GIDDING & LEWIS
MODEL............................... 72 X 72
SERIAL NUMBER....................... 50-971-68 (REBUILT/RETROFITTED 93)
AUXILIARY SLIDE MOVEMENT (IN/OUT)... 72" (1828 MM)
WEIGHT CAPACITY..................... 70,000 LBS
WEIGHT CAP. OF PART AND
FIXTURE ON TABLE.................... 40,000 LBS

NOTE:IN/OUT MOVEMENT IS CONTROLLED BY CNC
SPECIFICATIONS SUBJECT TO VERIFICATION
