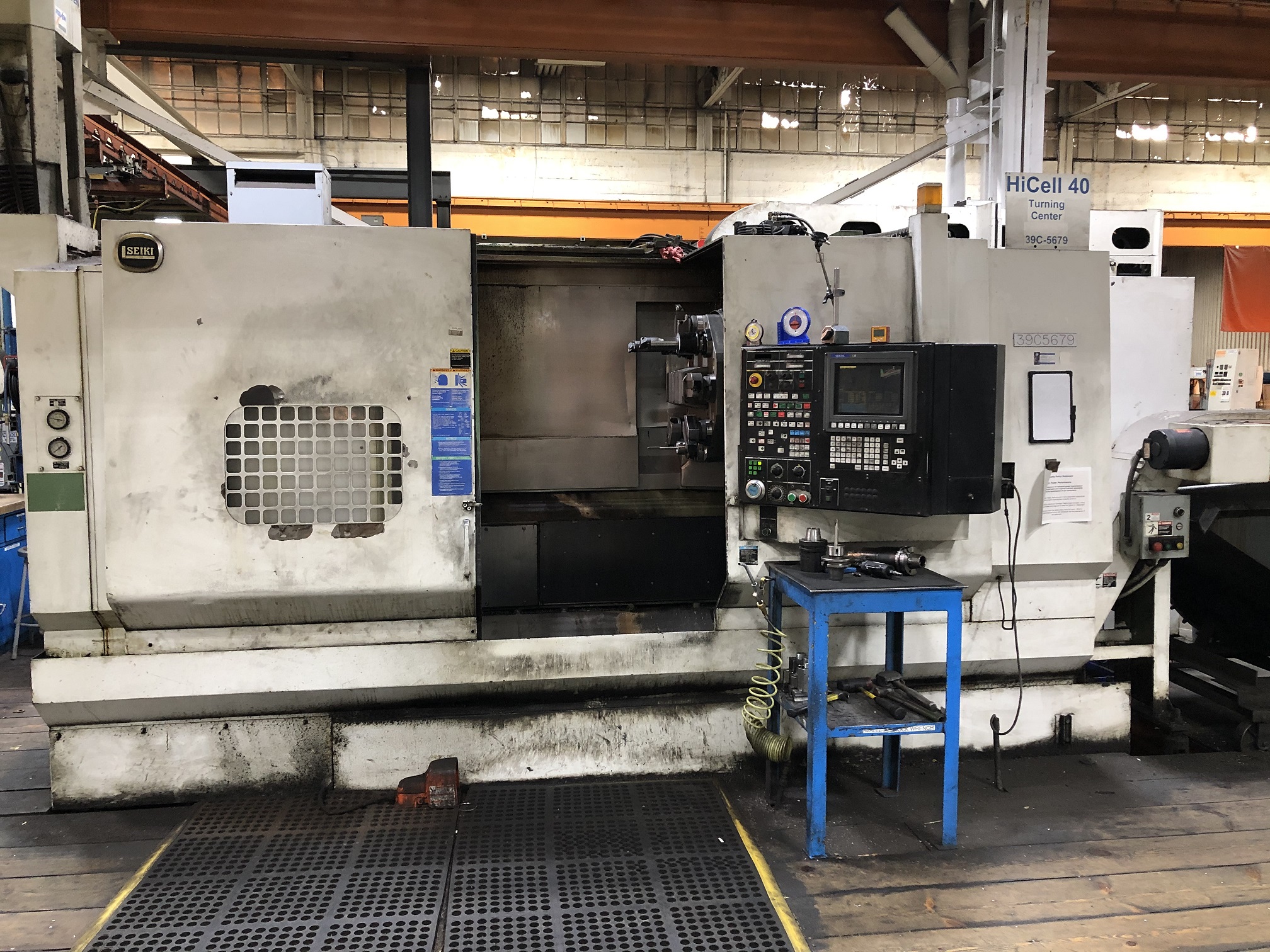

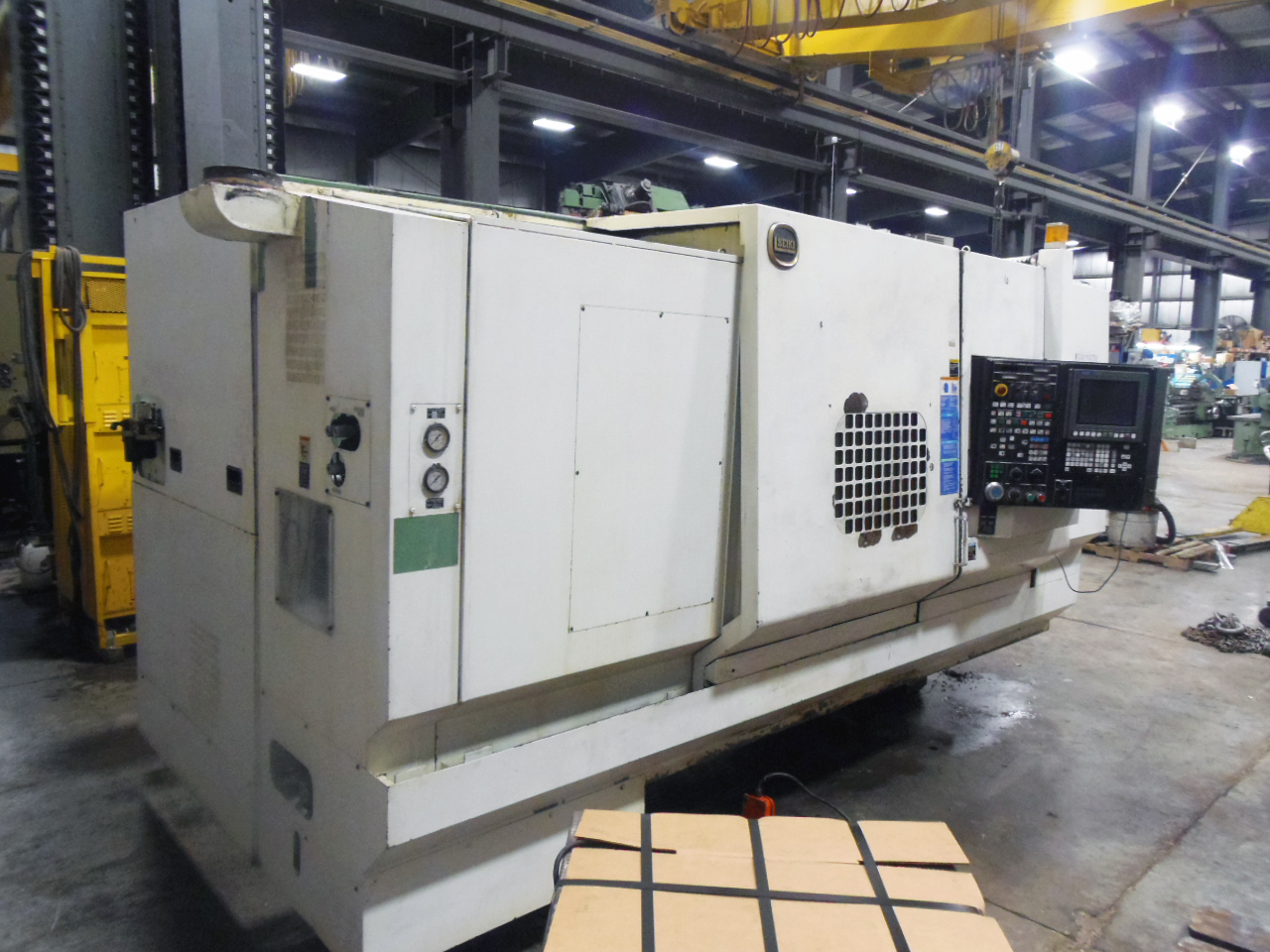

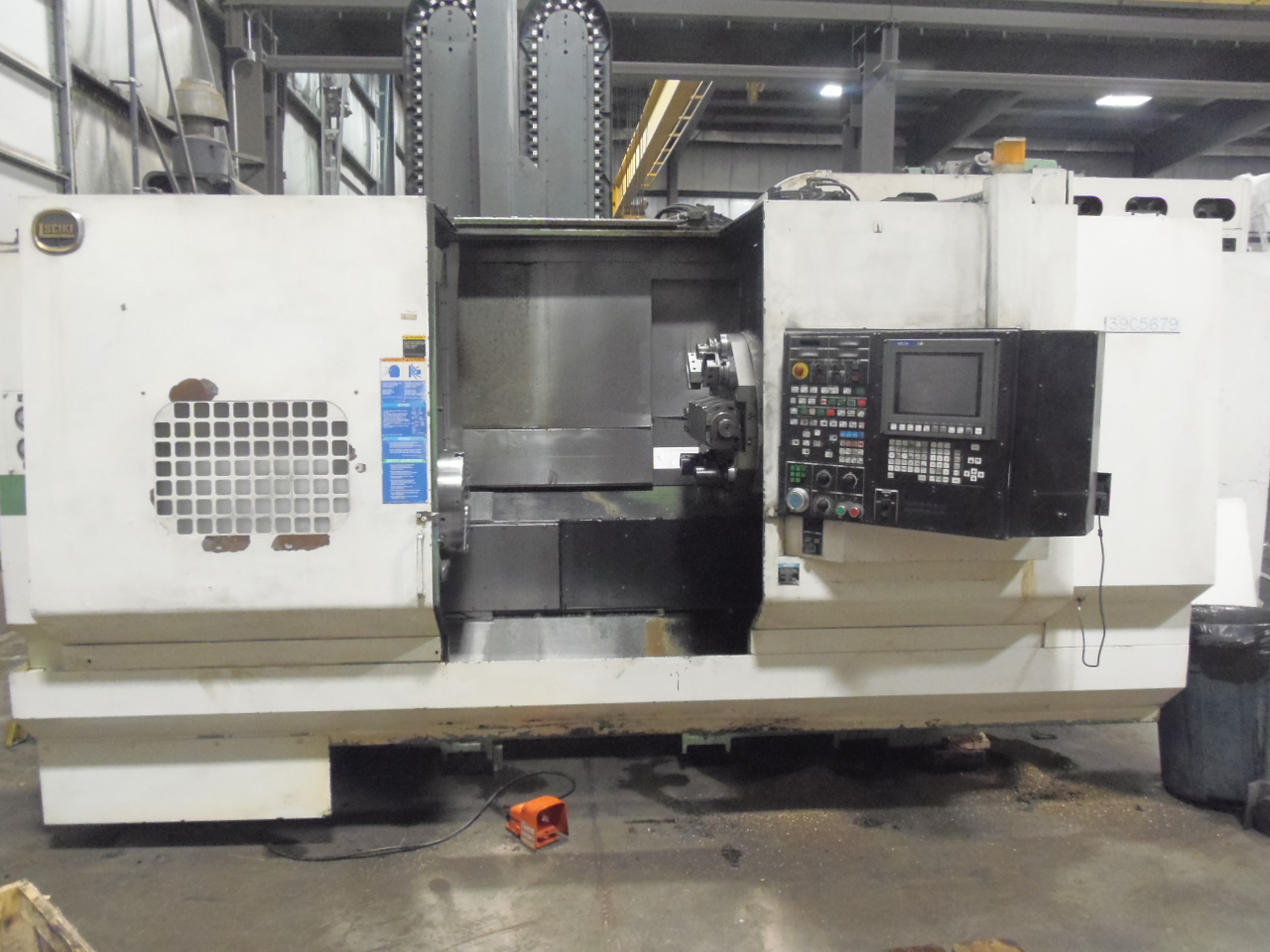

HITACHI SEIKI HICELL 40, LIVE TOOLING, Y AXIS, 90 ATC, 60" (1600 MM) CENTERS, 15" 3 JAW, SEIKI-S

Manufacturer

HITACHI SEIKI

Category

Miscellaneous Machines

Type

MISCELLANEOUS

Stock

10378

Model

HICELL 40

Dealer Location

Wisconsin

Request a Quote
View Contact Information

Spec Sheet



GENERAL SPECIFICATIONS:

MAKE................................. HITACHI SEIKI
MODEL................................ HIGHCELL 40
SERIAL NUMBER........................ CA-40069
AGE (YEAR)........................... 1997
MAX SWING............................ 27.6" (700 MM)
CHUCK DIAMETER (3  JAW).............. 15" (381 MM)
MAX MACHINABLE LENGTH................ 61.8" (1570 MM)
SPINDLE SPEED RANGE.................. 20 - 1800 RPM
GEAR RANGES.......................... 3
SPINDLE END SHAPE.................... A-11
SPINDLE THRU HOLE DIA................ 4.7" (120 MM)
SPINDLE MOTOR........................ 27/40 HP (20/30 KW)
STROKE X AXIS........................ 13" (330 MM)
STROKE Z AXIS........................ 63.8" (1620 MM)
RAPIDS X AXIS........................ 590"/MIN (15,000 MM/MIN)
RAPIDS Z AXIS........................ 787"/MIN (20,000 MM/MIN)
CUTTING FEED RATE.................... 0.0001-99.9999 INCH/REV (0.001-999.999 MMPR)

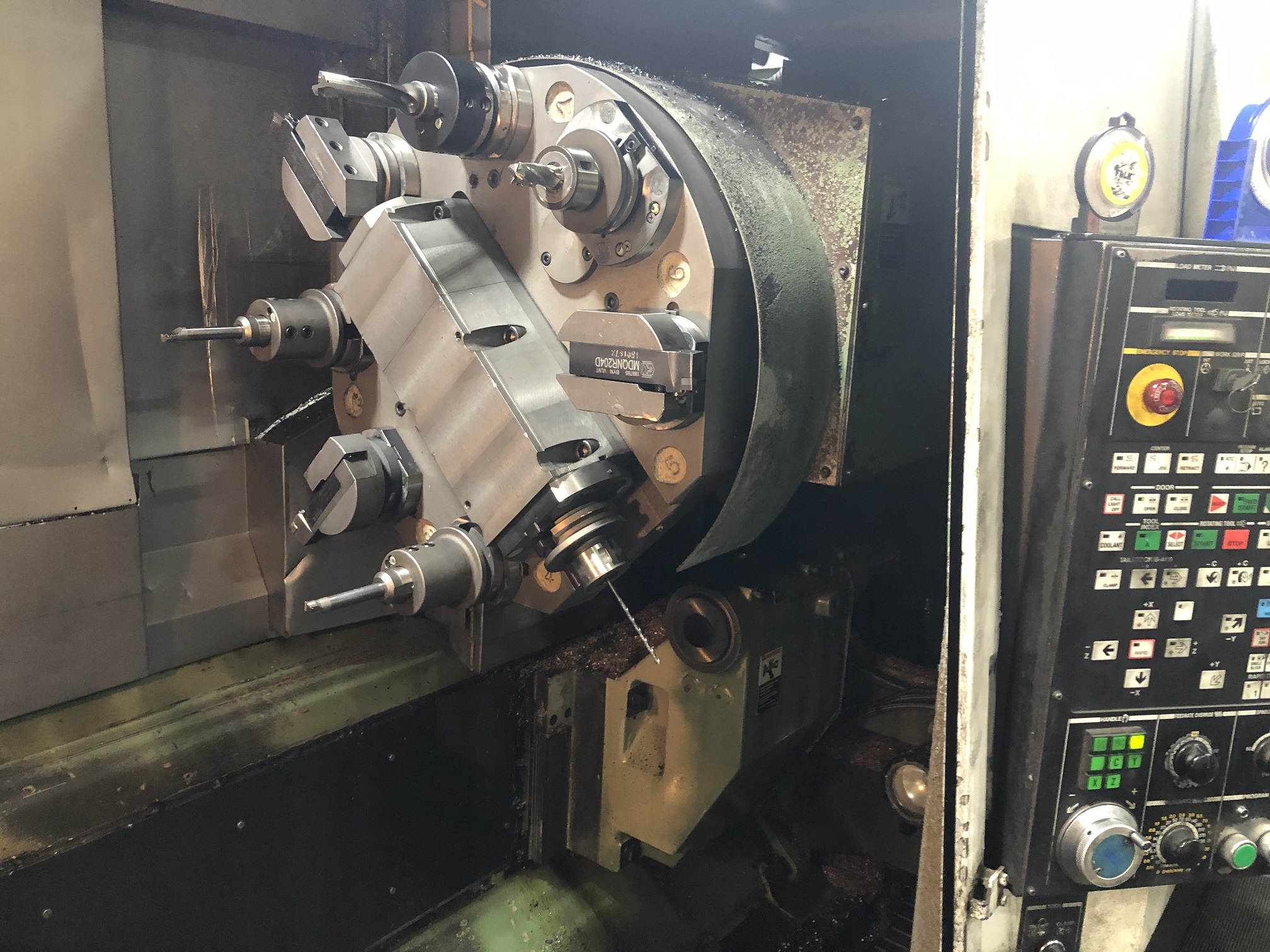

NUMBER OF MOUNTABLE ROTATING TOOLS... 2
ROTATING TOOL SELECTION METHOD....... RANDOM
ROTATING TOOL SPINDLE TAPER.......... NT50
STROKE
   Y AXIS............................ 7.9 (+-4) 200MM (+-100)
CUTTING FEED RATE
   C AXIS............................ 2000 0/MIN
   Y AXIS............................ 0.0003 - 19.7 INCH/MIN
                                      0.01 - 500 MM/REV
RAPID TRAVERSE RATE
   C AXIS............................ 16.6 RPM
   Y AXIS............................ 393.7 INCH/MIN (10000 MM/MIN)
ROTATING TOOL SPINDLE SPEED.......... 100 - 2000 RPM
ROTATING TOOL SPINDLE MOTOR.......... 3.7/7.4 HP

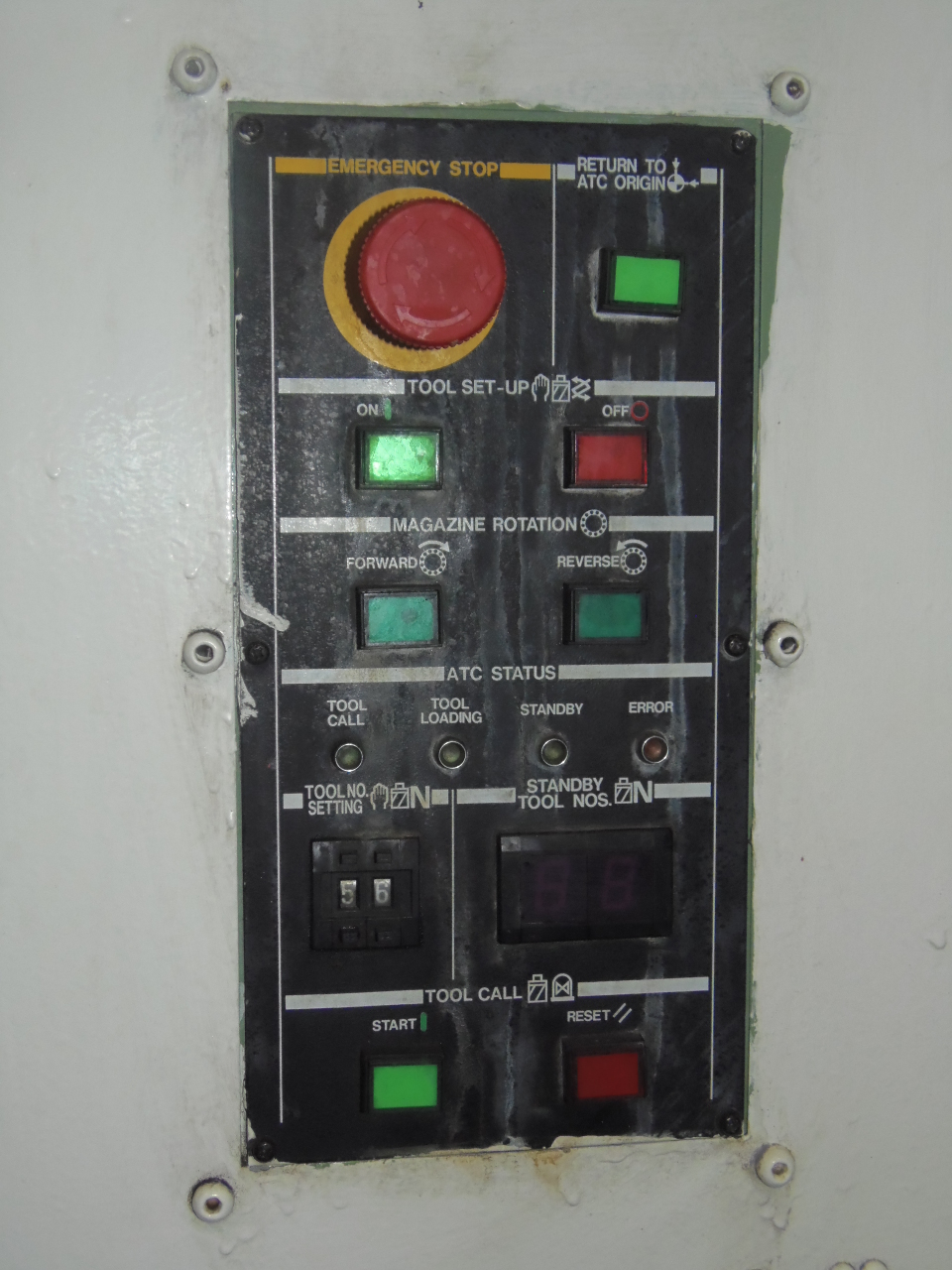

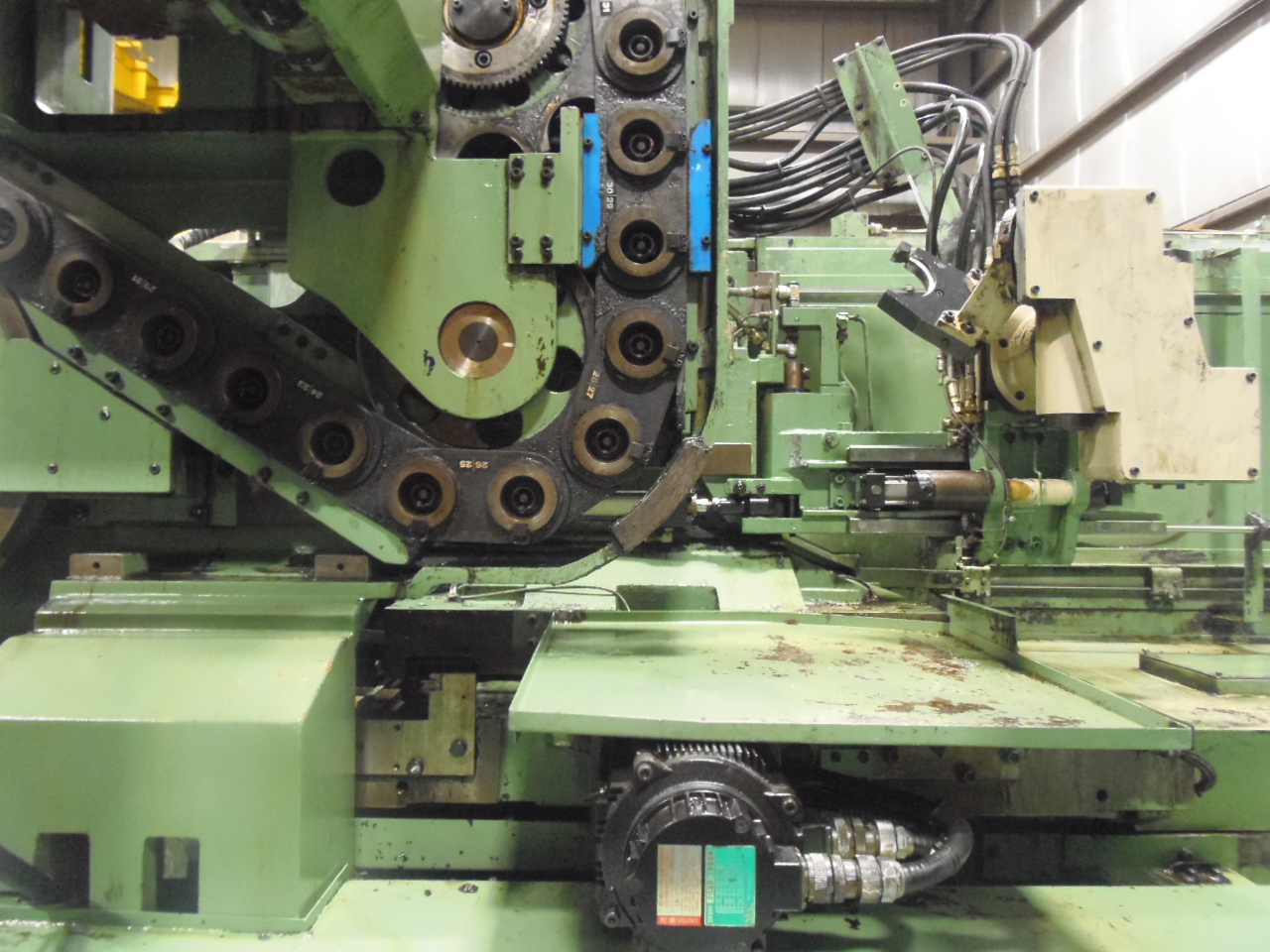

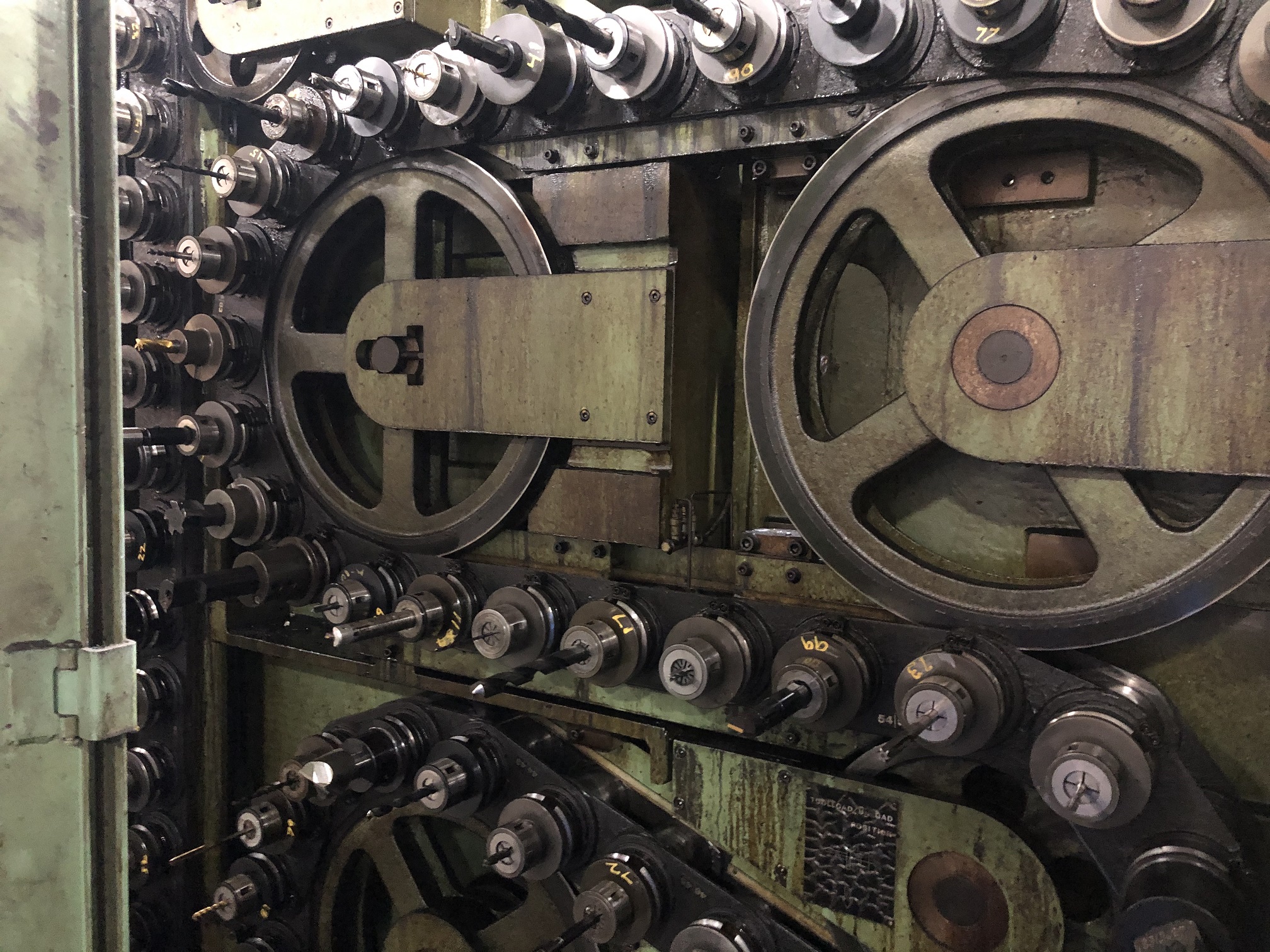

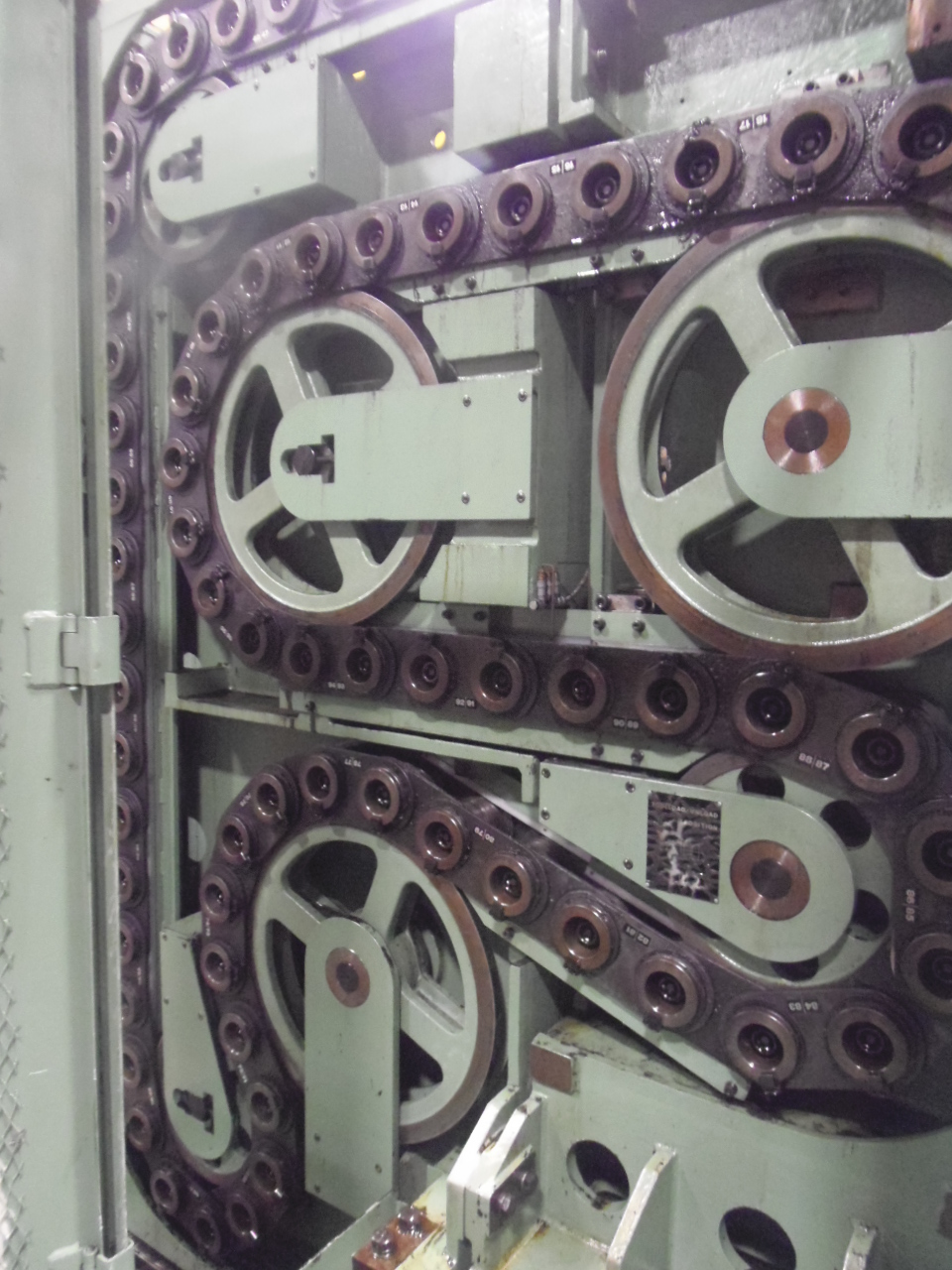

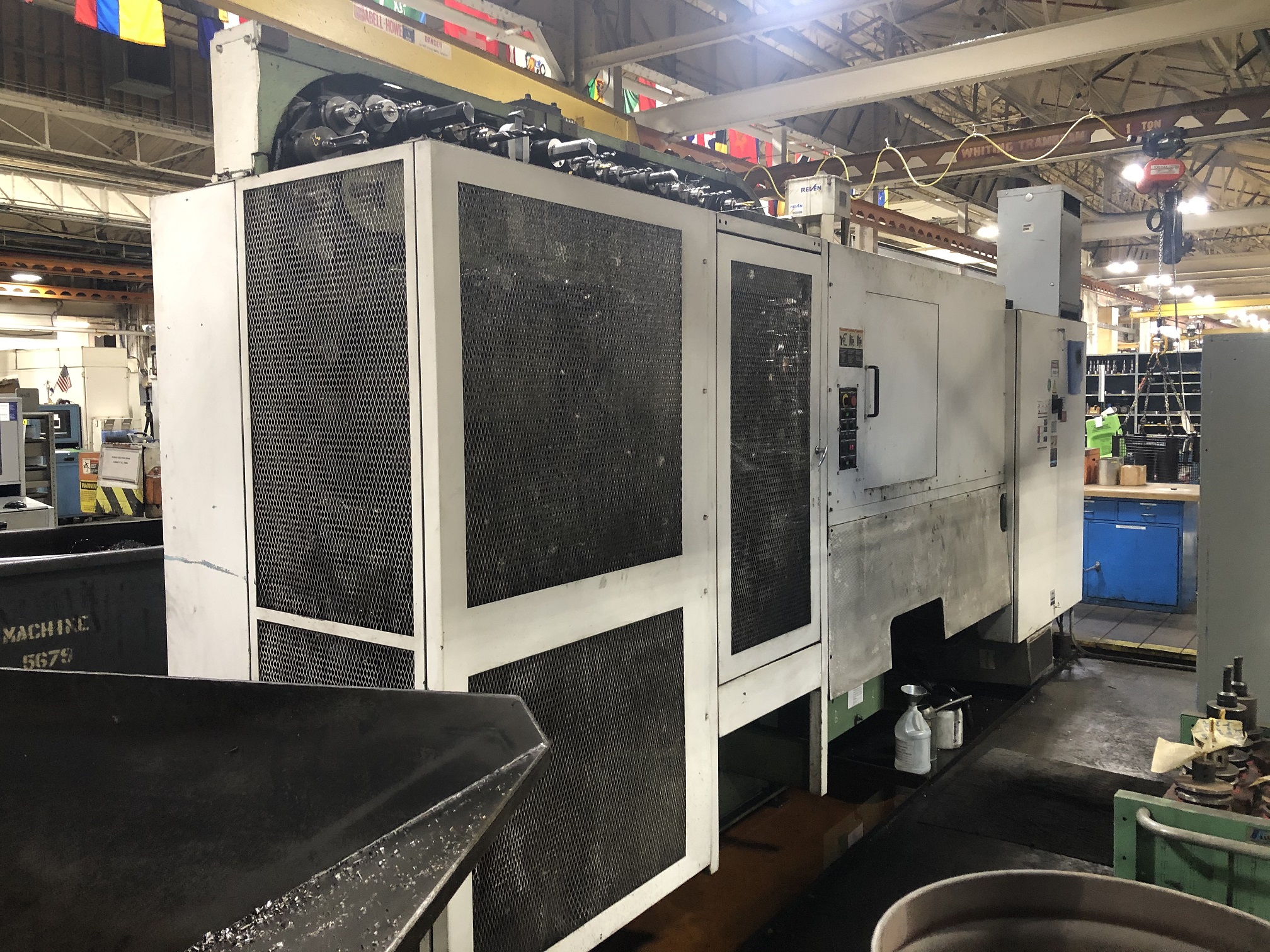

TOOL CHANGER POSITIONS............... 90
TOOL SELECTION METHOD................ RANDOM
MAX. TOOL SIZE....................... 4." DIA.X 11.8" LONG X 22 LBS
TOOL CHANGE SYSTEM................... TWIN ARM
TAILSTOCK
   TAPER............................. MT-5
   TAILSTOCK MOTORIZED MOVEMENT...... 63"
CONTROL
   NUMBER OF AXIS.................... 5

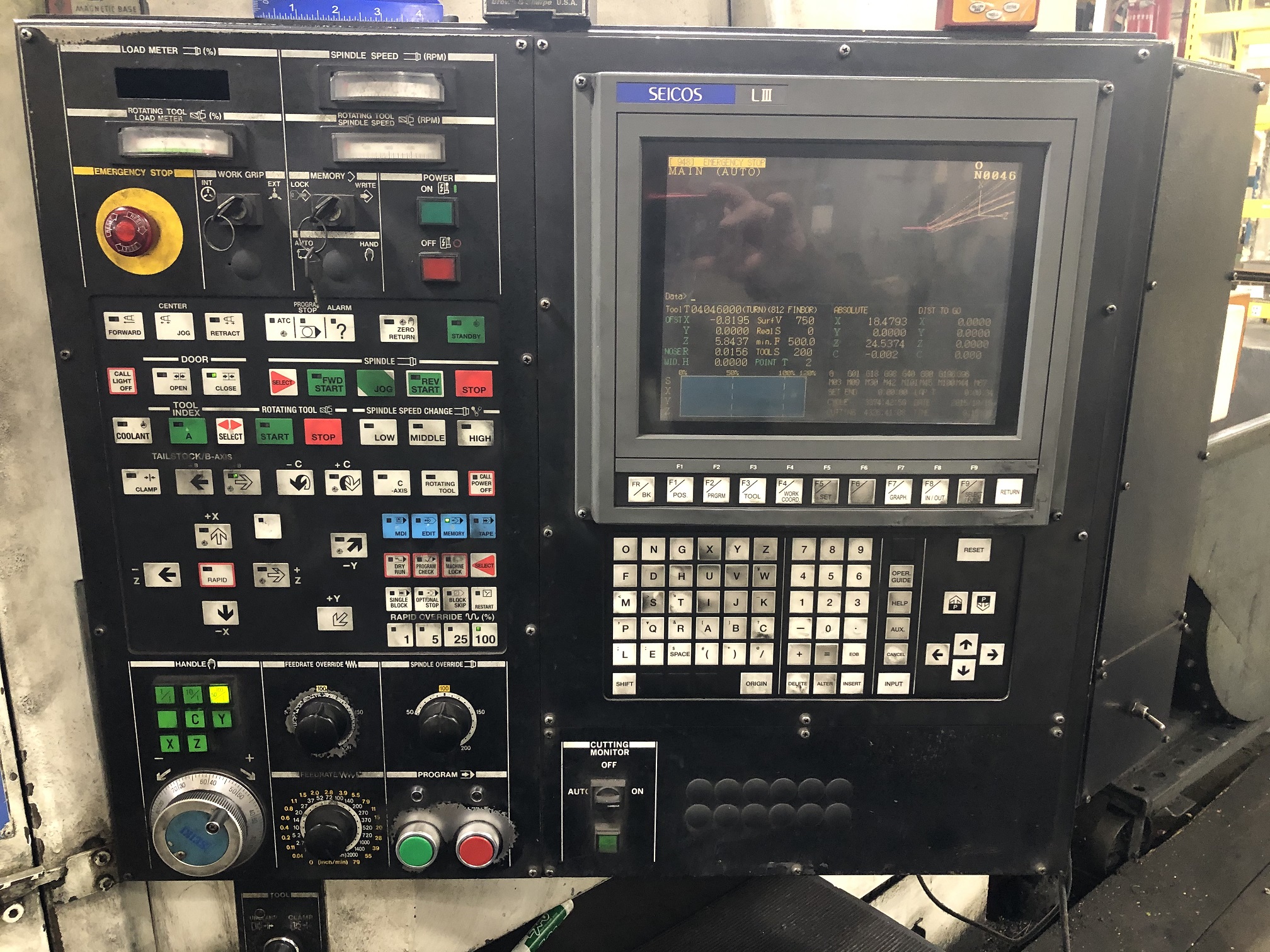

   CONTROL UNIT...................... SEICOS-LIII-A
ELECTRICS............................ 230/460 V
WEIGHT............................... 36000 LBS.
APPROX. DIMENSIONS................... 160" X 126" (6640 X 3200 MM)

EQUIPPED WITH:

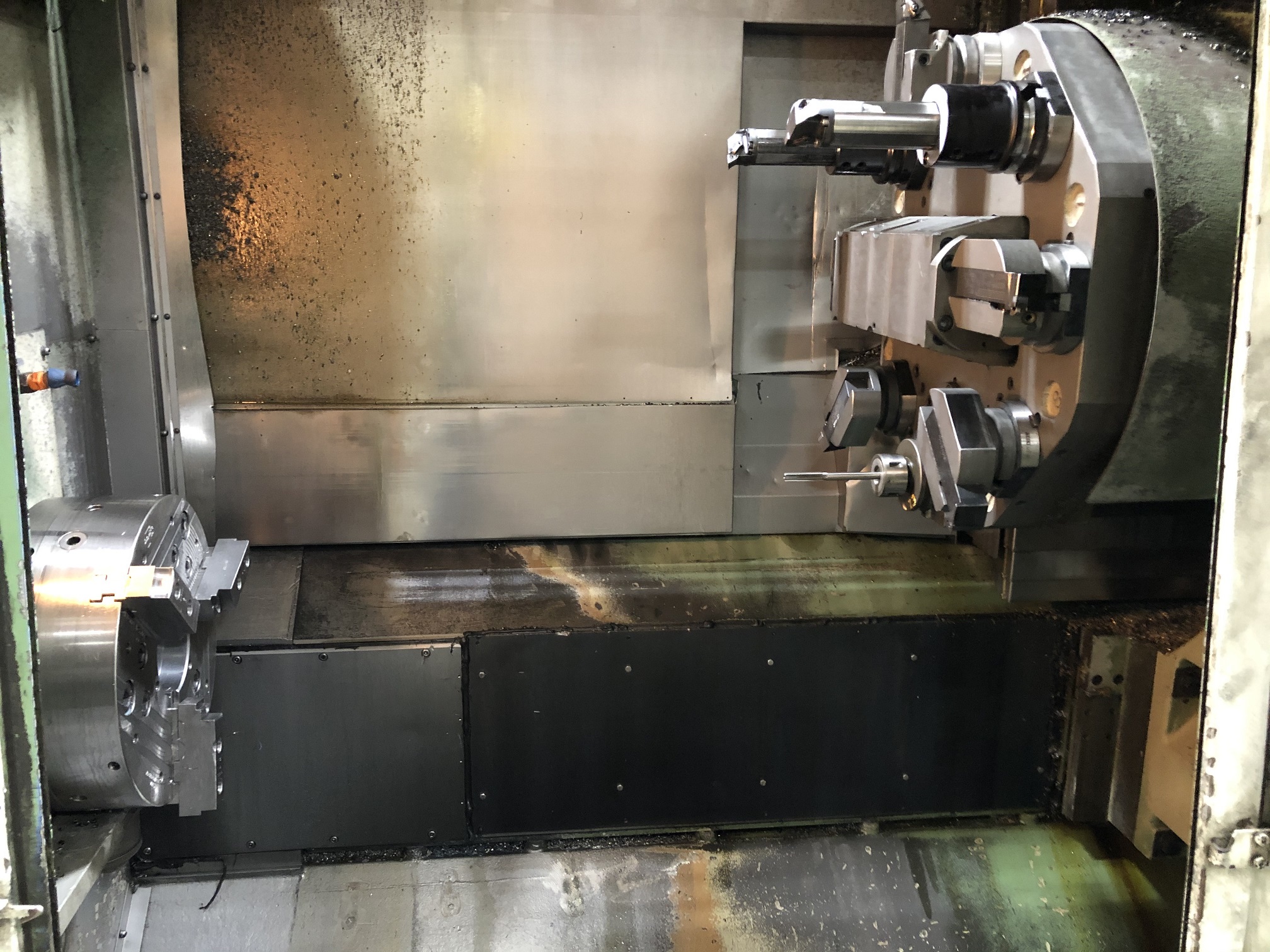

LIVE MILLING/TOOLING
C AND R AXIS
MANUALS

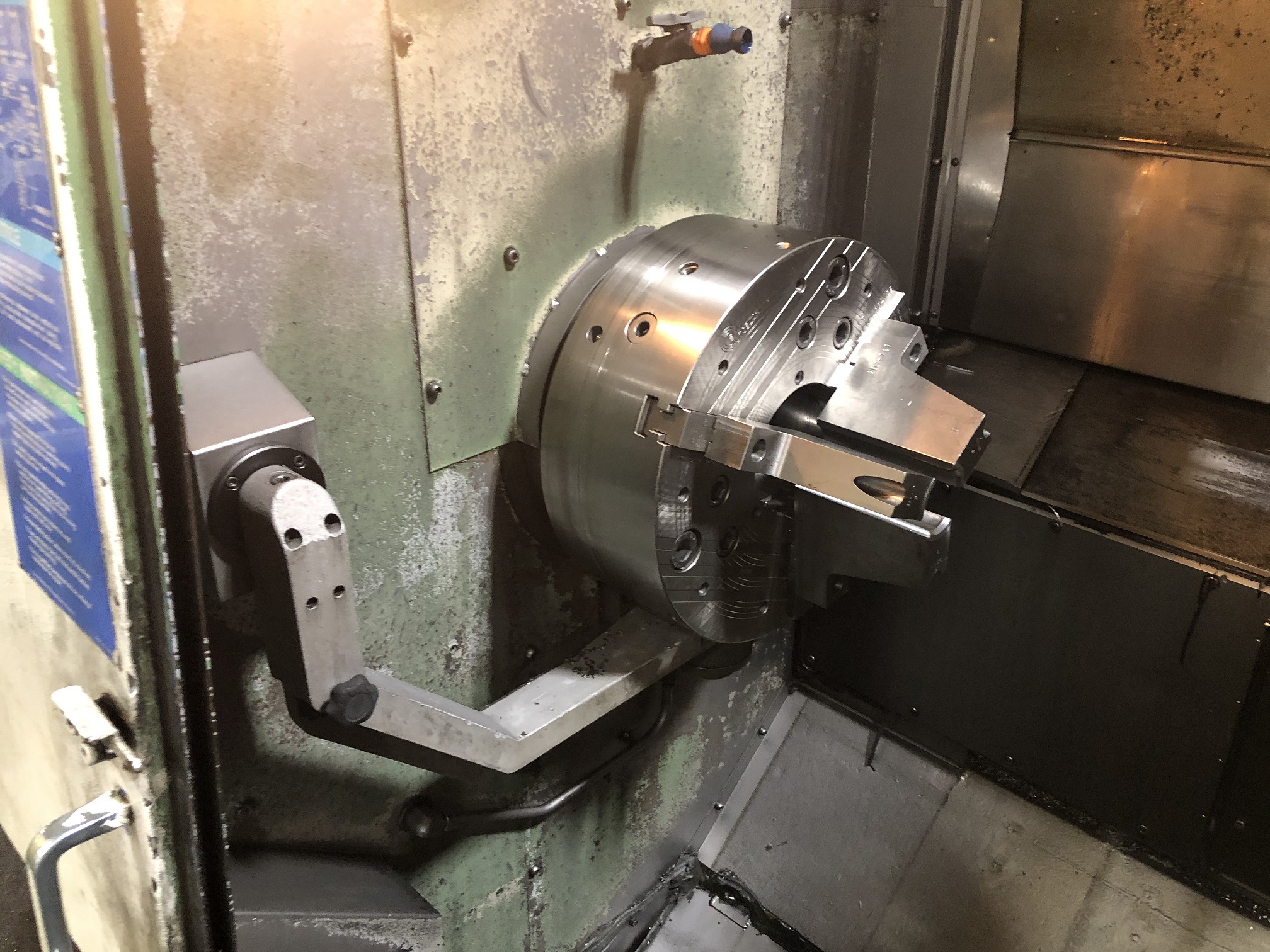

CUSHMAN 15" 3 JAW HYDRAULIC CHUCK
TAILSTOCK

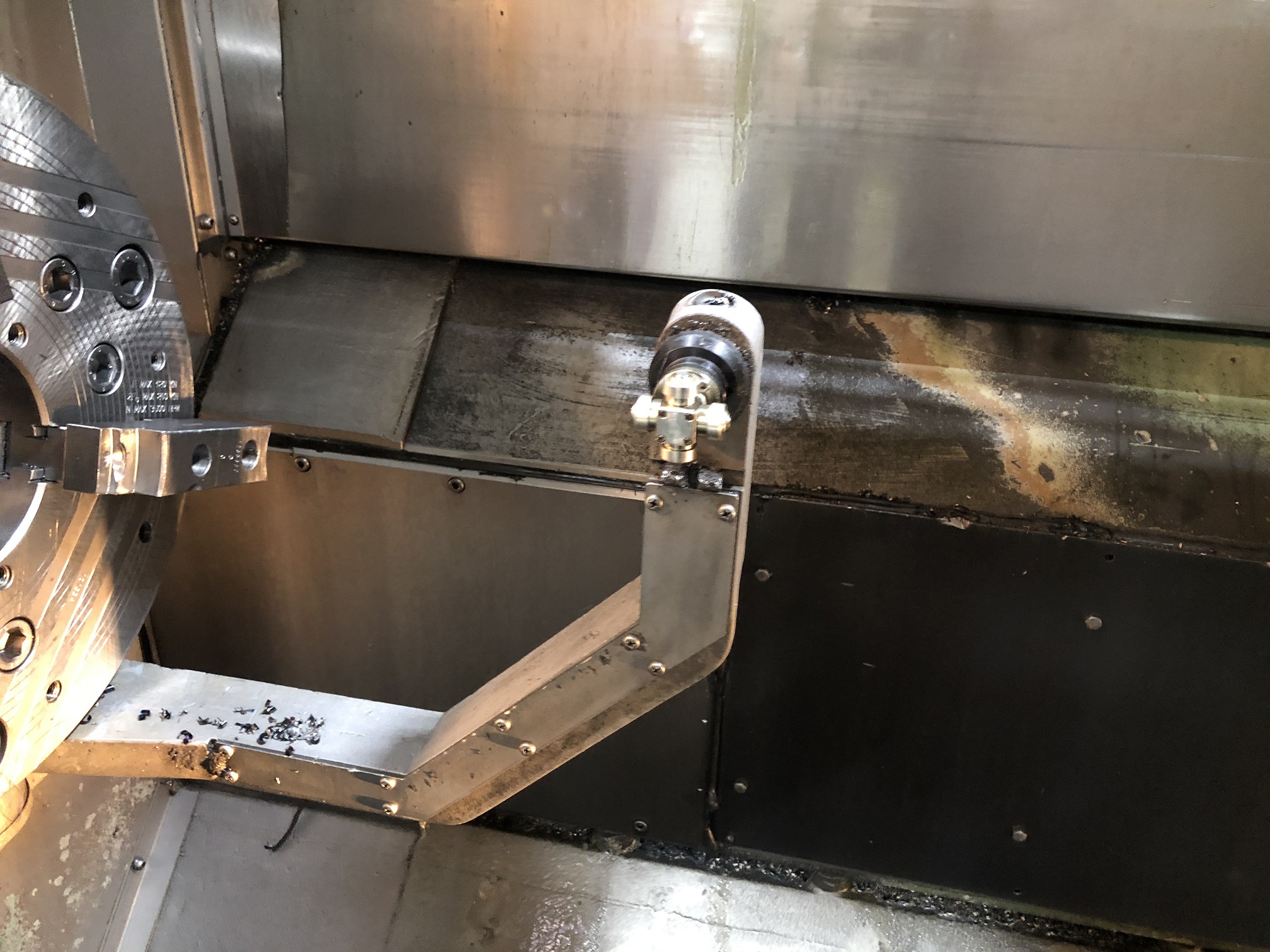

TOOL SETTER

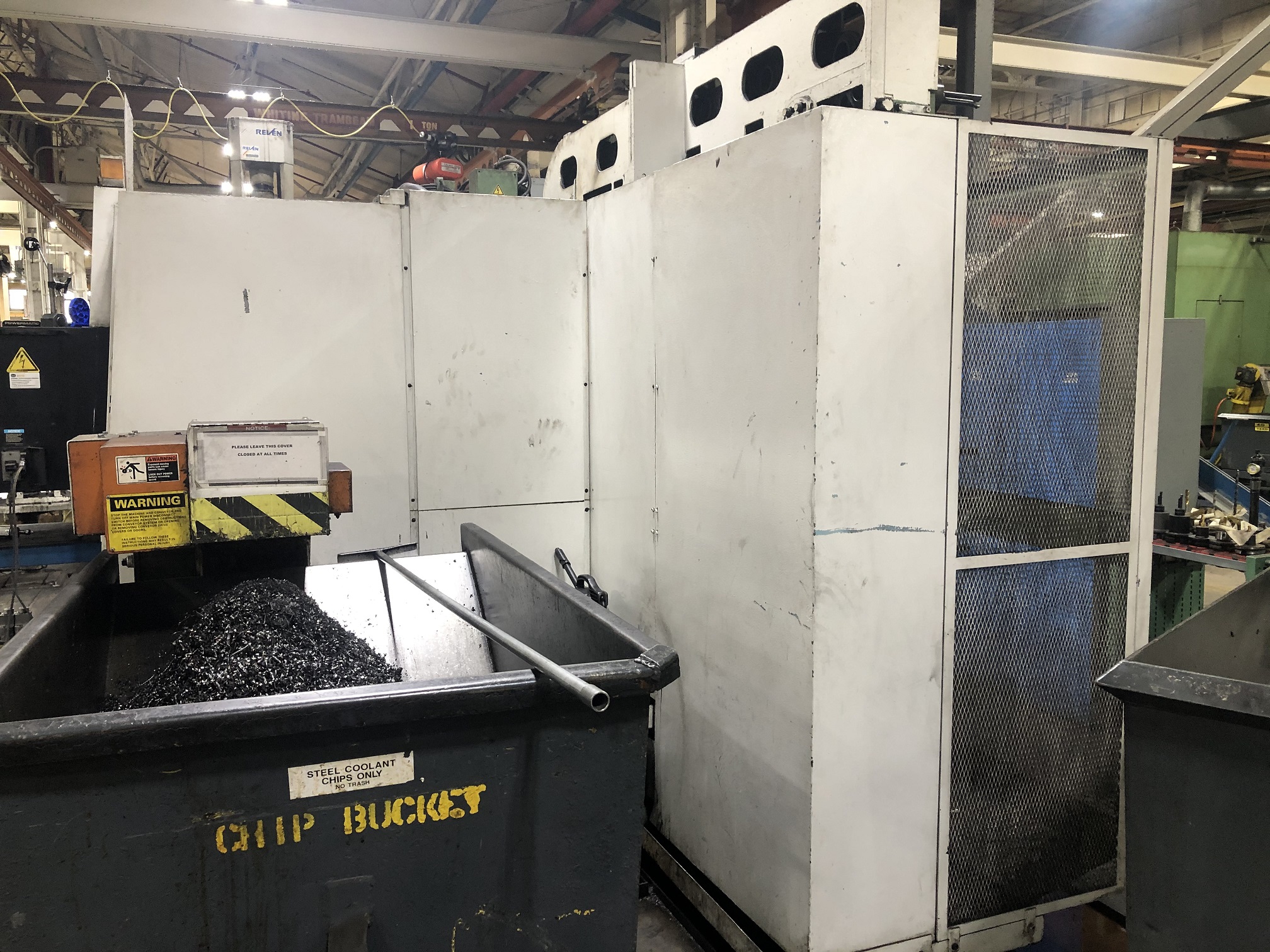

CHIP CONVEYOR

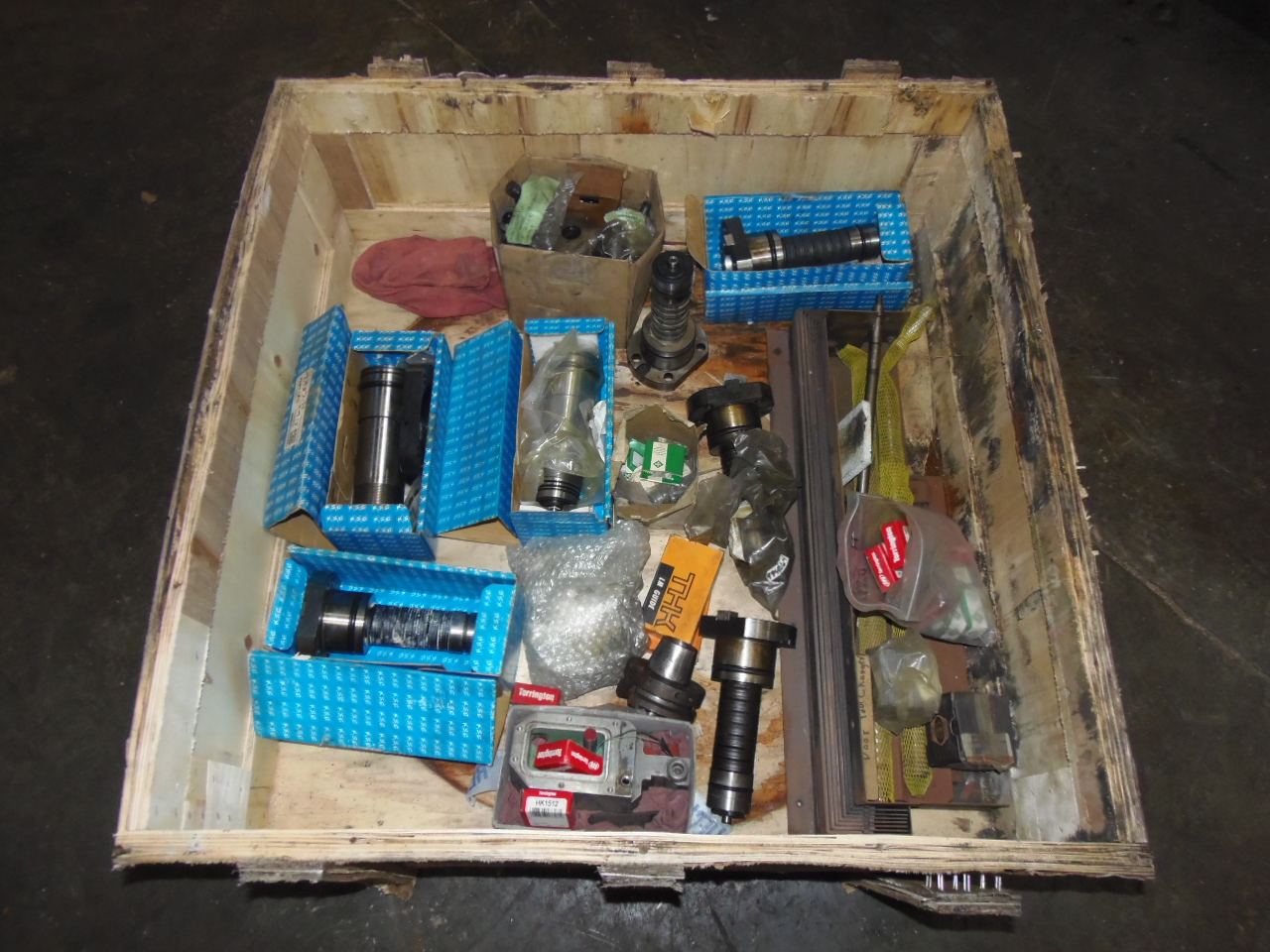

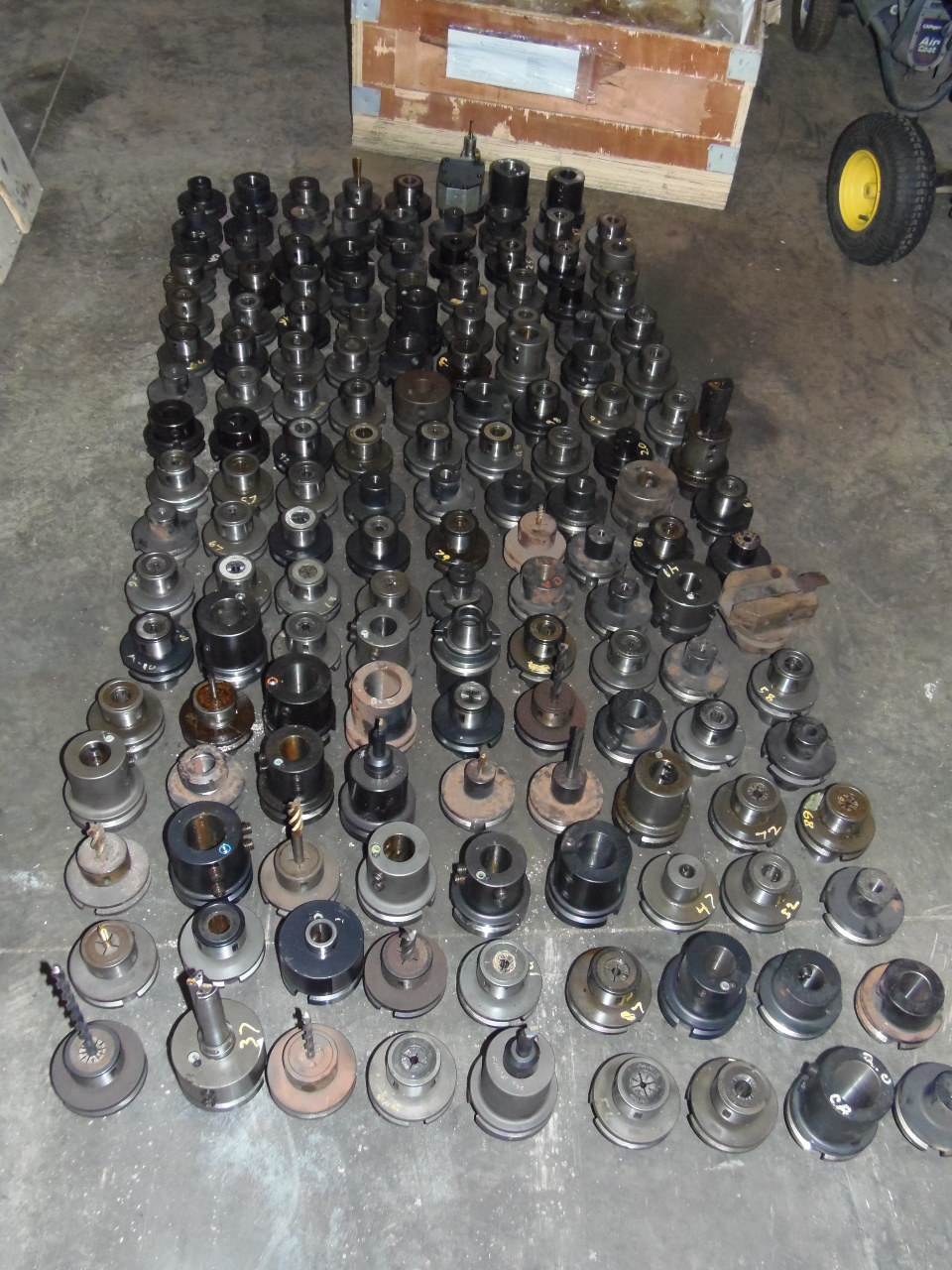

150 TOOL HOLDERS

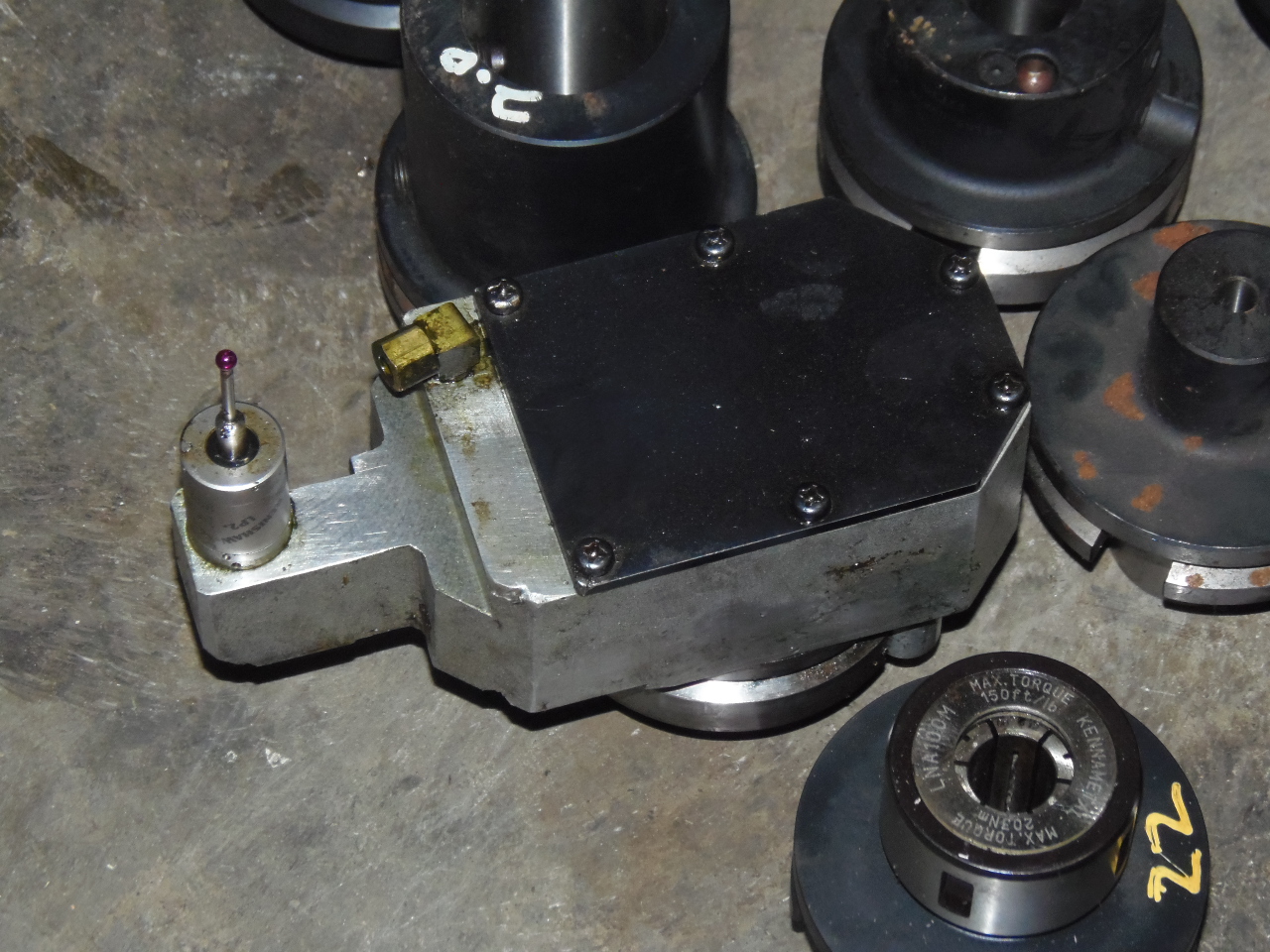

PROBE

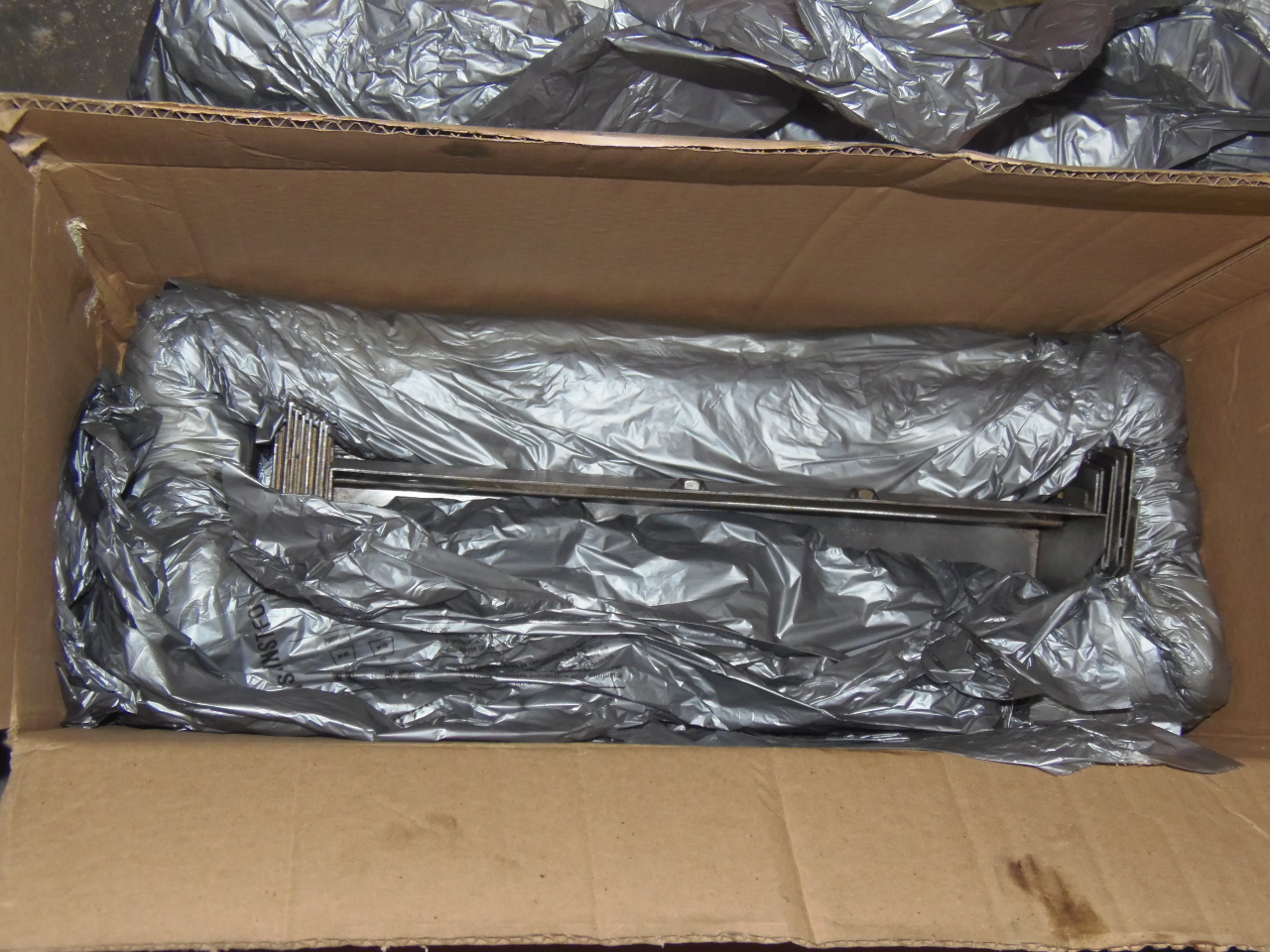

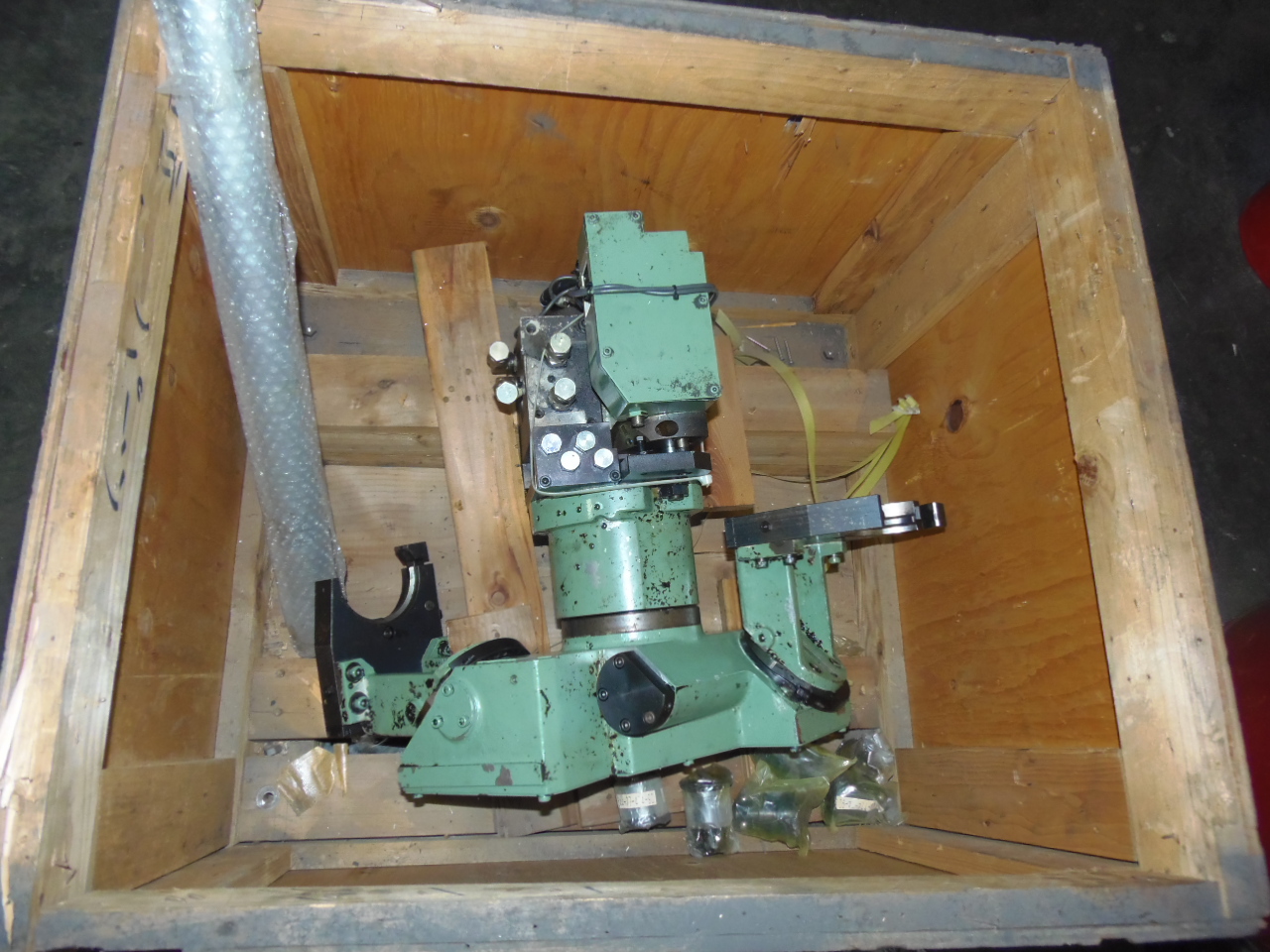

EXTRA TOOL CHANGER ARM
UNUSED WAY COVER
