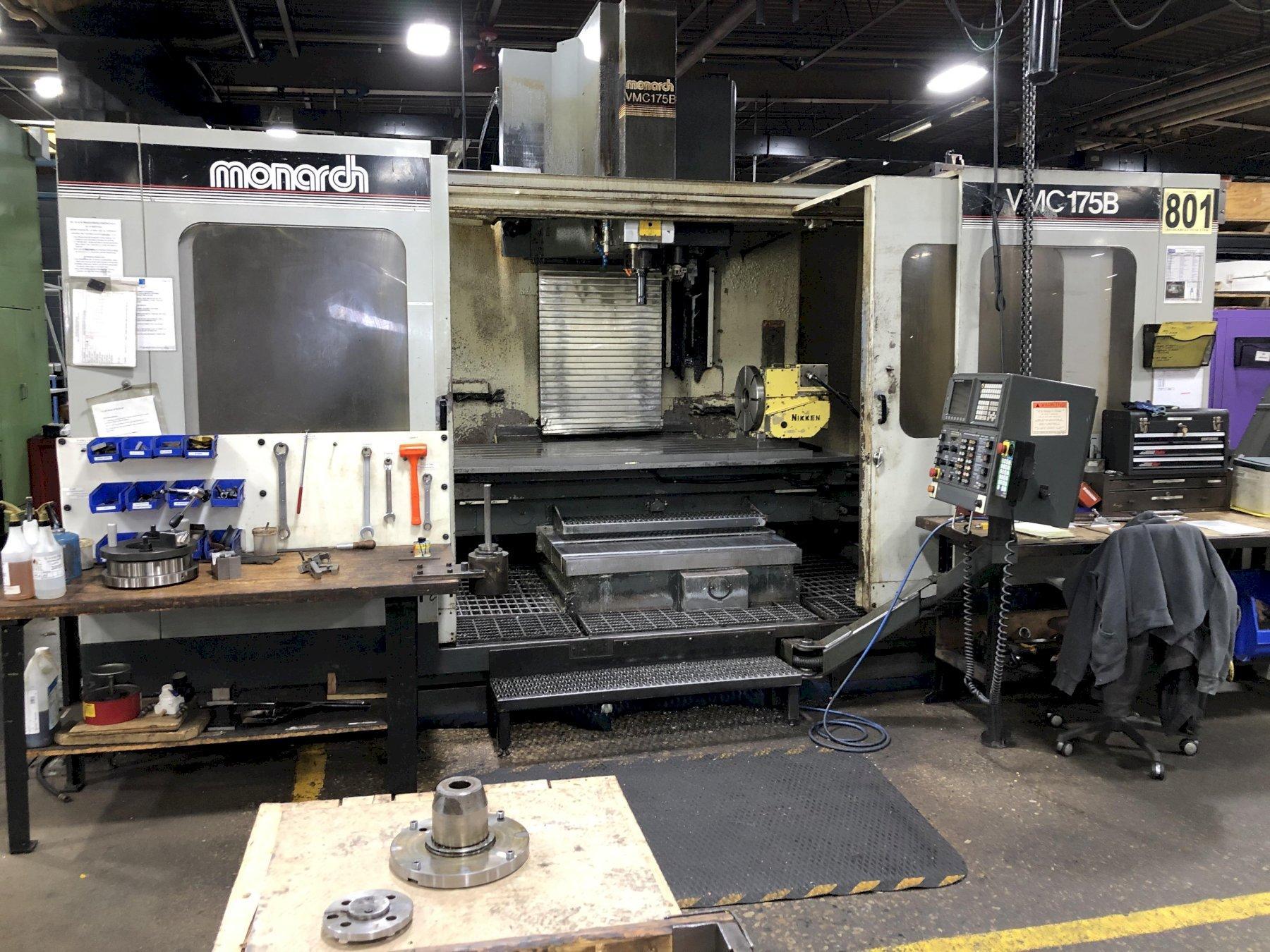

MONARCH VMC175, 40" Z CLEARANCE, 36 X 76 X 44 TRAVELS, FANUC 15M, TSC, OUTRIGGERS, 1994, NEW BAL

Manufacturer

MONARCH

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC (Incl. Pallet Changers)

Stock

10314b

Model

VMC-175B

Dealer Location

Wisconsin

Request a Quote
View Contact Information

Spec Sheet
GENERAL SPECIFICATIONS:
MANUFACTURER........................... MONARCH
MODEL.................................. VMC-175B
TABLE SIZE............................. 86" x 36"
MAXIMUM TABLE LOAD..................... 6,000 LBS
SPINDLE NOSE TO TABLE TOP.............. 5" - 40"
X AXIS TRAVEL.......................... 76"
Y AXIS TRAVEL.......................... 36"
Z AXIS TRAVEL.......................... 44"
RAPID TRAVERSE RATE X AXIS............. 600 IPM
RAPID TRAVERSE RATE Y AXIS............. 600 IPM
RAPID TRAVERSE RATE Z AXIS............. 600 IPM
CUTTING FEED RATE...................... 0.04 - 400 IPM
SPINDLE SPEED.......................... 10,000 RPM
SPINDLE TAPER.......................... CAT 50
SPINDLE MOTOR (2 SPEED GEARED)......... 30 HP AC
TOOL CHANGER CAPACITY.................. 30 STATION ATC
MAXIMUM TOOL WEIGHT.................... 25 LBS

EQUIPPED WITH:
NIKKEN MODEL CNC 401 4TH AXIS ROTARY TABLE

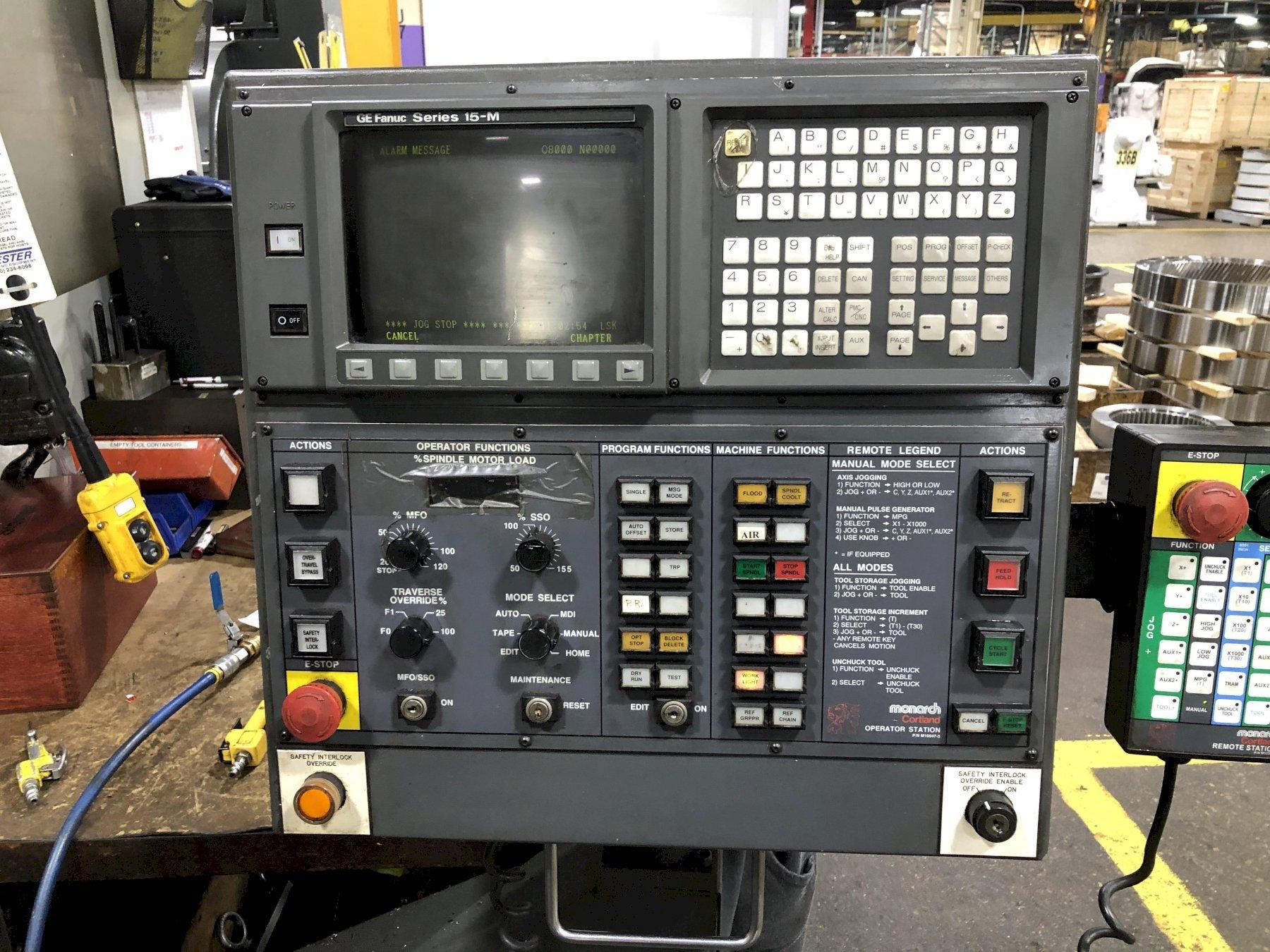

FANUC 15M CNC CONTROL WITH 14" COLOR CRT
RS-232C PORT INTERFACE FOR DNC OPERATION
RIGID TAPPING (SYNCHRONOUS/SOLID TAPPING)
THRU SPINDLE COOLANT
TOUCH PROBE WITH COORDINATE SHIFT
SPINDLE OIL COOLING SYSTEM (SPINDLE CHILLER)
STANDARD COOLANT SYSTEM WITH TANK & PUMP
TOOL TOUCH PROBE, SCALES ON X, Y & Z AXES
FULLY ENCLOSED GUARDING, ALL AVAILABLE MANUALS
