10430

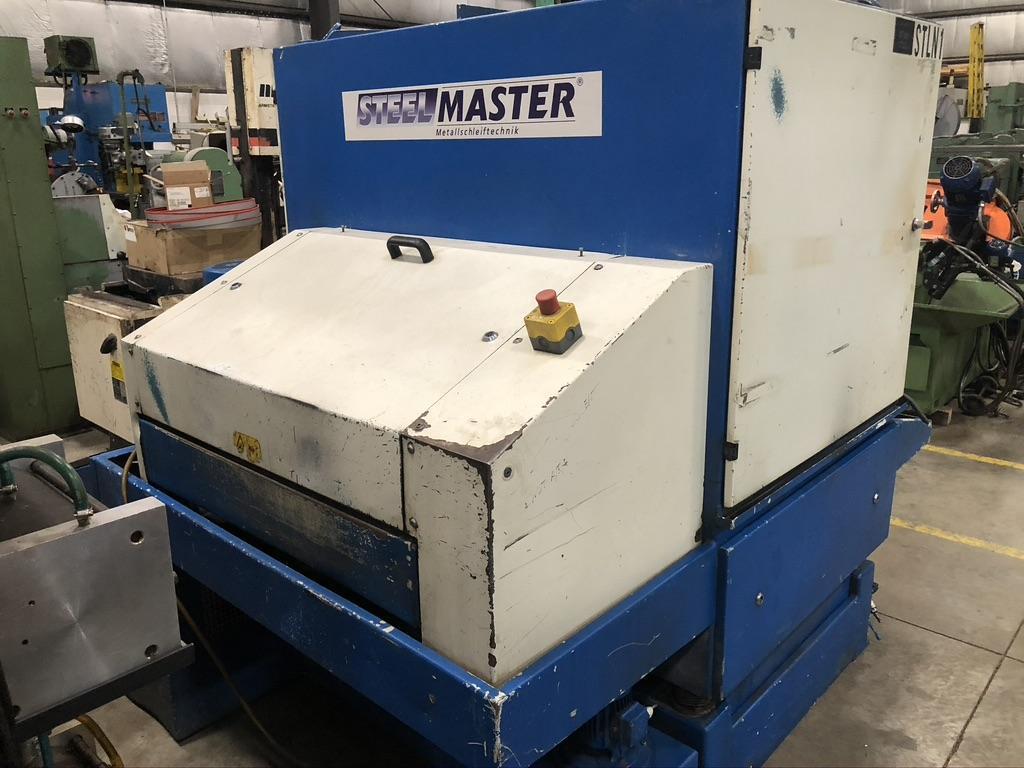

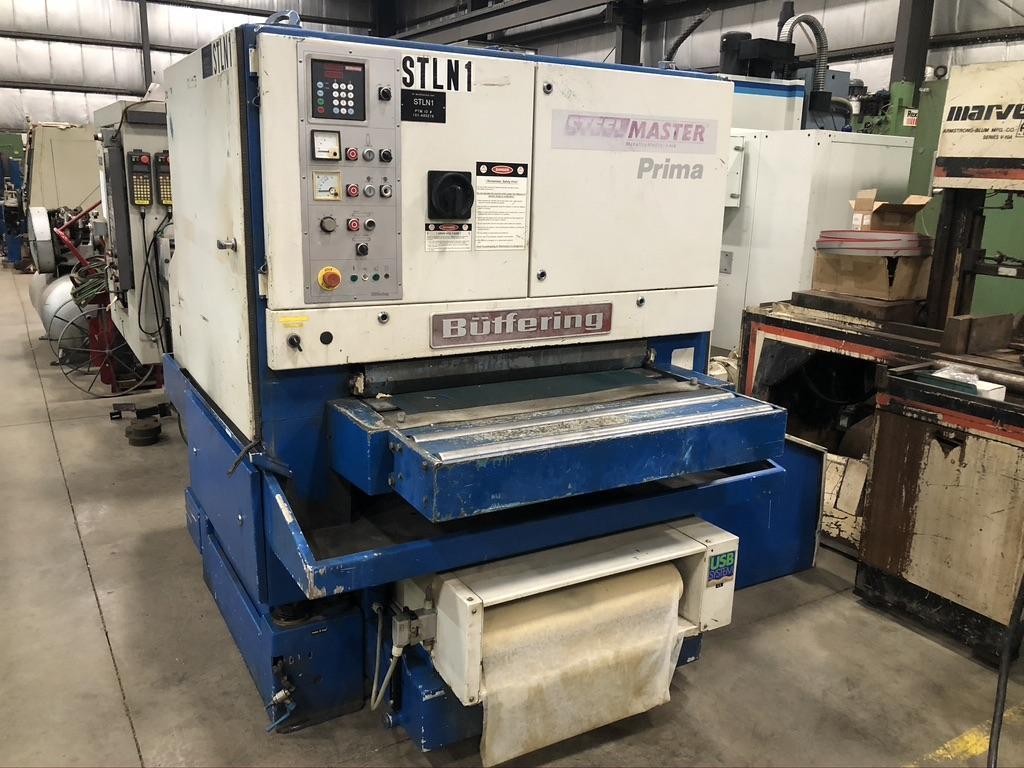

PRIMA 2KB-9W
Wisconsin
GENERAL SPECIFICATIONS
MANUFACTURER....................... STEELMASTER
MODEL.............................. PRIMA 2KB-9W
SERIAL NUMBER......................... 51079
AGE................................ 2000
NUMBER OF HEADS.................... 2
TYPE OF HEADS...................... BRUSH AND SANDER
Maximum Abrasive Belt Width........ 37.4″
Maximum Working Width.............. 37.4″
Work Piece Thickness............... 0.01962 - 4.72"
Abrasive Belt Length............... 129"
Abrasive Belt Drive................ 16 HP
Conveyor Speed..................... 29 FPM TO 59 FPM
DIAMETER OF BRUSH ROLLER........... 7.87"
BRUSH DRIVE........................ 17 HP
BRUSH SPEED........................ 59 FPM
FEED DRIVE......................... 2 HP
Approximate Machine Dimensions: 126″ L x 92″ W x 83″ H
Approximate Machine Weight: 10,720 Lbs
