72" x 236" Tru Turn, 1840/6M, 57" Over C/S, 315 RPM, Inch/Metric Threading ,Steady Rests, 40 HP, NEW, #30808

Manufacturer

TRU TURN

Category

Lathes

Type

LATHES, ENGINE

Stock

30808

Model

1840/6M

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #30808

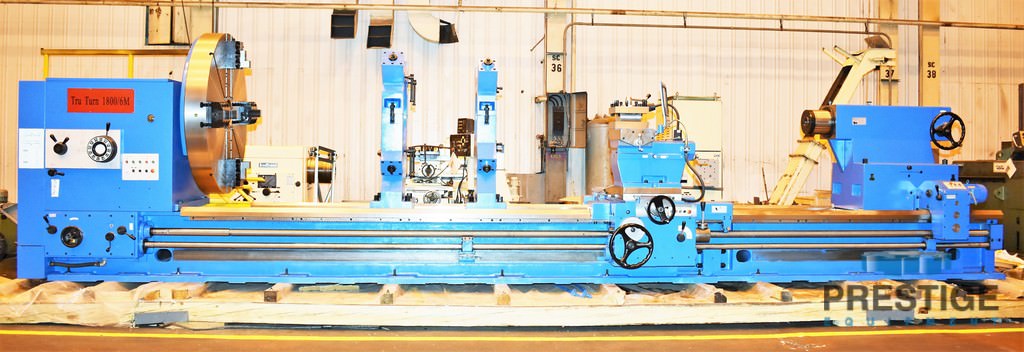

Tru Turn 1840/6M 72.44" x 236" Manual Lathe, Brand New 2019

FEATURES:
New, Never Used, In Stock, Immediate Availability!
Inch/Metric Threading
Hardened Ways

CAPACITY:
Swing Over Bed ....................... 72.44"
Swing Over Cross Slide ............... 57"
Width of Guide Way ................... 43.3"
Distance Between Centers ............. 236.22"
Spindle Hole ......................... 5.12"
Spindle Speeds (21 Speeds) ........... 3.15-315 RPM
Tailstock Diameter ................... 10.24"
Tailstock Travel ..................... 7.87"
Weight Capacity ...................... 33,000 Lbs
Machine Weight ....................... 52,000 Lbs
Floor Space L x W x Height ........... 372.3" x 94" x 88"

EQUIPPED WITH:
62.99" Diameter Face Plate with 4-Top Jaws

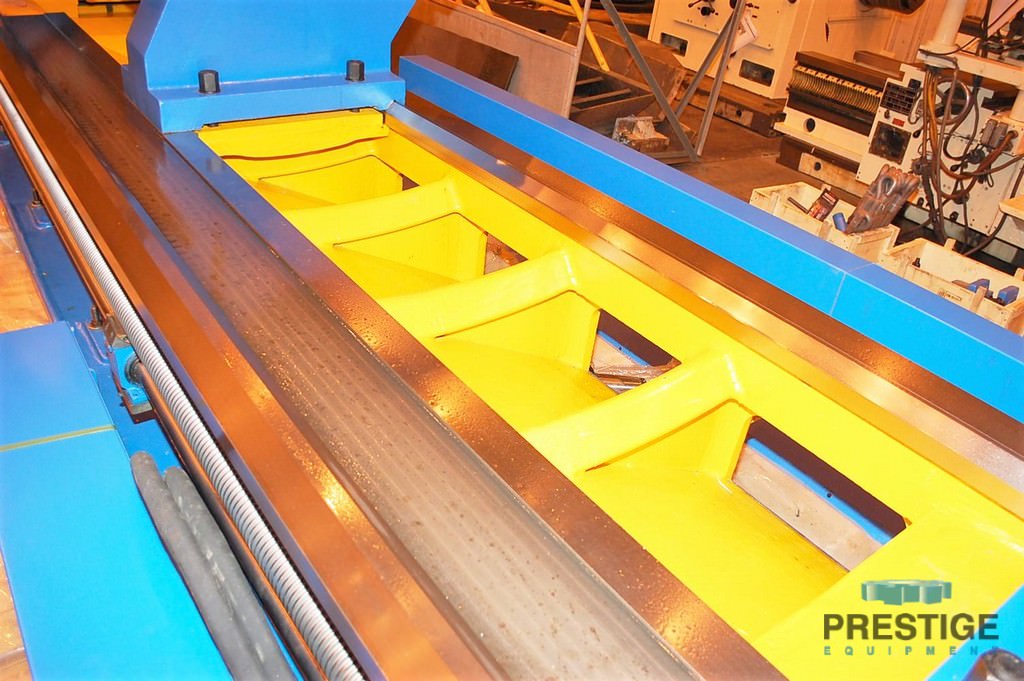

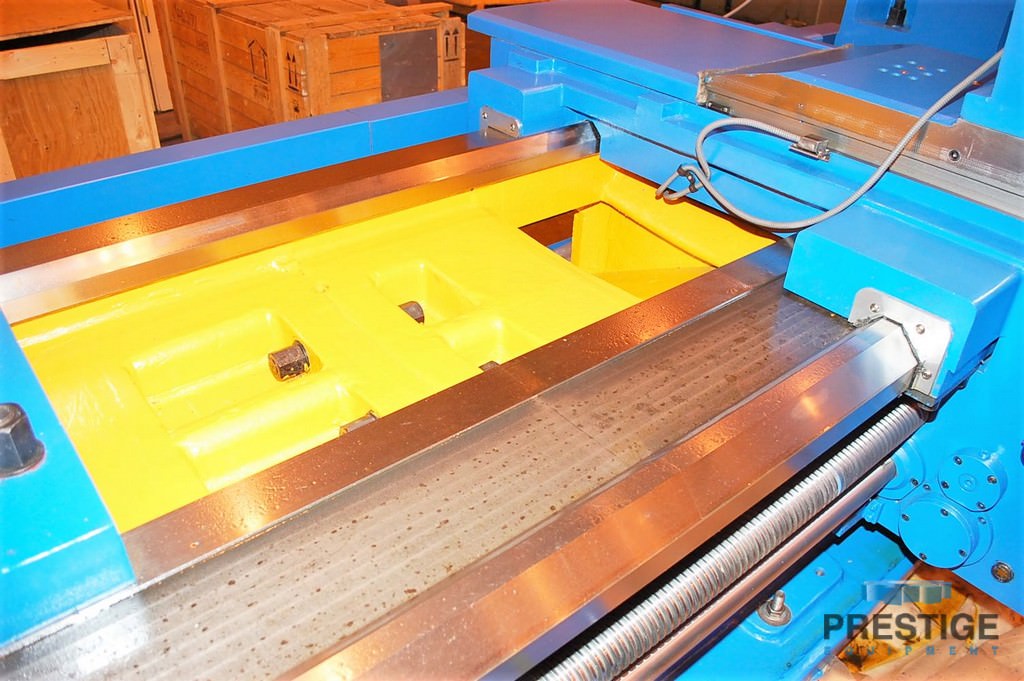

Flame Hardened Bed Ways

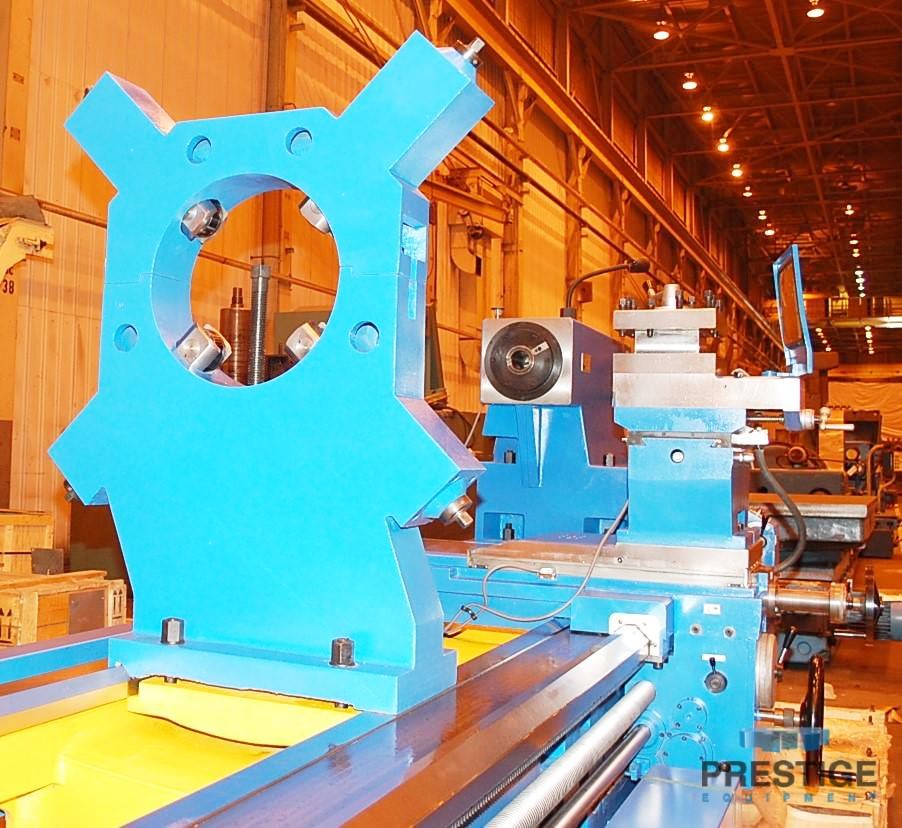

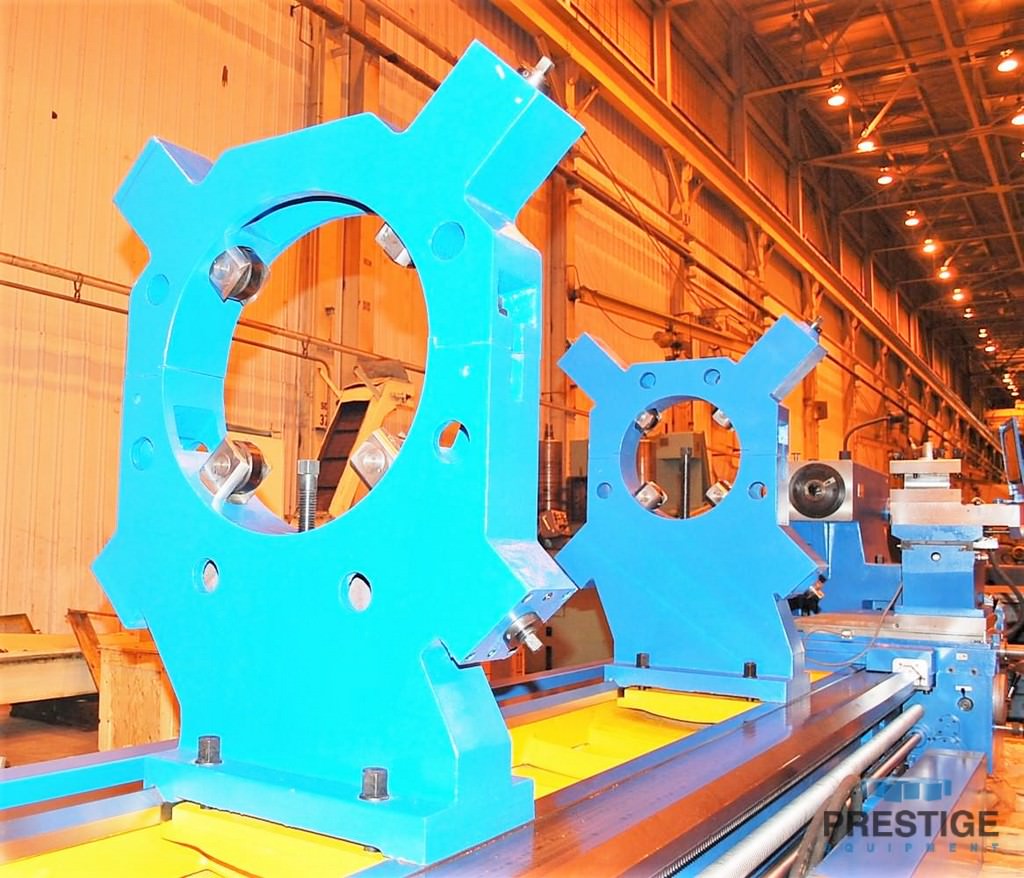

2-Roller Type Steady Rests: 27.5" & 17.71"
Power Drive To Top Slide For Conical Cutting
Swivel Compound & Tool Post
Inch / Metric Threading
Thread Dial
Center With Bushing
6-Way Power Rapid Traverse
Work Light
Pan Bed and Coolant System

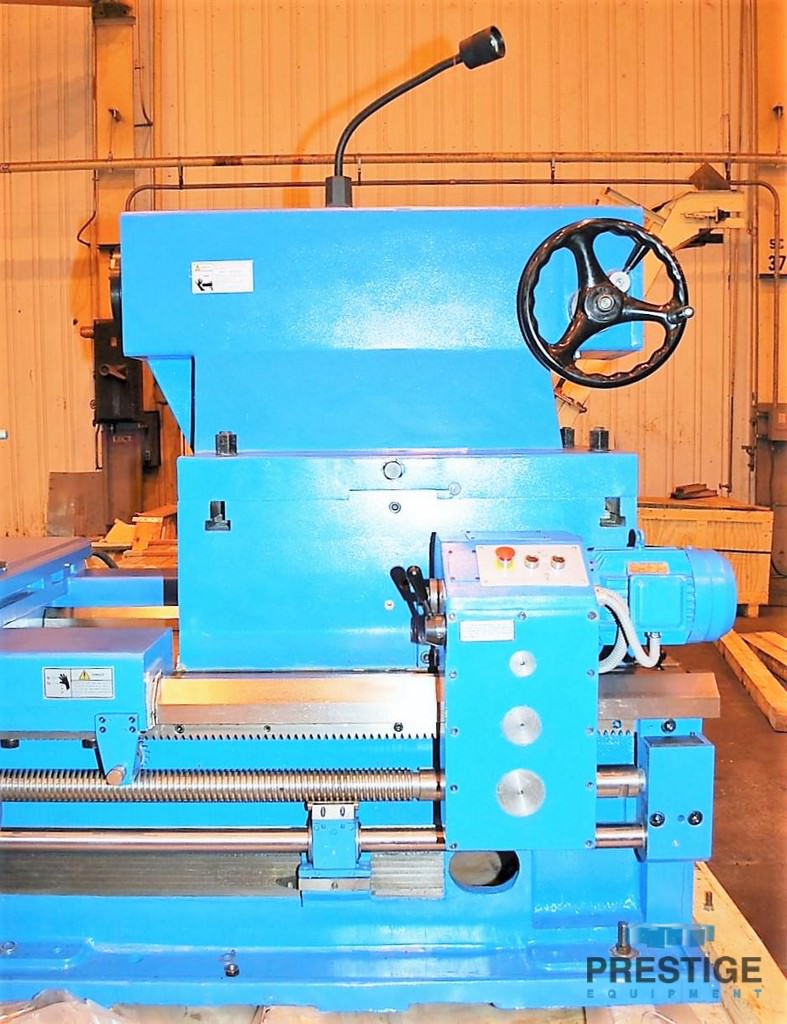

Motorized Tailstock

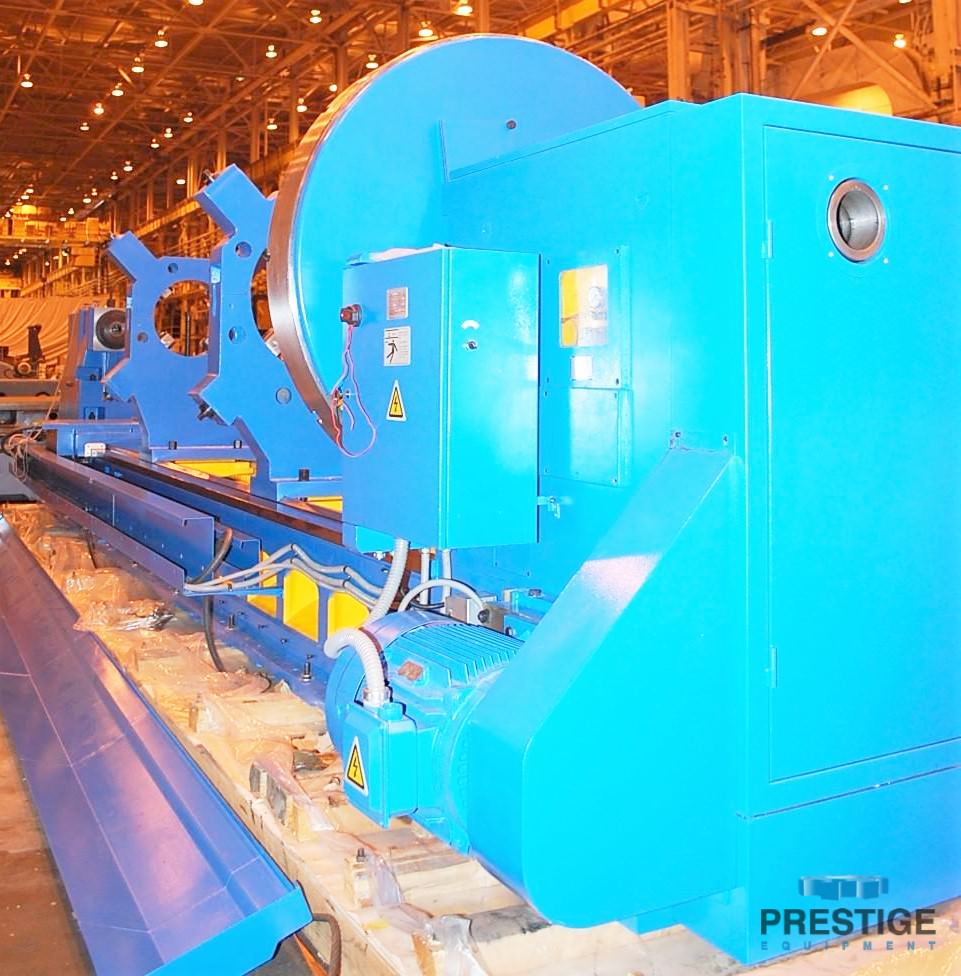

40 HP Drive Motor With Controls
440/3/60 Volt Electrics

NOTE:
In Stock, Immediate Availability!!
Inspect In Our Philadelphia PA Warehouse
