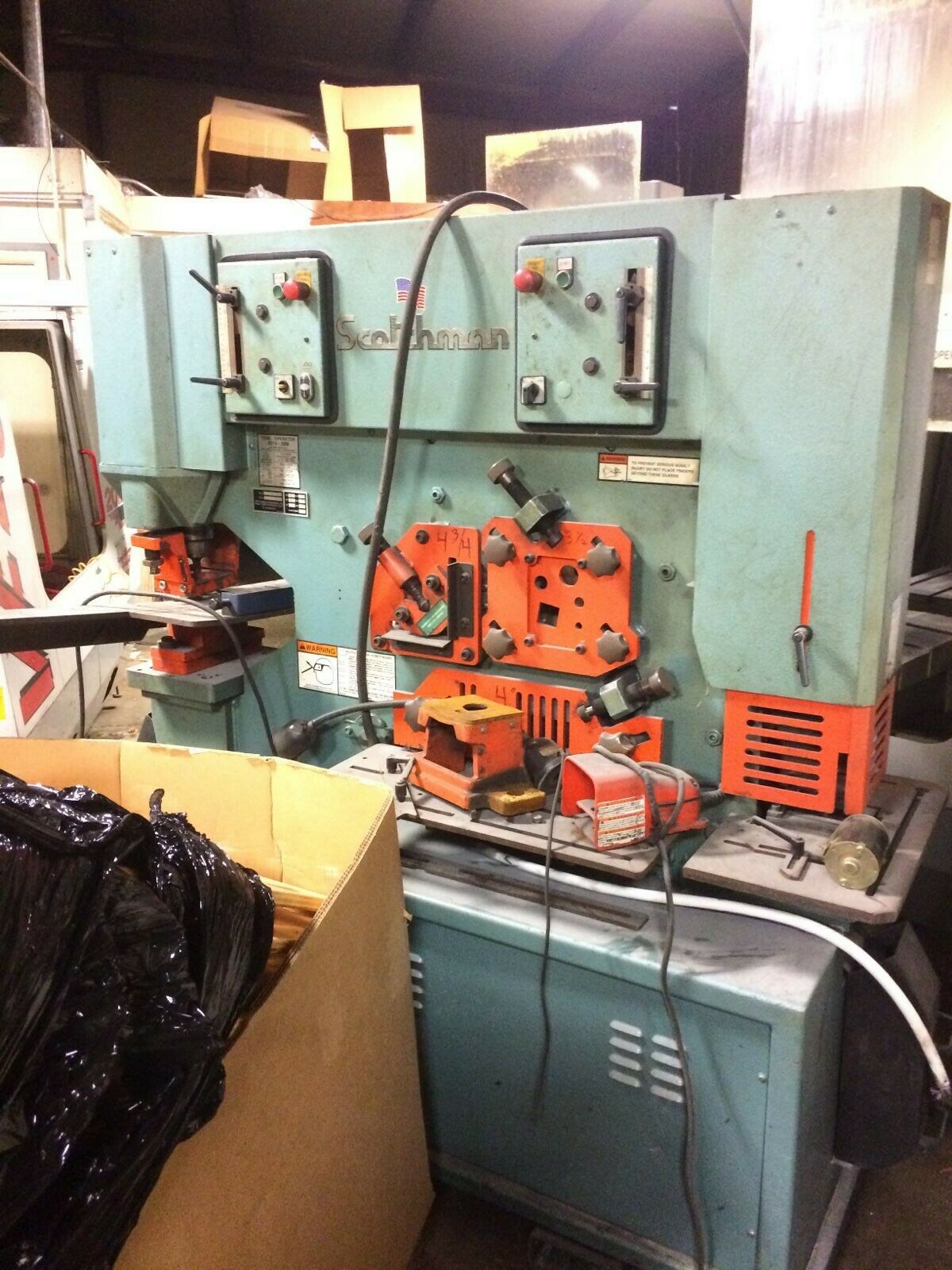

Scotchman DO8514-20M Dual Operated 85 Ton Iron Worker 14" Throat

Manufacturer

Scotchman

Category

Punches

Type

IRONWORKERS

Stock

Ez46105

Model

DO8514-20M

Dealer Location

California

Request a Quote
View Contact Information

Spec Sheet

>Under Power and Ready for Inspection

EZ Systems Stock#: ez46105

Machine Location: Tulsa, OK 74008

Includes Punches and Dies. Oversized Die and a Brake.

Specifications:

Punching Capacity: 85 Ton, 1 1/16″ in 1″

Special Tooling: 4″ Max. Diameter

Throat Depth: 14″

Flat Bar Shear: 20″, 1″ x 16″, 3/4″ x 20″

Angle Shear:

@ 90°: 6″ x 6″ x 1/2″

@ 45° (with Bar Shear): 4″ x 4″ x 1/2″

Brake: 12″ – 24″, 85 Ton

Open End Brake: 5″ x 5/8″

Pipe Notcher (Sch. 40 I.D.): 3/4″, 1″, 1 1/4″, 1 1/2″, 2″

90° V Notcher: 3″ x 3″ x 1/2″

Punch Attachment: 50 Ton

Notcher Station: 1 1/4″ in 1/2″

Throat Depth with Punch Attachment: 4 7/16″

Channel Shear: 2″ – 6″

Rod Shear:

Round Rod: 1/2″, 3/4″, 1″, 1 1/2″

Square Rod: 1 1/2″

Square Tube Shear: 1/2″ – 2″, 12 Gauge

Offset Die Holder: Max. 40 Ton

Strokes per Minute:

Light Material: 1/4″ Stroke

Heavy Material: 3/4″ Stroke

Hydraulics: 3,350/3,800 PSI

Motor: 10 HP / 230v, 460v / 3ph OR 230v / 1ph (Please confirm before ordering)

Standard Features:

Dual operator allows for two operators to work at the same time at full capacity

85 ton punch station

Keyed punch ram for safety

14″ throat depth

Punch gauging table with fence and scale

Die holder complete with 2″ die insert for # 82 dies

Punch nut with wrench

Adjustable swing-away stripper

One round punch and die (max. diameter 1 1/4″)

Punch jog control

Two adjustable electric stroke controls with scale

Two electric remote foot pedals

Two 2-stage hydraulic pumps

Two valves

6″ x 6″ x 1/2″ slug-less angle shear

Rectangle notcher (2″ x 4″ x 1/2″ can be converted to 3″ x 3″ V-notcher)

Flat bar shear (20″)

Shear table with miter fence

Rod shear (1/2″, 3/4″, 1″, 1 1/2″ round and 1 1/2″ square)

Slug receptacles

Electrical box supplied with emergency palm button and lock-out tag-out accommodations

All guards necessary to comply with ANSI B 11-5 standards

Forlift accommodations

Dual operator, five stations

Mechanical Specifications:

Dimensions: 30″ x 70″ x 77″ H

Shipping Weight: 5,600 lbs.
