Manufacturer

Solidscape

Spec Sheet

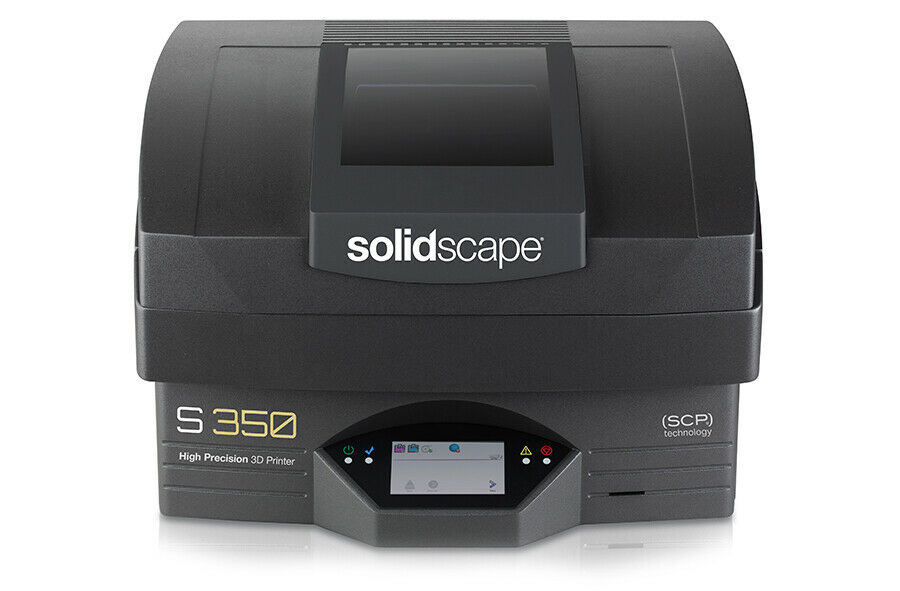

>2019 Solidscape S350 3D Printer

Includes: (about $5K to $6K worth of accessories)

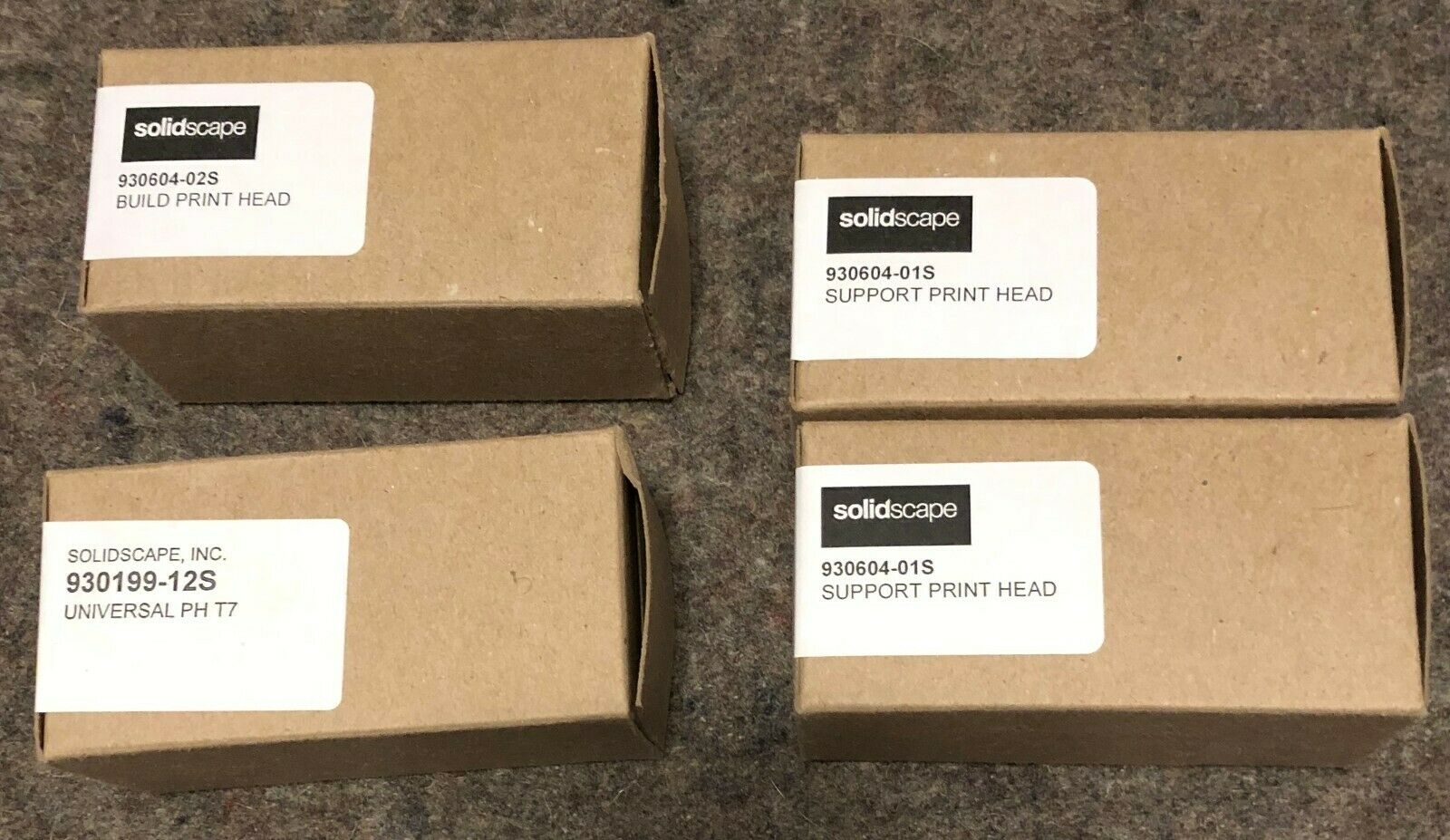

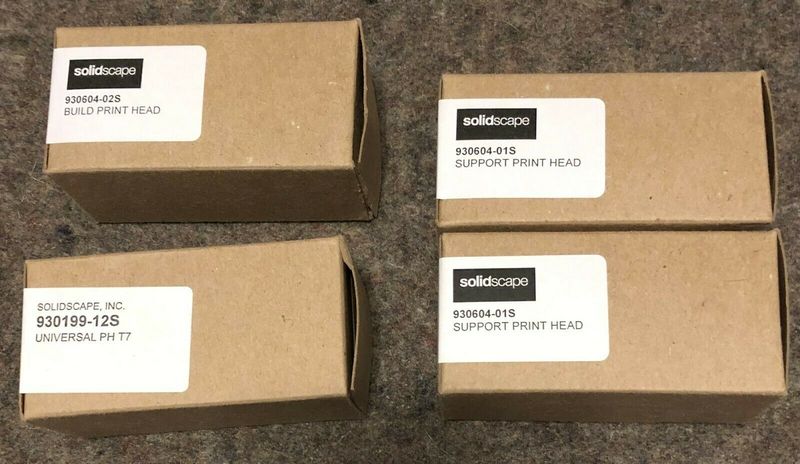

Extra Print heads 2 Support & 1 Build ($1K Value New each = $3K Value)

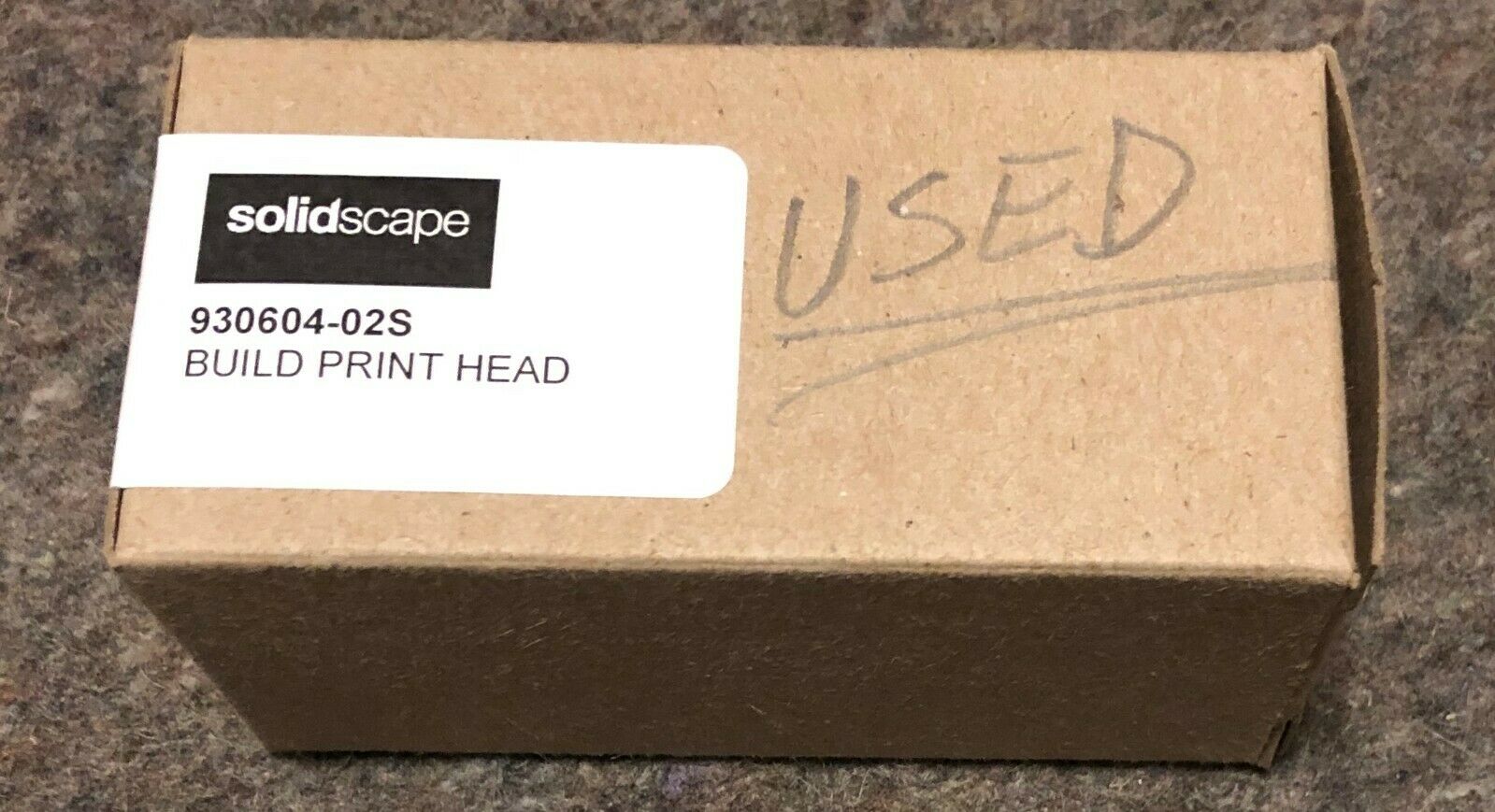

Extra Build Print head used
Extra Print Head Universal PH T7 ($1K Value)
Qty 5 Rolls Paper Tape ($500 value new)
Wax see pics ($2K Value New) 4 Full Support 4 Extra
2 Print Platforms ($150 value each)
*2 year printhead warranty - need to see if transferable

Printing Properties
Layer Thickness User Selectable – 0.00025 inch (0.00635 mm) to 0.003 inch
(0.0762 mm) at 0.00025 (0.00635 mm) increments
Resolution: 5000 dots/inch (197 X 197 dots/mm) in X, Y
Accuracy: ±0.005 inch (127 μm) for 1st inch (25.4 mm), ±0.001 inch/inch (25.4 μm) each additional inch X,Y and Z
Surface Finish: Layer thickness-dependent, up to 32 micro-inches (RMS)
Start Process: Fully automated, one-touch operation
Status Monitoring: Fully automated fault detection, restarts build from point of interruption
Calibration Capacity: Quicker calibration and ability to select calibration frequency means less wasted material

Tech Specs
Dimensions: 21.4 x 18 x 16 inches (558 x 495 x 419 mm)
Build Envelope: 6 x 6 x 4 inches (152.4 x 152.4 x 101.6 mm)
Weight: 80 lbs (36 kg)
Power: 100 – 240 V Required
Operating Temperature: 60° to 75°F (16° to 24°C)
Humidity: 40-60%
Agency Compliance: CE Certified, FCC Class B approved, TUV certified EN 60950 Compliant

Material Properties
Midas Castable Material: Proprietary model material formulated for clean burnout, producing 100% direct casting results
MeltDissolvable Support: Proprietary support material engineered to dissolve completely, hands-free, resulting in superior surface finish
Material Capacity: Larger tanks require less filling and allow for longer print runs
Material Monitoring: Display indicates build and support material levels accurately in 10% increments

Software and System Requirements
One-Click Software: Automatically formats CAD files for 3D printing
CAD File Input: .stl and .slc files
System: Windows, PC-to-printer connectivity via high-speed USB 2.0 or Ethernet
