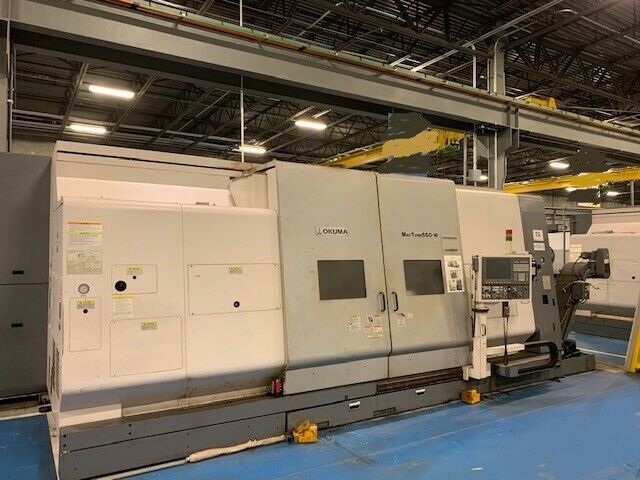

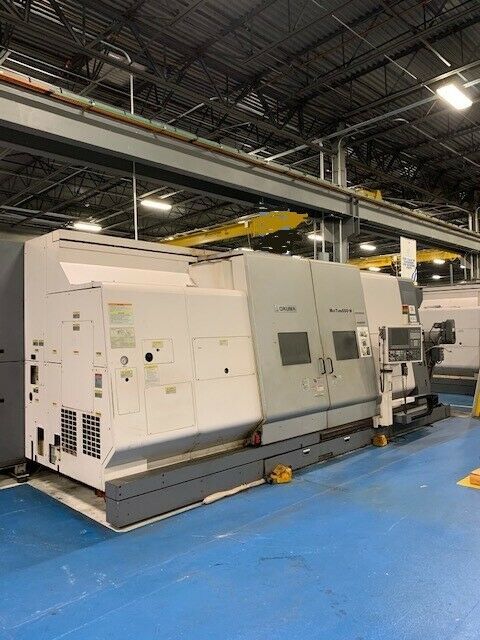

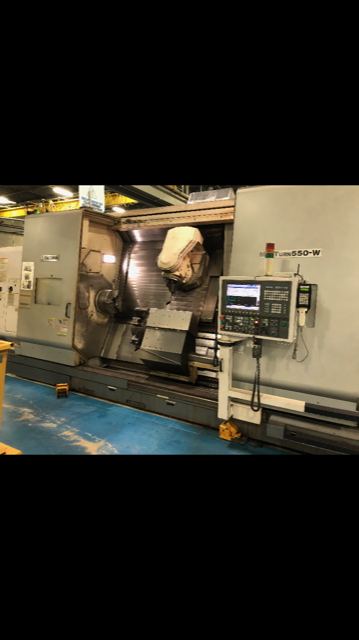

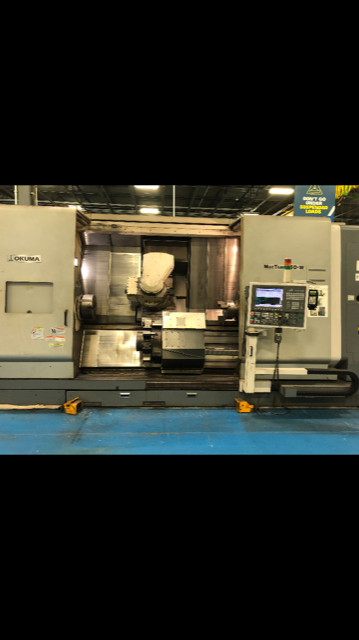

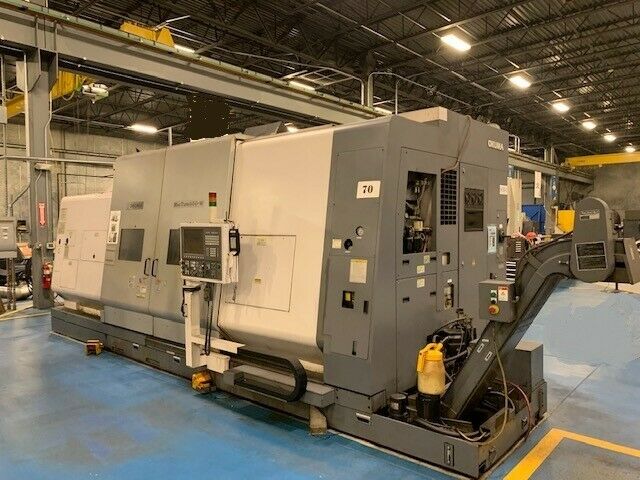

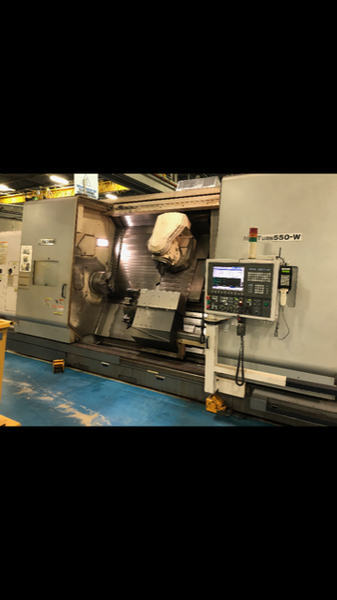

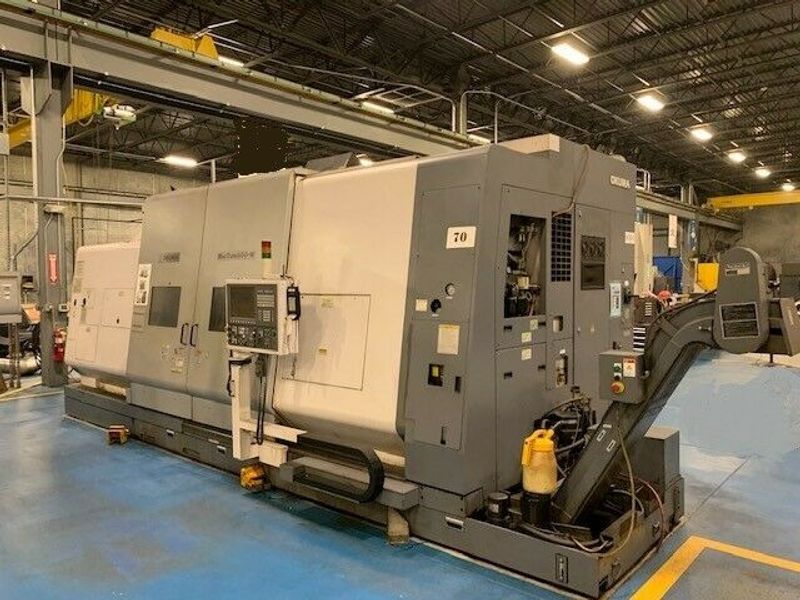

Okuma MacTurn 550W 249,000 or OBO Low Hours 2006 see pics for hours

Manufacturer

Okuma

Category

Lathes

Type

LATHES, UNIVERSAL, CNC

Stock

Ez45183

Model

MACTURN 550W

Dealer Location

California

Request a Quote
View Contact Information

Spec Sheet

>Equipped with:
OSP-P200L CNC Control
Controlled Axes – Upper Saddle XA, Y, ZA, C1, C2, B, W
Controlled Axes – Lower Saddle XB, ZB
50 Position Automatic Tool Changer

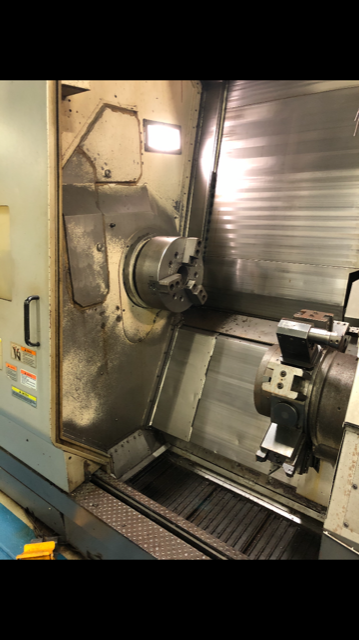

15.7” 3 Jaw Chuck

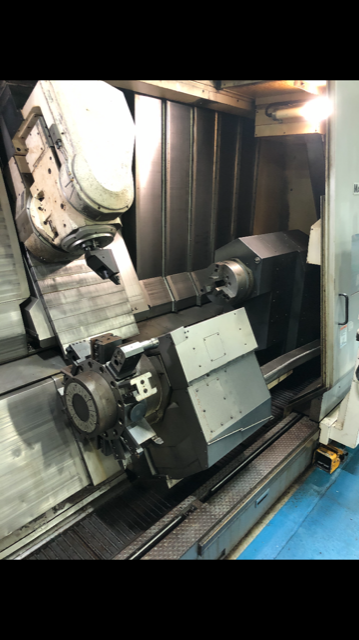

Lower Turret With Milling Function

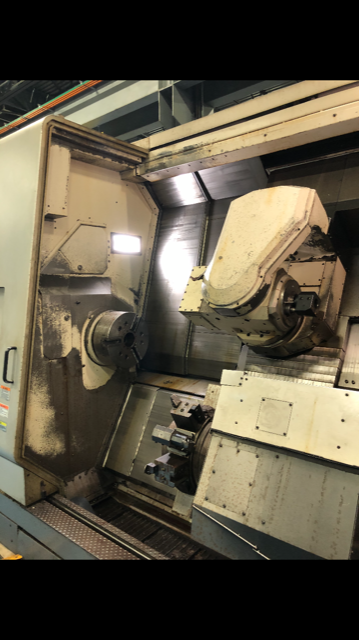

With Milling Spindle B, C & Y Axis
Tailstock
Auto Doors
Swarf Conveyor
SMW Autoblock Hydraulic Steady Rests (.31” – 13.77”)

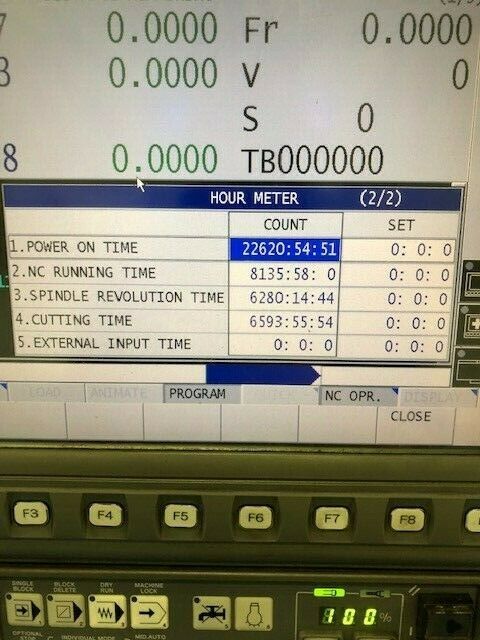

Okuma MacTurn 550W Low Hours see pic

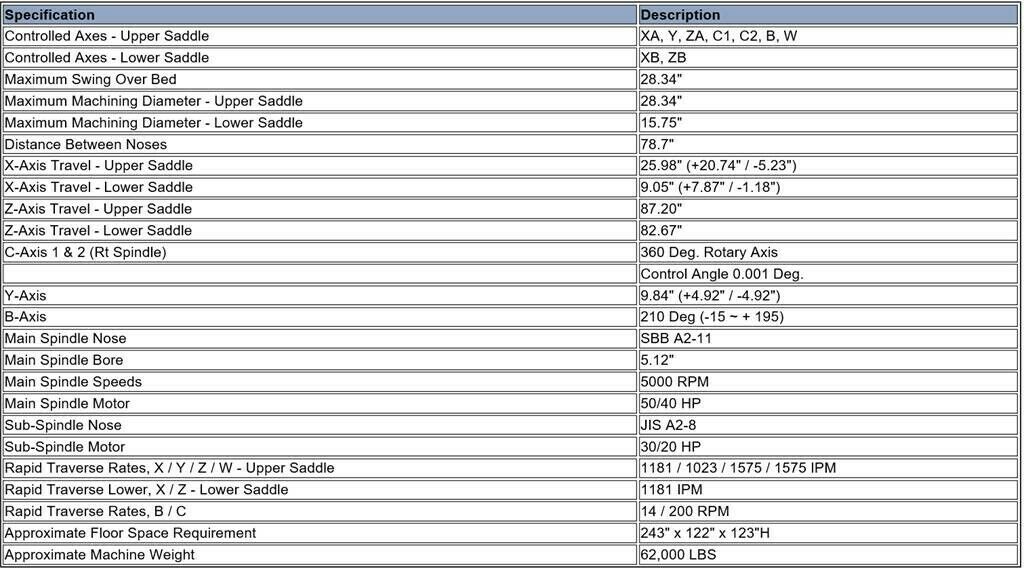

Specifications
Swing Over Bed 28.35"
Maximum Machining Diameter - Upper Saddle 28.35"
Maximum Machining Diameter - Lower Saddle 15.75"
Distance Between Noses 78.7"
X Axis Travel - Upper Saddle 25.98" (+20.74 / -5.23")
X Axis Travel - Lower Saddle 9.05" (+7.87" / -1.18")
Z Axis Travel - Upper Saddle 87.2"
Z Axis Travel - Lower Saddle 82.67"
X Axis 1 & 2 (Rt Spindle) 360 Degree Rotary Axis - Control Angle 0.001 Degree

Y Axis Travel 9.84" (±4.92")
B Axis 210 Degree (-15 ~ -195)
Main Spindle Nose SBB A2-11
Main Spindle Bore 5.12"
Main Spindle Speed 5,000 rpm
Main Spindle Motor 50 / 40 HP
Sub - Spindle Nose JIS A2-8
Sub - Spindle Motor 30 / 20 HP
Rapid Traverse Rate X/Y/Z/W - Upper Saddle
1,181 / 1,023 / 1,575 / 1,575 ipm
Rapid Traverse Rate X/Z - Lower Saddle 1,181 ipm
Rapid Traverse Rates B/C 14 / 200 rpm

Approximate Floor Space Requirement 243" x 122" x 123" H
Approximate Machine Weight 62,000 lb
