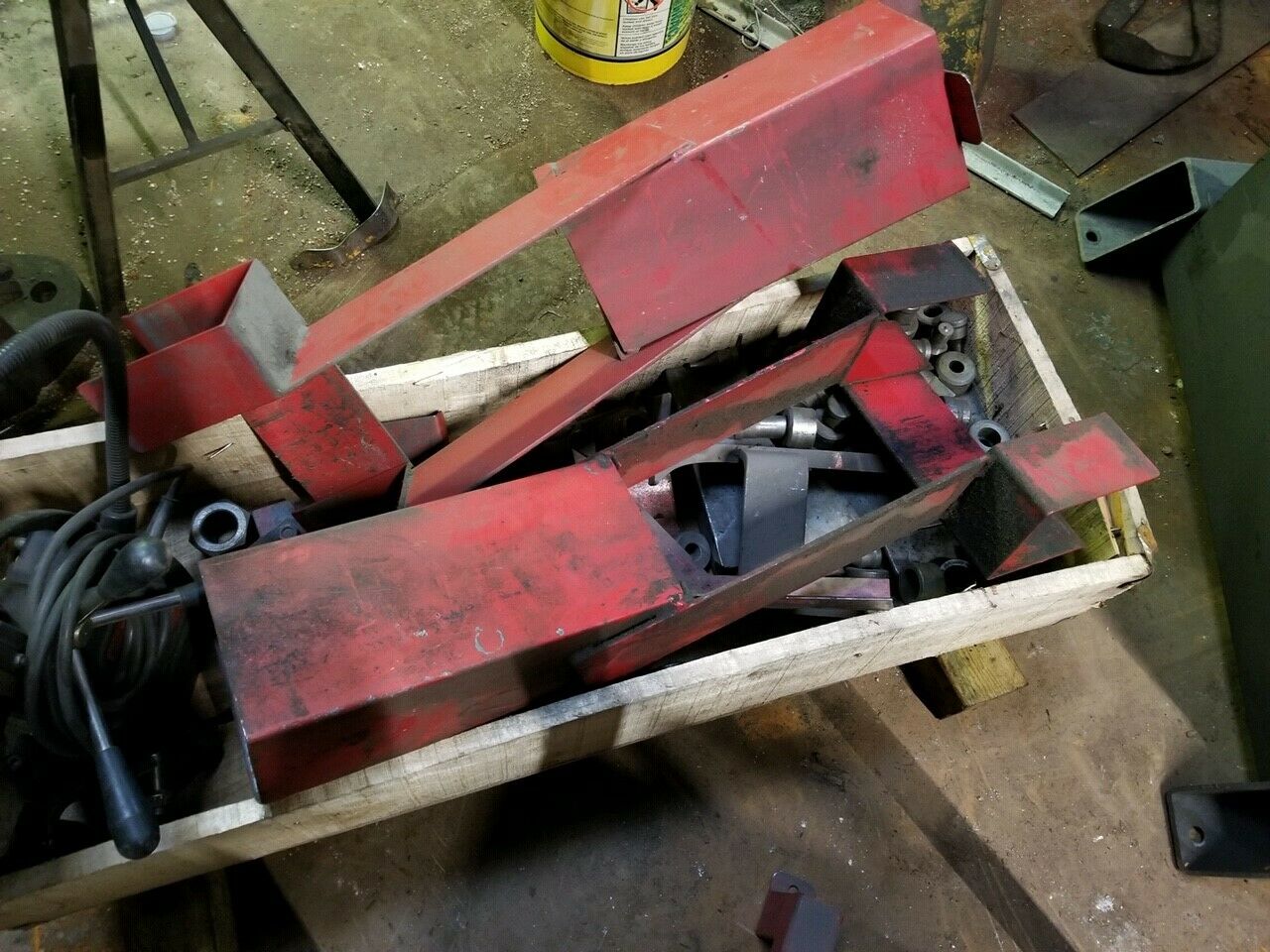

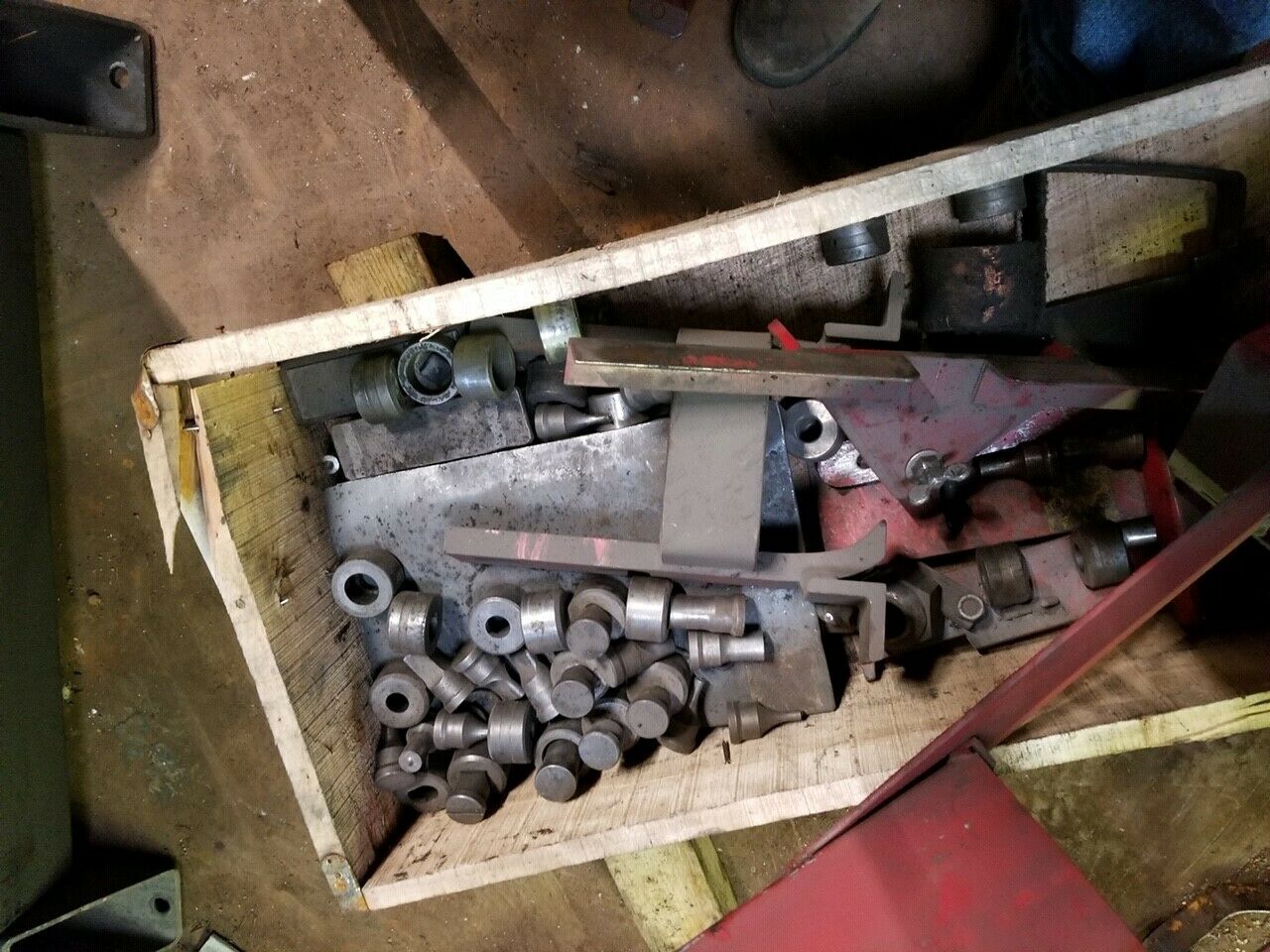

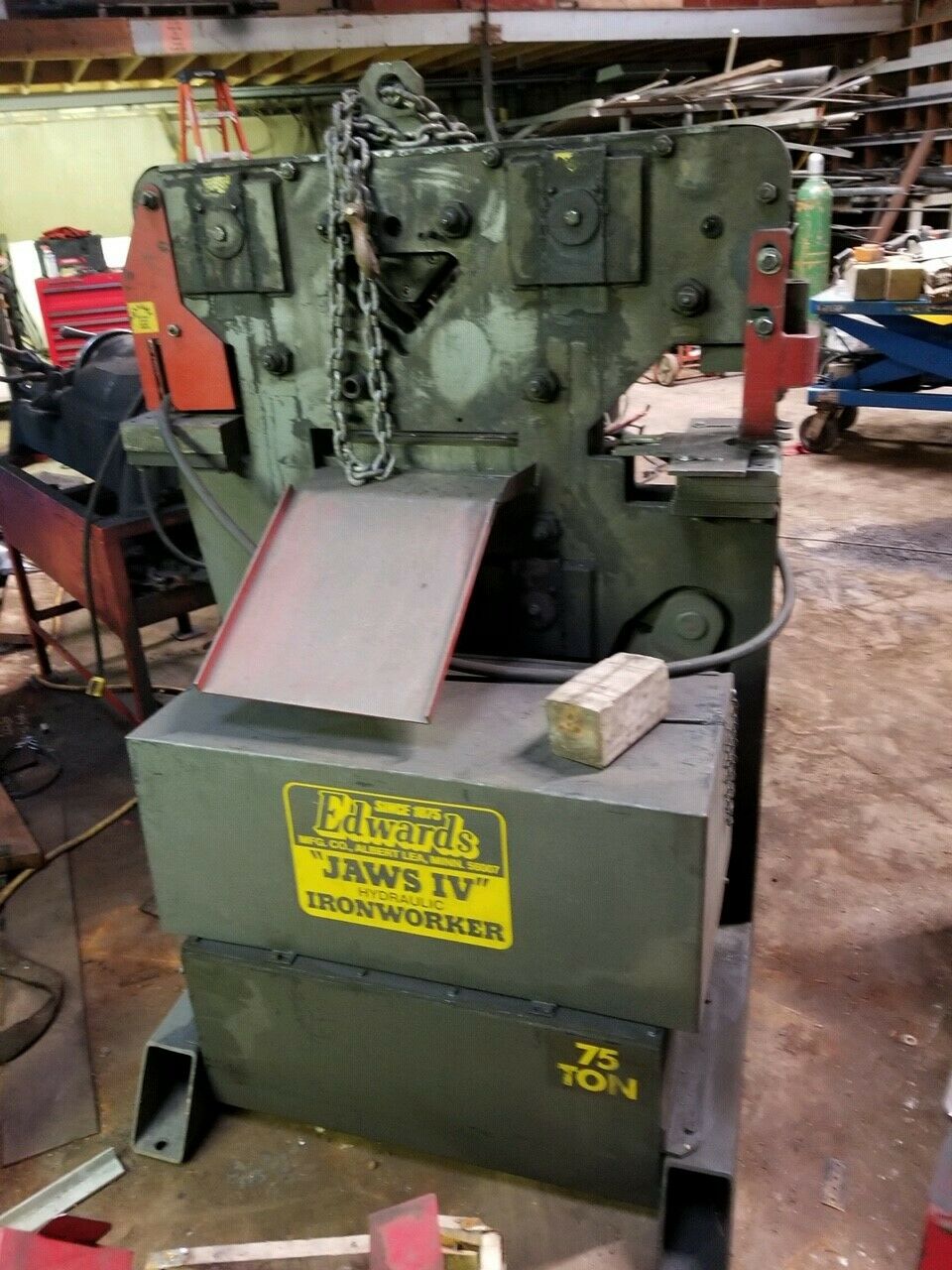

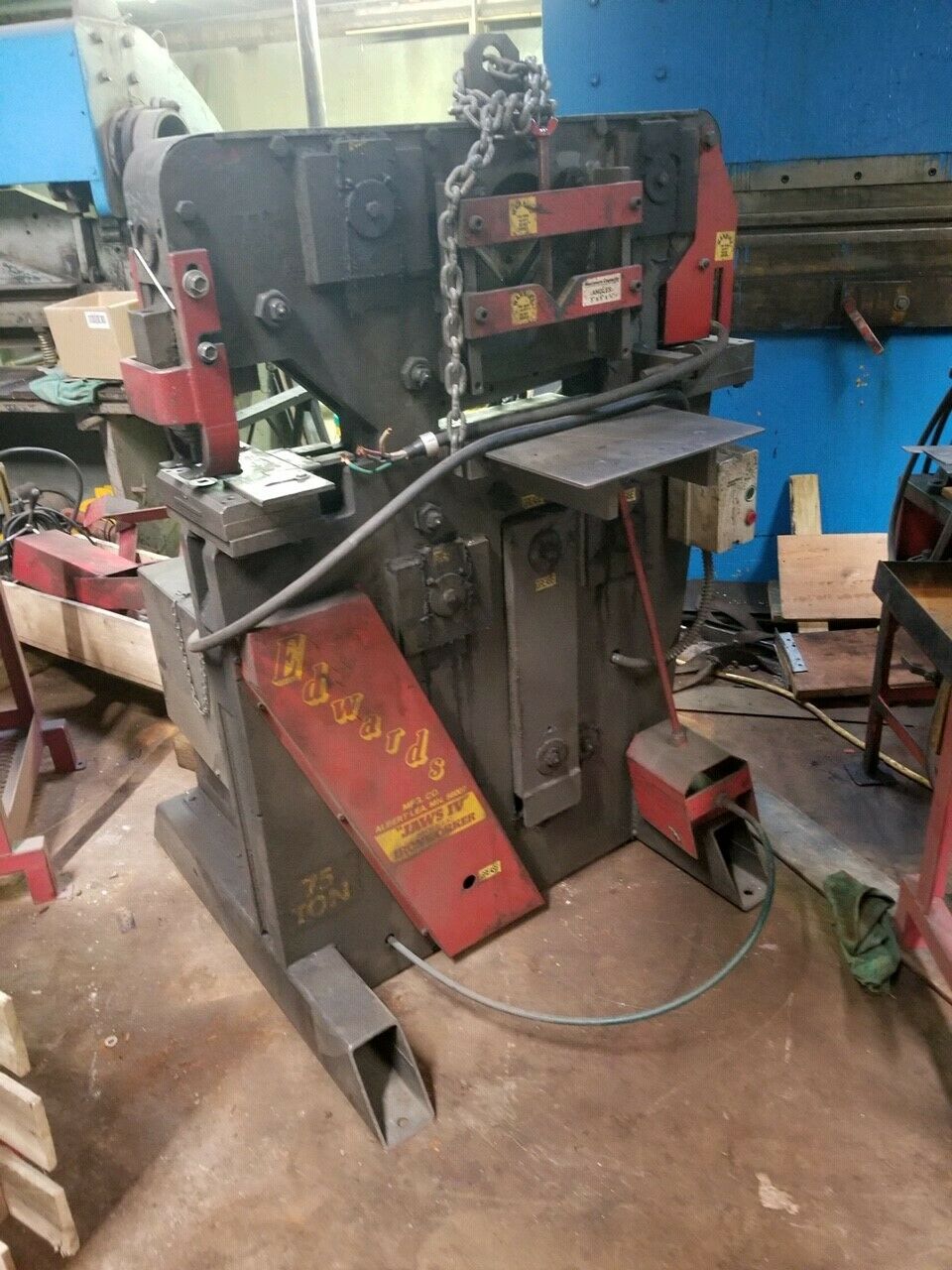

75 TON EDWARDS MODEL JAWS IV HYDRAULIC IRONWORKER WITH LOTS OF TOOLING 1-1/16 Punch Capacity in 7/8" Steel, Shear, Angle Shear

Manufacturer

Edwards

Category

Presses

Type

PRESSES, FORMING

Stock

Ez40096

Model

Jaws lV

Dealer Location

California

Request a Quote
View Contact Information

Spec Sheet

>SPECIFICATIONS
1-1/16 Punch Capacity in 7/8" Steel, Shear,
Angle Shear
RATED CAPACITY: 75 TON
THROAT DEPTH: 10"
OPEN HEIGHT: 8-3/4"
SHUT HEIGHT: 6-7/8"
STROKE: 1-5/8"
CYCLE TIME: 2 SECONDS
PUNCHING: MAXIMUM CAPACITY: 1-16" DIA. IN 7/8" PLATE (WORK HEIGHT) 41-1/2"
FLAT BAR SHEARING:
MAXIMUM WIDTH: 1/2" X 14"
MAXIMUM THICKNESS: 3/4" X 10"
MAXIMUM ROUND CAPACITY: 1"
MAXIMUM SQUARE CAPACITY: 1"
WORK HEIGHT: 41-1/2"
ANGLE SHEARING: (MAXIMUM SIZE) 5" X 5" X 3/8" (WORK HEIGHT) 49"
OPEN STATION: MAXIMUM CAPACITY: 2-1/2" X 5" X 1/2" (WORK HEIGHT) 43-1/2"
ELECTRIC MOTOR STANDARD: 5 HP / 3 PH / 220 VOLT
HYDRAULIC PUMP SIZE: 10-1/2 GPM - 2 STAGE
RESERVOIR: 20 GALLONS
CYLINDER: 3-1/2" RAM
