Mazatrol 640T PC Fusion. Presetter, Tailstock, 10” 3-jaw Auto Strong, Chip Conveyor, Spindle Nose A-2-8

Manufacturer

MAZAK

Category

Lathes

Type

LATHES, UNIVERSAL, CNC

Stock

Ez33122

Model

QUICK TURN 25L

Dealer Location

California

Request a Quote
View Contact Information

Spec Sheet

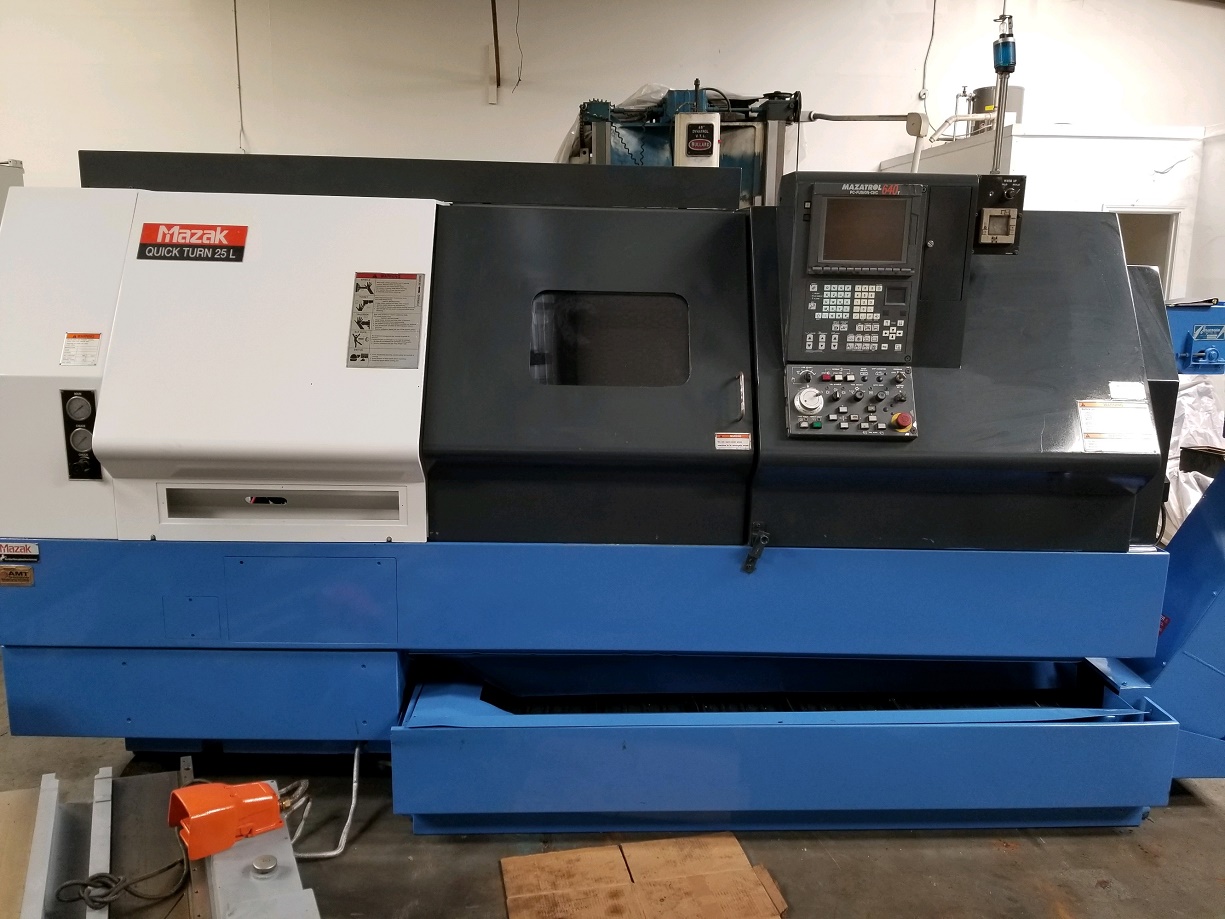

>Model Quick Turn 25L QT-25L
Date of mfg. 1999

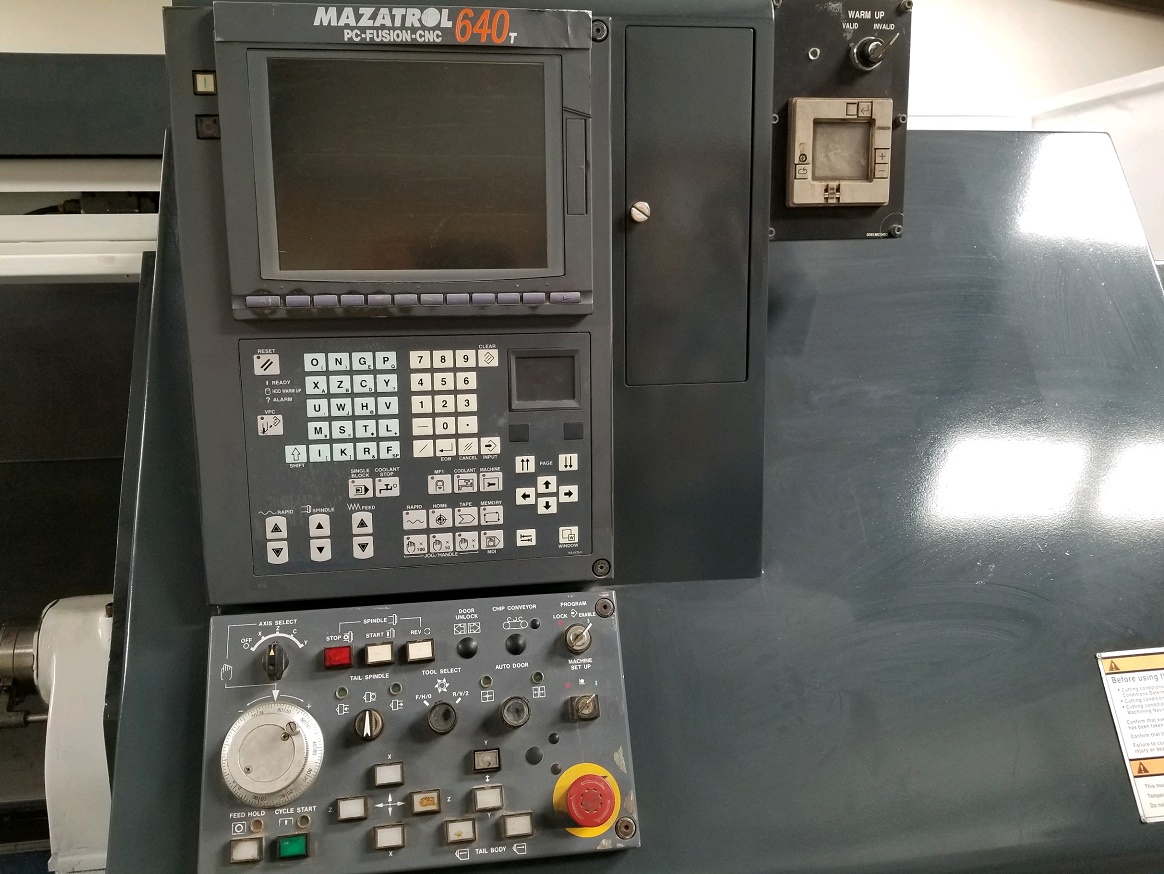

CNC control Mazatrol 640T PC Fusion
Tool pre-setter Yes
Max. swing 20”
Max. machining diameter 12.6”
Center distance 55”
Tailstock Yes

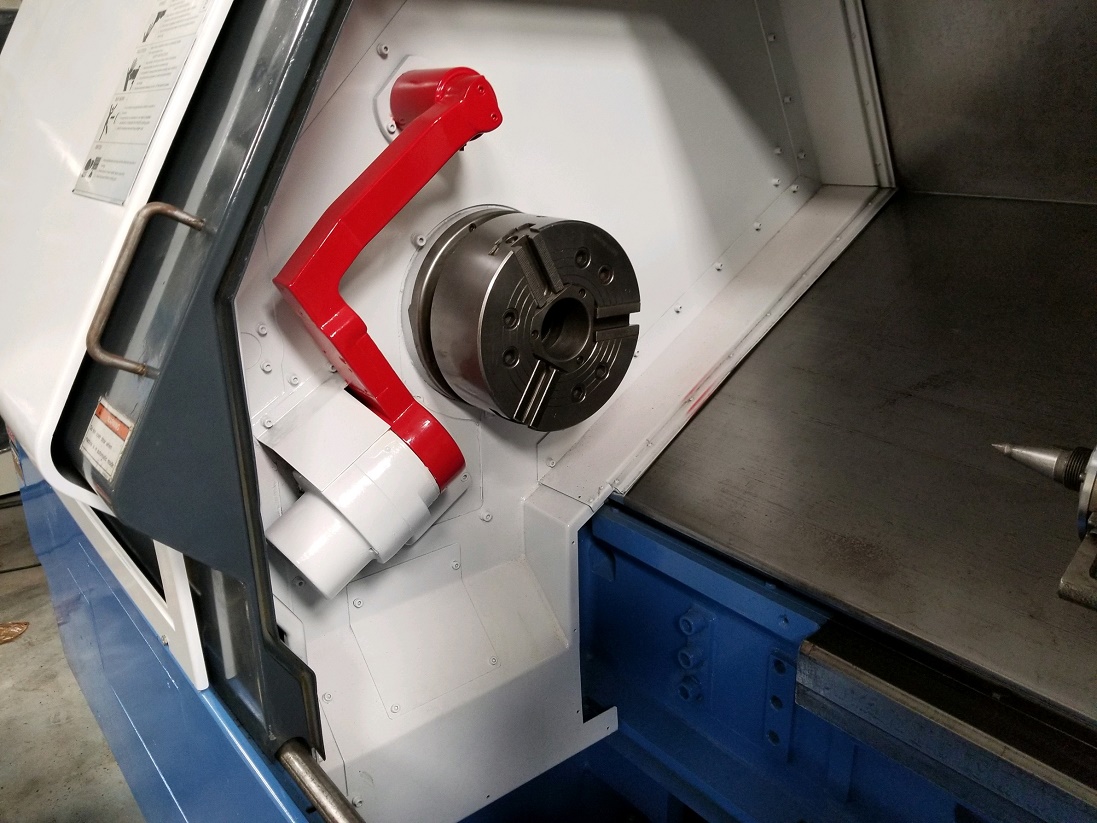

Chuck diameter 10” 3-jaw Auto Strong
Spindle nose A-2-8
Spindle bore 3.15”
Max. bar diameter 2.75”
Stroke, X & Z 7.87” & 48”
Spindle speed 36-3,600 rpm.
Turret stations 8D 16P stations
Turning tool shank 1”
Boring bar diameter 1.5”
Traverse rate, rapid X & Z 1180 IPM
Main motor 25/20 hp
Electrics 230/3/60
Max. electric draw 48 kVA/36 kVA

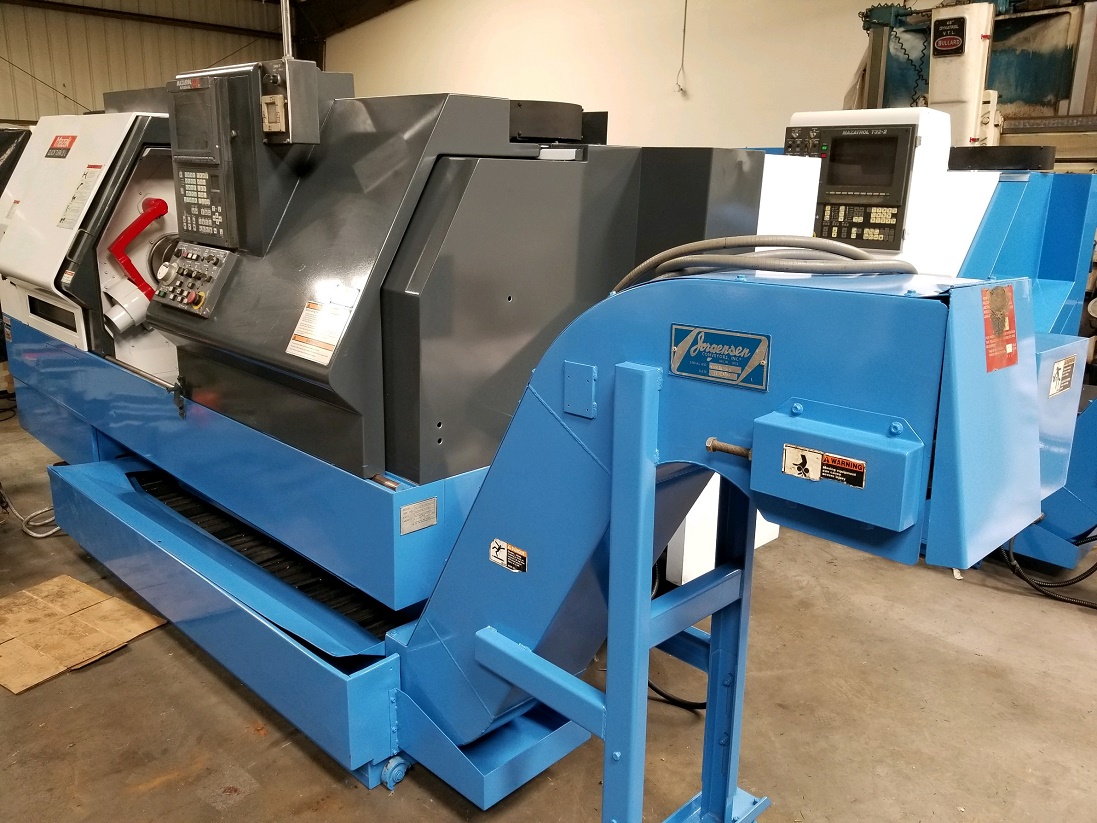

Chip conveyor Yes
Dimensions 124” W x 73” L x 80” H
Dimensions, chip conveyor 134” W x 37” L x 57” H
Machine weight 14,200 lbs.
