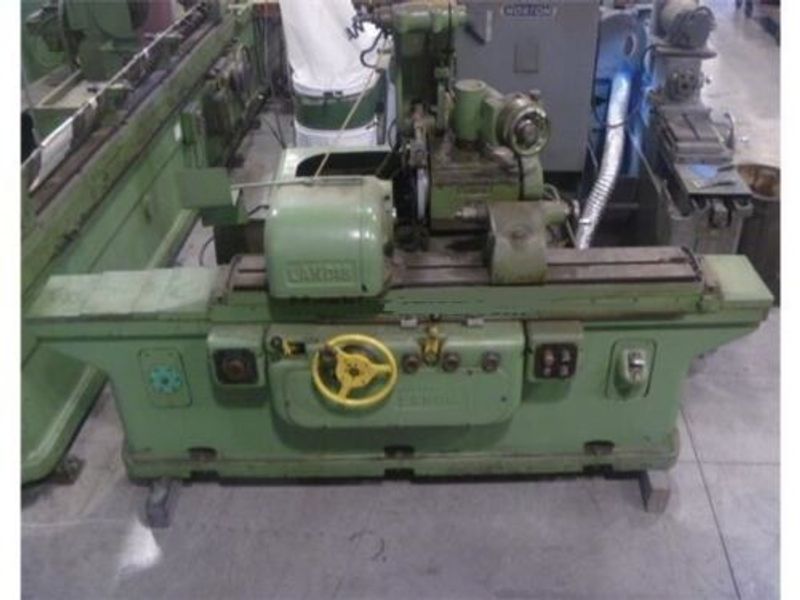

EQUIPPED WITH SWING DOWN ID HEAD, TABLE SWIVELS, WORK HEAD SWIVELS, WHEEL HEAD SWIVELS

Manufacturer

LANDIS

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC (Incl. Pallet Changers)

Stock

Ez12108

Model

1R

Dealer Location

California

Request a Quote
View Contact Information

Spec Sheet

>SPECIFICATIONS:

GENERAL:

MAXIMUM SWING OVER TABLE 10-7/8"
DISTANCE BETWEEN CENTERS 20"

WORK CARRIAGE:
TRAVERSE SPEED 2 TO 240 I.P.M.
TRAVERSE PER TURN OF HANDWHEEL .200"
TRAVERSE HANDWHEEL GRADUATIONS .001"

WHEELHEAD & WHEEL FEED:
GRINDING WHEEL SIZE, STANDARD 12" DIAMETER X 1" WIDE X 5" BORE
MAXIMUM GRINDING WHEEL WIDTH 3"
MAXIMUM WHEELHEAD SPEED 3,600 S.F.P.M.
WHEELHEAD SWIVELS LEFT AND RIGHT OF CENTER 90 DEGREES
MAXIMUM HYDRAULIC INFEED ON DIAMETER .090"
MINIMUM FEED GRADUATIONS ON DIAMETER .000050"
RAPID HYDRAULIC INFEED STROKE 1"
WORK DIAMETER REDUCTION PER REVOLUTION OF
HANDWHEEL .100"
WORK DIAMETER REDUCTION PER REVOLUTION OF FINE FEED
KNOB .001"

MOTORIZED WORKHEAD & TAILSTOCK:
(6) WORKHEAD SPINDLE SPEEDS 60-600 R.P.M.
WORKHEAD SPINDLE NOSE A2-5"
WORKHEAD SWIVELS AWAY FROM WHEELHEAD 30 DEGREES
WORKHEAD SWIVELS TOWARD WHEELHEAD 90 DEGREES
WORKHEAD SPINDLE TAPER #10 JARNO
TAILSTOCK SPINDLE TAPER #6 JARNO

TABLE:
SWIVEL TABLE GRADUATED (INCHES PER FOOT) 4"
SWIVEL TABLE GRADUATED (DEGREES INCLUDED ANGLE) 20 DEGREES


SWING DOWN ID HEAD, TABLE SWIVELS, WORK HEAD SWIVELS, WHEEL HEAD SWIVELS
