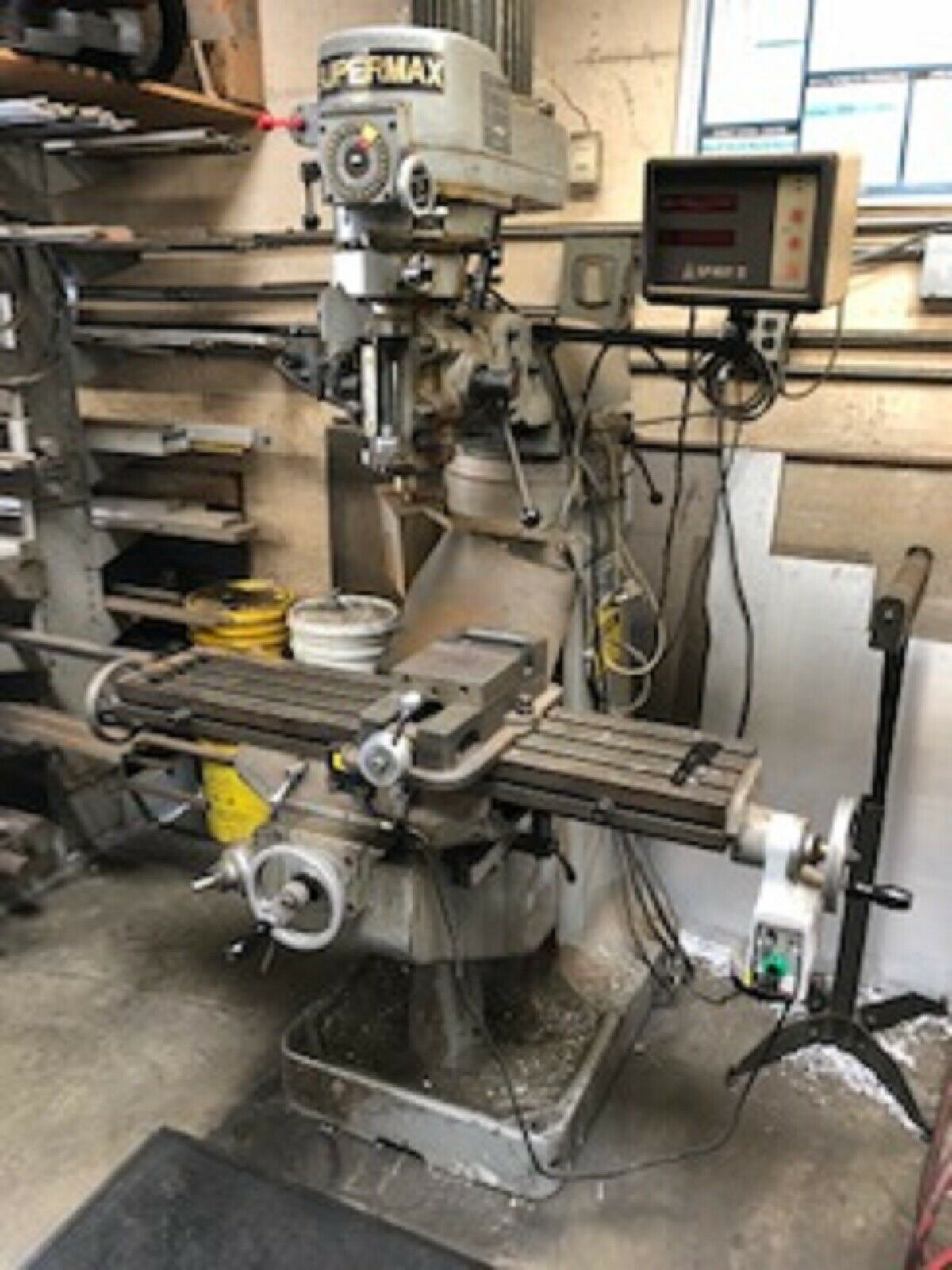

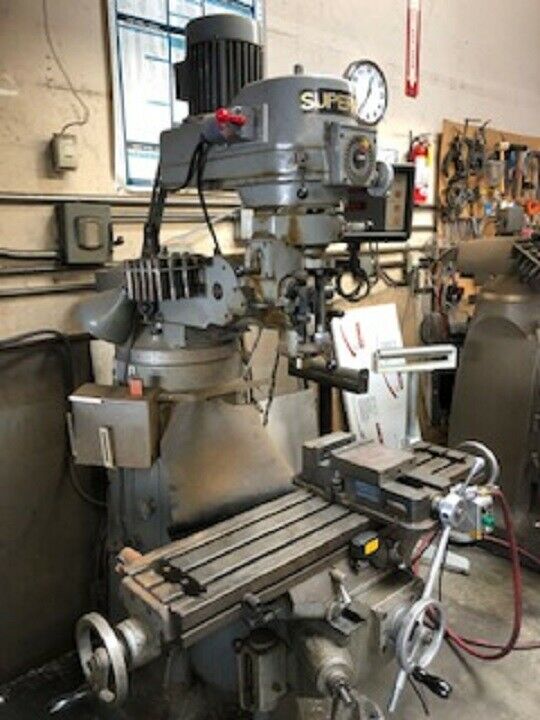

1988 SUPERMAX MILL YC-1 1/2 VA 3 Axis Vertical Turret Milling Machine Step Head Belt Drive

Stock

Ez45184

Model

YC-1 1/2 VA

Dealer Location

California

Spec Sheet

>1988 SUPERMAX MILL YC-1 1/2 VA 3 Axis Vertical Turret Milling Machine Step Head Belt Drive
Note: Please confirm specs before buying
NEW SERVO
VICE NOT INCLUDED
VERY GOOD CONDITION QUIET MOTOR VERY VERY LOW

Table: 9" X 42"
Voltage: 240 V 3 Phase
Main motor: 2 HP
One shot lube: YES
Spindle taper: R8
Spindle speeds: 80 - 2720 RPM
Step Head Belt Drive


Powered: X, Y, Z

Table Travels: 30? Longitudinal, 12? Cross Travel

Quill Travel: 5?

Knee Travel: 16? (Vertical)

Main Motor: 2 HP, 230 Volt

Speed Range: Low 80, 135, 210, 325

High 660, 1115, 1750, 2720

Collet Capacity: ??

Vertical Capacity: 2.5? to 18.5?

Throat: 6.75? to 18.75?

Overall Dimensions: 75.5? x 58.75? x 88? (height)
