Ez39930
PUMA 6G
California
>SPECIFICATIONS
Brand DAEWOO
Model PUMA 6G
Type CNC Lathes
Lower 87
ChuckSize 6 inch
BarCapacity 1.54 inch
Axis 2
Power 10 hp
MaxRPM 6000 rpm
Upper 107
TurningDia 15 inch
Swing 6.5 inch
Tailstock No
Control CNC (FANUC 0T)
Specifications
Max. Swing 19.7"
Maximum Turning Diameter 15"
Swing Over Carriage 6.5"
Max.Bar Working Dia. 1.54"
X-Axis Travel 15.7"
Z-Axis Travel 9.8"
Spindle Nose / Bore ASA A2-5 / 1.81"
Spindle Speed 60 ~ 6,000 RPM
Spindle Motor 10 HP
Turret Type Gang Slide
Rapid Traverse X / Z 1200 / 1400 IPM
Machine Weight 5,512 lbs

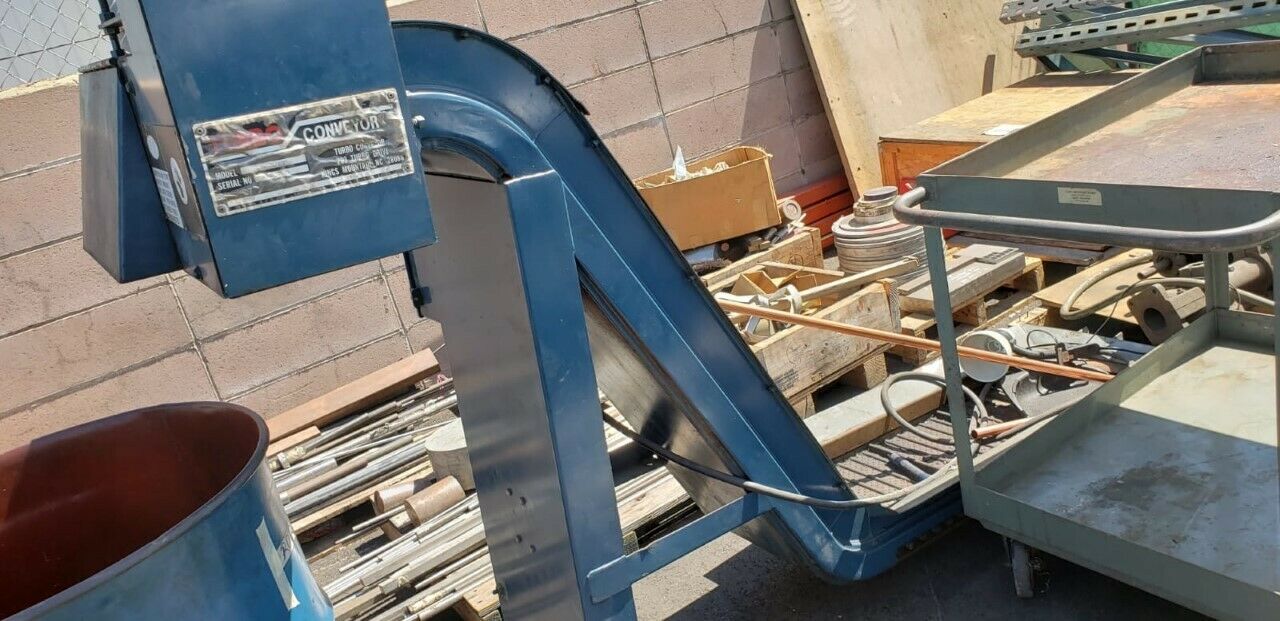

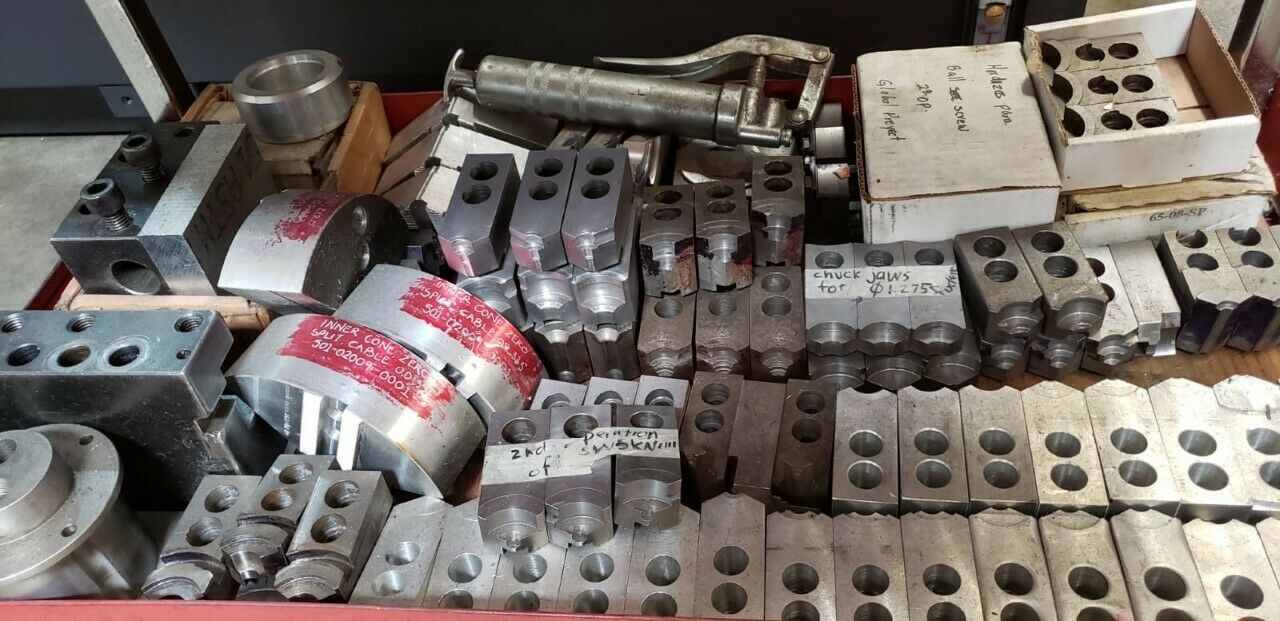

GANG TOOL CNC LATHE, CHIP CONVEYOR, ASSORTED TOOLING
No Video Available
