EDGE PATRIOT 338 MAGAZINE BAR FEED KNOLL COOLANT FILTRATION SYSTEM HIGH PRESSURE COOLANT PUMP MSC COOLANT CHILLER 40-STATION AUTOMATIC TOOL CHANGER SWIVEL VISE TOOL TOUCH SETTER SPINDLE PROBE SPINDLE CHILLER PARTS CONVEYOR CHIP CONVEYOR 2-SPINDLE GR

Manufacturer

CHIRON

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC (Incl. Pallet Changers)

Stock

Ez23454

Model

FZ-08KS

Dealer Location

California

Request a Quote
View Contact Information

Spec Sheet

>Brand ... ... ... ... ... ... ... ... ... ... ... CHIRON
Model ... ... ... ... ... ... ... ... ... ... ... FZ-08KS
Power ... ... ... ... ... ... ... ... ... ... ... 9.4 hp
RPM ... ... ... ... ... ... ... ... ... ... ... 8000 rpm
Description KS, X-17", Y-10", Z-14", 15k RPM, 9.4 HP, HSK A-40, Bar Feed, Fanuc 31iA5 CNC, 2009, #29535
Control . ... ... ... ... ... .. CNC (Fanuc 31iA5 CNC Control)
Taper ... ... ... ... ... ... ... ... ... ... ... HSK A-40
Type ... ... ... ... ... ... ... Vertical Machining Centers
X .. ... ... ... ... ... ... ... ... ... ... ... 17.71 "
Y .. ... ... ... ... ... ... ... ... ... ... ... 10.62 "
Z .. ... ... ... ... ... ... ... ... ... ... ... 14.17 "

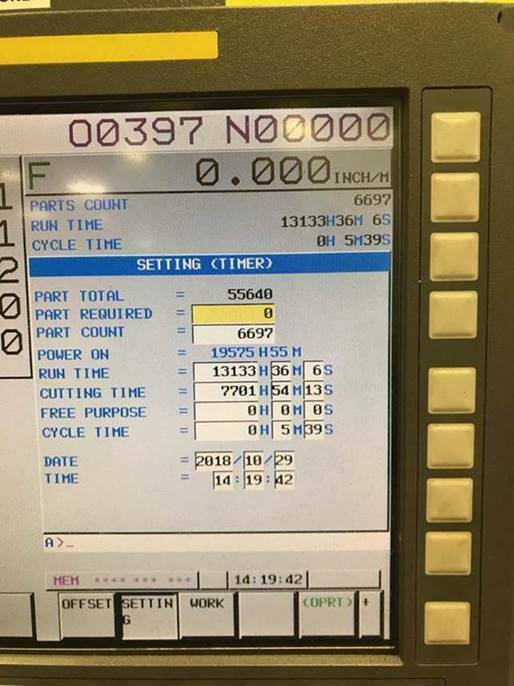

Run Time Hours 13,200 Cut Time Hours 7,800

Control FANUC 31iA5

X AXIS 18"
Y AXIS 11"
Z AXIS 14"
Spindle Speed 15,000 RPM
Spindle Motor 9.4 HP
Swivel Head Range -20/+115 DEGREES
Swivel Head Positioning .0001 DEGREE
Spindle Turning Speed 15 - 8,000 RPM
Turning Spindle Motor 12 HP
Max Bar Diameter 1.125"
Tool Taper HSK A-40
Auto Tool Changer 40 Stations

Shipping Weight 7,100 LBS

EQUIPPED WITH:

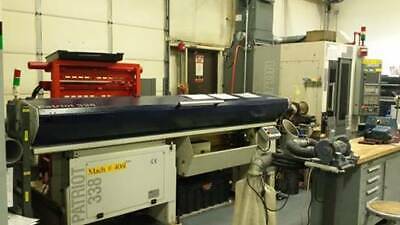

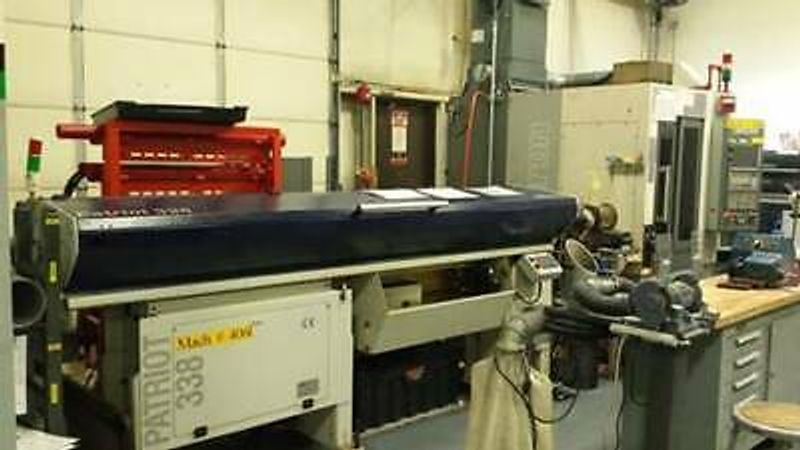

EDGE PATRIOT 338 MAGAZINE BAR FEED
KNOLL COOLANT FILTRATION SYSTEM
HIGH PRESSURE COOLANT PUMP
MSC COOLANT CHILLER
40-STATION AUTOMATIC TOOL CHANGER
SWIVEL VISE
TOOL TOUCH SETTER
SPINDLE PROBE
SPINDLE CHILLER
PARTS CONVEYOR
CHIP CONVEYOR
2-SPINDLE GRIPPERS
COLLETS & JAWS
ASSORTED TURNING & MILLING HOLDERS
SECONDARY COOLANT TANK

Tooling included as follows:
Qty 97 assorted Turning and Milling holders HSK A40
Qty 1 Touch probe
Qty 1 Solid probe
Qty 38 Turning collets for A spindle
Qty 16 sets vise jaws
Qty 1 Part grippers with extra fingers
Qty 1 Bar Gripper with extra fingers
