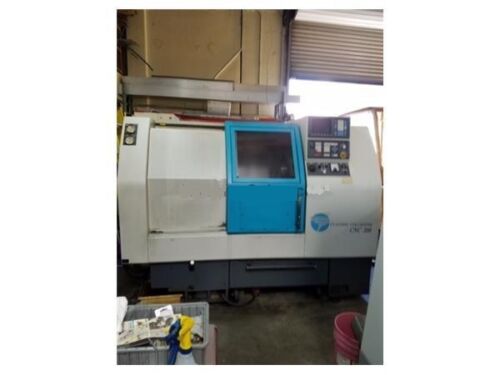

EQUIPPED WITH FANUC OT, 8" CHUCK, UNDER POWER & RUNNING Included 3J Collet chuck, 8 VDI OD turning tool holders

Manufacturer

CNC 200

Category

Lathes

Type

LATHES, UNIVERSAL, CNC

Stock

Ez13598

Model

CLAUSING COLCHESTER

Dealer Location

California

Request a Quote
View Contact Information

Spec Sheet

>MAX SWING OVER BED...................................... 20.86"
MAX SWING OVER CARRIAGE.......................... 12.99"
MAX TURNING DIAMETER.................................. 9.84"
MAX TAILSTOCK POSITION................................ 24.74"
STANDARD CHUCK SIZE.................................... 8"
CROSS TRAVEL (X-AXIS).................................... 8.46"
LONGITUDINAL TRAVEL (Z-AXIS)..................... 16.74"
FEED RANGE (INFINITELY VARIABLE)............ .1-394 IPM
RAPID TRAVERSE RATE (X-AXIS)..................... 394 IPM
RAPID TRAVERSE RATE (Z-AXIS)..................... 787 IPM
NUMBER OF TURRETS....................................... 1
TOOL POSITIONS............................................... 12 TOTAL
BAR CAPACITY..................................................... 2.55"
SPINDLE NOSE.................................................... A2-6
SPINDLE SPEED RANGE (1 RPM INCREMENTS).. 45-3500 RPM
SPINDLE HORSEPOWER................................... 15 KW 20 HP
APPROXIMATE MACHINE DIMENSIONS........... 137" X 74"
APPROXIMATE MACHINE HEIGHT..................... 73"
APPROXIMATE MACHINE WEIGHT.................... 7600 LBS

EQUIPPED WITH FANUC OT, 8" CHUCK, UNDER POWER & RUNNING
includes 3J Collet chuck, 8 VDI OD turning tool holders
