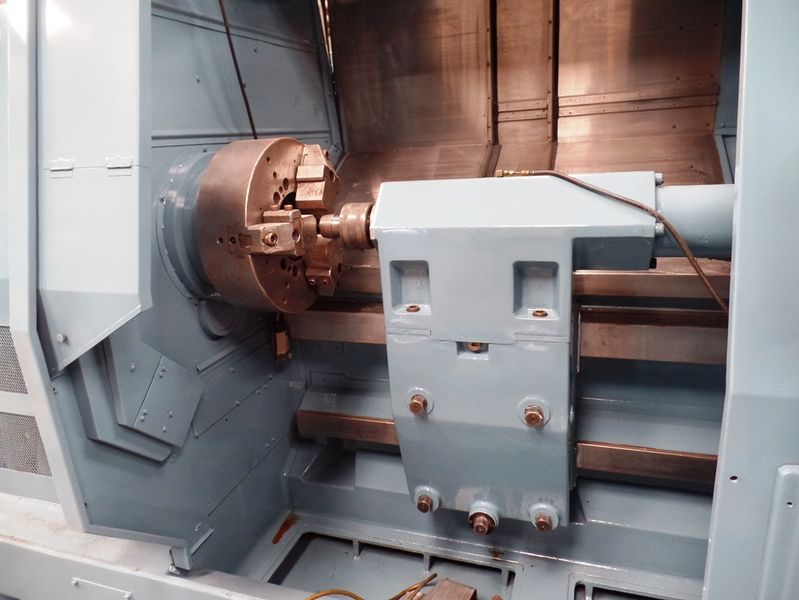

OKUMA LC40 1SC Complete Rebuilt 2003 - see http://www.ebay.com/itm/-/122195478621? VDI Turret

Manufacturer

Okuma

Category

Lathes

Stock

Ez7641

Model

LC-40 2SC

Dealer Location

California

Spec Sheet

>Model ... ... ... ... ... ... ... ... ... ... .. LC-40 2SC
Brand ... ... ... ... ... ... ... ... ... ... ... . Okuma
Type ... ... ... ... ... ... ... ... ... ... . CNC Lathes
Swing ... ... ... ... ... ... ... ... ... ... ... 23.62”
Weight .. ... ... ... ... ... ... ... ... ... 21,000 Lbs.
Power ... ... ... ... ... ... ... ... ... ... ... . 40 HP
MaxRPM .. ... ... ... ... ... ... ... ... ... ... 2500 RPM
Tailstock ... ... ... ... ... ... ... ... ... ... No.6 MT
Control . ... ... ... ... ... ... ... ... ... .. LC 40 1SC
ChuckSize ... ... ... ... ... ... ... ... ... ... ... 18”
LiveTooling .. ... ... ... ... ... ... ... ... ... .. A2-8
TurningDia ... ... ... ... ... ... ... ... ... ... 21.65”

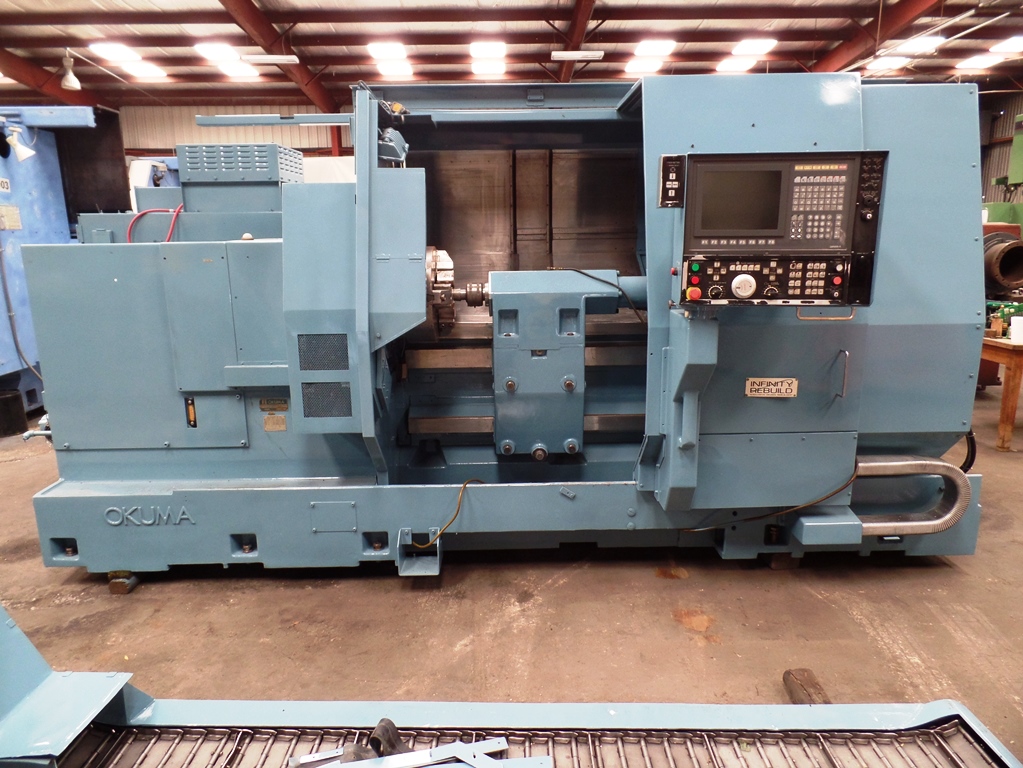

OKUMA LC 40 1SC CNC LATHE

Specifications:

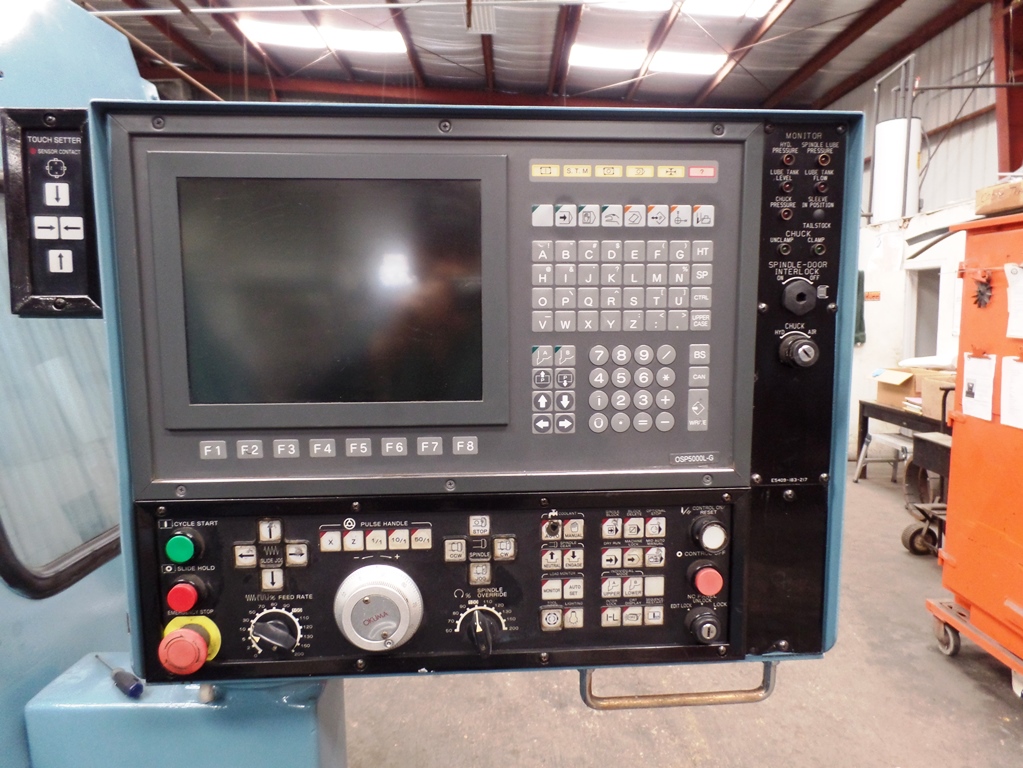

CNC control OSP 5000G with graphics
Model LC 40 1SC
Serial Number 0102-1734*
Number of Controlled Axis 2
Maximum Swing Over Bed 23.62”

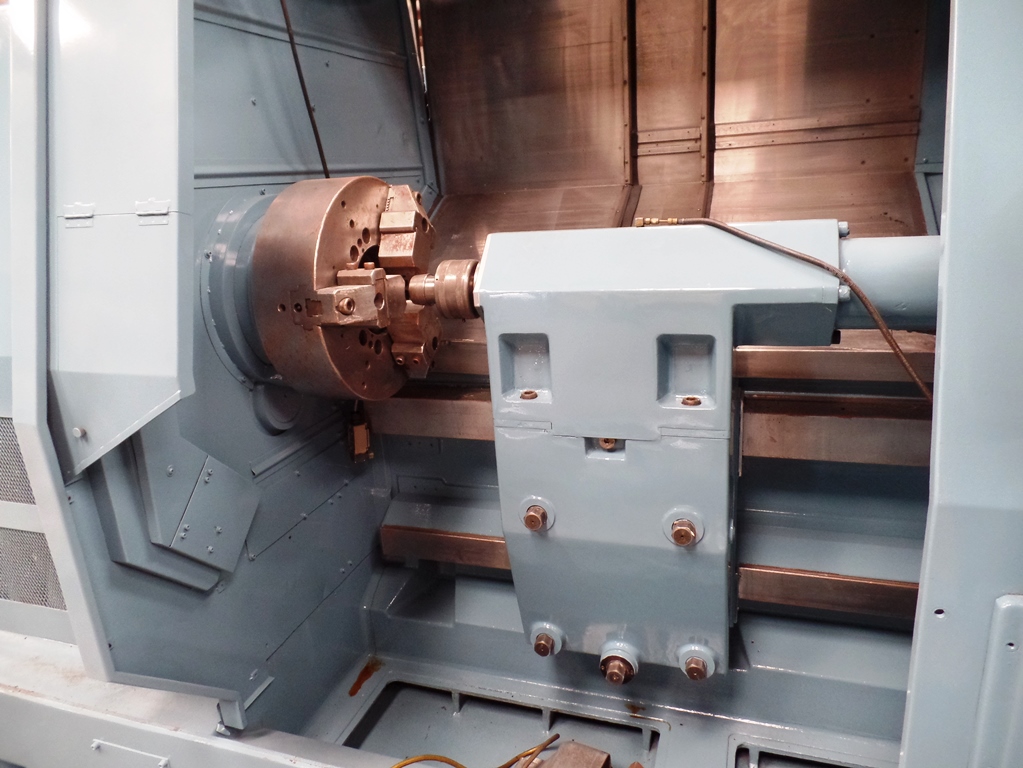

Chuck 18” 3-jaw hydraulic
Maximum Turning Diameter 21.65”
Distance Between Centers 40”
Spindle Nose A2-8
Spindle Hole 3.54”
Spindle Speeds 10 To 2,500 RPM

Turret Stations 12

Tailstock Spindle Diameter 4.72”

Tailstock Spindle Travel 5.91”

Tailstock Spindle Taper No.6 MT

Main Drive Motor 40 HP

Approximate Weight 21,000 Lbs.



Equipped With: Chip conveyor, Splash/Chip Covers, Coolant System, VDI Turret
