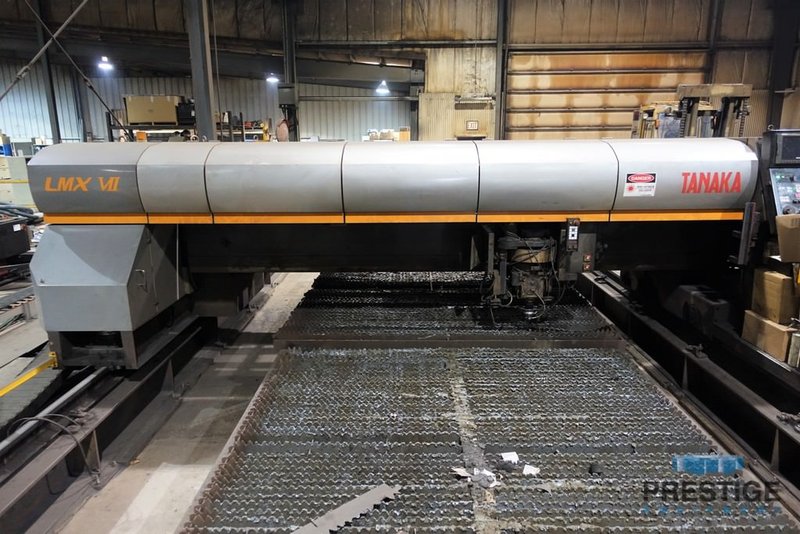

Tanaka LMX VII-Z30-TF6000, 161" x 84' Travel, Fanuc 6KW CO2 Laser, 2008 #30633

Manufacturer

TANAKA

Category

Laser Cutting

Type

LASERS

Stock

30633

Model

LMX VII-Z30-TF6000

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #30633

Tanaka LMX VII-Z30-TF6000 6KW CO2 Laser


FEATURES:

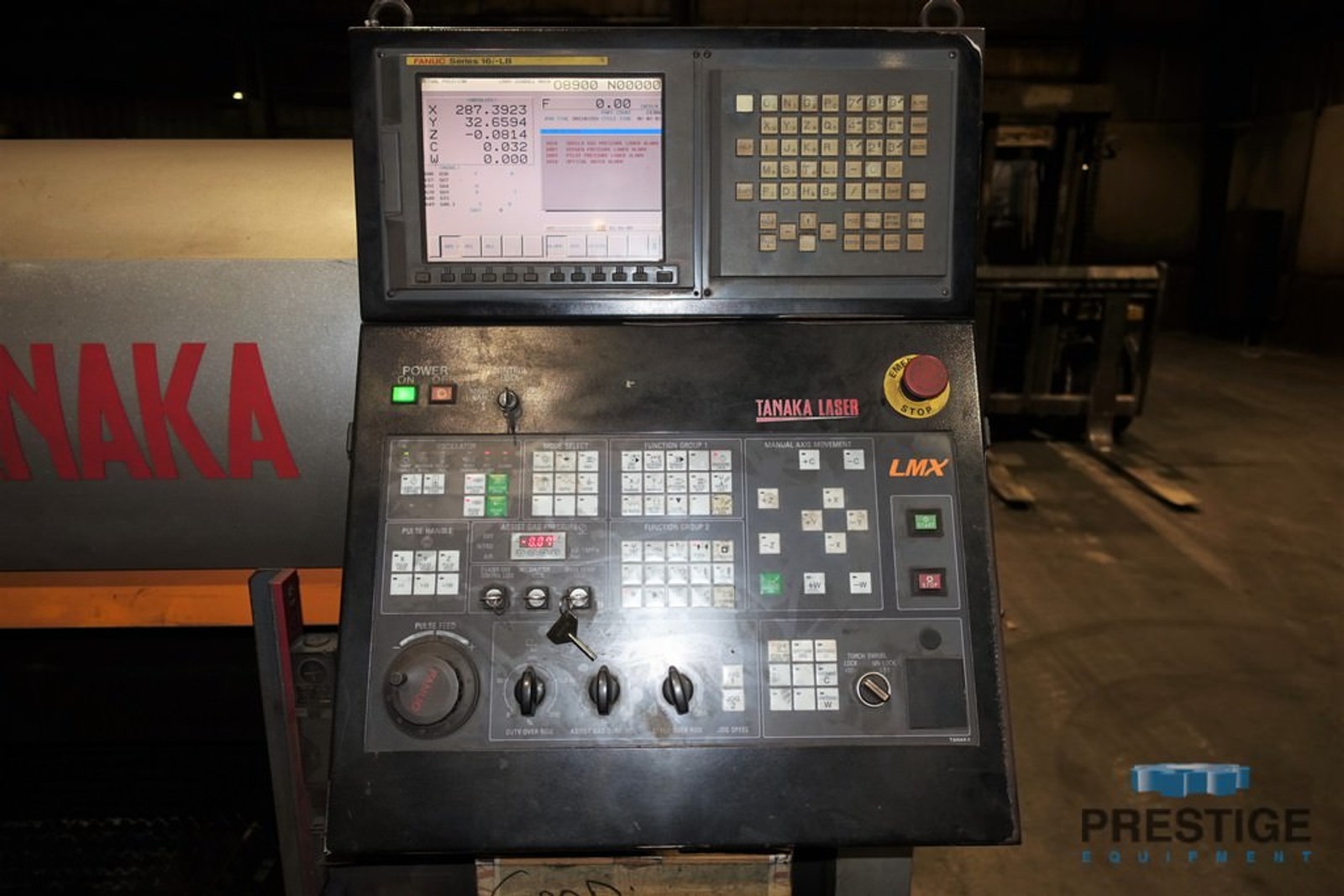

Fanuc 16i-LB CNC Control

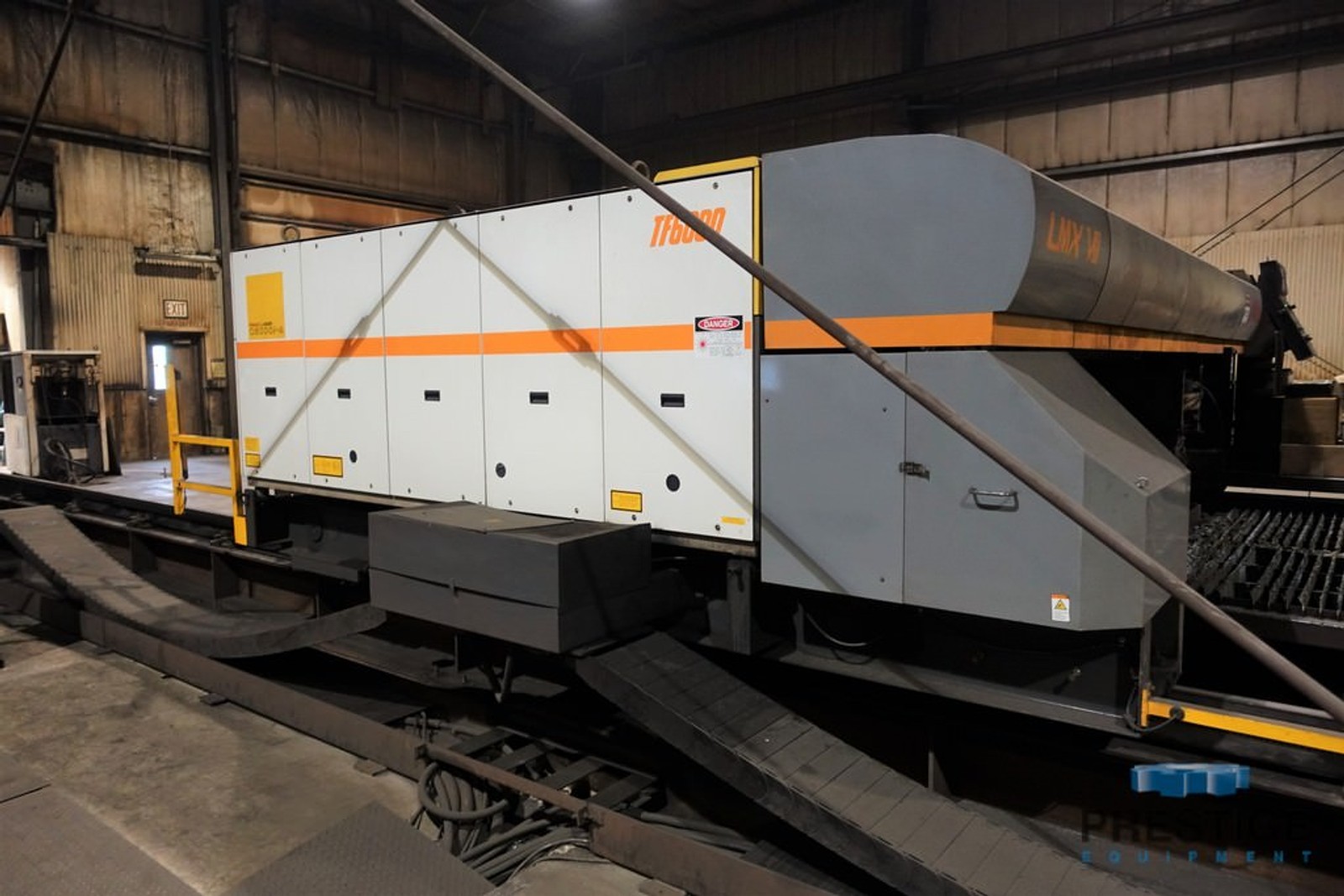

Fanuc C6000i-A 6KW CO2 Laser Resonator

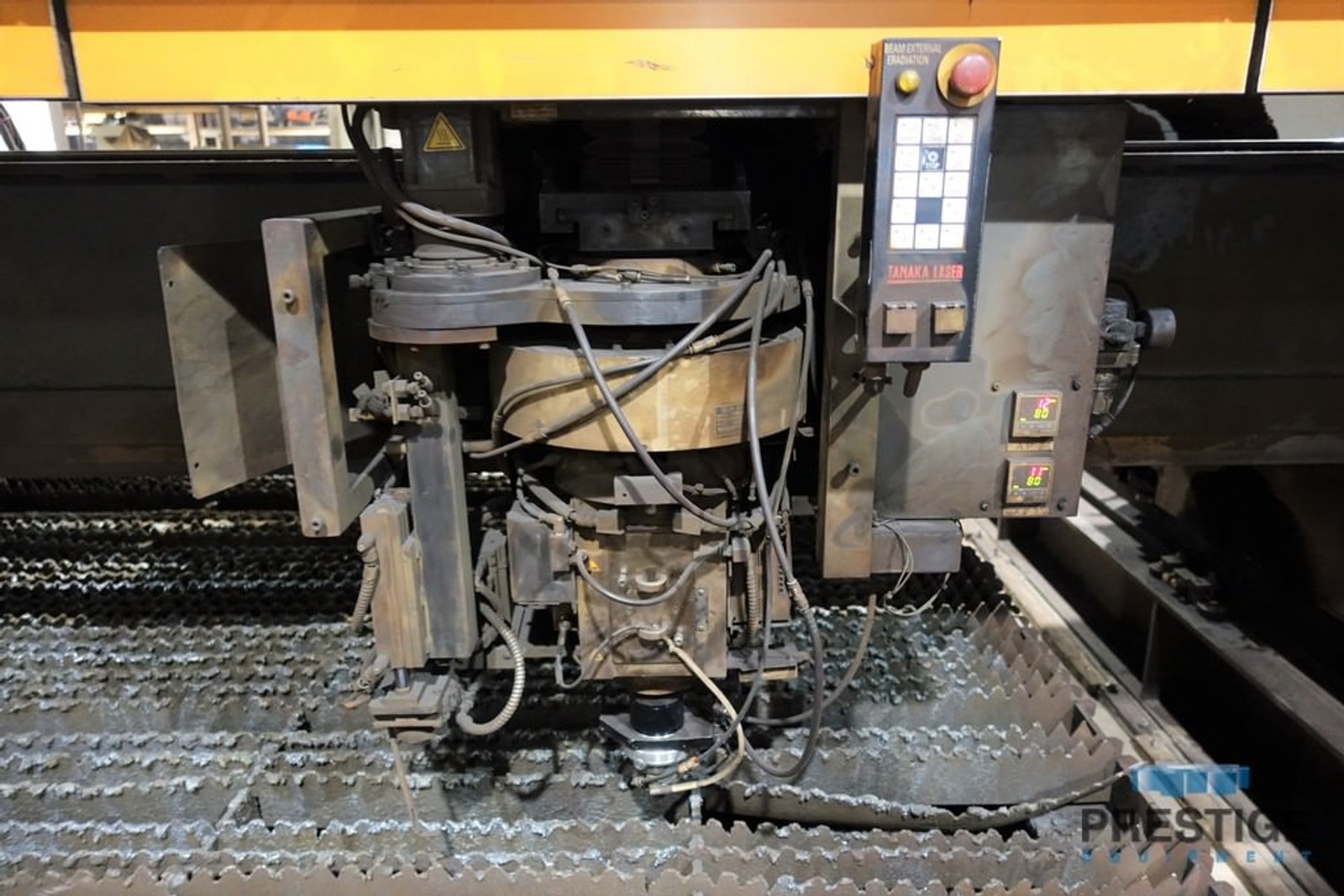

Bevel Head Option
High Speed Piercing
Non Contact Height Sensor

CAPACITY:
Laser Output .......................... 6000 Watts
Effective Cutting Width ............... 161"
Effective Cutting Length .............. 84'
Z-Axis Travel ......................... 7.87"
Rail Span ............................. 169.29"
Rail Length ........................... 708.66"
Cutting Capacity (Mild Steel) ......... 1"
Feed Cut Rate ......................... 944 IPM
Rapid Traverse ........................ 1968 IPM

EQUIPPED WITH:
Fanuc 16i-LB CNC Control
Fanuc C6000i-A 6KW CO2 Laser Resonator
Bevel Head Option
High Speed Piercing
Non Contact Height Sensor

NOTE:
Inspect in Plant Under Power

No Video Available
