Keyence XM-1500 Portable Shop Floor CMM System, (2) XM-P1000 Probes, Multi Tips, Fixture Hardware #30704

Stock

30704

Model

XM-1500

Dealer Location

New York

Spec Sheet

Reference #30704

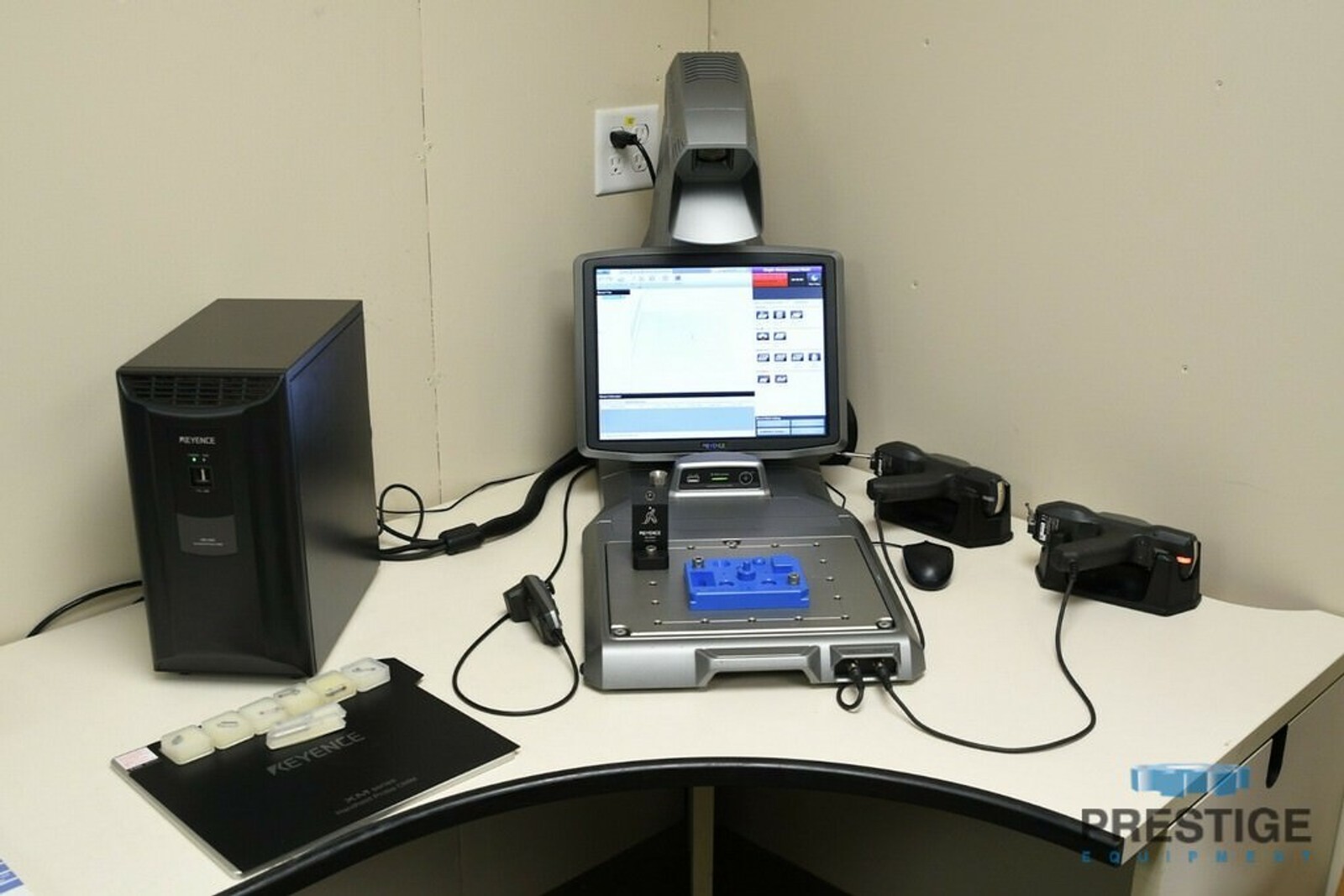

Keyence XM-1500 Portable Shop Floor CMM System

FEATURES:
XM-1500 PCU w/320 GM Hard Drive

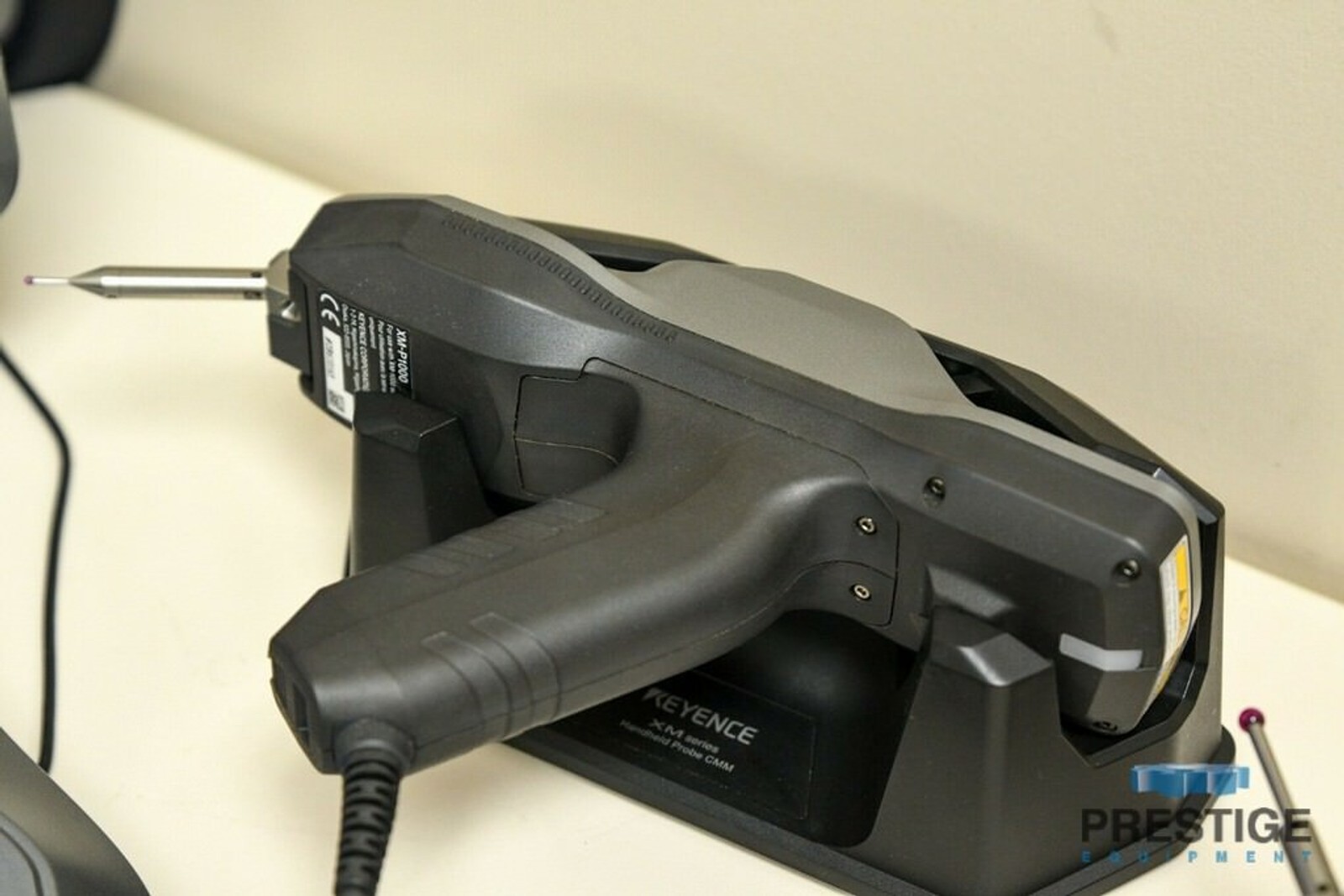

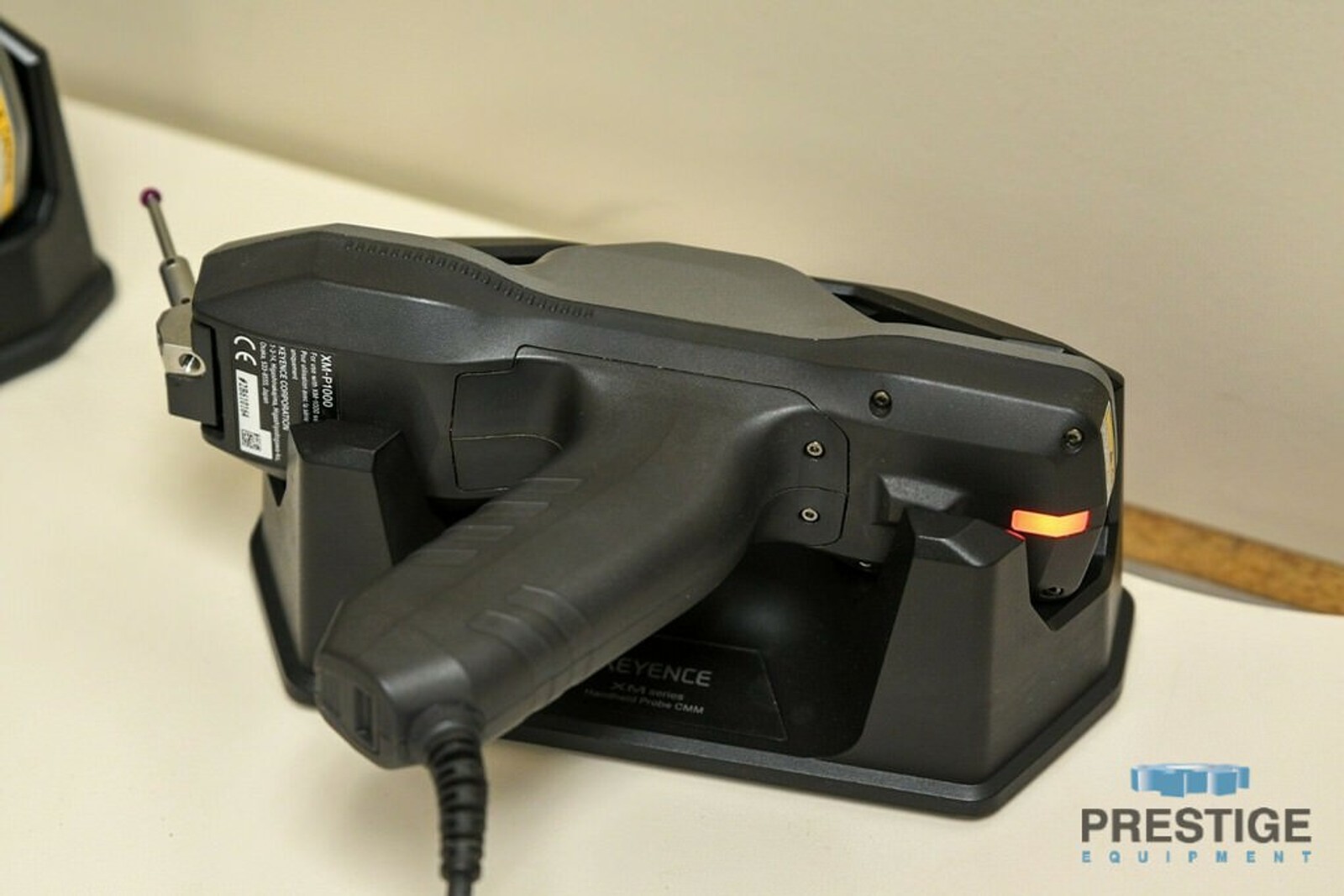

(2)XM-P1000 Hand Held Touch Probes
15" LCD Monitor

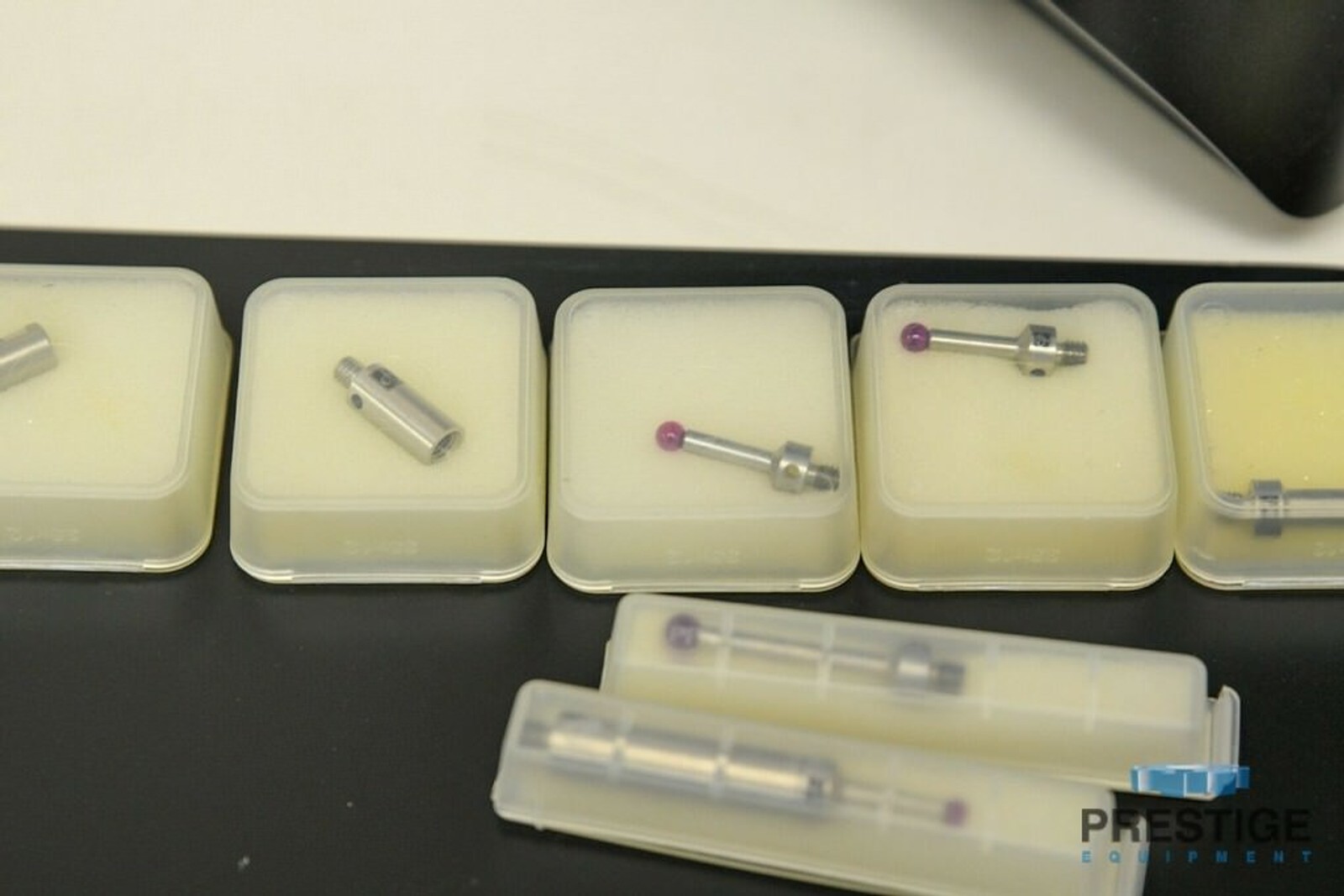

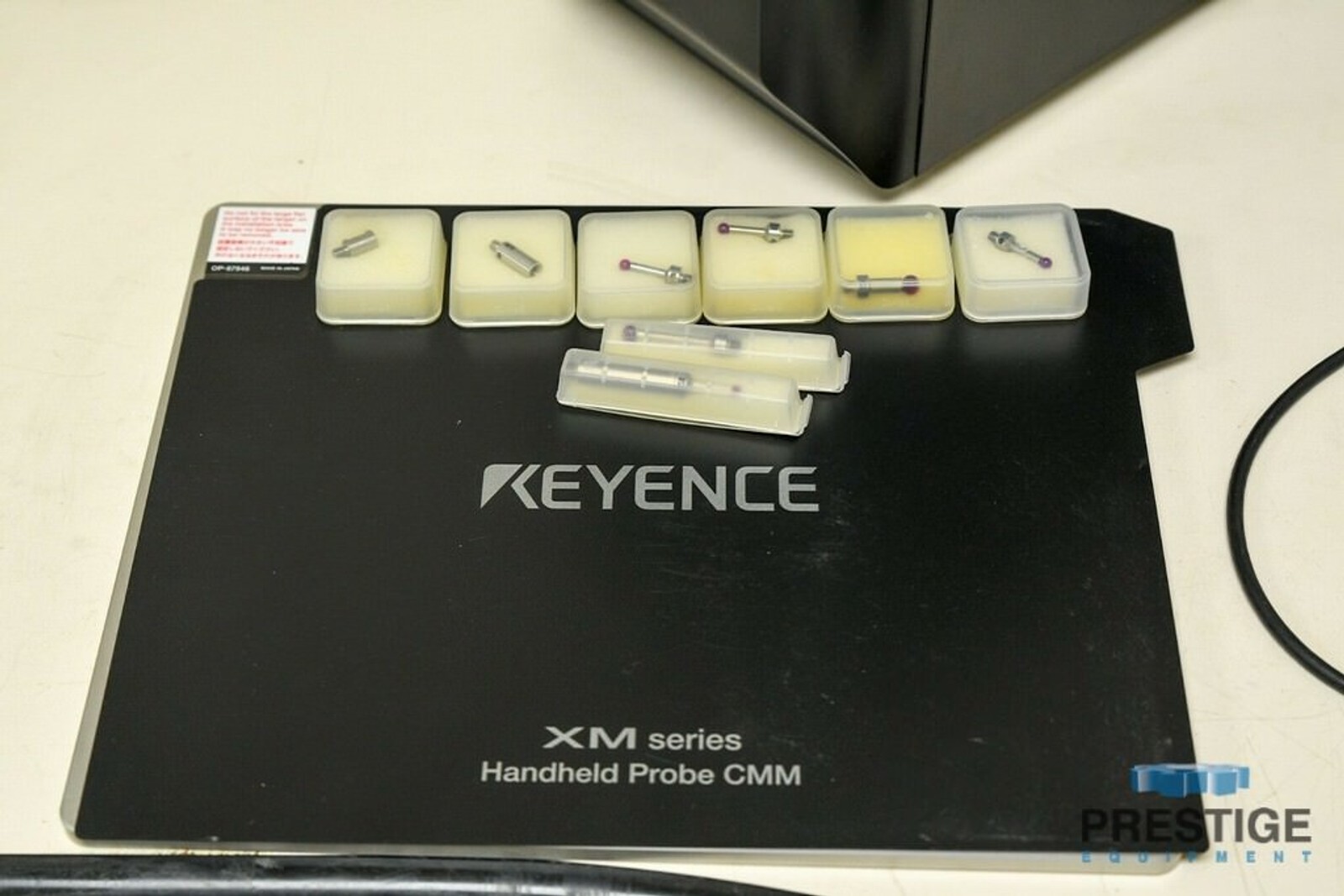

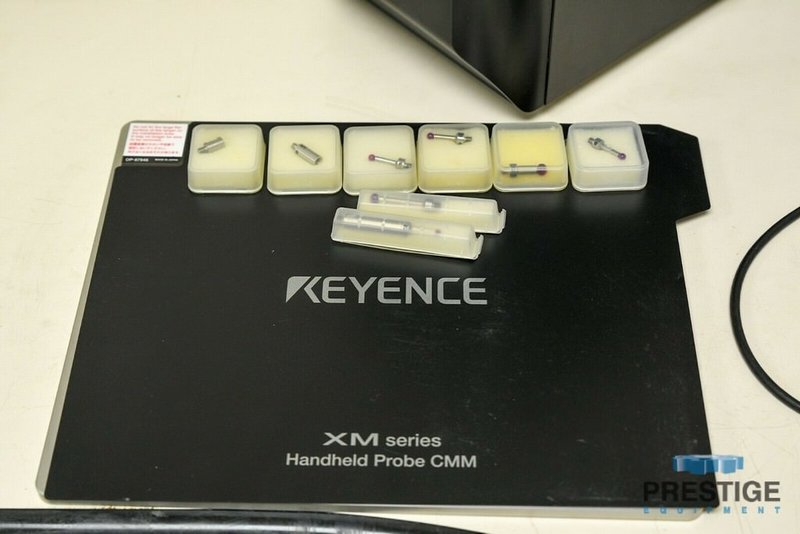

multiple ruby touch probe tips in multiple diameters

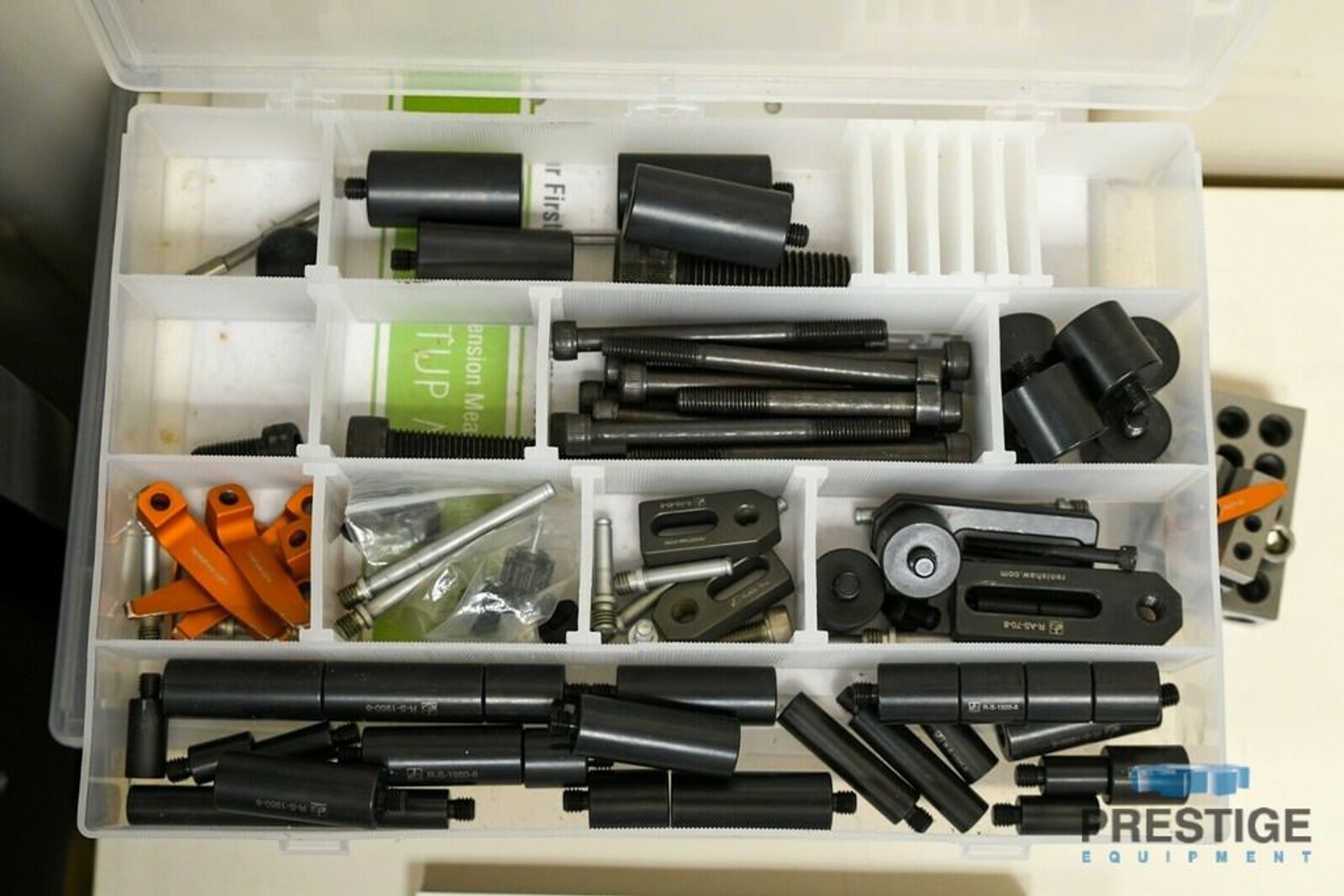

various sizes and types of fixture hardware,
probe tip calibrator
multi-use training artifact
OP-87946 target
Stage


CAPACITY (XM-1500 Controller):
Hard Drive ............................ 320 GB
Measuring range ....................... 11.81" × 9.84" × 5.91"
Min. display unit, Distance .......... 1 um
Min. display unit, Angle .............. 0.0001 degrees
Measurement accuracy, Repeat-ability .. Stage locked: ±3 um
Measurement accuracy, Indication error Stage locked: ±8 um*1
Stage Capacity ........................ 25 kg
Probe connection port, Imputs ......... 2
Console input ......................... Dedicated console
External remote input ................ 2
Interfaces ............................ USB 2.0 Series A: 3 ports

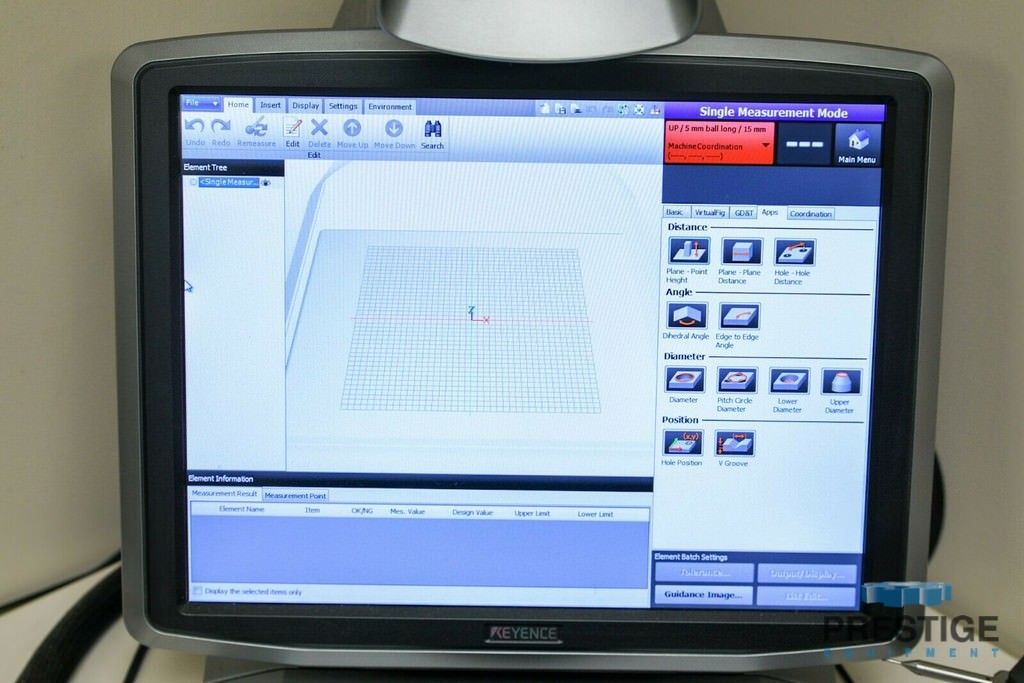

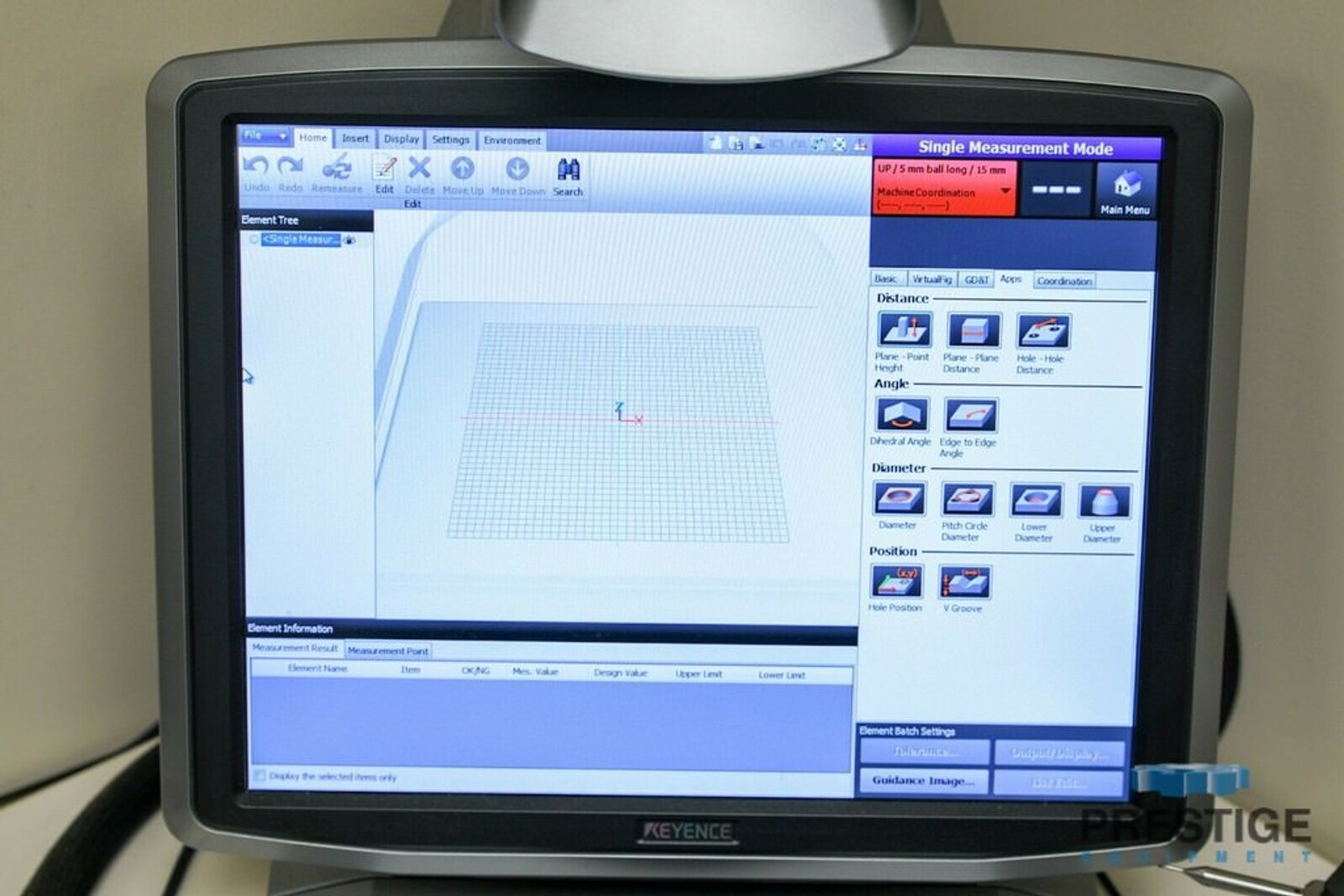

Display, Built-in display ............ 15" LCD monitor
Camera:
Image pickup device .................. 4 megapixel CMOS image sensor
Wavelength at light receiving center .. Near-infrared
Environmental resistance:
Ambient temperature ................... +10 to +35 °C 50 to 95 °F
Relative humidity ..................... 20 to 80 % RH (No condensation)
Weight Head, Approx. ................ 28.2 kg (including camera and cable)
Console, Approx. ...................... 150 g (including cable)

EQUIPPED WITH:
XM-1500 PCU w/320 GM Hard Drive
(2)XM-P1000 Hand Held Touch Probes
15" LCD Monitor
multiple ruby touch probe tips in multiple diameters
various sizes and types of fixture hardware,
probe tip calibrator
multi-use training artifact
OP-87946 target
Stage
