5" KURAKI KBT-13DXA CNC HORZ. BORING & MILLING WITH FANUC 15M CNC CONTROL

Manufacturer

KURAKI

Category

Boring Mills

Type

BORING MILLS, HORIZONTAL, TABLE TYPE, CNC

Stock

4376

Model

KBT-13DXA

Dealer Location

California

Request a Quote
View Contact Information

Spec Sheet

MAKE: KURAKI
MDL: KBT13-DXA
S/N: 1548
YR: 9/1992
SPINDLE DIAMETER: 5.12"
TABLE-L: 70.87"
TABLE-W: 62.99"
MAX LOADING WEIGHT ON TABLE: 22,000 LBS
X-TRAVEL: 129.9"
Y-TRAVEL: 70.87"
Z-TRAVEL: 27.56"
SPINDLE SPEEDS: 5-2000 RPM
SPINDLE MOTOR: 30HP

EQUIPPED WITH:

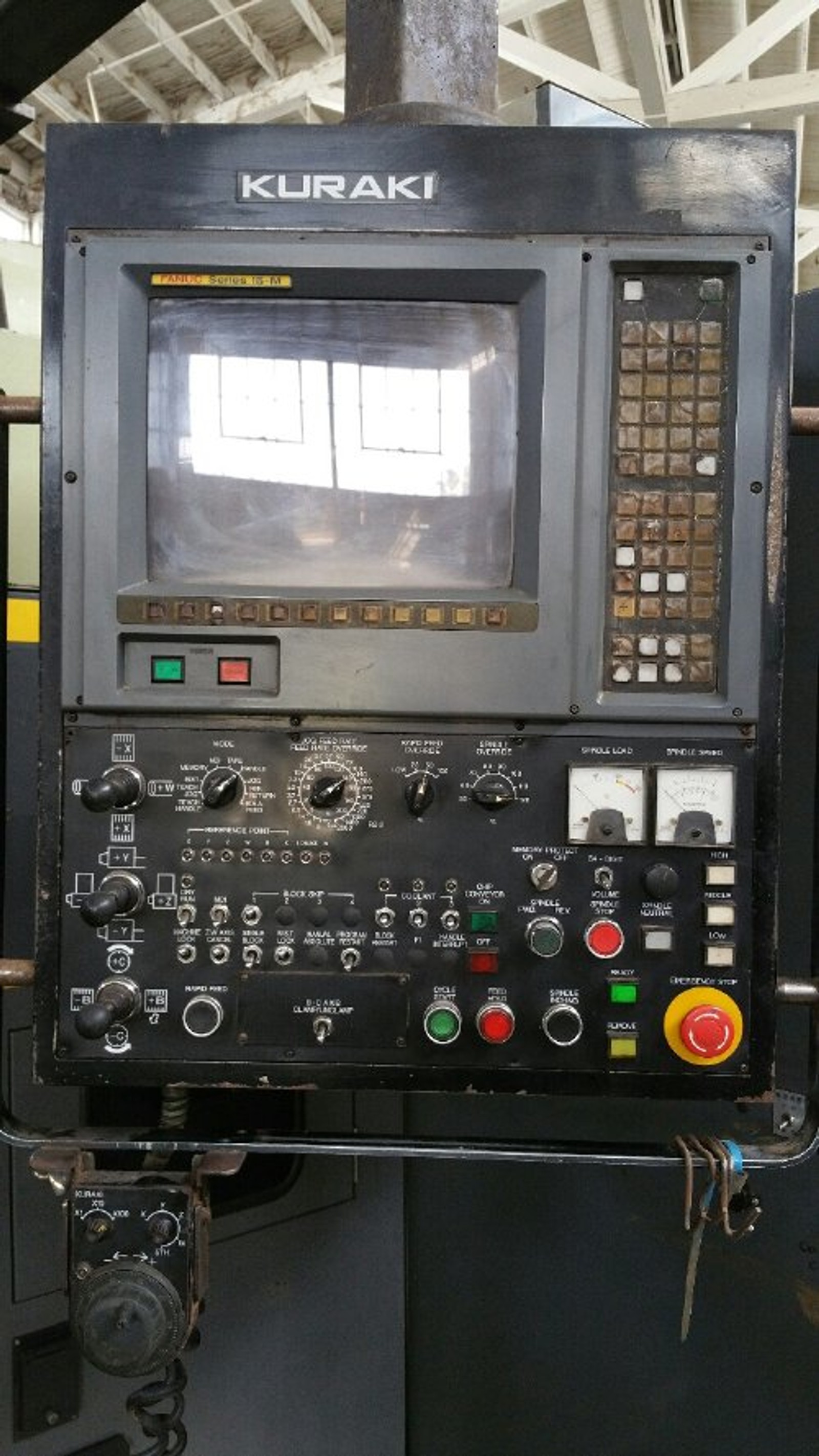

FANUC 15M CNC CONTROL
60 STATION AUTOMATIC TOOL CHANGER
RIGHT ANGLE HEAD
CHIP CONVEYOR

FLOOR SPACE: 264" X 264"
MACHINE HEIGHT: 187"

MACHINE APPROX WEIGHT: 70,400 LBS

TURNERS MACHINERY A DIV. OF RETROFIT TO CNC
PHONE: 805-525-2171
LOCATION: SANTA PAULA, CA 93060

PRICE: $129,500.00

**SPECIFICATION SHOWN ARE TO BE
USED AS A GUIDELINE ONLY.IT IS
THE CUSTOMERS RESPONSIBILITY TO
CHECK FOR SIZE AND FEATURES BEFORE
PURCHASING. WE WILL NOT BE
RESPONSIBLE FOR ERROR OR OMISSIONS.
