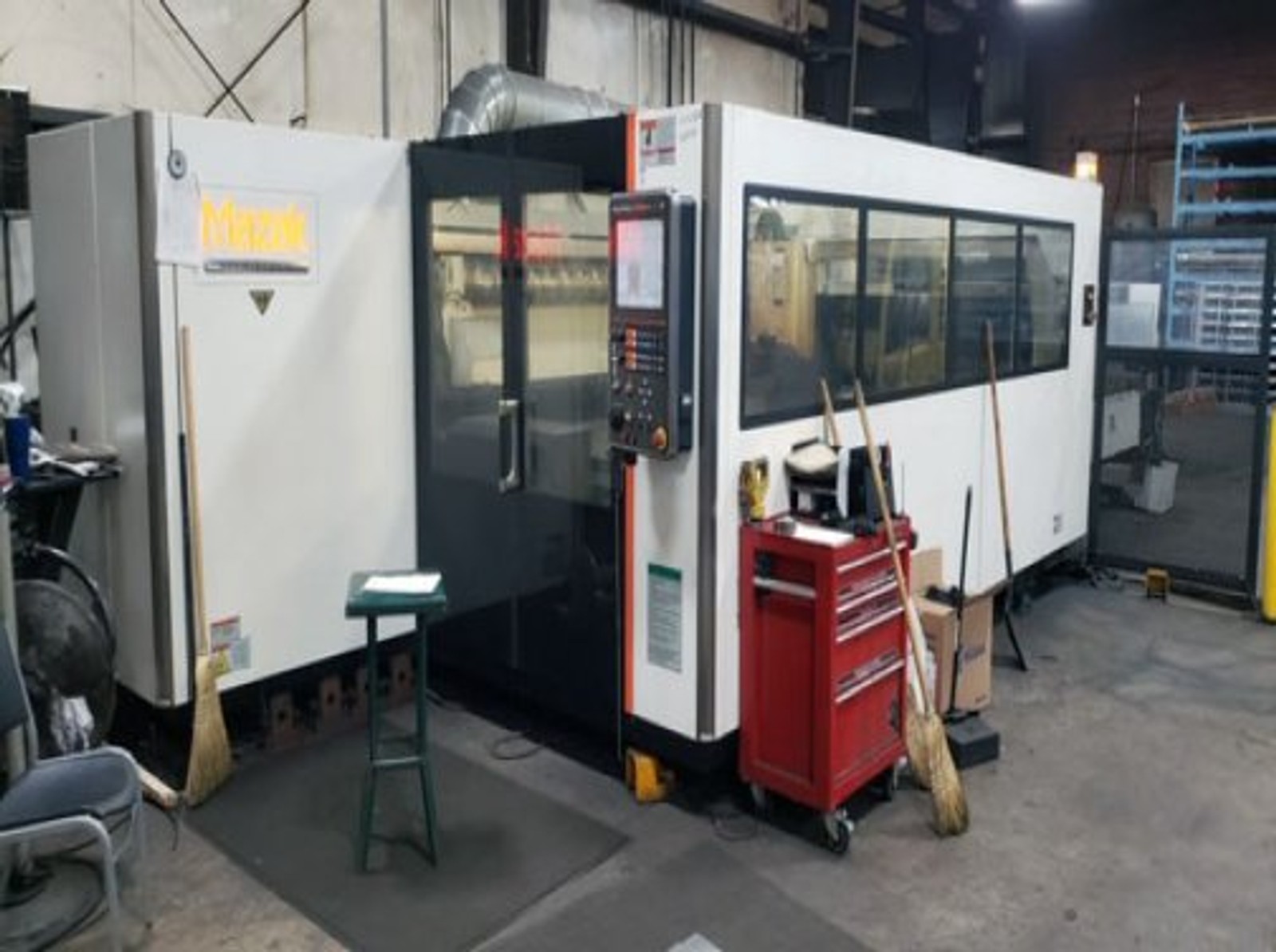

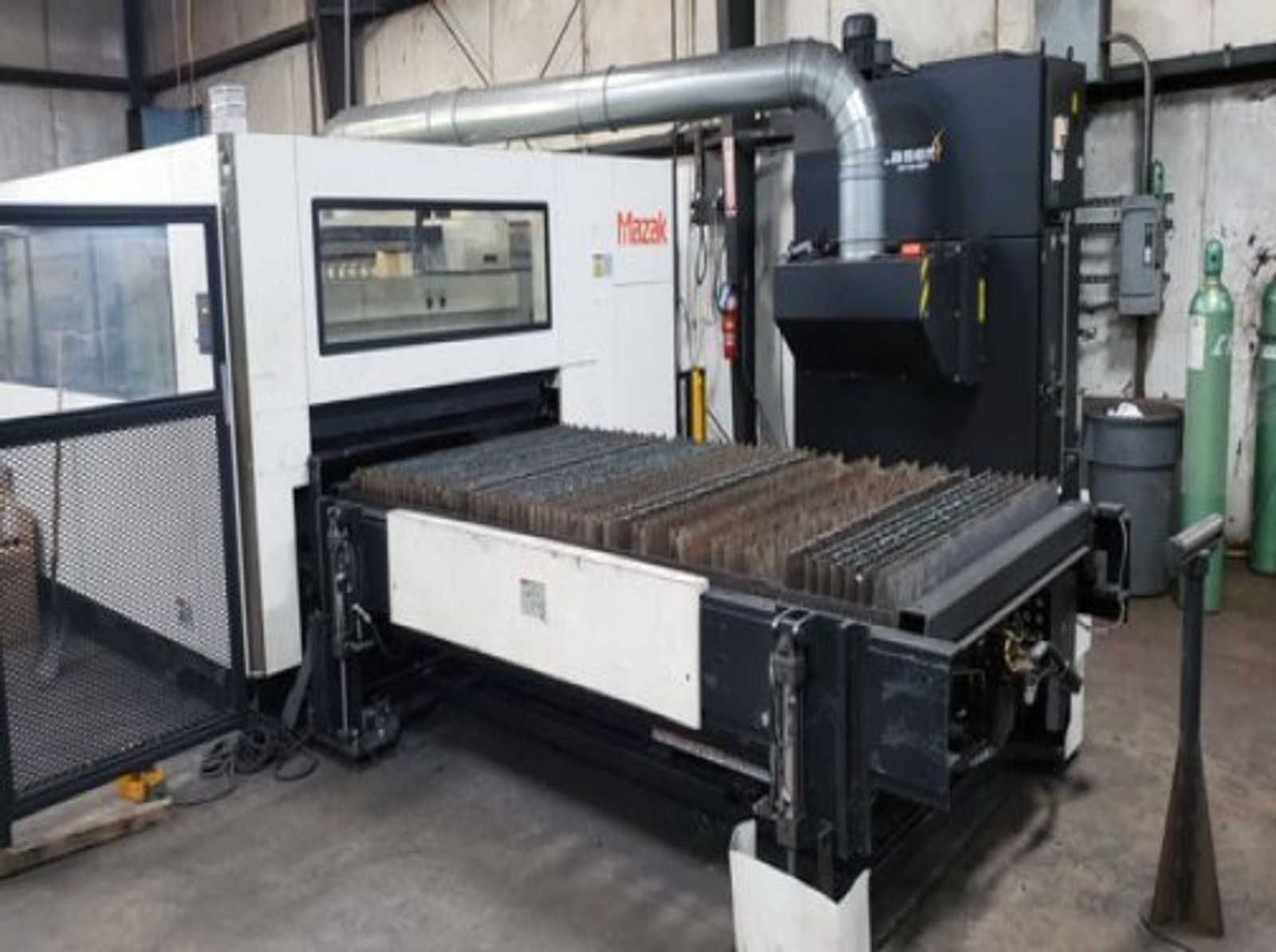

4000 WATT MAZAK OPTIPLEX 3015 LASER MFG:2014 - APPOX: 7,000 CUT HOURS NEW TURBO AND OPTICS APRIL 2019

Manufacturer

MAZAK

Category

Laser Cutting

Type

LASERS

Stock

11697

Model

OPTIPLEX 3015

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

4000 WATT MAZAK OPTIPLEX 3015 LASER

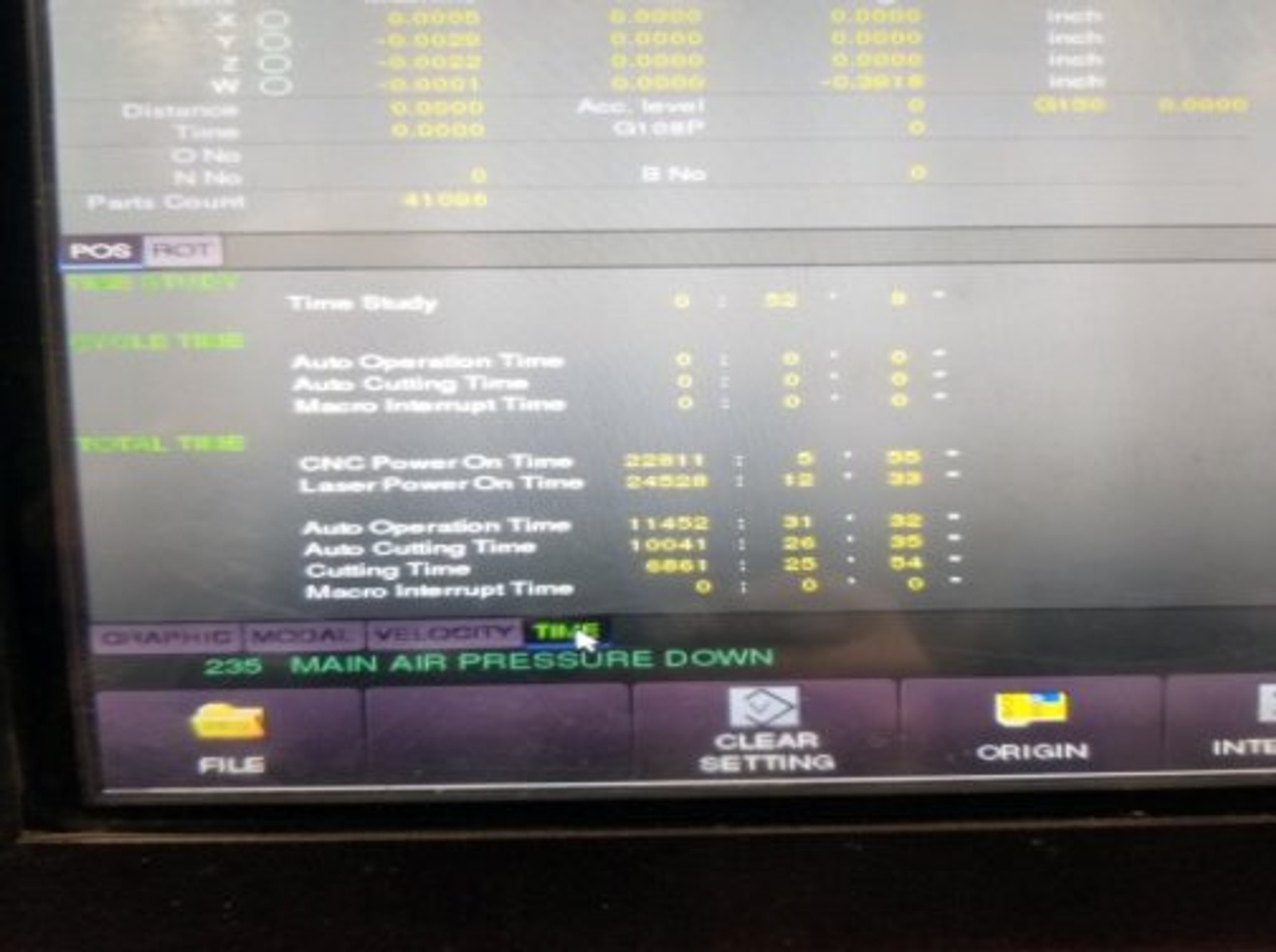

MFG:2014 - APPOX: 7,000 CUT HOURS
NEW TURBO AND OPTICS APRIL 2019
SPECIFICATIONS:
MACHINE STRUCTURE: fLYING OPTICS
MAXIMUM WORKPIECE DIMENSIONS: 60.030" X 120.078"
MAXIMUM WORKPIECE WEIGHT: 2,050 LBS.
MACHINE TRAVELS
X-AXIS: 122.5"
Y-AXIS: 62.20"
Z-AXIS: 4.33"
WORK TABLE HEIGHT: 35.43"
MAXIMUM MATERIAL THICKNESS (4000 WATT pANASONIC co2 RESONATOR)
MILD STEEL: 1.00"
STAINLESS STEEL: 0.500"
ALUMINUM: 0.375"
MOTION DRIVE SYSTEM DESIGN
X, Y AXIS: RACK AND PINION DRIVE
Z AXIS: BALL SCREW DRIVE
NUMBER OF CONTROL AXES: 3
RAPID TRAVEL SPEED
X, Y AXIS: 4,724 INCHES PER MINUTE
POSITIONING ACCURACY:
X,Y AXIS: 0.0002 INCH/19.68 INCH
Z AXIS: 0.0004 INCH/3.94 INCH
REPEATABLE ACCURACY
X, Y AXIS: 0.0012"
MAXIMUM PROCESSING FEEDRATE
X, Y AXIS: 2,362 IPM
TOTAL ELECTRICAL REQUIREMENT: 55 KVA
INSTALLATION DIMENSIONS (w X d): 394 INCHES X 240 INCHES
MACHINE UNIT DIMENSIONS: 334.21 INCHES X 137.2 INCHES X 79.13 INCHES
MACHINE UNIT WEIGHT: 33,069 LBS.
CNC TYPE: MAZATROL PREVIEW 2
CPU: 64 BIT
DISPLAY SCREEN: 15" COLOR LCD
MEMORY CAPACITY: 16 gb (PROGRAM MEMORY CAPACITY: 1 gb)
POSITION DETECTION SYSTEM: ENCODER
MINIMUM COMMAND UNIT: 0.0001"
PROGRAM INPUT SYSTEM: eia/iso
