GP-25T
Michigan

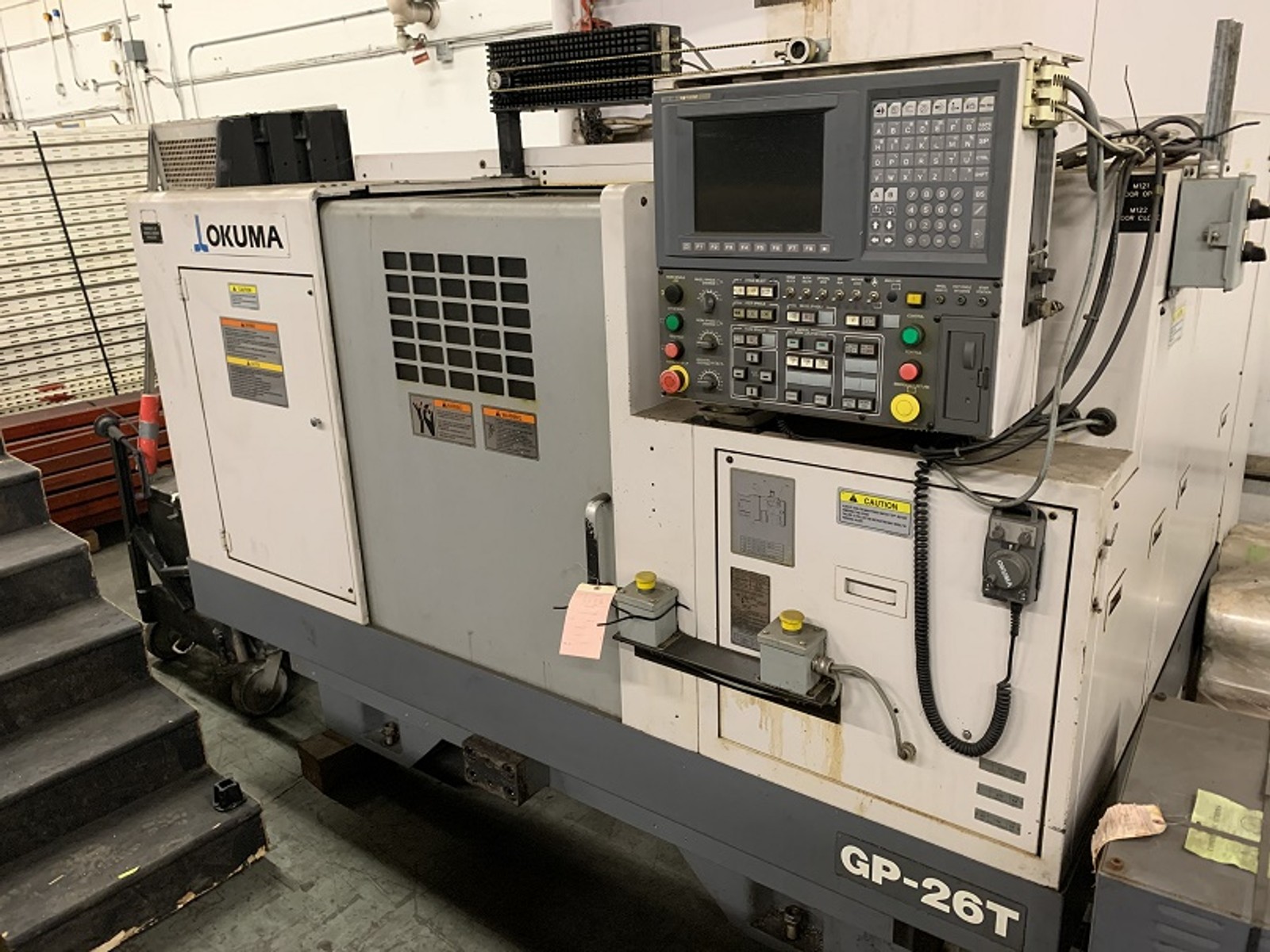

OKUMA GP-26T CNC CYLINDRICAL GRINDER, NEW 2007
CATALOG SPECIFICATIONS:
12.99” Swing
25.6” Distance Bewteen Centers
110 Lbs. Max Workpiece Weight
24” Dia x 2.95” Wide Grinding Wheel
10HP Spindle Motor
8859 FPM Peripheral Wheel Speed
12.59” X-Axis Wheel Slide Travel
25.59” Z-Axis Travel
#4 MT Center HoleTaper in Work Spindle
#4 MT Center Taper in Tailstock
97.64” x 113” Floor Space Required
12,000 Approx Machine Weight
Equipped With:
Shoulder Gauge (Lateral Locating Gauge)

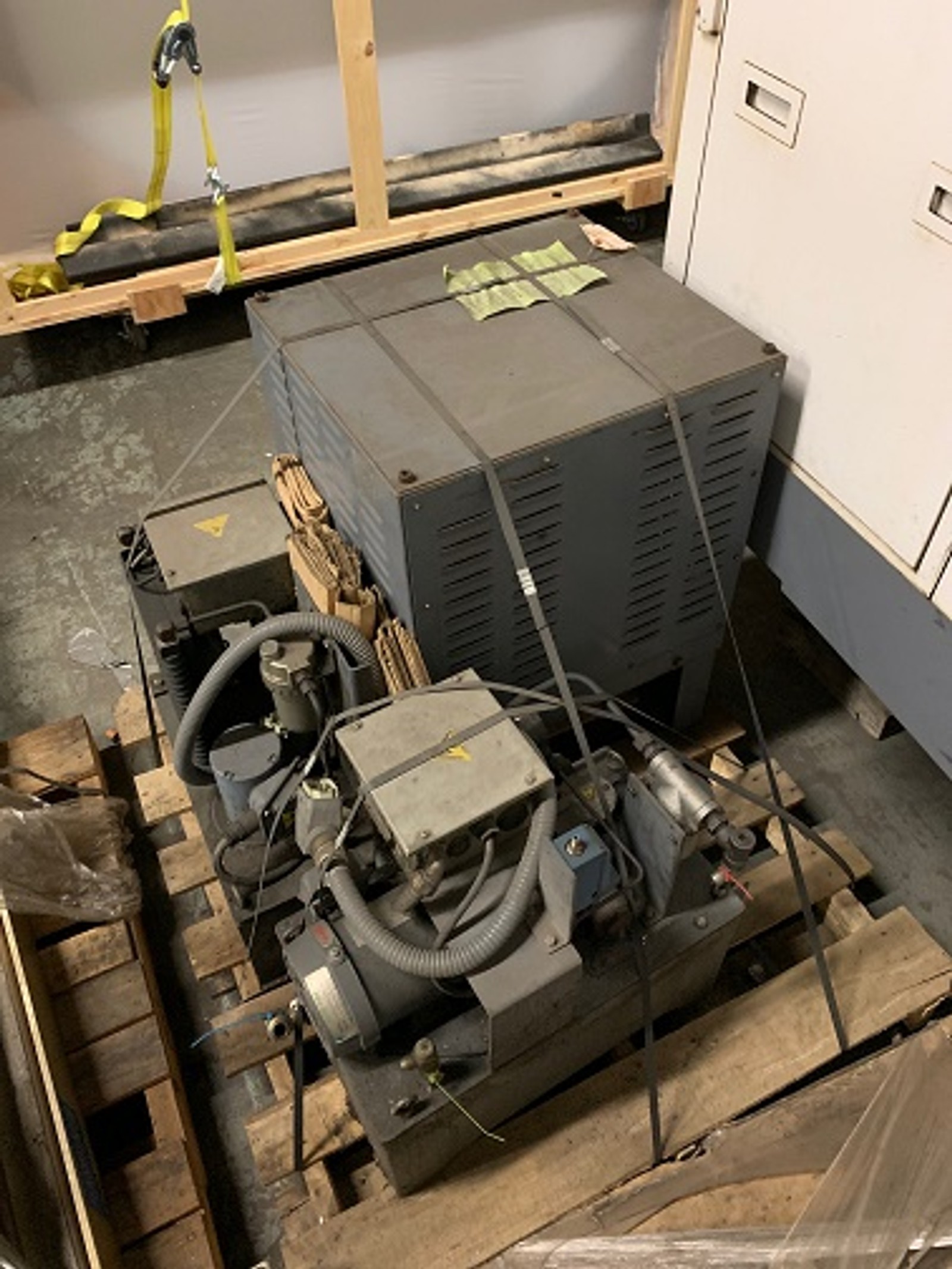

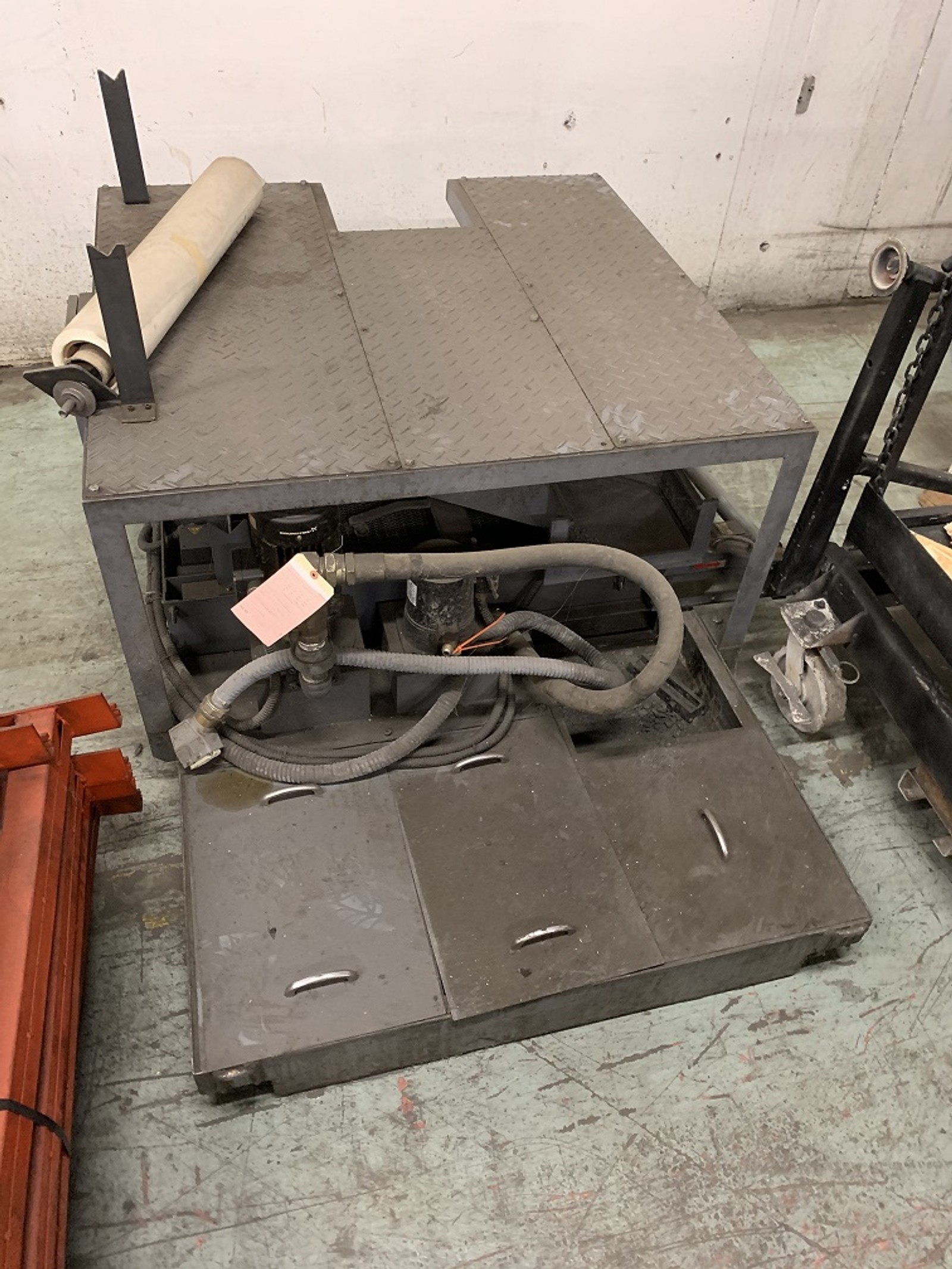

Coolant System
OSP U10G CNC Control
