Voortman V500 CNC Punching & Shearing, 110 Ton Punching, 220 Ton Shearing, Marking, 2006, #30524

Manufacturer

VOORTMAN

Category

Punches

Type

PUNCHES, ANGLE

Stock

30524

Model

V500

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #30524

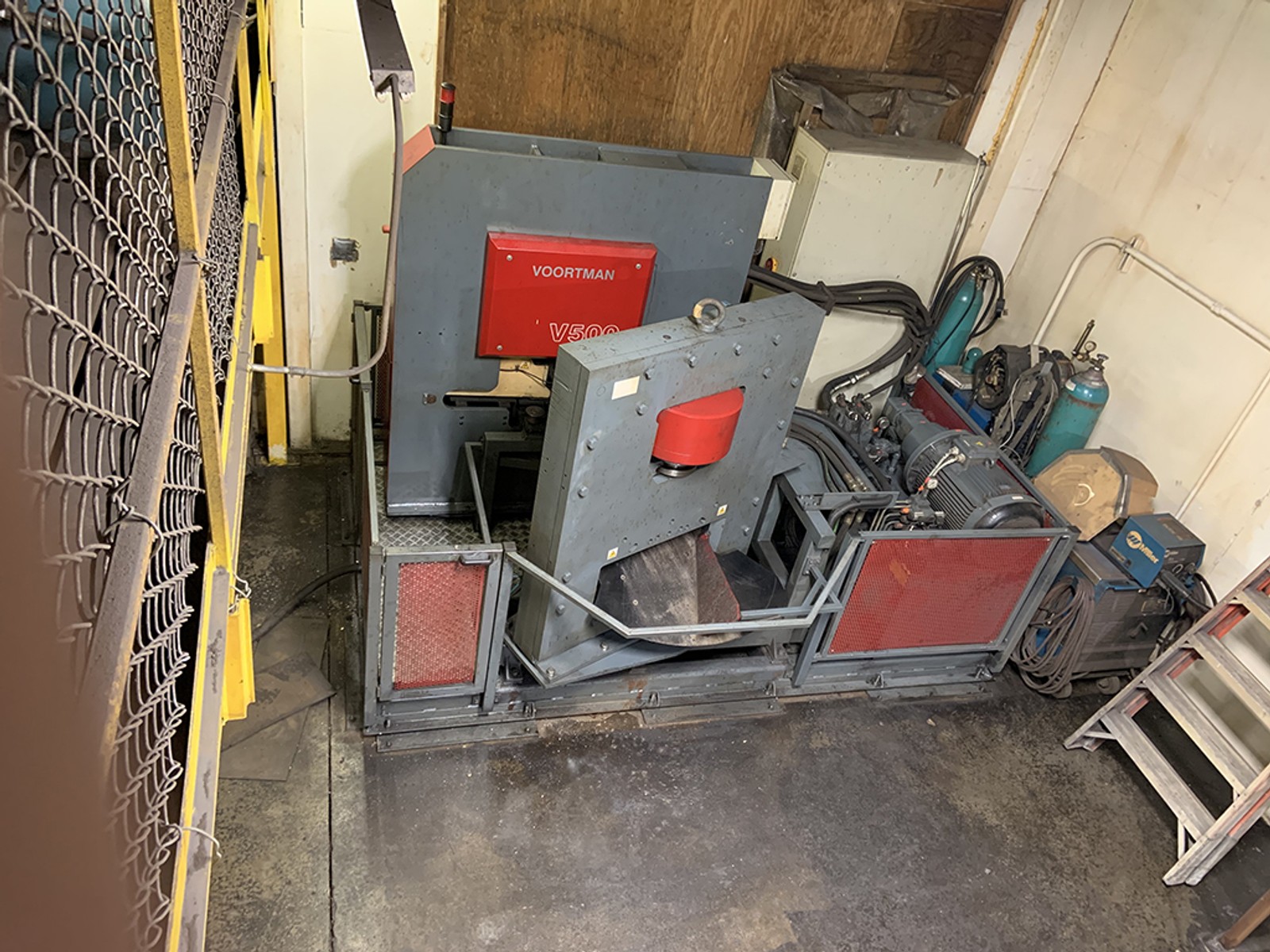

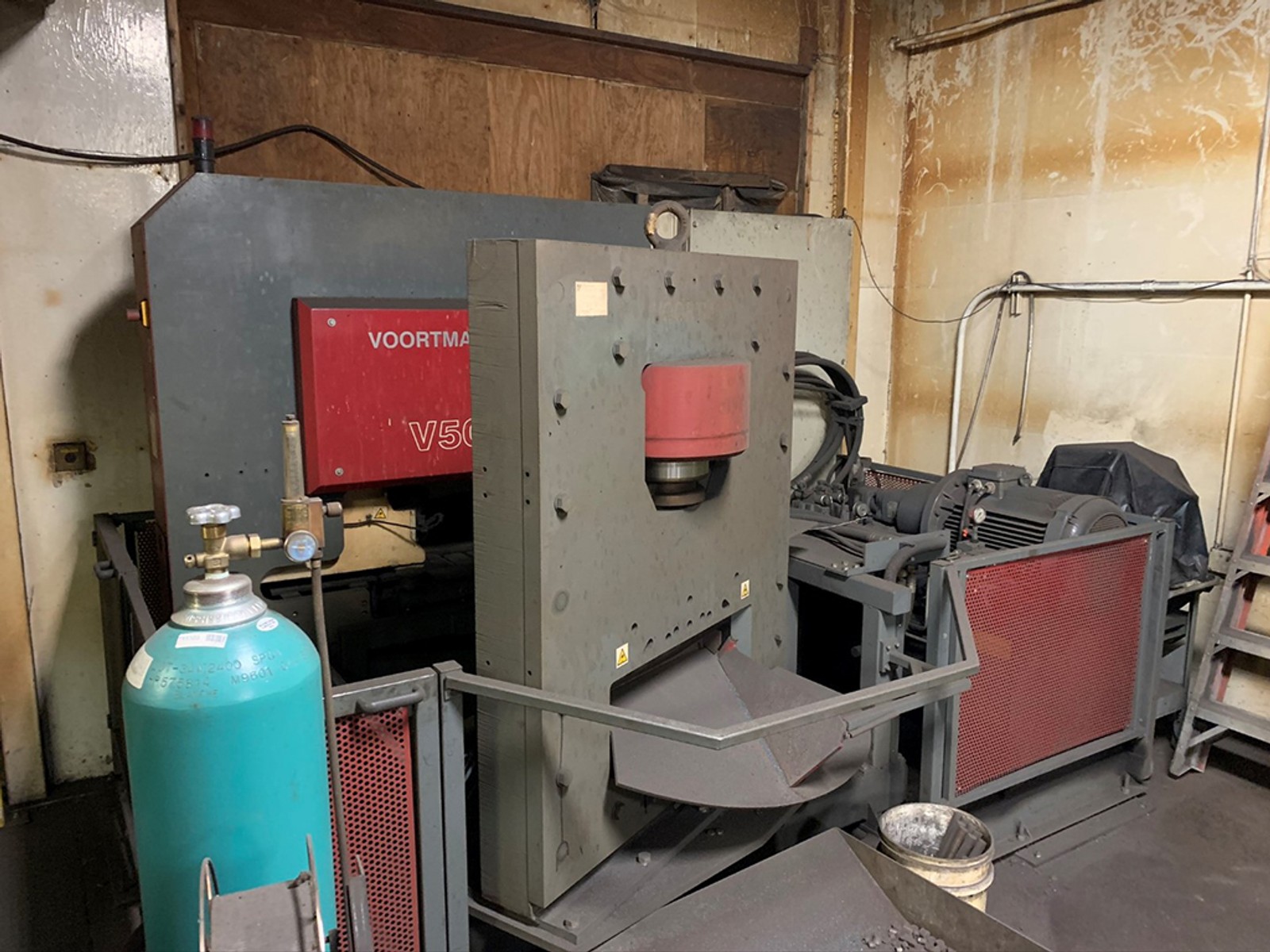

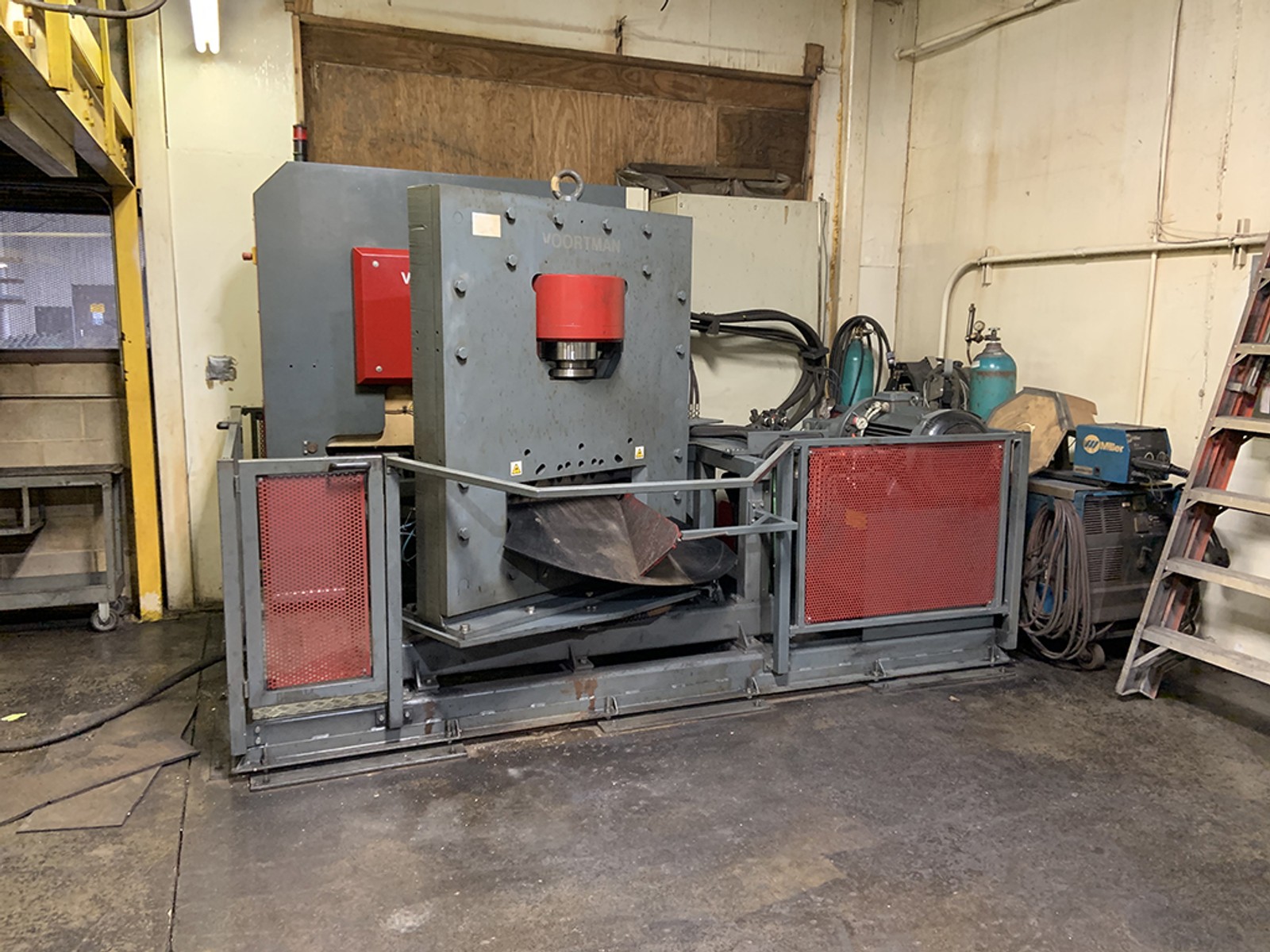

Voortman V500 CNC Punching & Shearing System for Flat Steel

FEATURES:

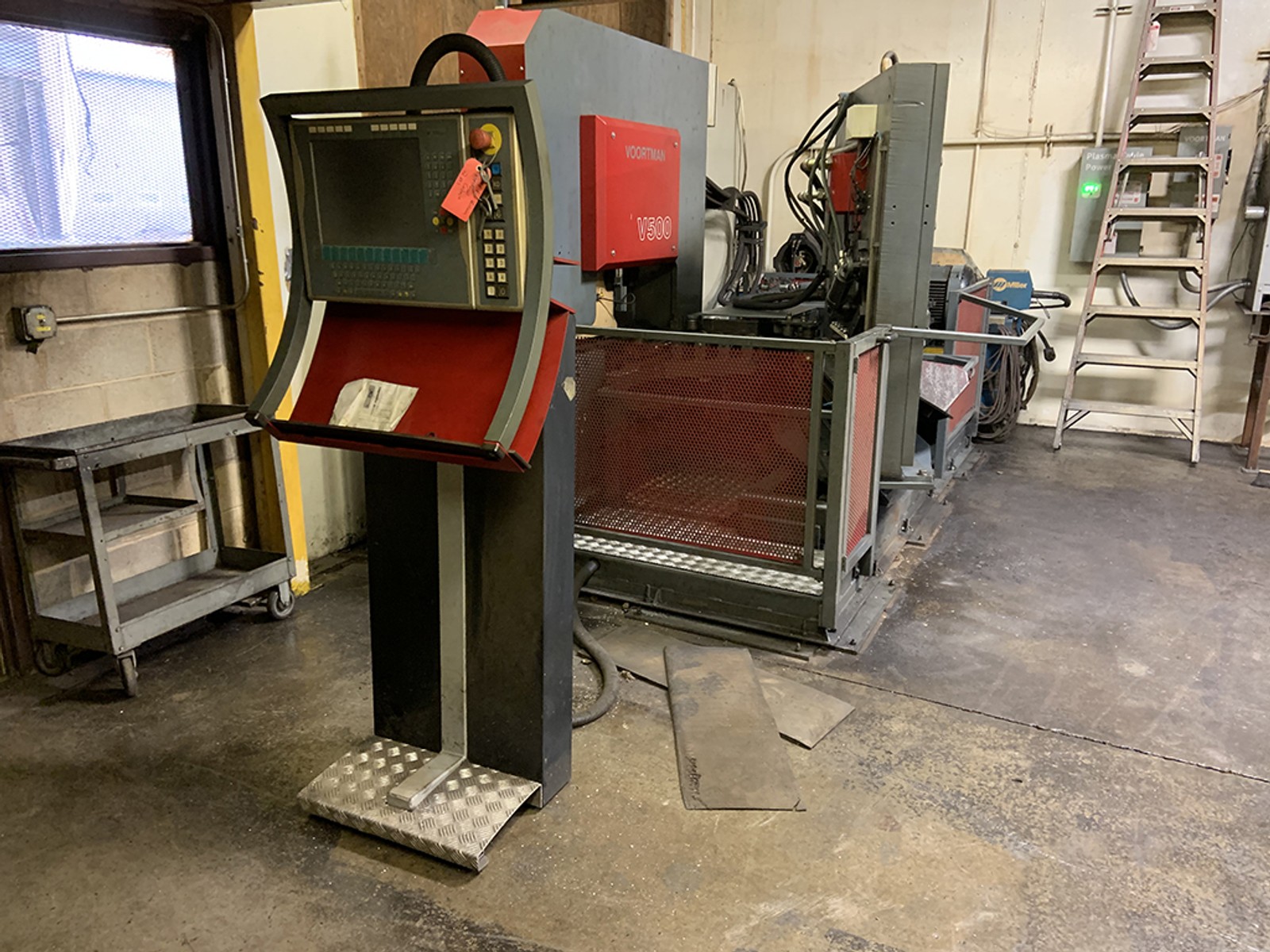

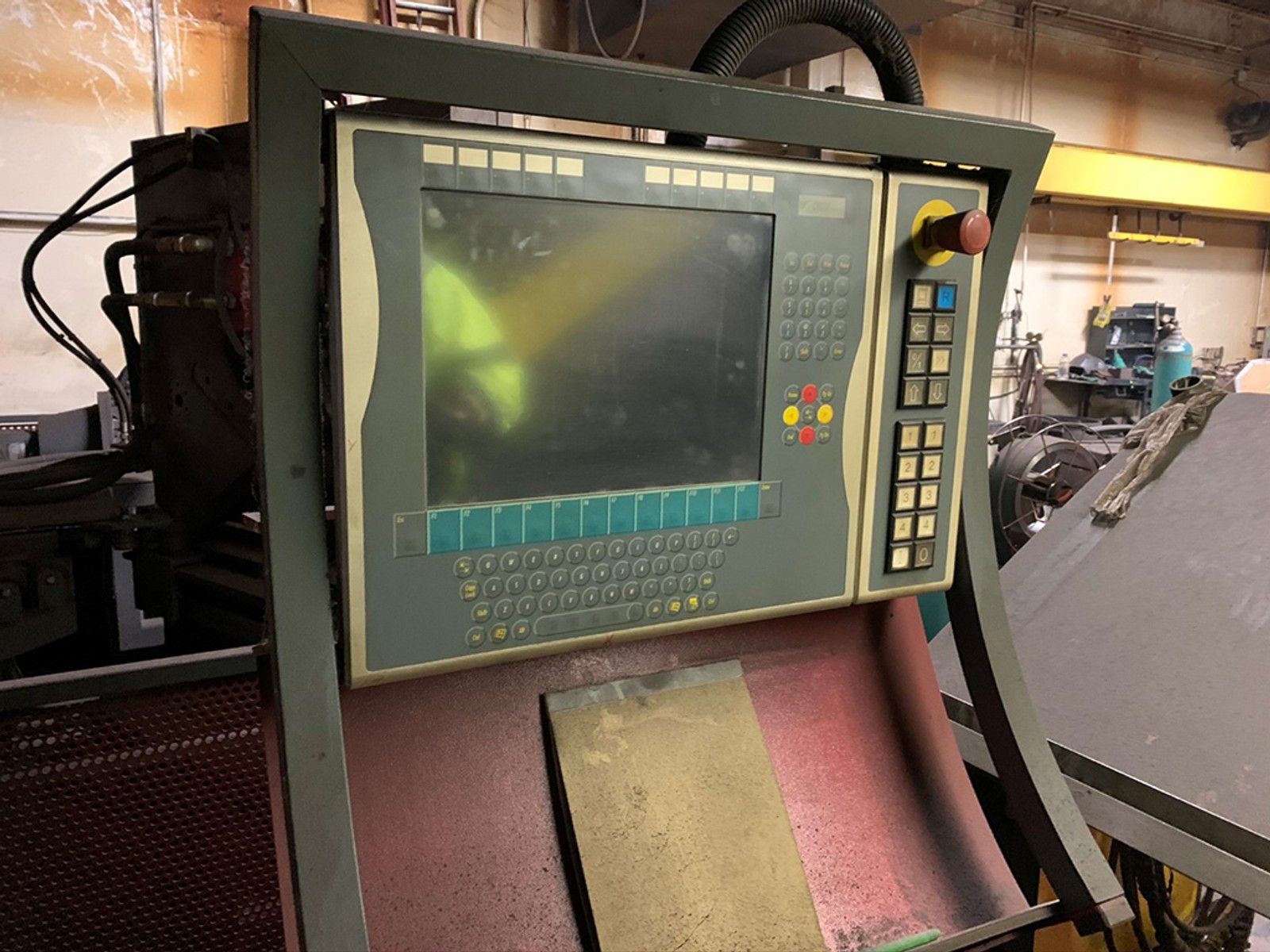

Vacam V500 Control w/ 15" Touch Screen

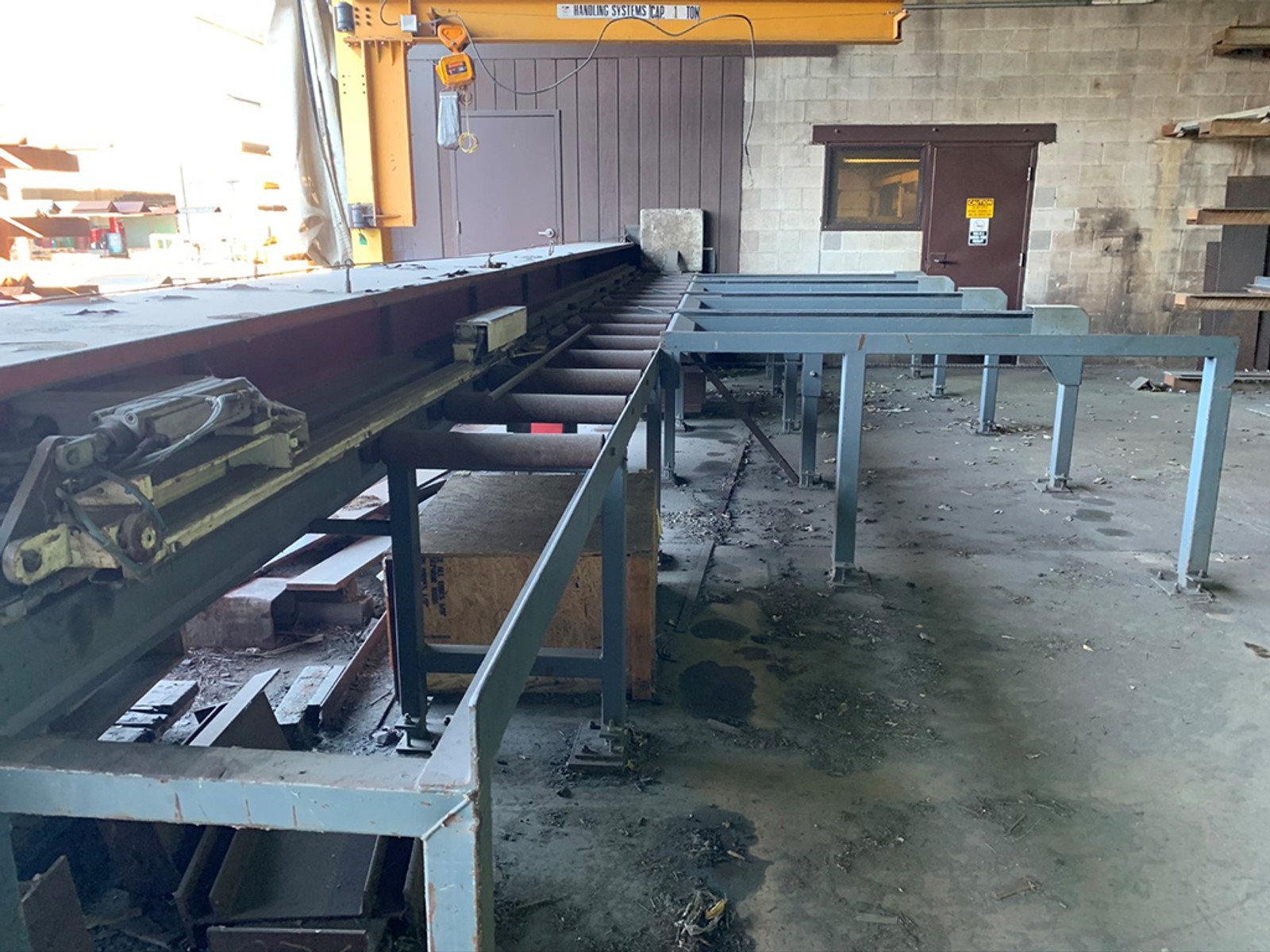

Automatic In Feed System for Flat Steel (20' Overall Length, 21" Overall Width)
VNI 1/3 Integrated Hydraulic Numbering Unit

PUNCHING (VPE 1000):
Capacity ............. ................ 110 Tons
Punch/Material Thickness .............. 2-1/4" in 1/2" or 1-1/4" in 1"
Number of Punches for Flat Steel ...... 1

SHEARING (VPS 2200):
Capacity .............................. 220 Tons
Width/Material Thickness .............. 20"/1"
Mitre Shearing ........................ +/- 45 Degrees

NUMBERING (VNI 1/36):
Number of Discs ....................... 1 Piece
Number of Characters/Disk ............. 36 Pieces
Character Height x Imprint ............ 3/8" x 1/24"
Maximum Length of the Code ............ 20 Characters per Numbering

HYDRAULIC UNIT:
Engine Capacity ....................... 50 HP
Capacity of Oil Tank .................. 105 Gallons

EQUIPPED WITH:
Vacam V500 Control w/ 15" Touch Screen
In Feed Drag-Chain Cross Transport with Mechanical Drag-Dogs
In Feed System (VAK 6000), Flat Steel with 20' Length & Feeder Truck w/ Material Clamping
VNI 1/3 Integrated Hydraulic Numbering Unit
Automatic In Feed System for Flat Steel (20' Overall Length, 21" Overall Width)
Feeder Truck with Frequency Controlled Drive and Electrically controlled brake
Pneumatic Material Gripper
Hydraulic Clamping
Centering Points
Mist Lubrication
460 Volts/3 Phase/60 Cycle
NOTE:
Inspect in Plant Under Power
