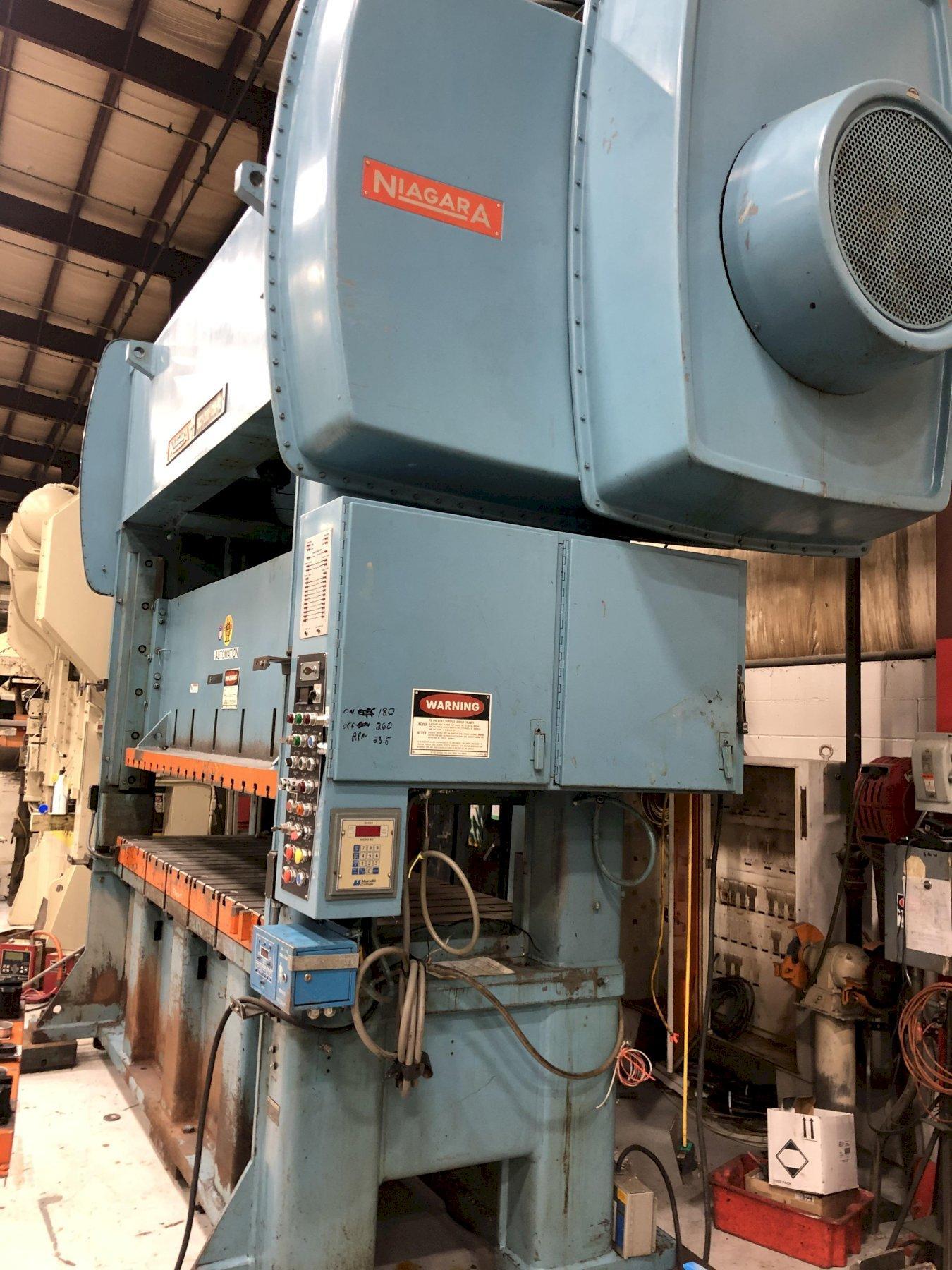

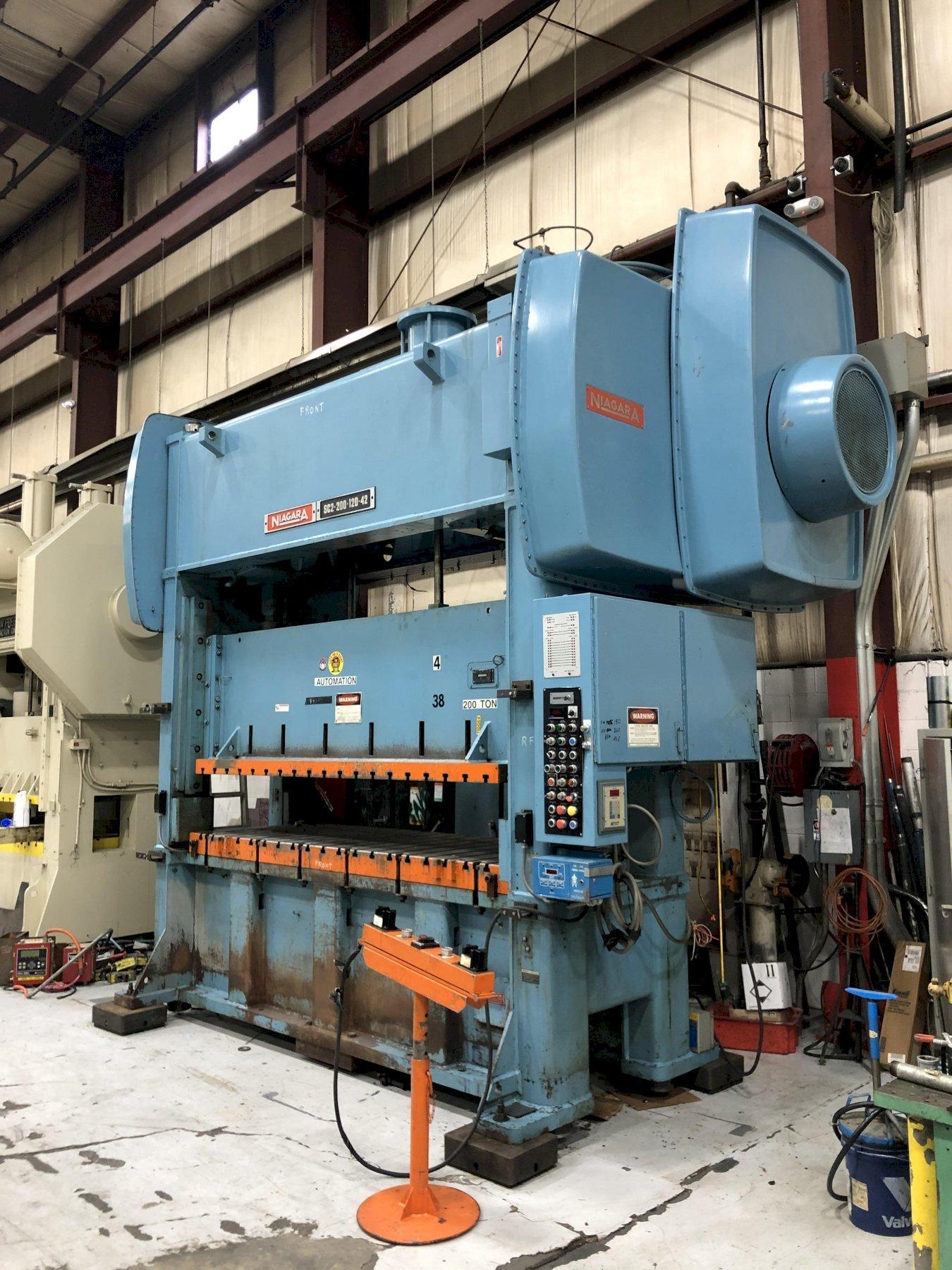

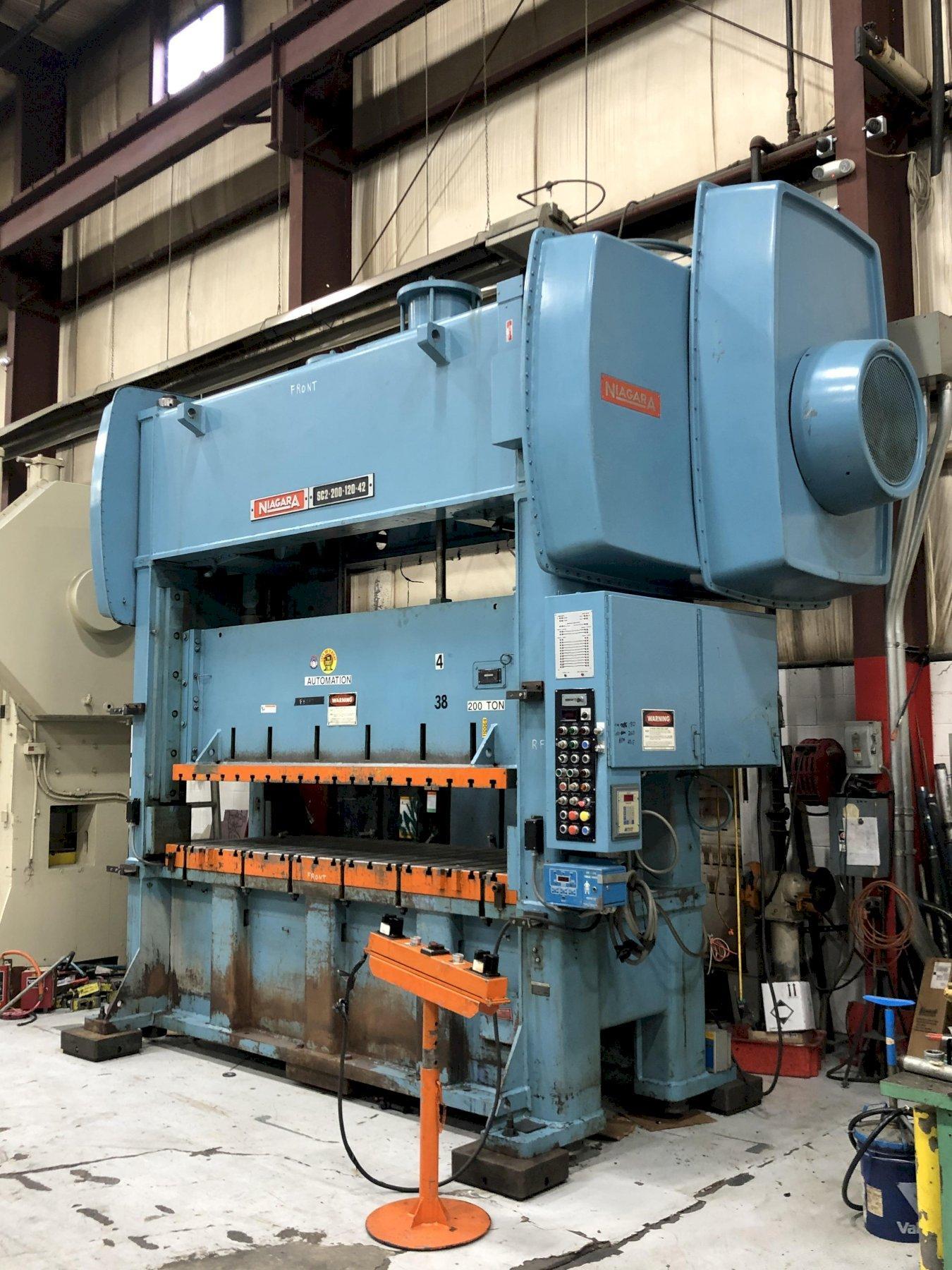

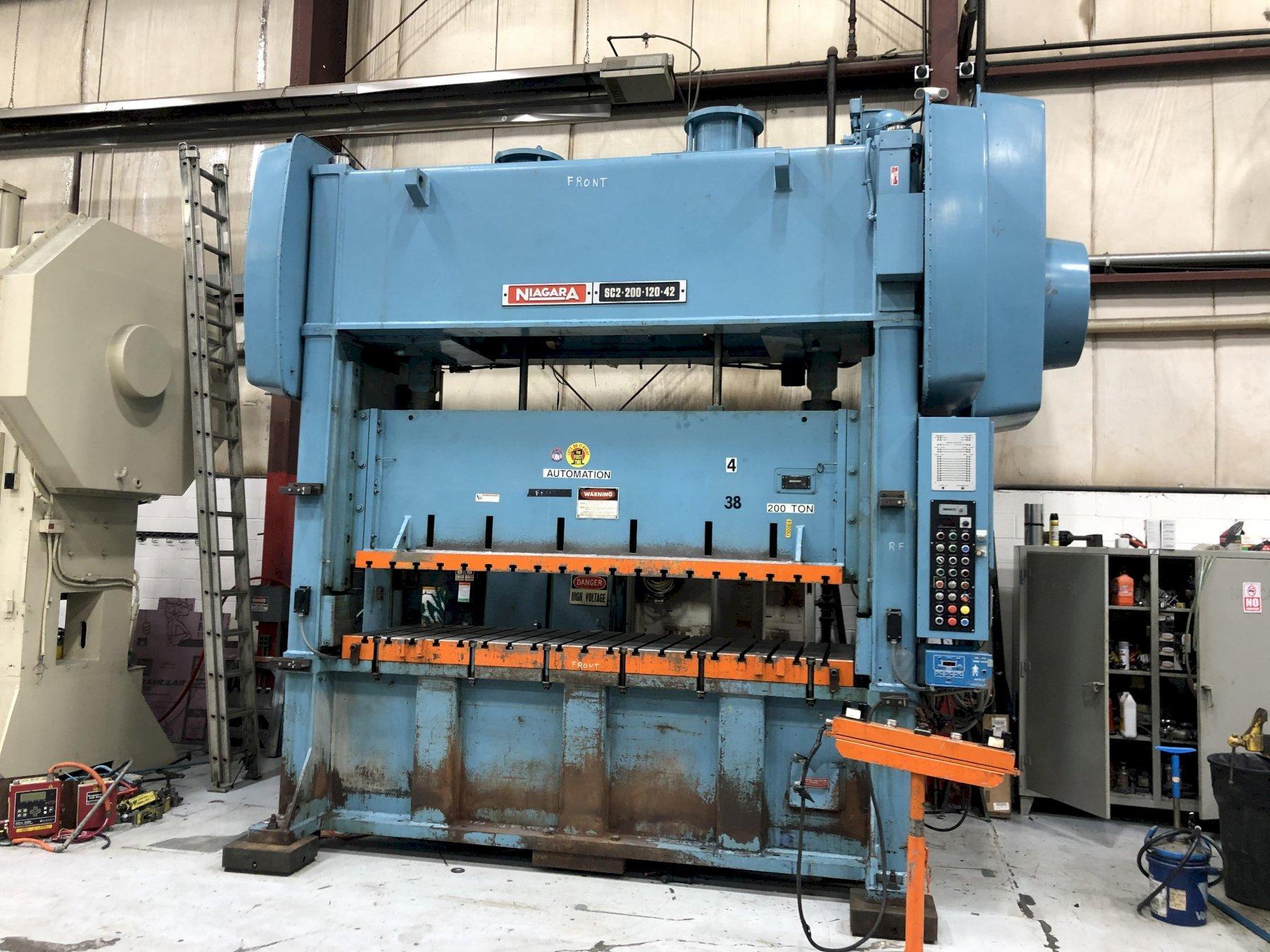

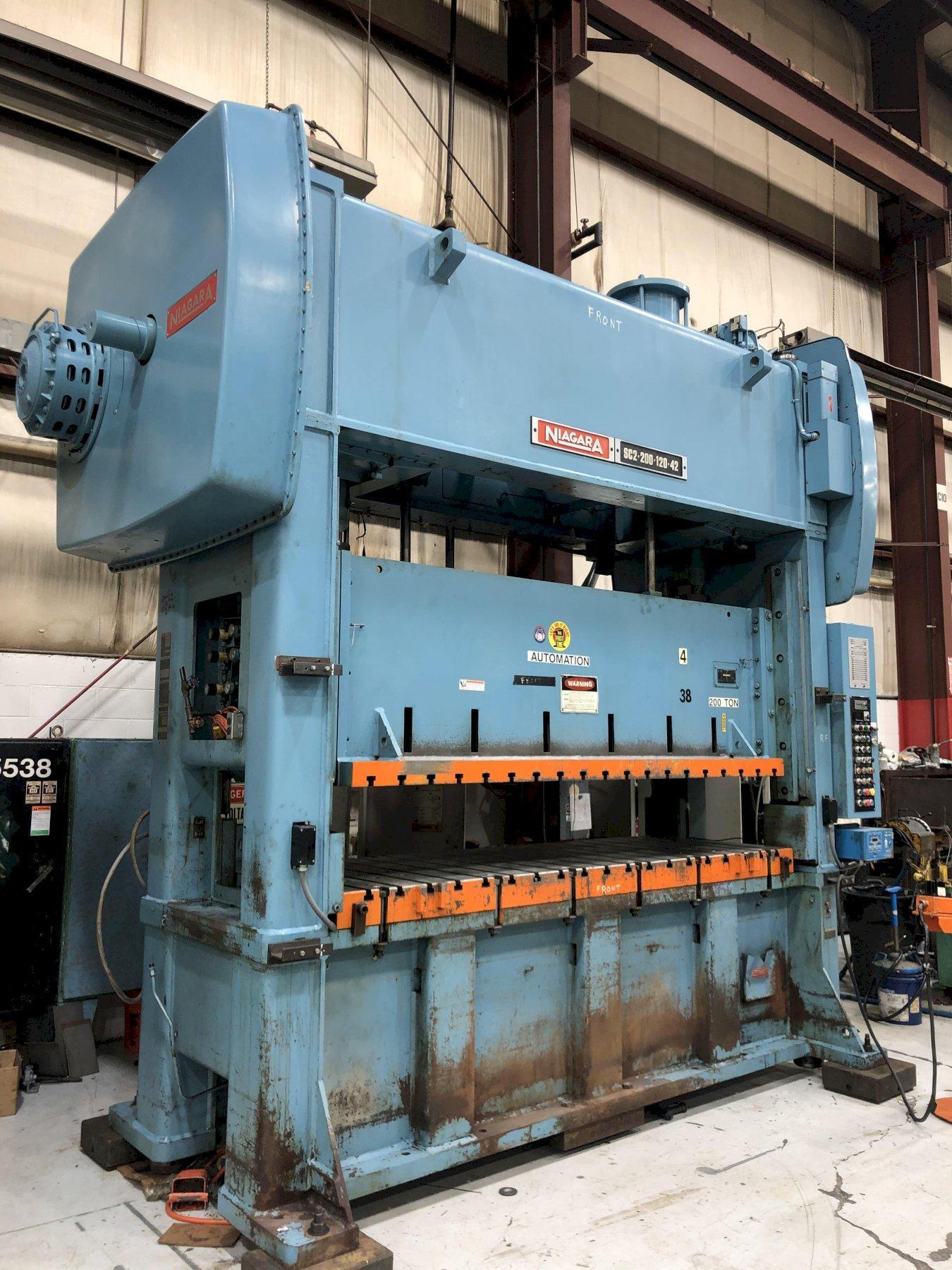

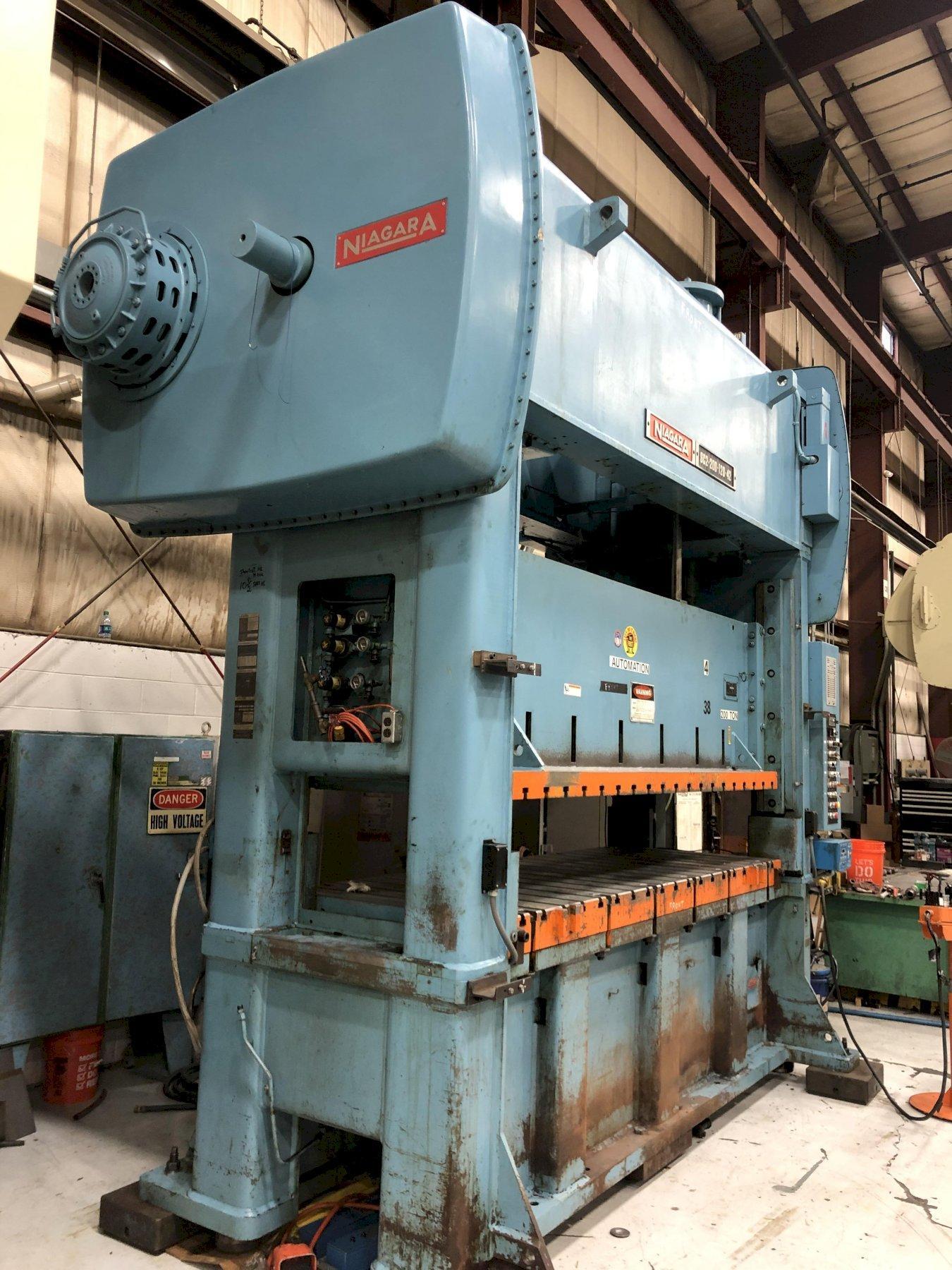

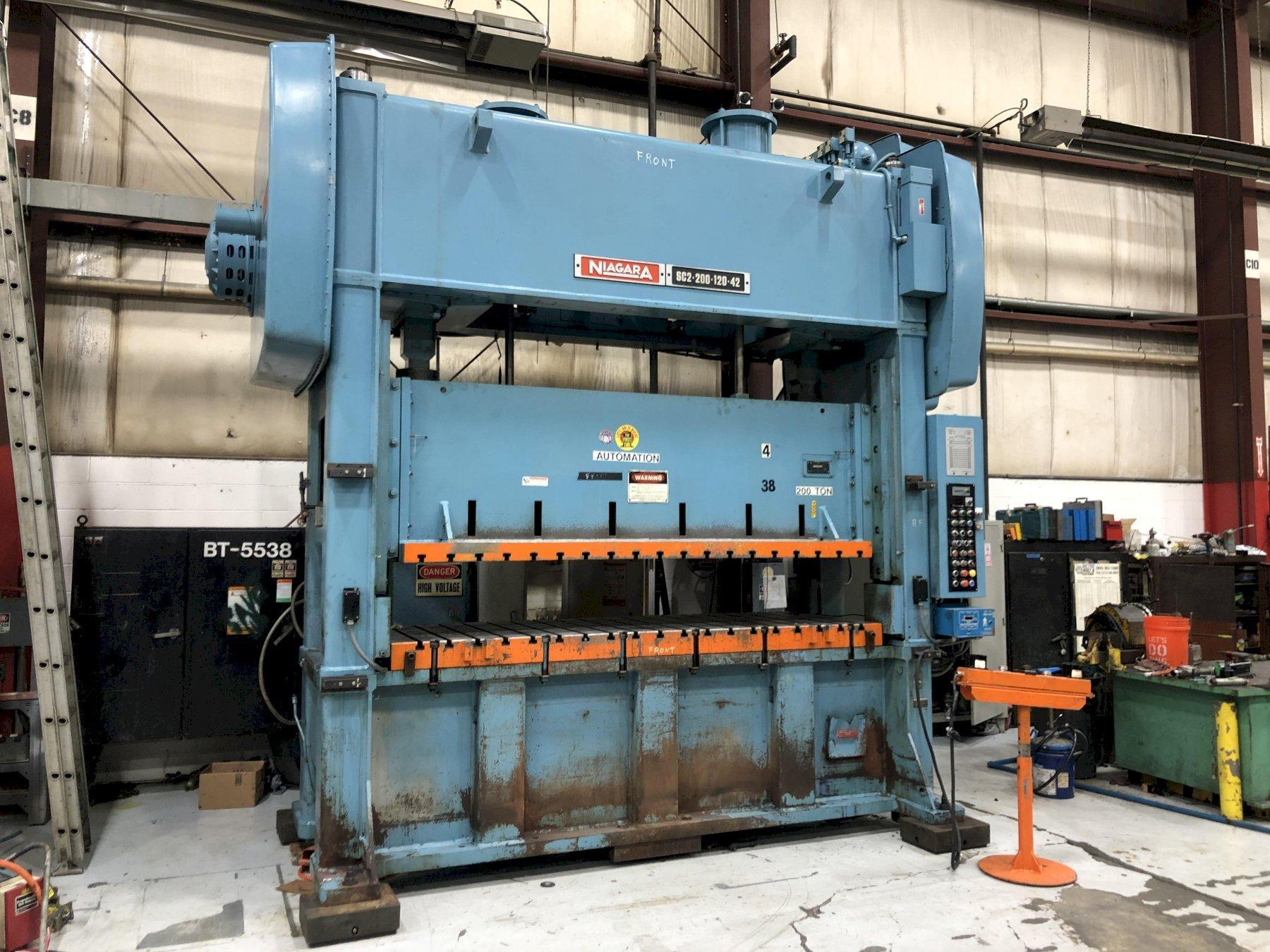

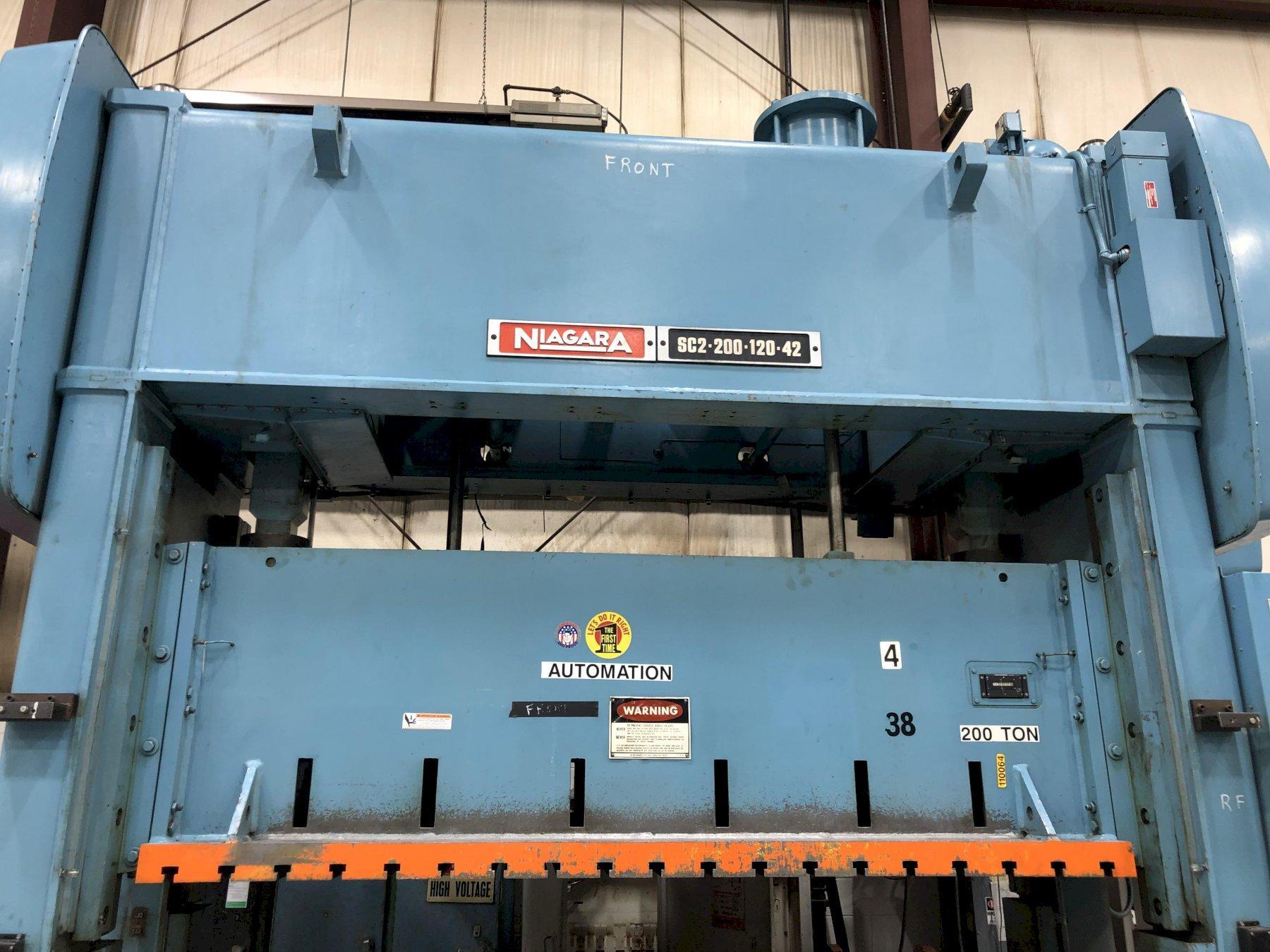

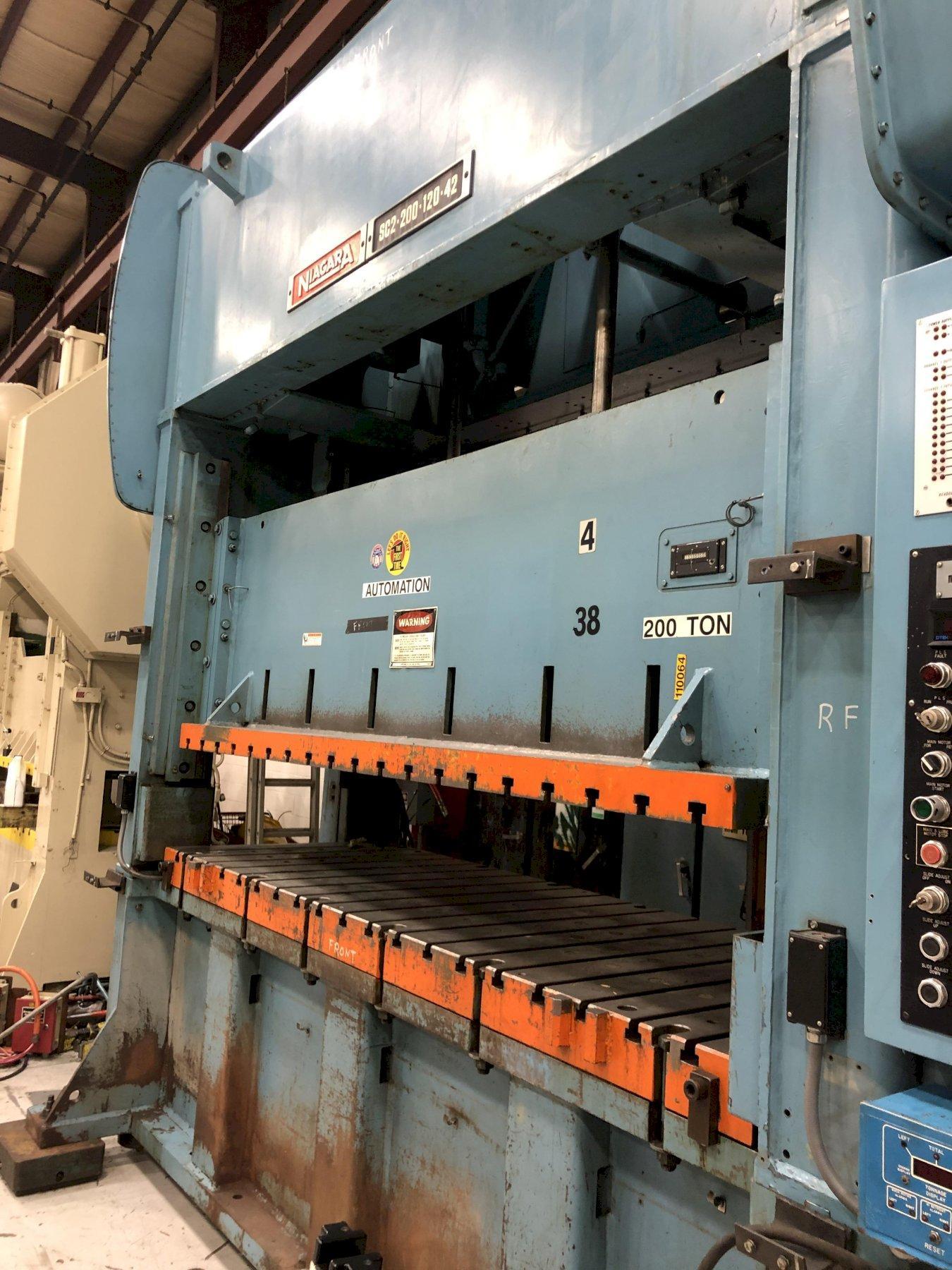

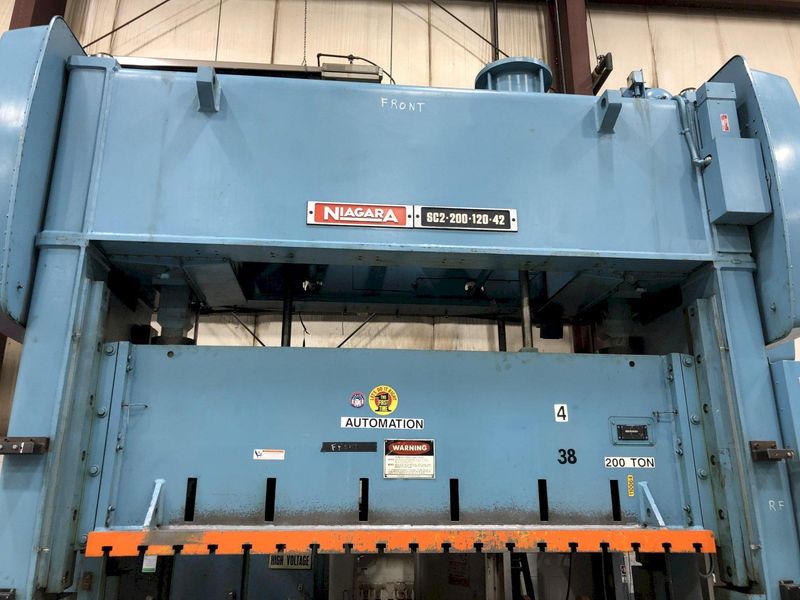

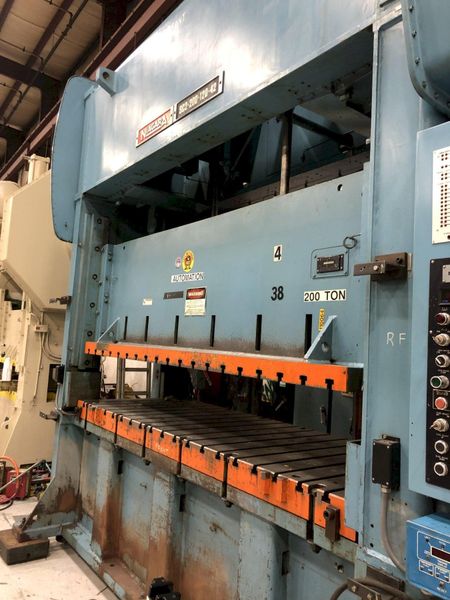

200 ton Niagara SC2-200-120-42 Straight Side Press

Stock

2582

Model

SC2-200-120-42

Dealer Location

Michigan

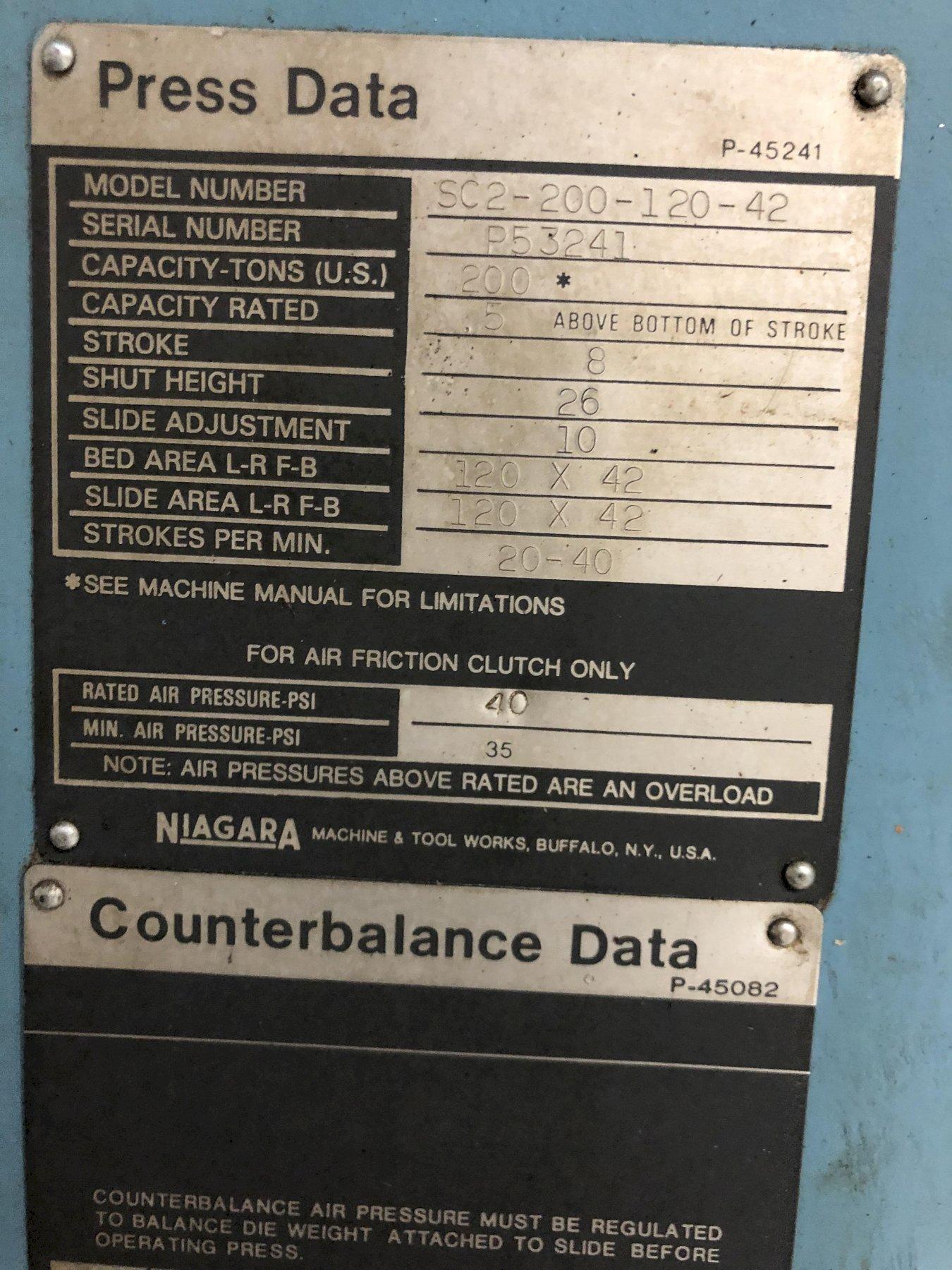

Spec Sheet

Tonnage - 200
Stroke - 8 inches
Shut Height - 26 inches
Adjustment - 10 inches
Bed Size - 120" LR x 42" FB
Ram Area - 120" LR x 42" FB
SPM - 20-40 VSPM


Standard Specifications
200 ton Capacity
8" Stroke
26" Shut Height
10" Motorized Adjustment
120" LR x 42" FB Bed Area
120" LR x 42" FB Slide Area
20-40 VSPM

Equipment and Features
Air Clutch and Brake

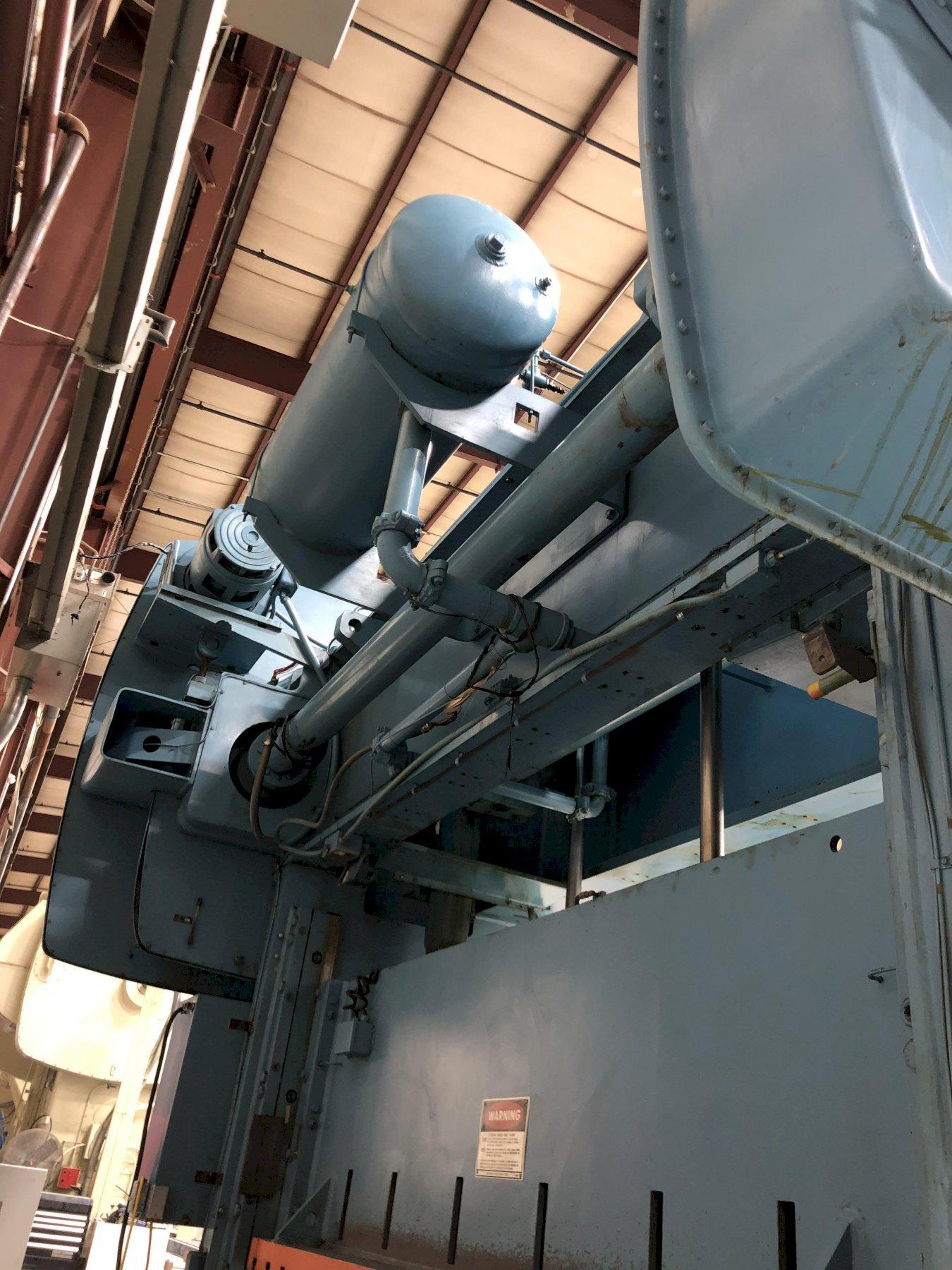

Air Counterbalances

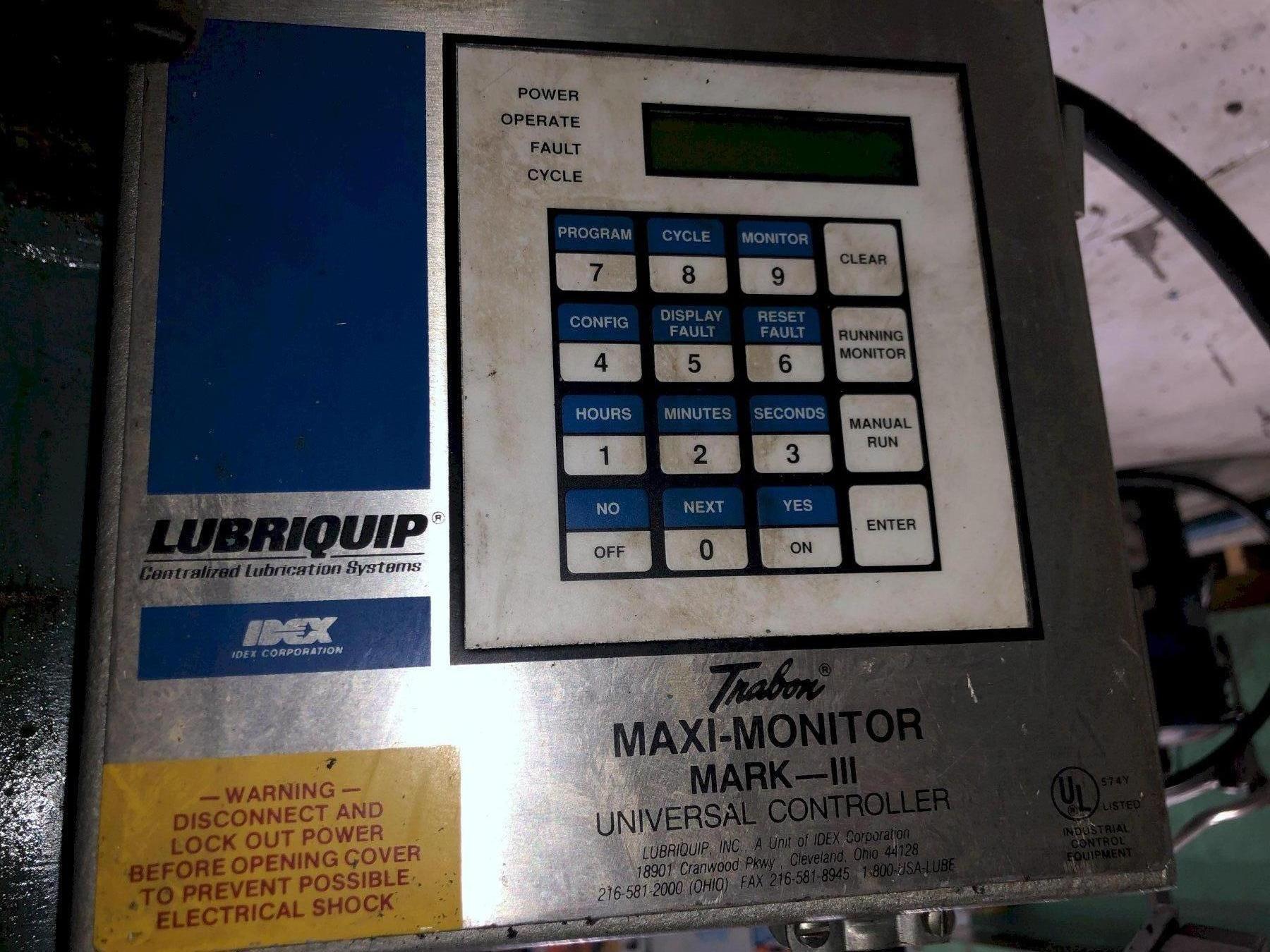

Recirculating Lube System

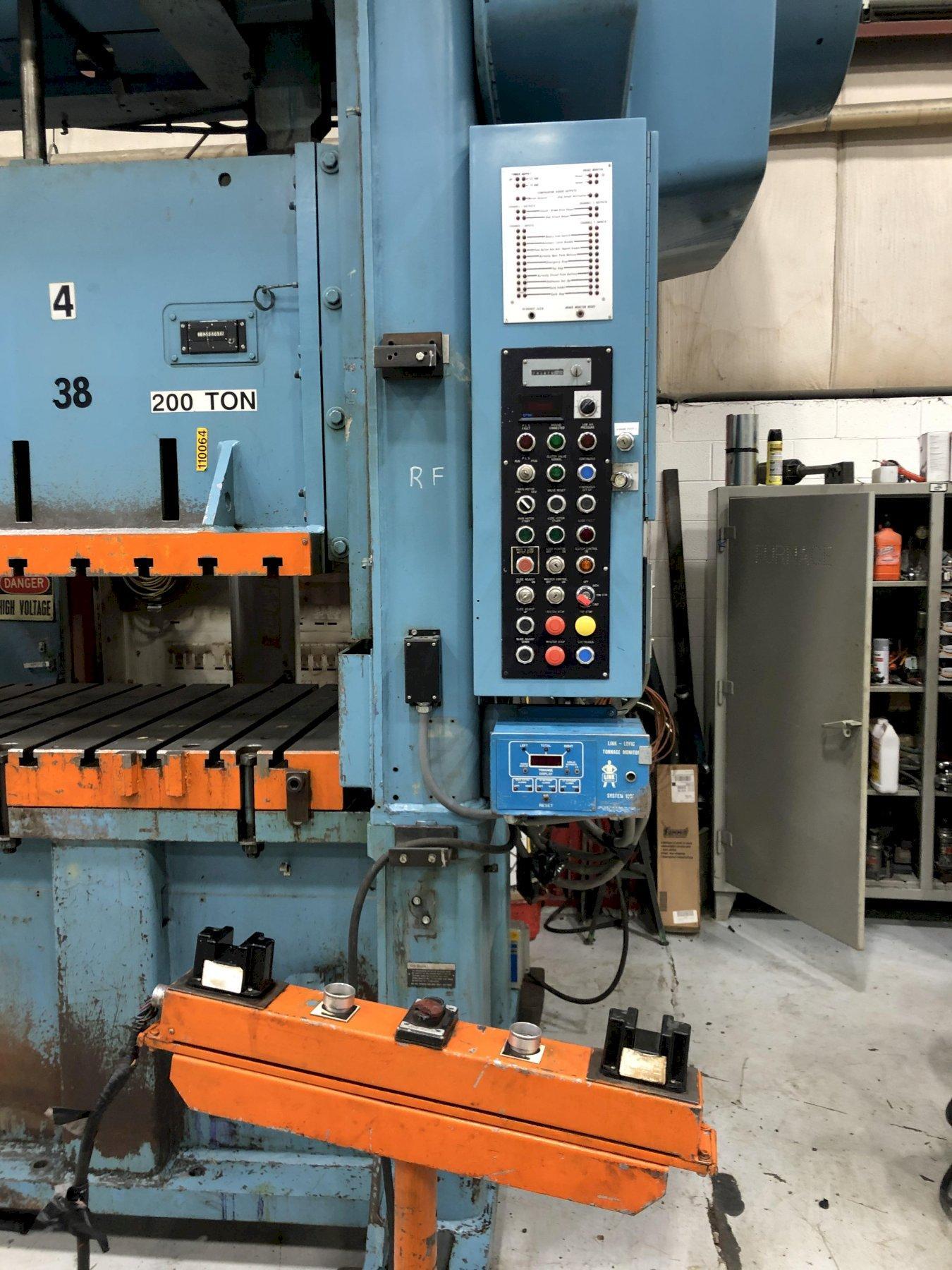

Link Logic Press Controls
Link Light Curtains

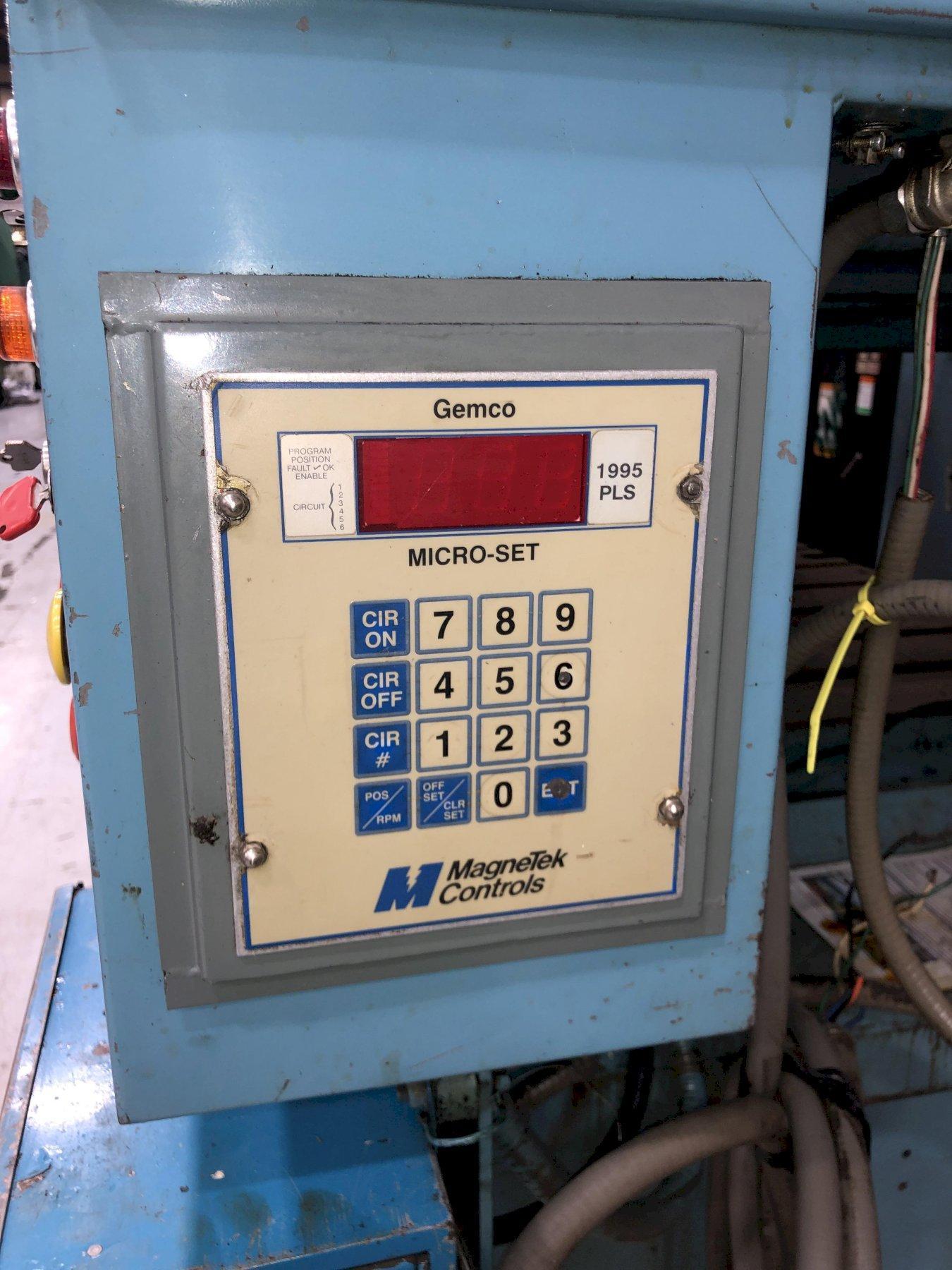

Magnetek Brake Monitor
6" Thick Bolster Plate
T-Slotted Ram and Bolster Plate
25" Wide Windows
Motors and Controls
Floor Standing

Overall Height……………………………… 15’11” floor to top of gear cover
Footprint……………………………………. 147” LR x 73” FB
