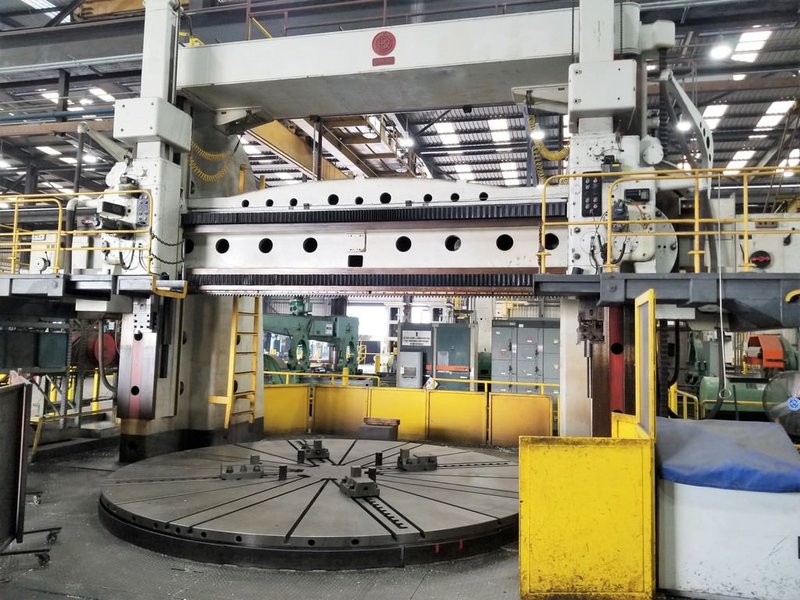

196" Skoda SK-50A, 203" Swing, 120" Turning Height, 2-Rams, Siemens 828D CNC, 134 HP, #30228

Manufacturer

SKODA

Category

Boring Mills

Type

BORING MILLS, VERTICAL - (Including Vertical Turret Lathes)

Stock

30228

Model

Sk50

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #30228

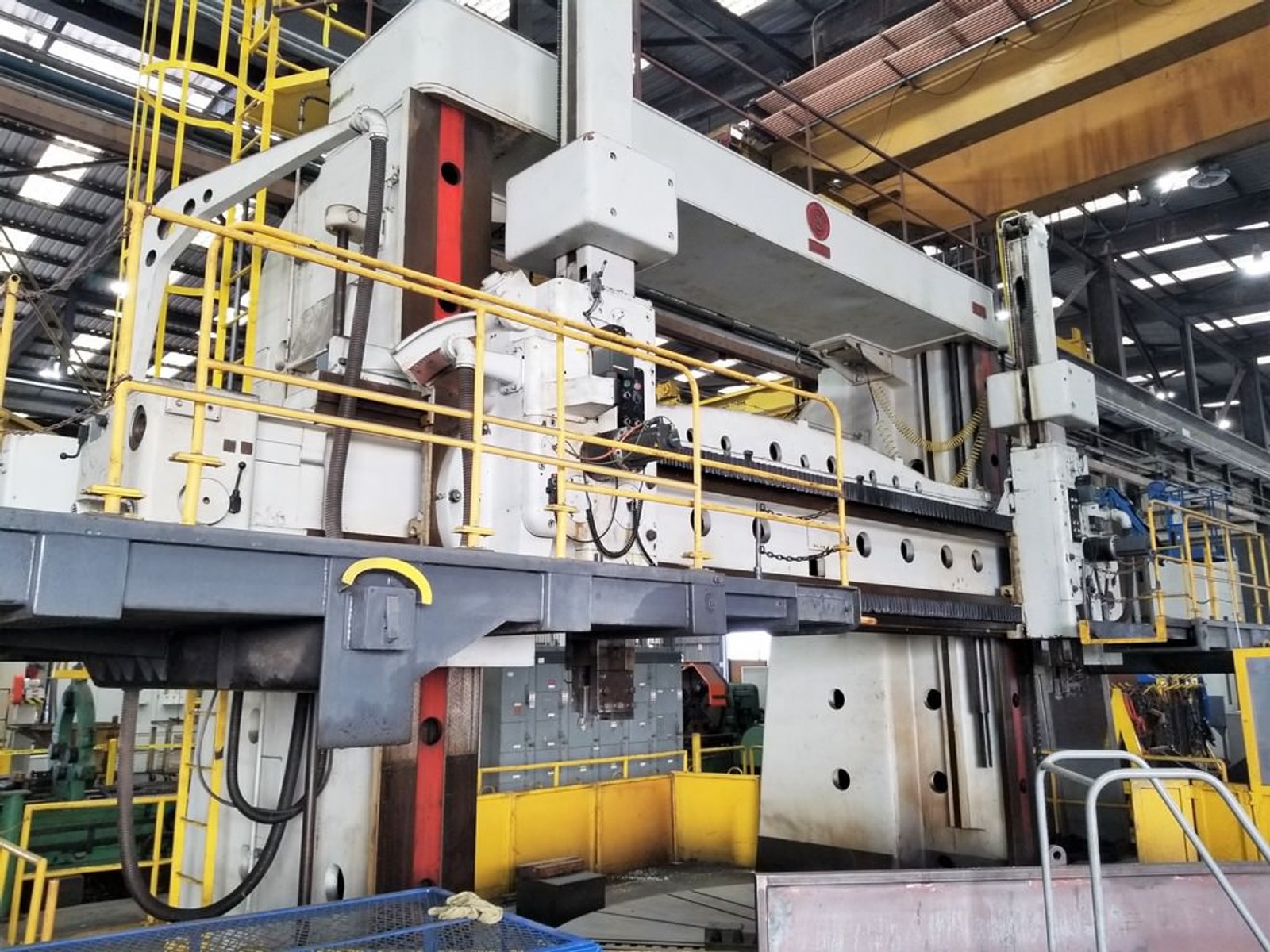

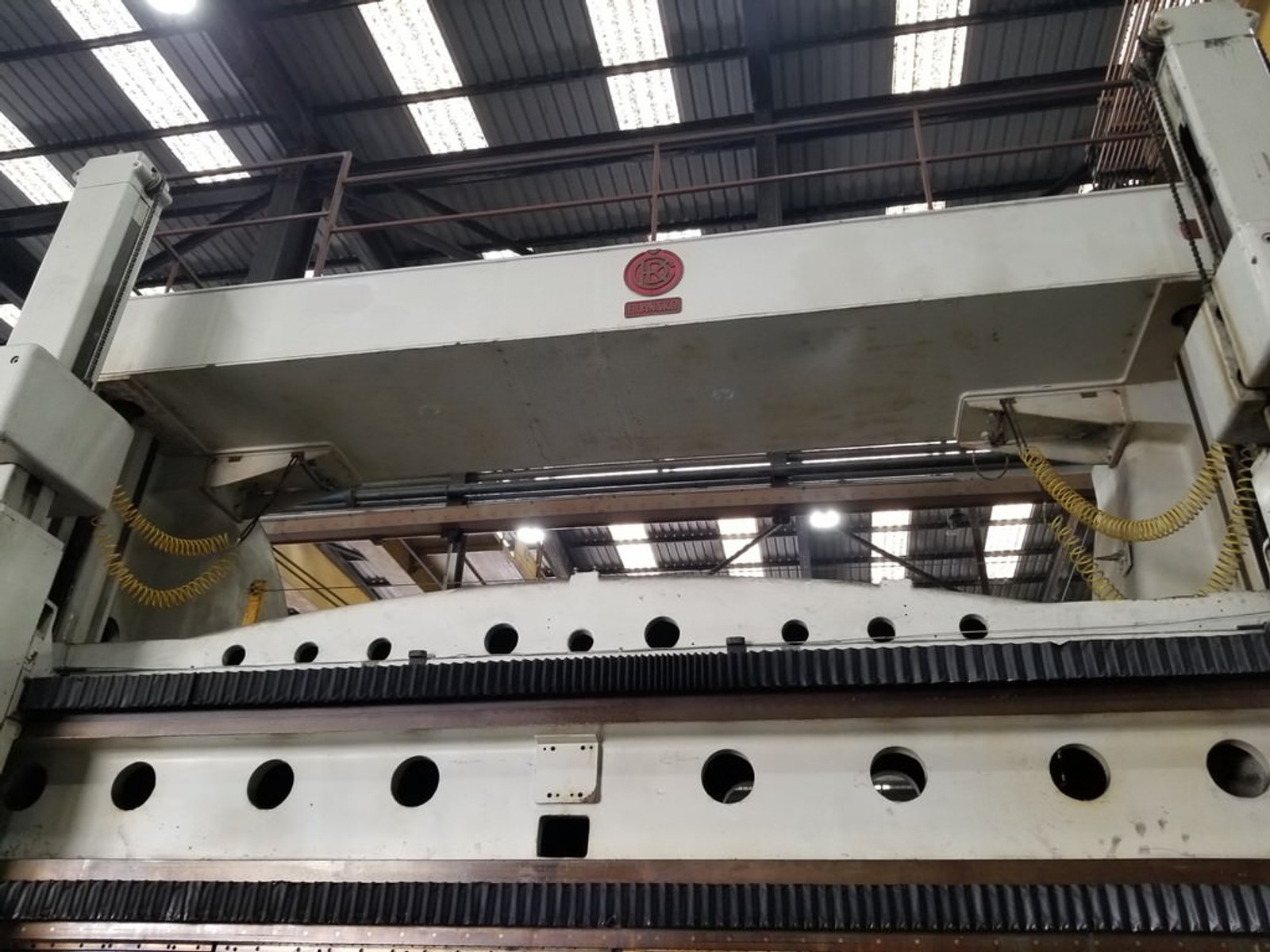

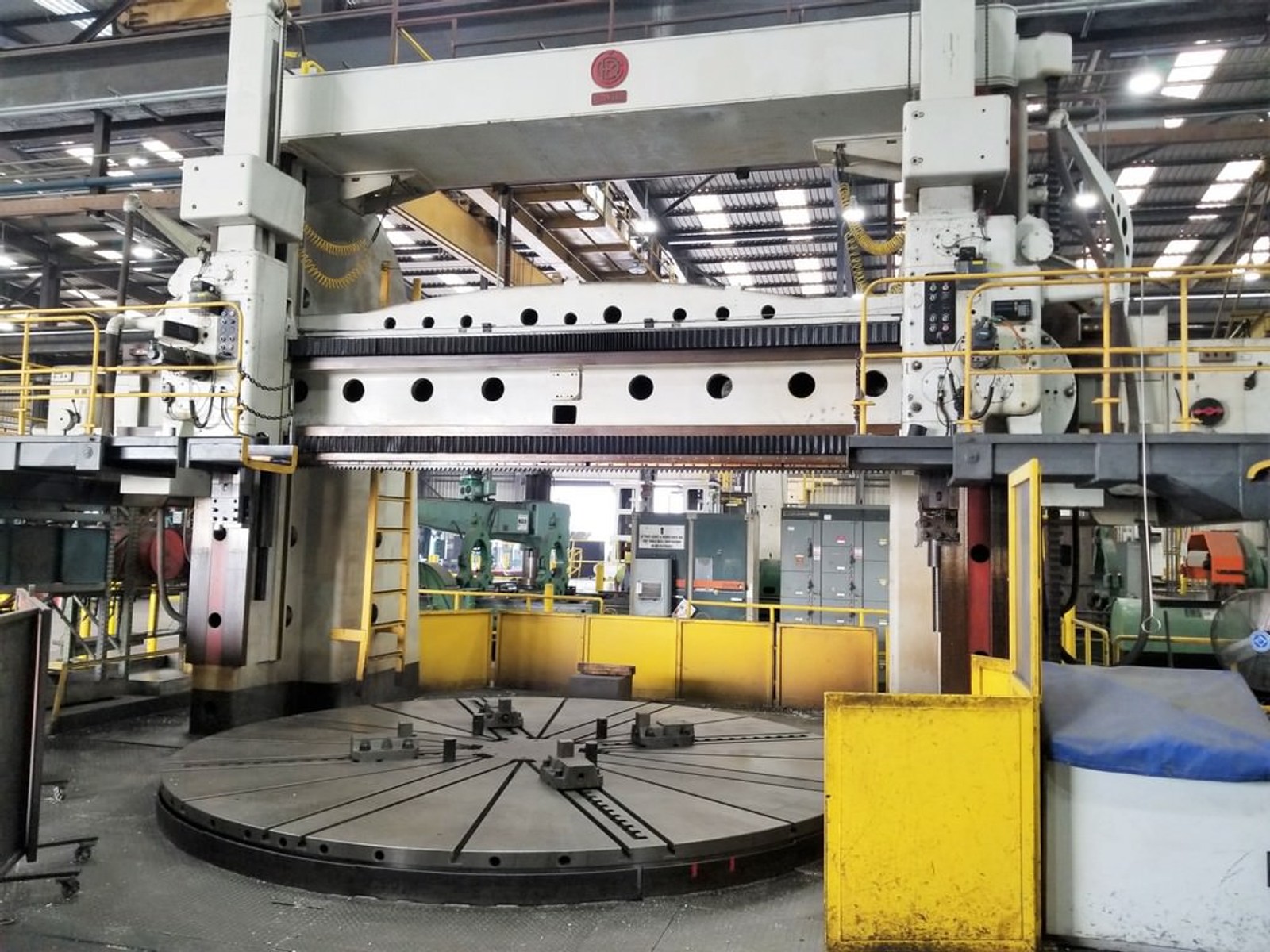

Skoda SK-50A 196" Vertical Boring Mill

FEATURES:
(2) Swivelling Rams
Siemens 828D CNC Control on Right Side Ram

Specifications:
Table Diameter ........................ 187"
Maximum Turning Diameter, Ram Heads ... 203.93"
Maximum Height Under Tool Holder ...... 120.07"
Vertical Travel of Ram Heads .......... 55.11"
Vertical Ram Swivel ................... +/- 30 to 45 Deg.
Table Speeds, Inf. Variable ........... 0.33 - 32.8 RPM
Feeds, (15) ........................... .005 - .450 IPR
Table Weight Capacity ................. 100,000 Lbs
Machine Weight: ....................... 295,000 Lbs
Table Motor ........................... 107.28 HP
Floor Space: F-B x L-R ................ 329.52" x 496"
Overall Height ........................ 389"

EQUIPPED WITH:

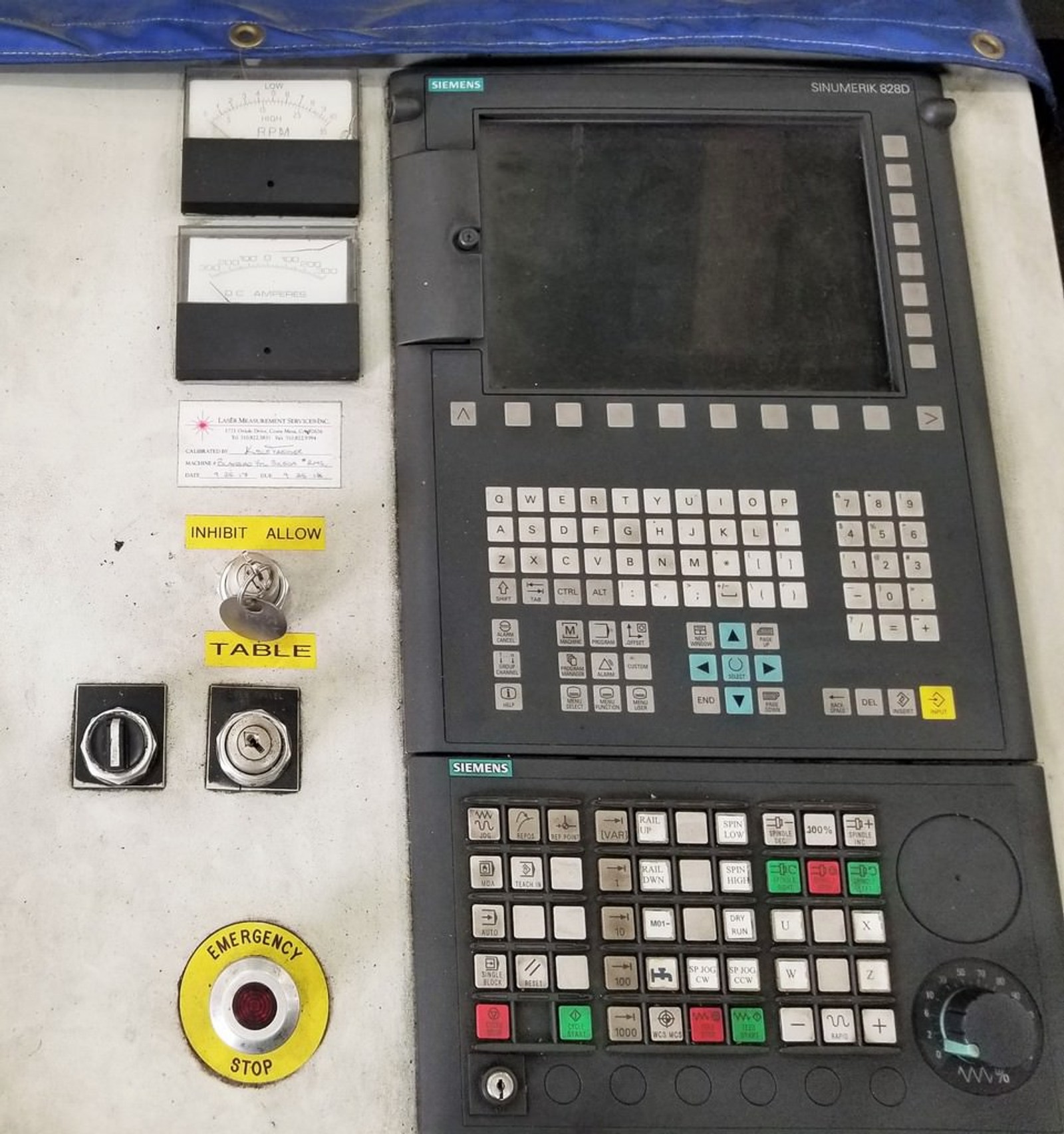

Siemens 828D CNC Control on Right Side Ram
2-Swivelling Vertical Ram Heads

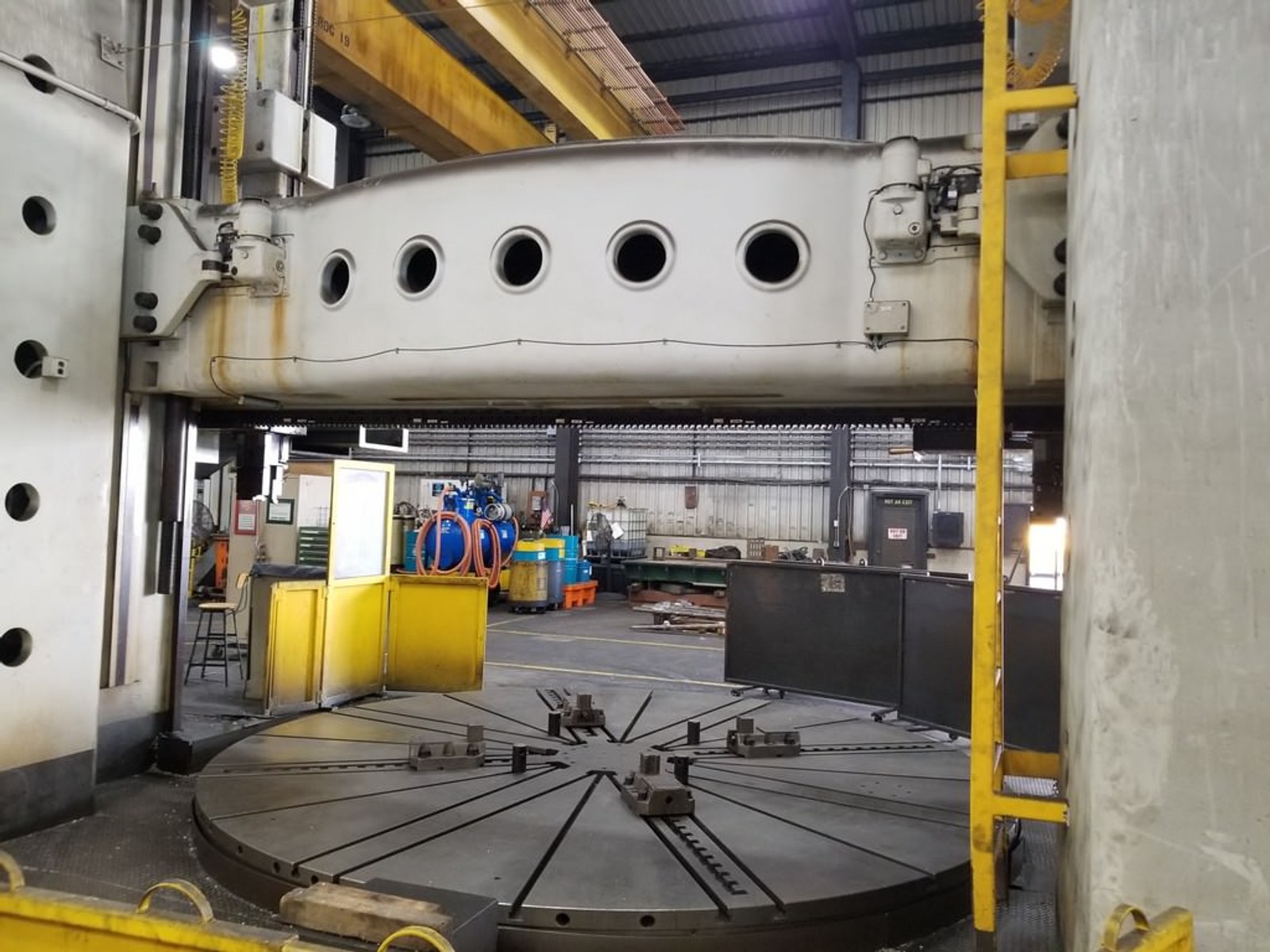

T-Slotted Table with (4) Face Plate Type Jaws
Hydrostatic Table Bearing
Inspect in Plant At USA Facility!
