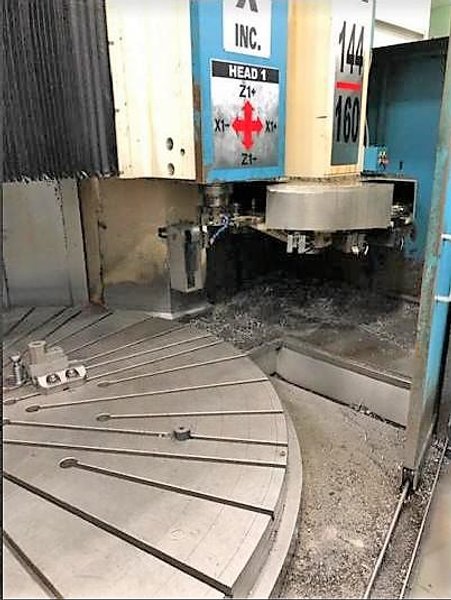

144" Phoenix VTC144/160, 2-Rams w/ATC, 160" Swing, Fanuc 18i 4-Axis CNC,'09 #29600

Manufacturer

PHOENIX

Category

Boring Mills

Type

BORING MILLS, VERTICAL, CNC

Stock

29600

Model

VTC 144/160

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #29600

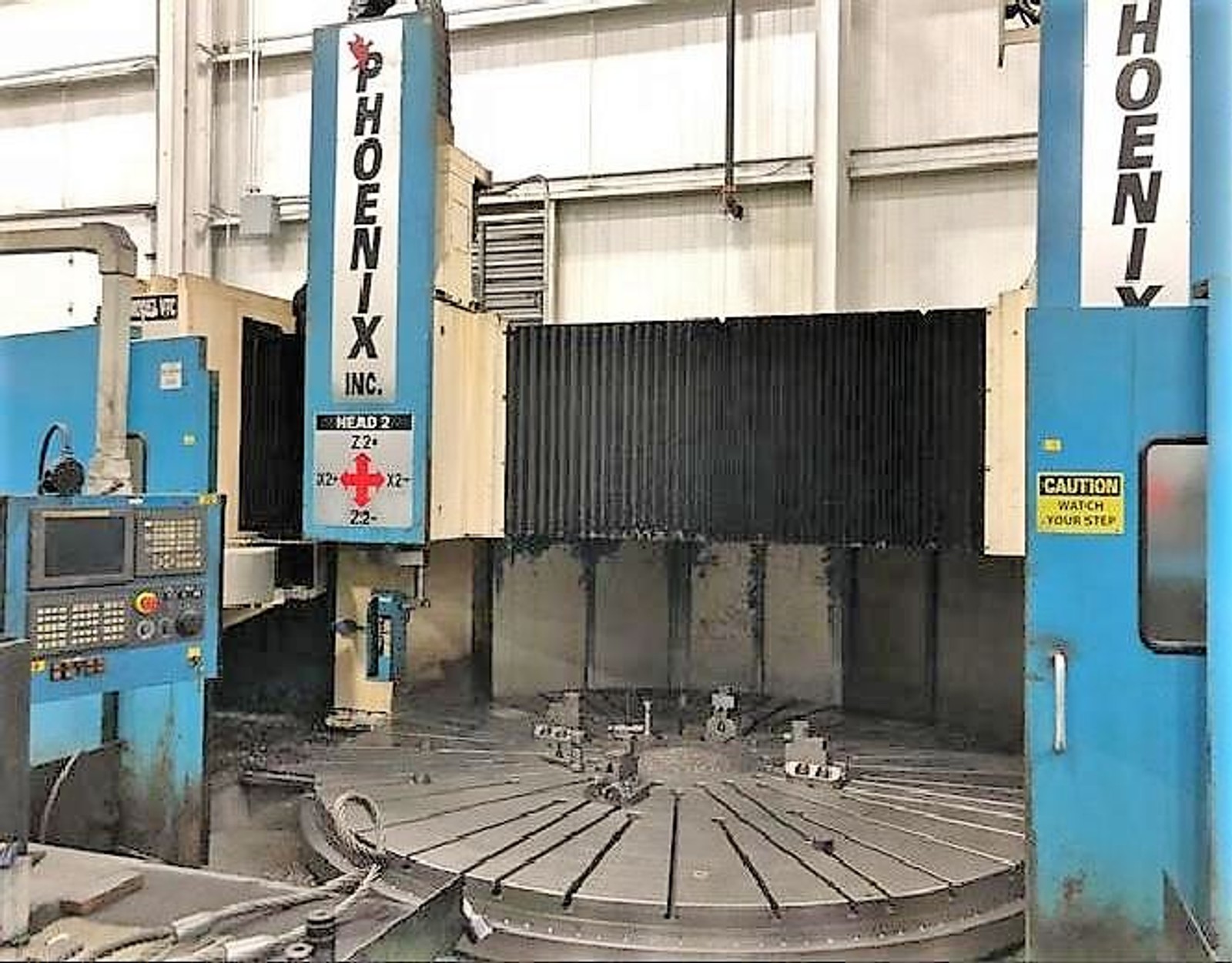

160" PHOENIX VTC144/160 4-Axis CNC Vertical Boring Mill

FEATURES:
Fanuc 18i-T 4-Axis CNC Control

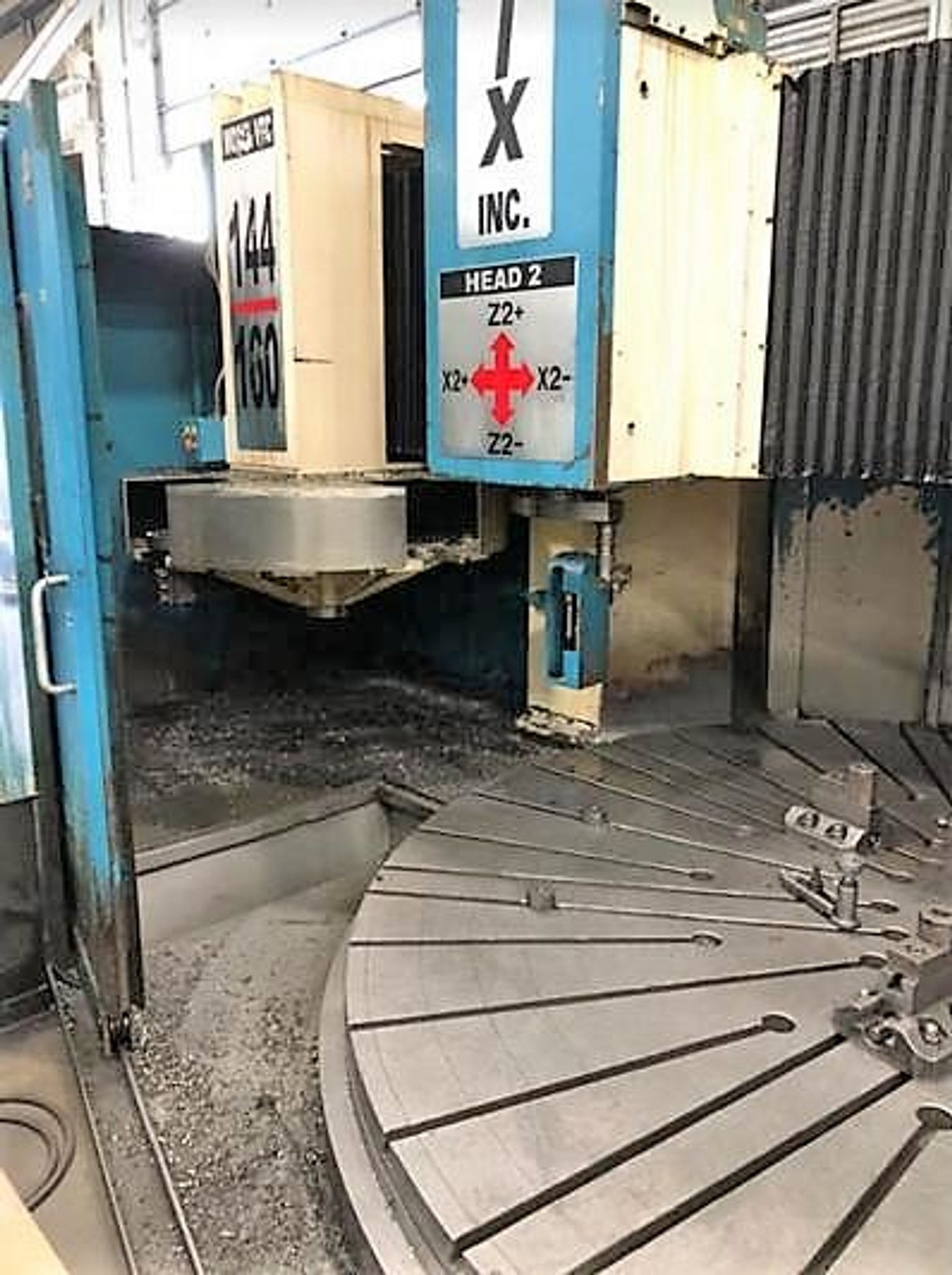

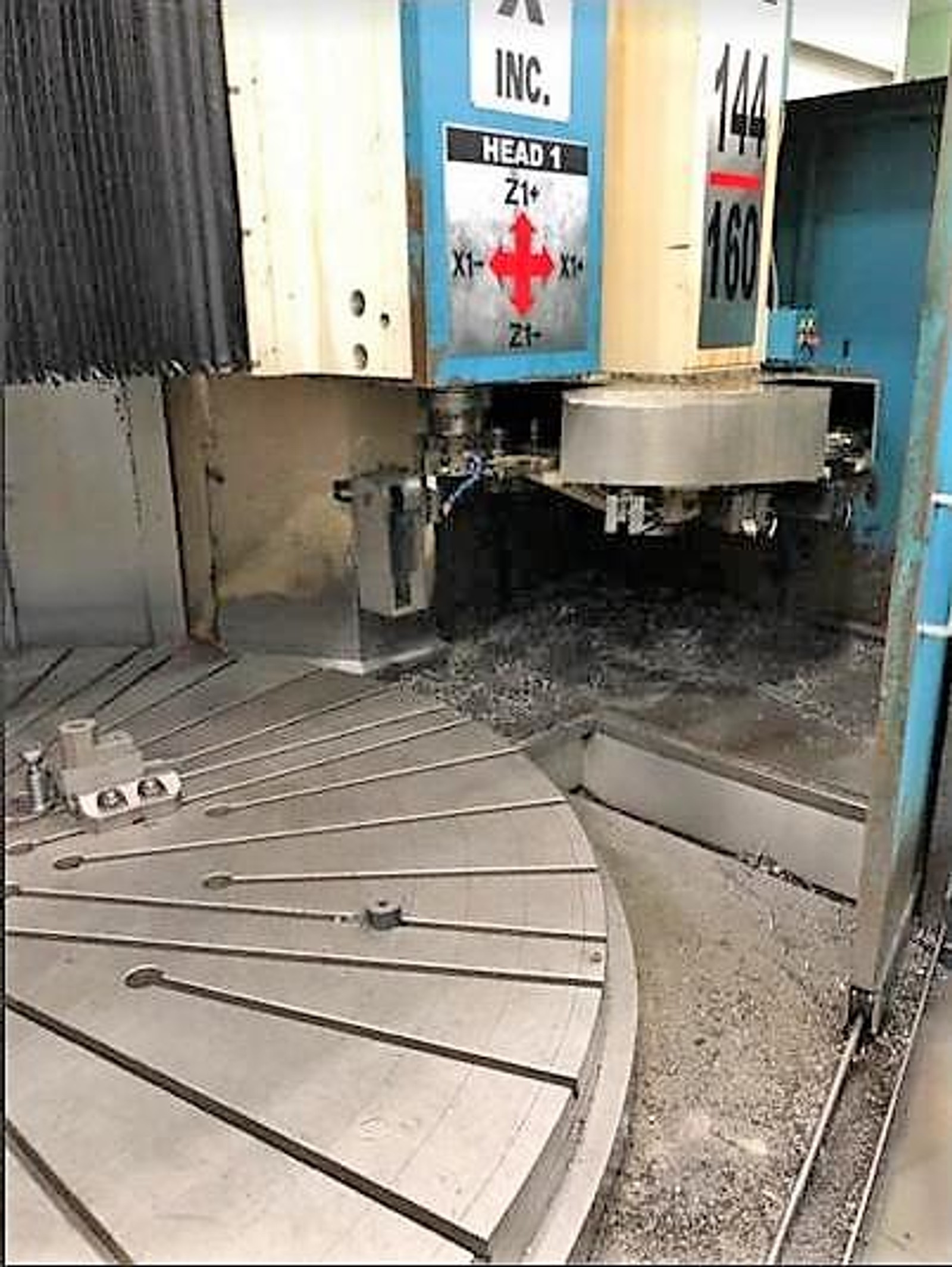

(2) Vertical Ram Heads

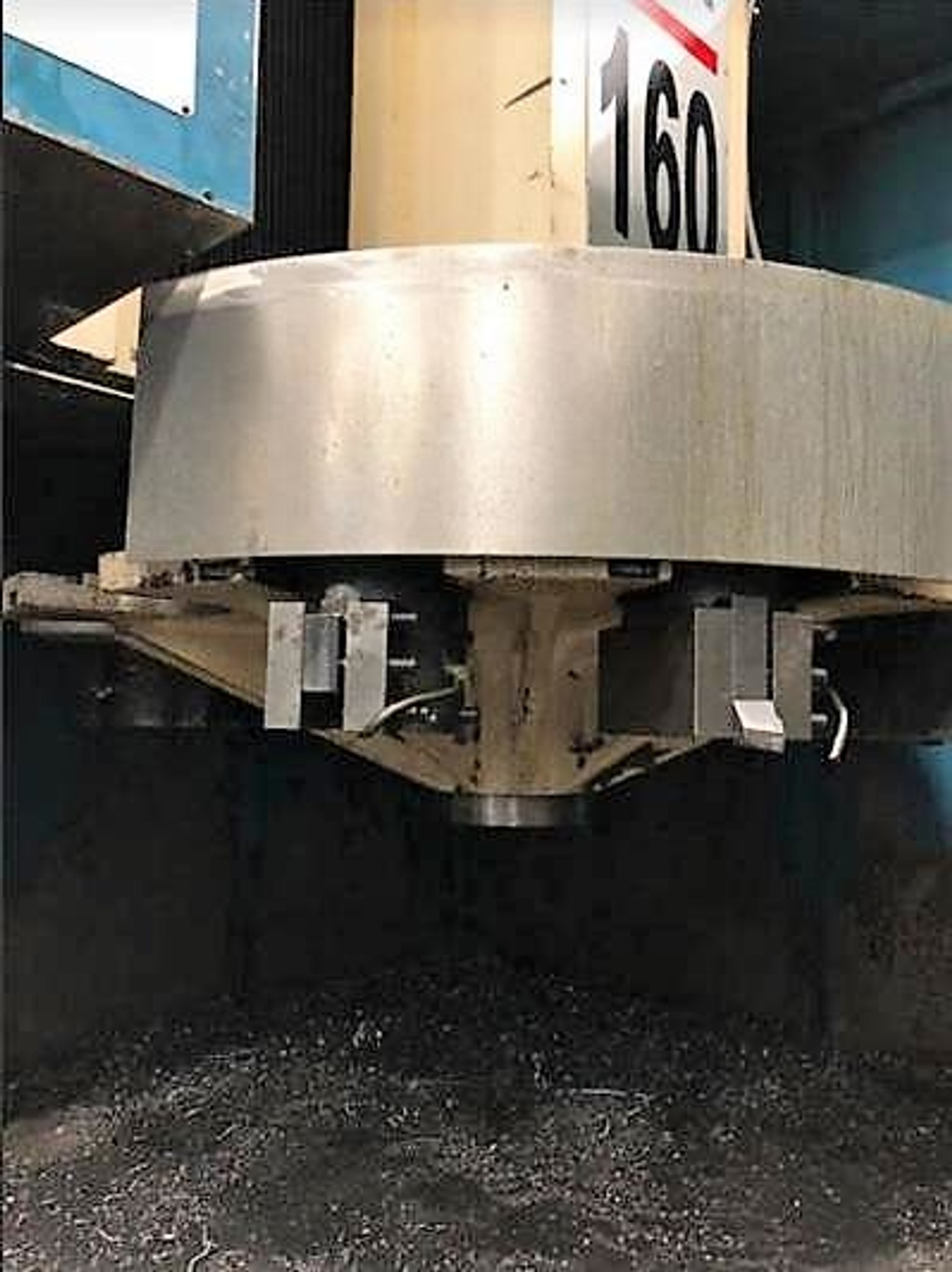

(2) 16 Station Automatic Tool Changers
Part and Tool Probe

CAPACITY:
Table Diameter ........................ 144"
Maximum Swing ......................... 160"
Height Under Rail ..................... 42"
X-Axis Travel of Ram Past Centerline .. 24"
Z-Axis Vertical Ram Travel ............ 36"
Ram Cross Section ..................... 12" x 12"
Table Speeds .......................... 0-100 RPM
Table Speed Gear Ranges ............... 2
Table Weight Capacity ................. 35 Ton
Z-Axis Thrust ......................... 12,000 Lbs
X-Axis Thrust ......................... 12,000 Lbs
Feed Rates ............................ 150 IPM
Rapid Rates ........................... 300 IPM
Table Power ........................... 130 HP

EQUIPPED WITH:
Fanuc 18i-T 4-Axis CNC Control
(2) Vertical Ram Heads
(2) 16 Station Automatic Tool Changers
Part and Tool Probe
Hardened & Ground Box Ways on Cross Rail
Fixed Rail Design
Forged Rams
Heavy Duty Casted Base, Columns & Cross Rail
Timkin Cross Roller Bearing
Hardened & Ground Table Gear 103" Diameter
3" Diameter Hardened & Ground Ball Screws
GE/Fanuc AC Servo Drives
Heidenhain Linear Feedback
Dual Chip Conveyors
