TOS Right Angle Head, 28" Length Reach, 50 Taper, .625"" Bolt Holes (From TOS 100A HBM) #29339

Stock

29339

Model

RIGHT ANGLE

Dealer Location

New York

Spec Sheet

Reference #29339

Right Angle Head From 3.93" TOS H100A Boring Mill

FEATURES:
Previously Used On TOS H100A
# 50 Taper

SPECIFICATIONS:
Spindle Taper ......................... # 50
Center Distance ....................... 23.37"

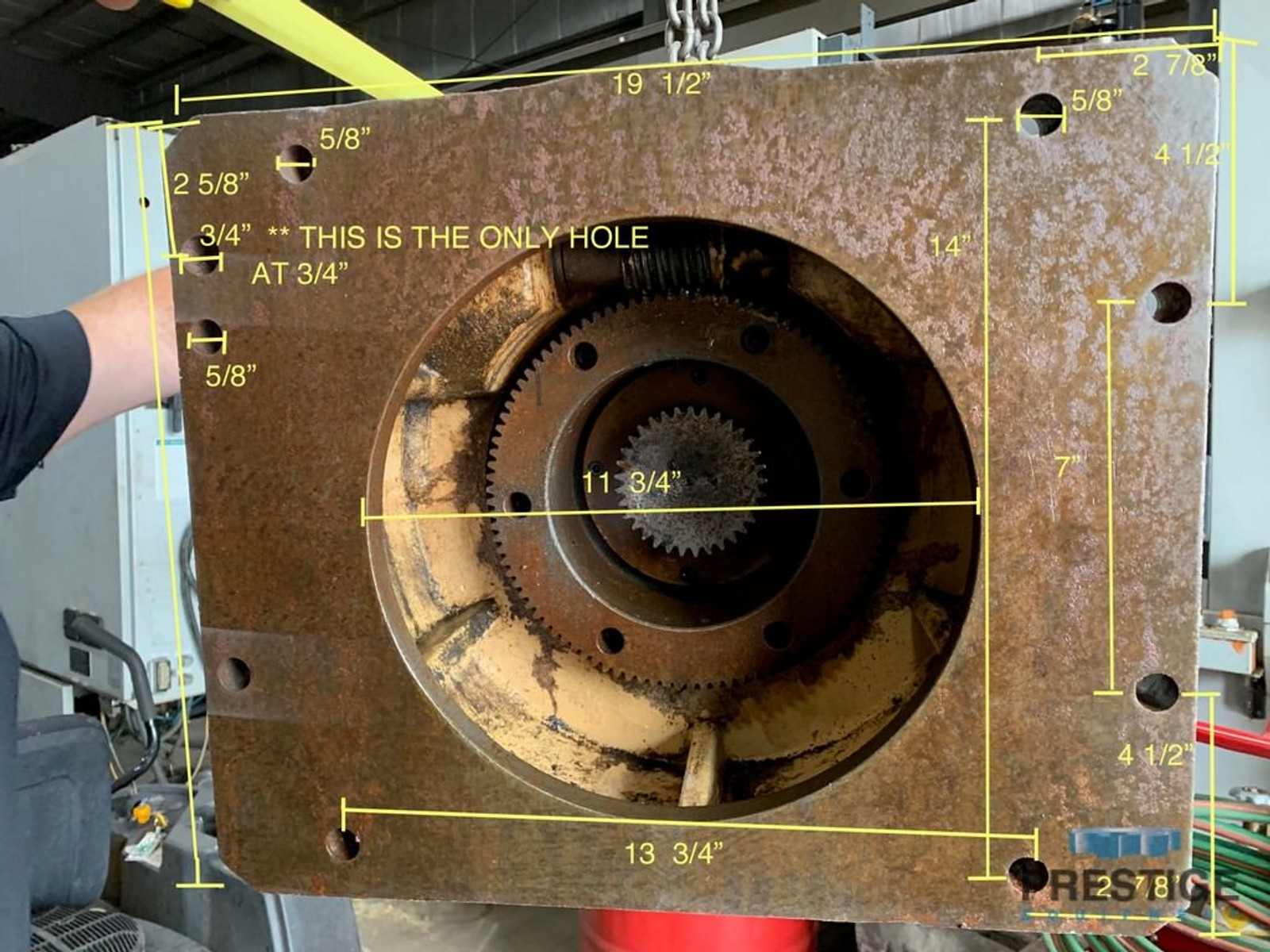

Bolt Hole Pattern Center To Center .... 25.5"
Bolt Hole Size ........................ .625"
Overall Length ........................ 28"
Overall Weight ........................ 572 Lbs
NOTE:
Previously Used On TOS H100A
