88" Stanko Model 1525 Vertical Boring Mill

Stock

16682

Model

1525

Dealer Location

Texas

Spec Sheet

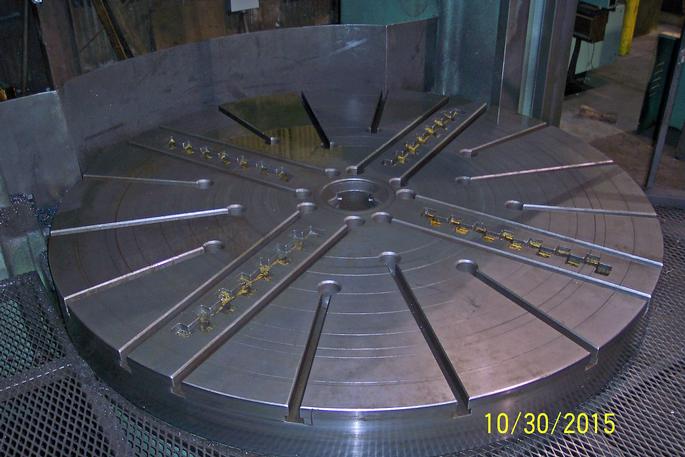

TABLE DIAMETER: 88" (4-JAW CHUCK)

SWING: 98"

HEIGHT UNDER RAIL: 86"

TABLE SPEEDS: 1.6 - 80 RPM

MAXIMUM WORK PIECE WEIGHT: 28,600 LBS.

TURRET VERTICAL TRAVEL: 62"

RAM SWIVEL: 30 DEGREES

SIDE HEAD TRAVEL: 38"

MOTOR: 55 HP

OAD (WXDXH): 154" X 159" X 180"

WEIGHT (APPROX.): 78,000 LBS.

EQUIPPED WITH:

87.9" DIAMETER 4-JAW CHUCK

MITUTOYO 4 AXIS DRO

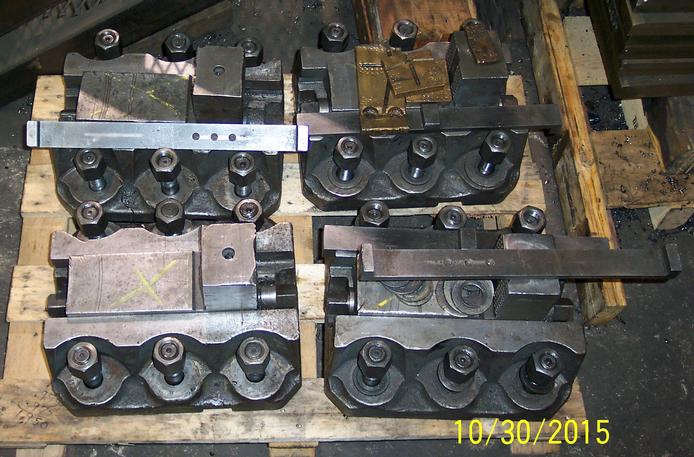

5 POSITION POWER INDEXING TURRET HEAD

SIDE HEAD

THREADING AND TAPER TURNING

PENDANT CONTROL

FLUSH FLOOR DESIGN



MACHINE IN VERY GOOD CONDITION
