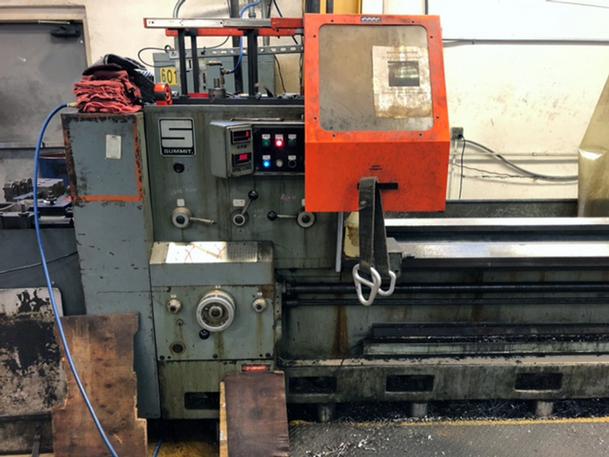

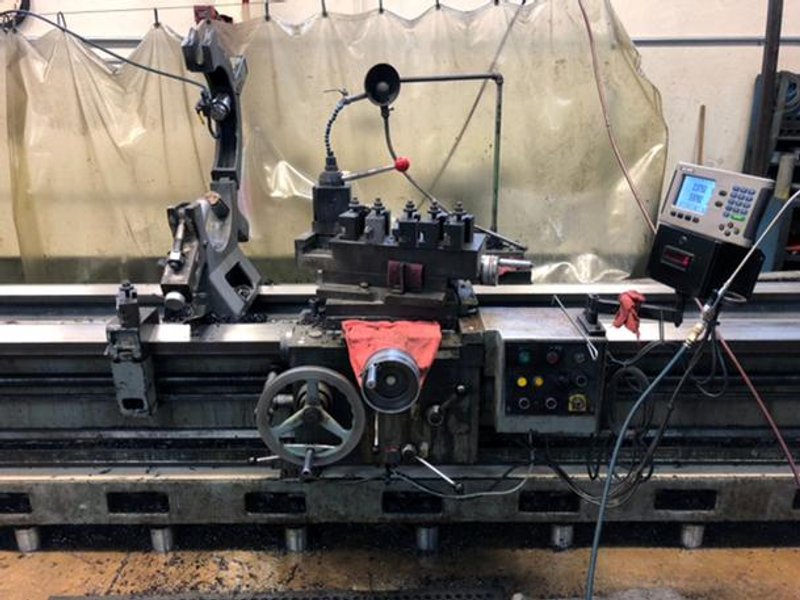

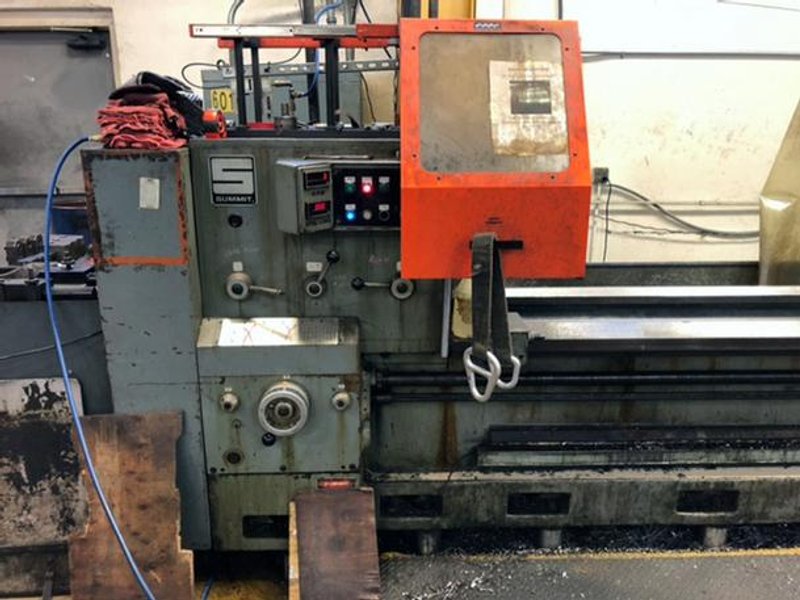

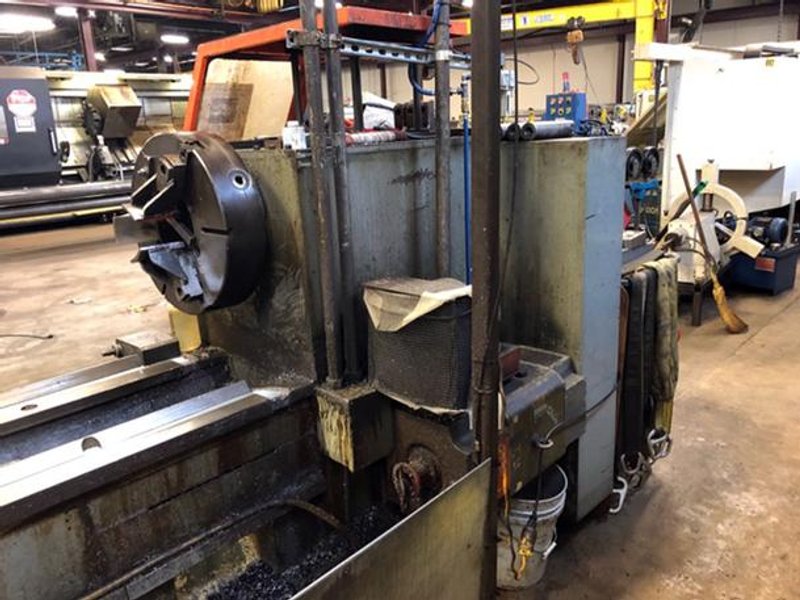

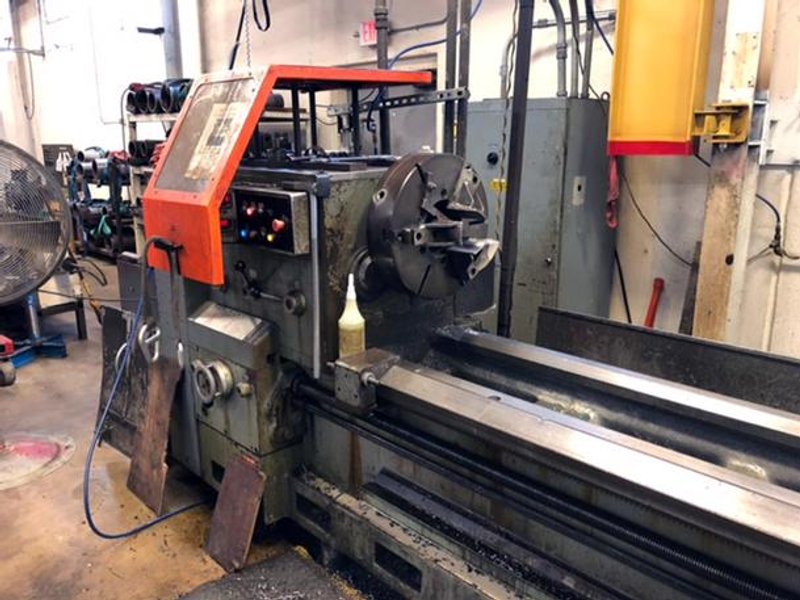

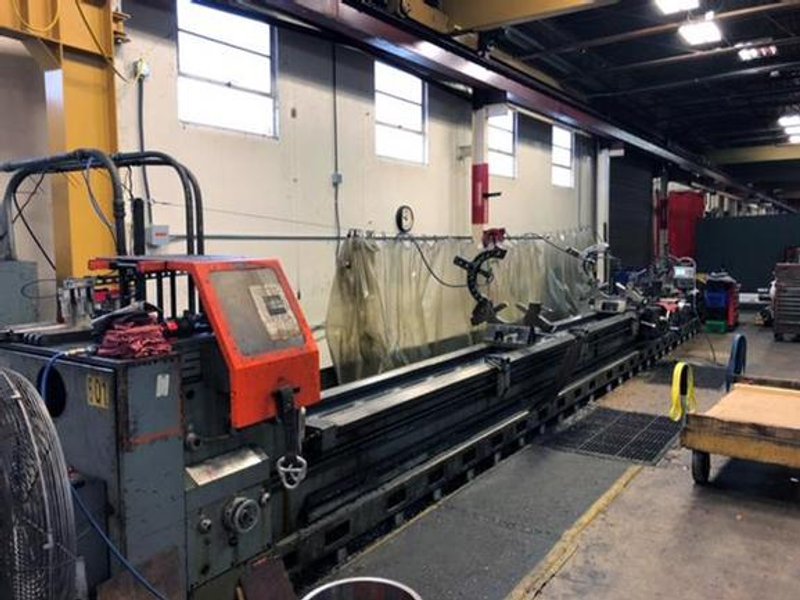

36" X 400" Summit Hollow Spindle Engine Lathe

Manufacturer

SUMMIT

Category

Lathes

Stock

18815

Model

None listed

Dealer Location

Texas

Spec Sheet

SWING OVER BED: 36"

SWING OVER CROSS SLIDE: 23.75"

DISTANCE BETWEEN CENTERS: 400"

SPINDLE SPEEDS: 6.3 - 800 RPM

SPINDLE MOTOR: 30 HP

SPINDLE BORE: 5.75"

SPINDLE NOSE: A2-11

FEEDS: (120) 0.0021 - 0.205 IPR

METRIC THREADS: 1 - 36 MM

INCH THREADS: (80) 2 - 120 TPI

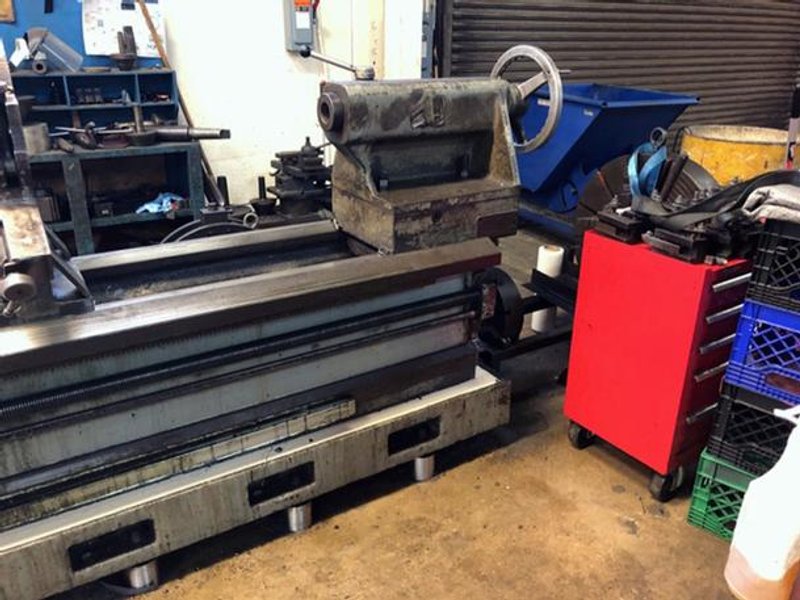

TAILSTOCK QUILL DIAMETER: 4.2"

TAILSTOCK QUILL TRAVEL: 10.5"

TAILSTOCK QUILL TAPER: MT6

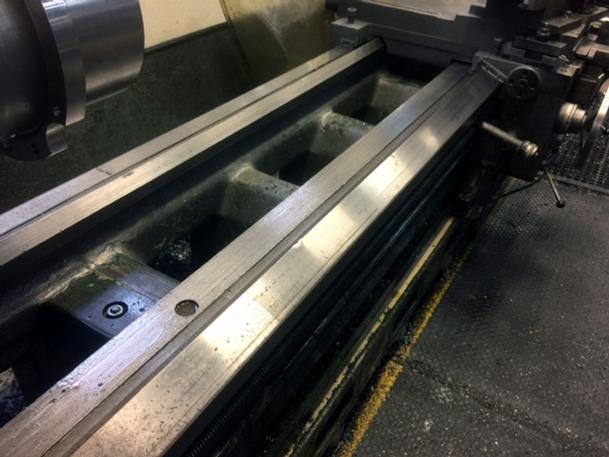

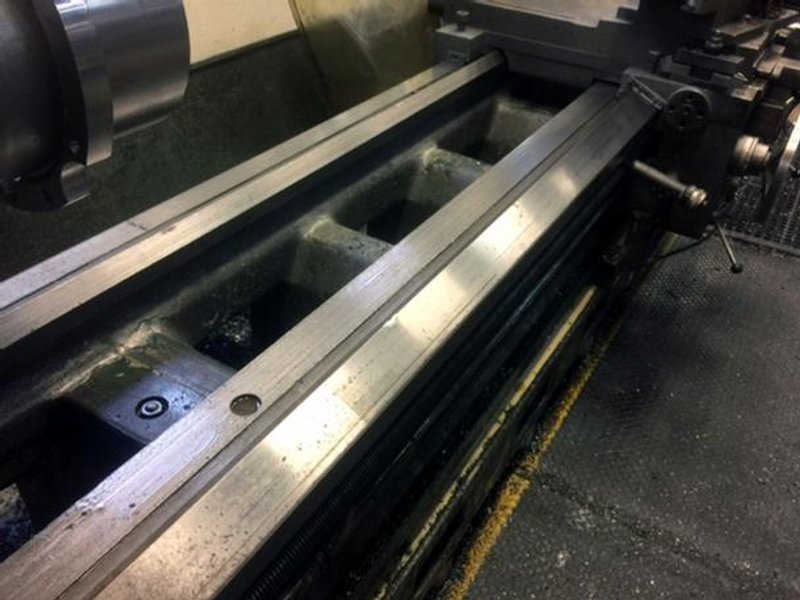

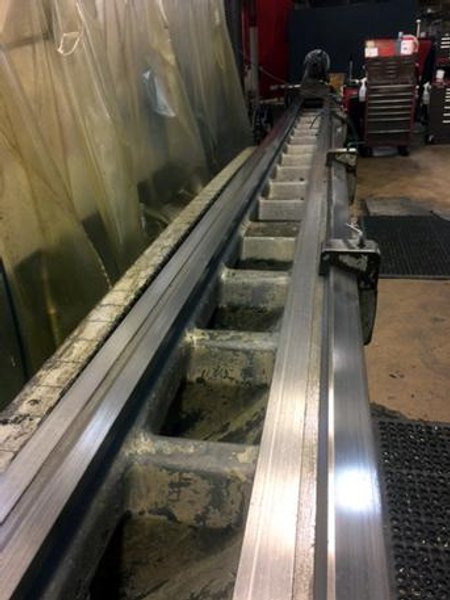

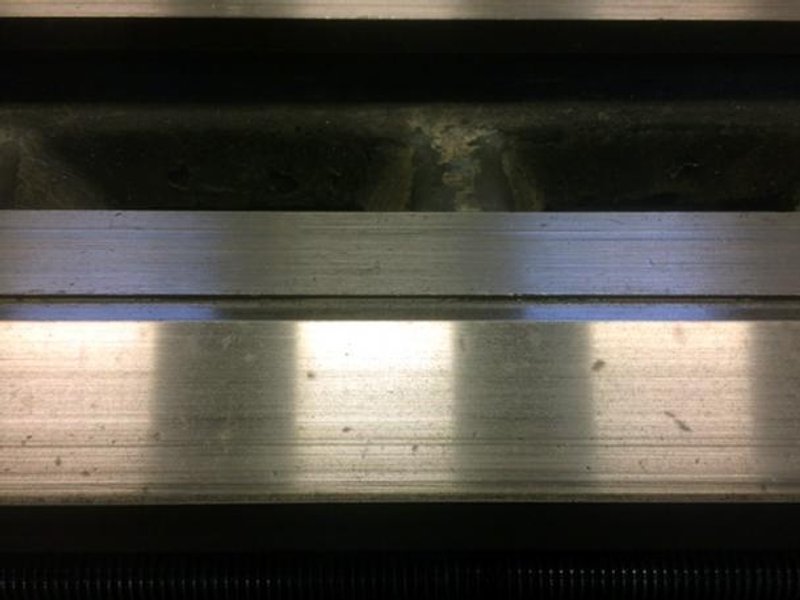

BED WIDTH: 27.5"

OAD (APPROXIMATE): 440" X 63" X 65" HIGH

WEIGHT (APPROXIMATE): 42,000 LBS.

EQUIPPED WITH:

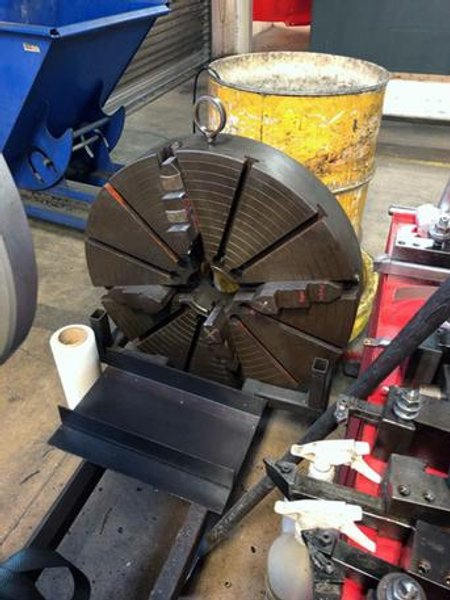

32" 4-JAW CHUCK

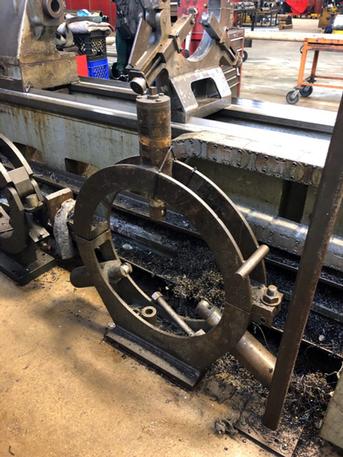

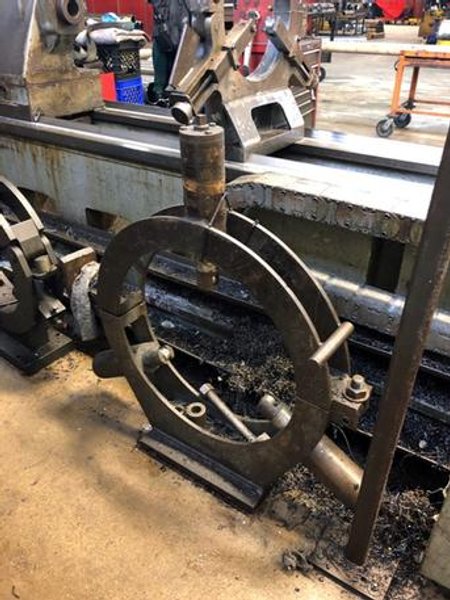

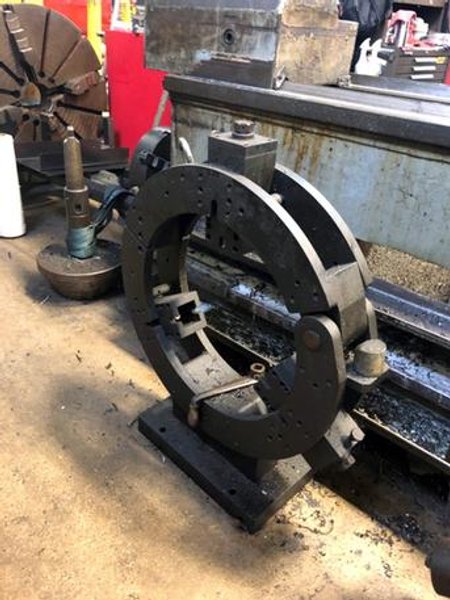

(3) STEADY RESTS (1" - 14" CAPACITY)

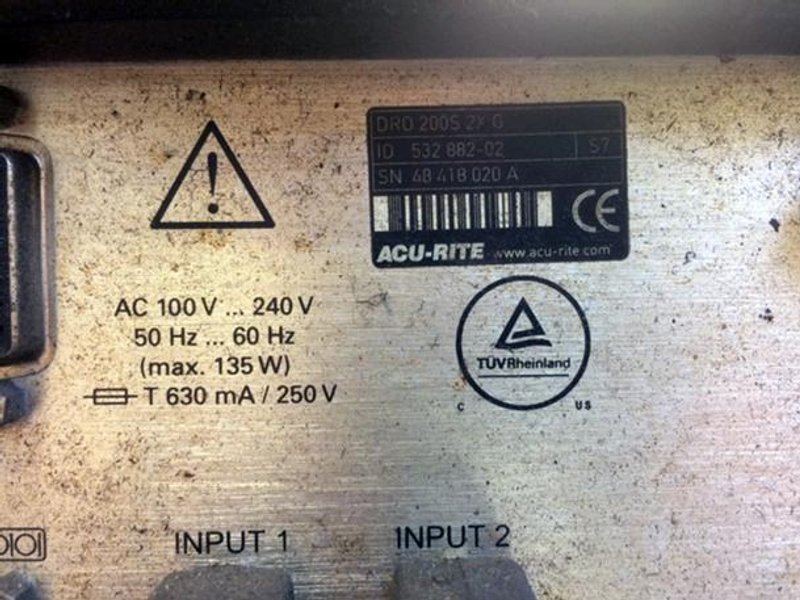

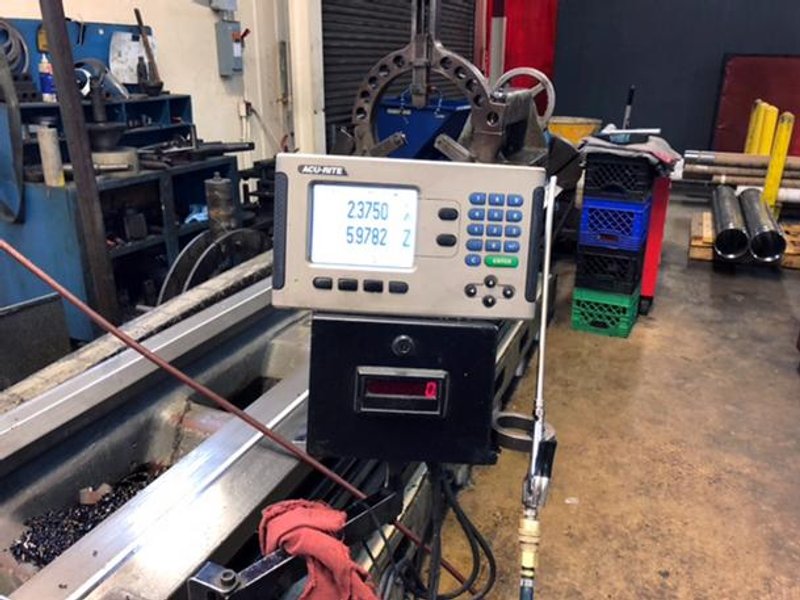

ACU-RITE 200S 2XG DRO WITH 16 TOOL PRE-SETS

COOLANT

TOOL POST
