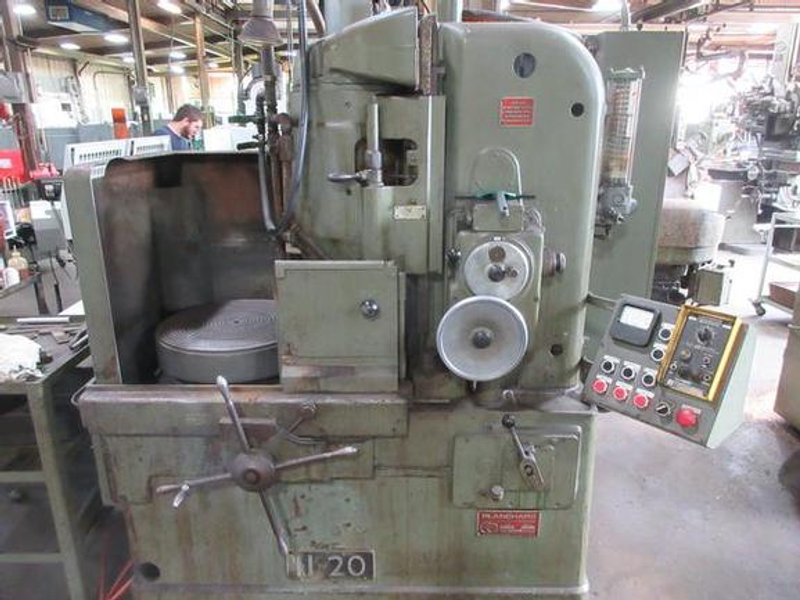

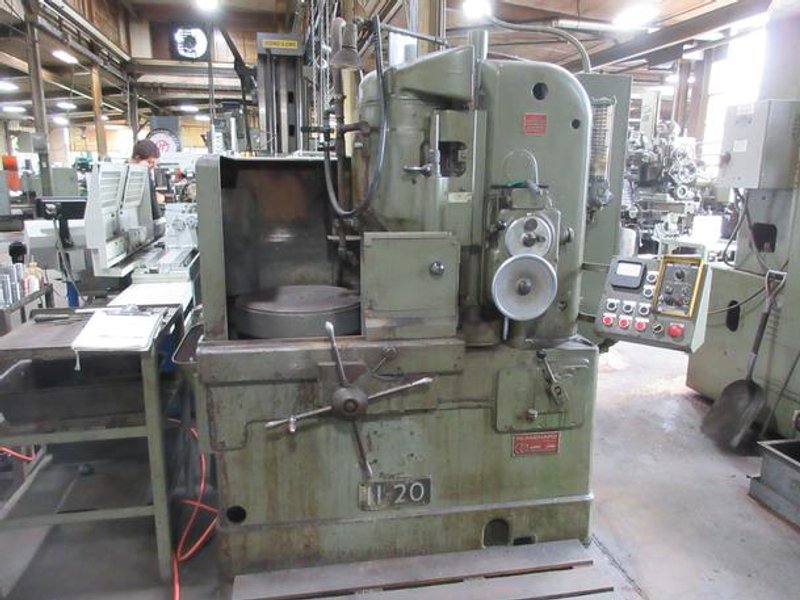

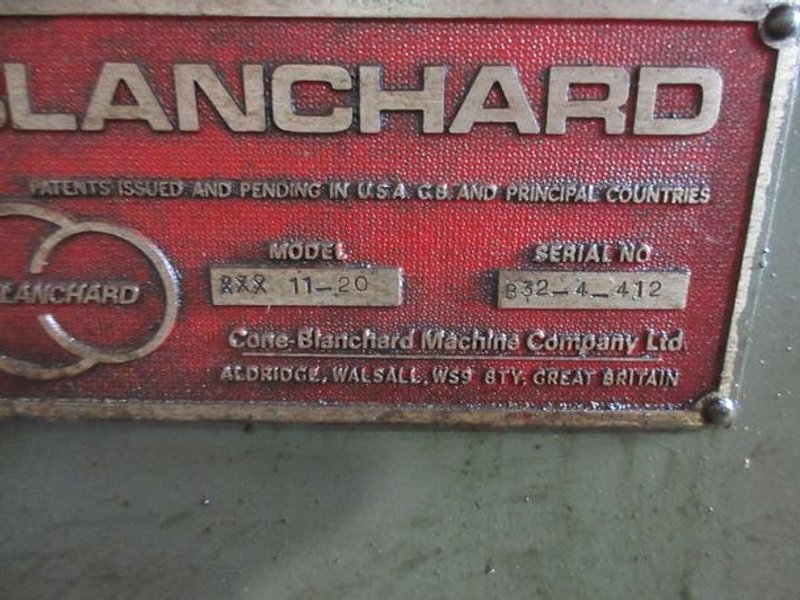

20" Blanchard #11-20 Vertical Spindle Rotary Surface Grinder, 1979

Stock

4706

Model

11-20

Dealer Location

Michigan

Spec Sheet

Specifications:

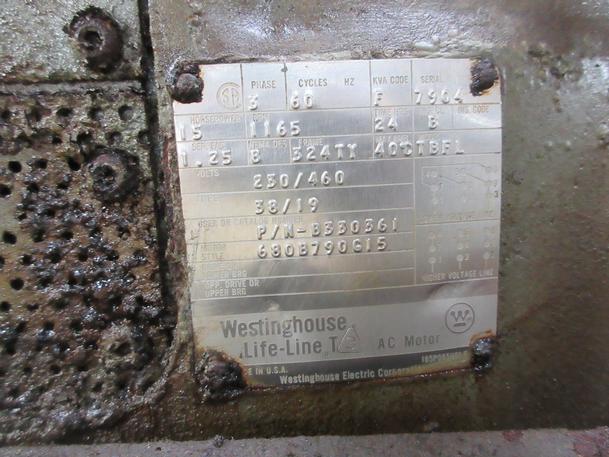

Spindle Motor: 15 HP, 230/460 volt,
Range: 20" Diameter x 9" Vertical over Chuck

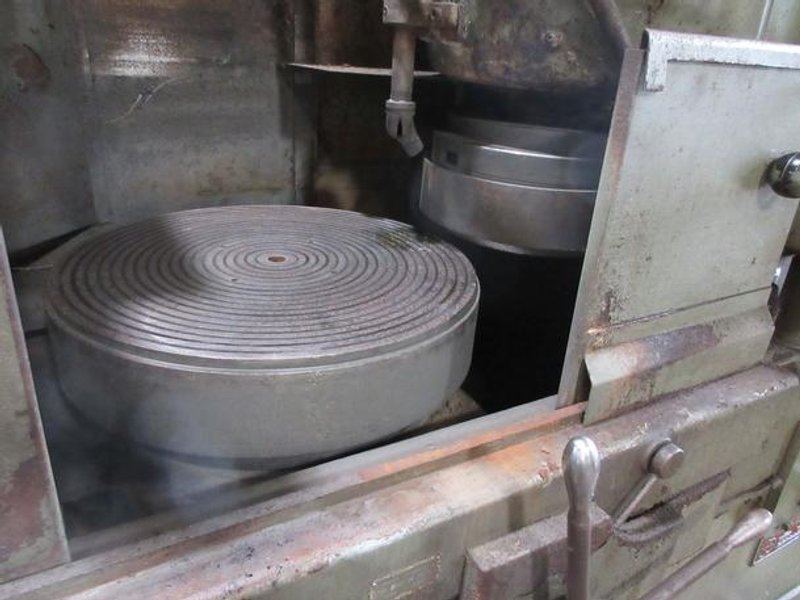

Chuck: 20" Diameter
Chuck Speeds: 15, 24, 41, 64 RPM
Grinding Wheel Mount: Full Cylindrical
Grinding Wheel Speed: 1200 RPM
Feeds: (12).0015-.071 IPM (equipped with optional fine feed upper gear box)
Trabon one shot lubrication system

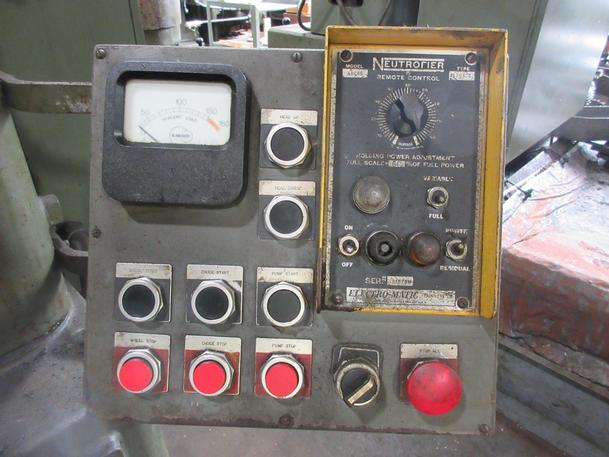

Neutrofier Magnetic Chuck Control

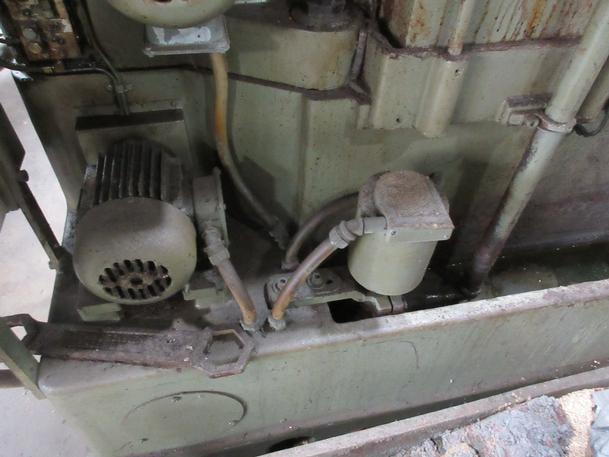

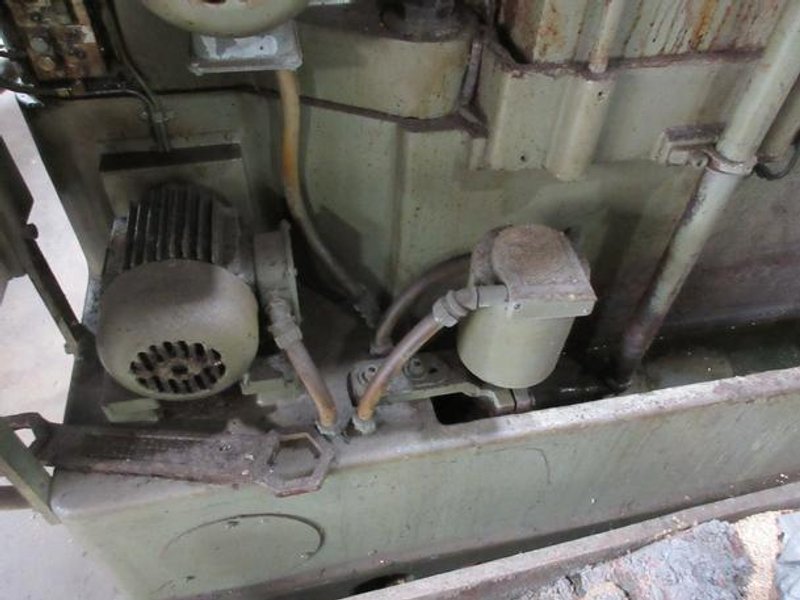

Coolant Pump and Tank in Base
Floor Space: 5'3"L x 3'6"W x 6' 8-3/4"Max./5' 9-1/2"Min.H
Approx. Weight: 7200 lbs

Repaired Lower Feed Box, Cleaned, Painted and Tested.
