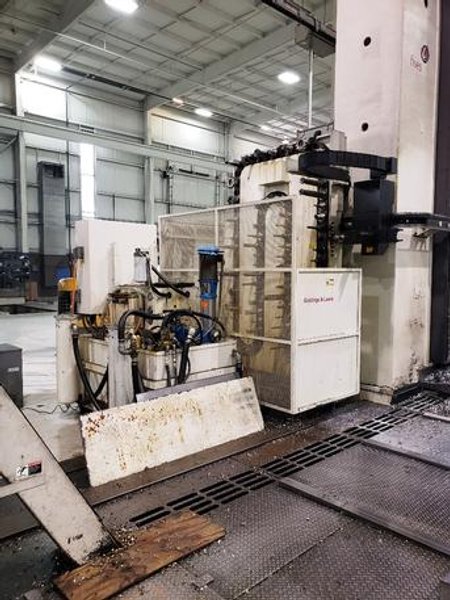

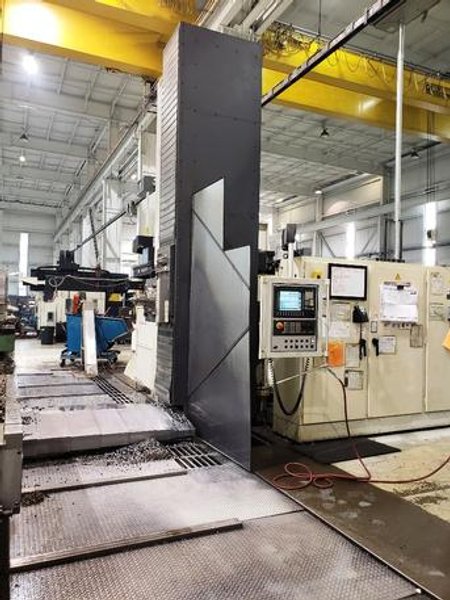

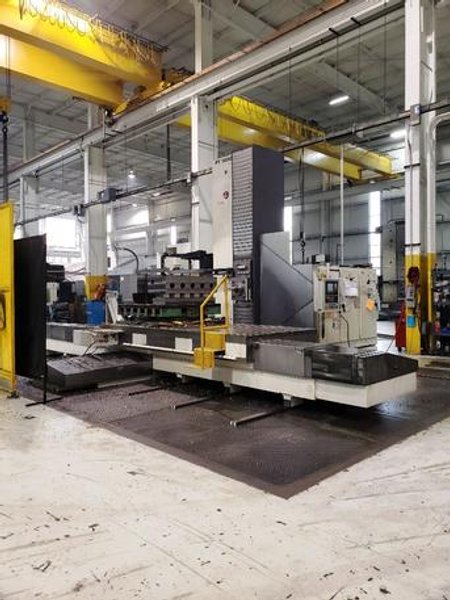

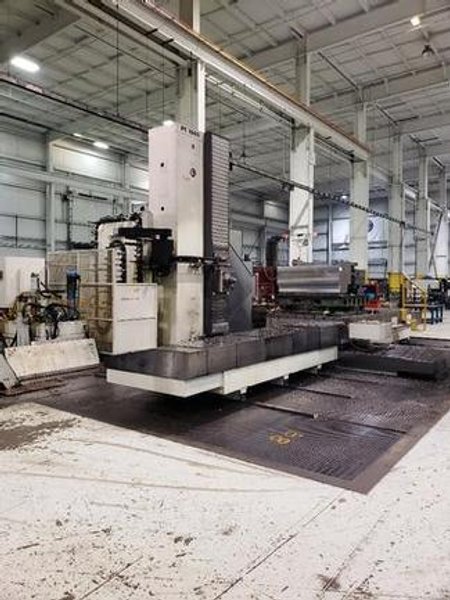

6.1" G & L PT1800, Smns 840D 5-Ax CNC Ctrl, 90ATC, 122"x165"x60"x49", TSC, Rig Tap, '11

Manufacturer

GIDDINGS & LEWIS

Category

Boring Mills

Type

BORING MILLS, HORIZONTAL, TABLE TYPE, CNC

Stock

4522

Model

PT-1800

Dealer Location

Michigan

Request a Quote
View Contact Information

Spec Sheet

Giddings & Lewis 6.1" PT1800 CNC Table Type Horizontal Boring Mill

MFG:  2011



FEATURES:

Siemens 840D 5-Axis CNC Control

90 Station Automatic Tool Changer



SPECIFICATIONS:

Spindle Diameter 6.1"

Spindle Taper ANSI B5.50

Vertical Head Travel, Y-Axis 122.04"

Table Cross Travel, X-Axis 165.35"

Saddle Travel, W-Axis 59.05"

Spindle Travel, Z-Axis 49.2"

Table Load Capacity 88,200 Lbs

Spindle Speeds, Inf Variable 1-3500 RPM

Spindle Speed Ranges 4

Spindle Motor 74 HP

Table Size 70.9" x 165.35"

Rapid Traverse, X, Y, Z-Axes 985 IPM

Rapid Traverse, W-Axis 708.66 IPM

Electrics 460V 3Ph 60 Cycle





EQUIPPED WITH:

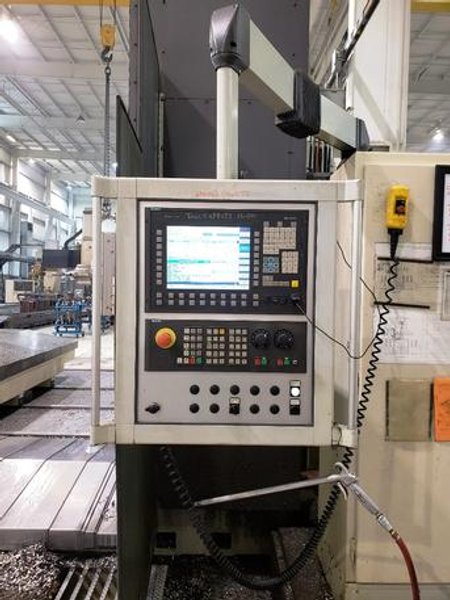

Siemens 840D 5-Axis CNC Control

90 Station Automatic Tool Changer

Remote Hand Held Operator Station

Thru Spindle Coolant With Programable Pressure

Rigid Tapping

Wired for 4th Axis Rotary Table

Heavy Ribbed Cast Iron Column,Bed,Saddle & Headstock

Steel Telescoping Way Covers

Independent Electric Servo Drives

Thermal Compensation of Spindle

Visual Management

Saddle & Bed Way Covers

Jorgensen Chip Conveyor System

480 Volt, 3-Phase, 60 Cycle



The following scope of work was performed by Fives (the Manufacturer) in 12-2018:

Replacement of X-Axis Ball Screw,

Replacement of W-Axis ways and Replacement of W Axis way covers
