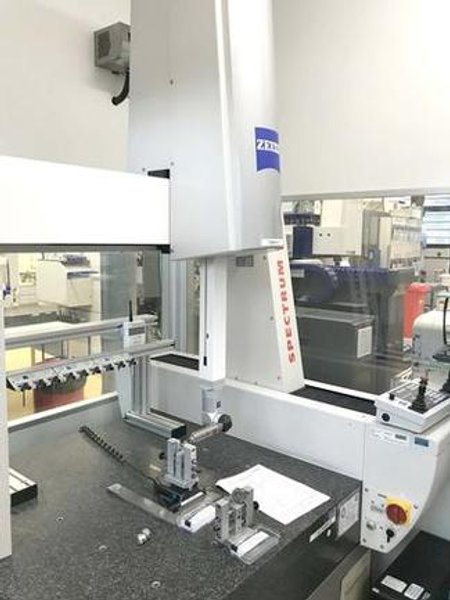

Zeiss Spectrum 700 Coordinate Measuring Machine CMM, 27.5" X 27.5" X 22.8"

Stock

4662

Model

Spectrum 700

Dealer Location

Michigan

Spec Sheet

Specs Inch Metric

Control CNC ISC CNC ISC

Table Size 36" X  40" 914mm X 101mm

Max Table Load 1,230 Lbs. 558 kg

Travel (X) 27.5" 699mm

Travel (Y) 27.5" 699mm

Travel (Z) 22.8" 579mm

Machine

Dimensions 73" X 55" X 101" 1854mm X 1397mm X 2565mm

Machine Weight 2,670 Lbs 1,211 kg


Equipped With:

- CNC ISC (Intelligent Scanning Controller)

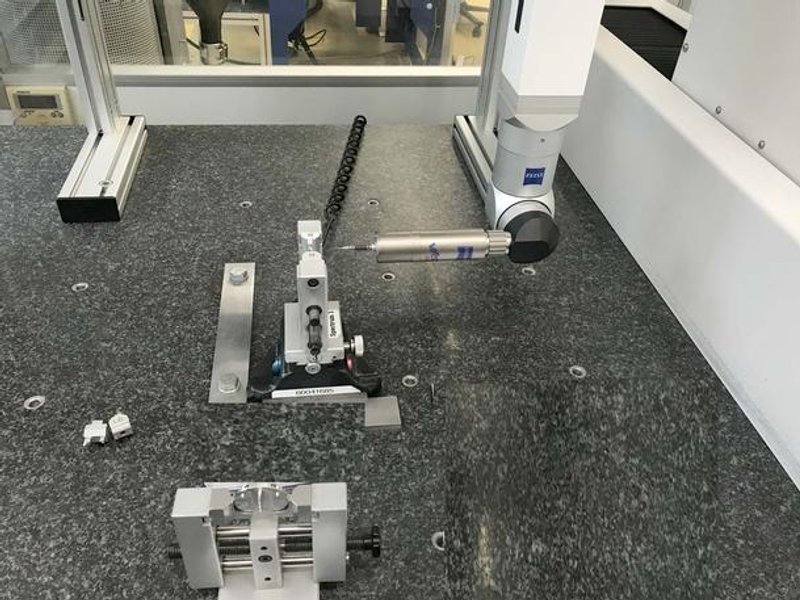

- Zeiss RDS Multi-Sensor System with RST-P, Renishaw touch trigger probe system

*SPECIFICATIONS ARE APPROXIMATE ONLY, INTENDED SOLELY AS A GUIDE, AND ARE NOT BINDING
