Maag SH450/500S, 206" Max Spur Gear Dia., 69" Table, 138" & 186" Sub Tables, ID Attach., Change Gears, SN 7588, #20852

Manufacturer

MAAG

Category

Gear Machines

Type

GEAR SHAPERS

Stock

20852

Model

SH450-500S

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #20852

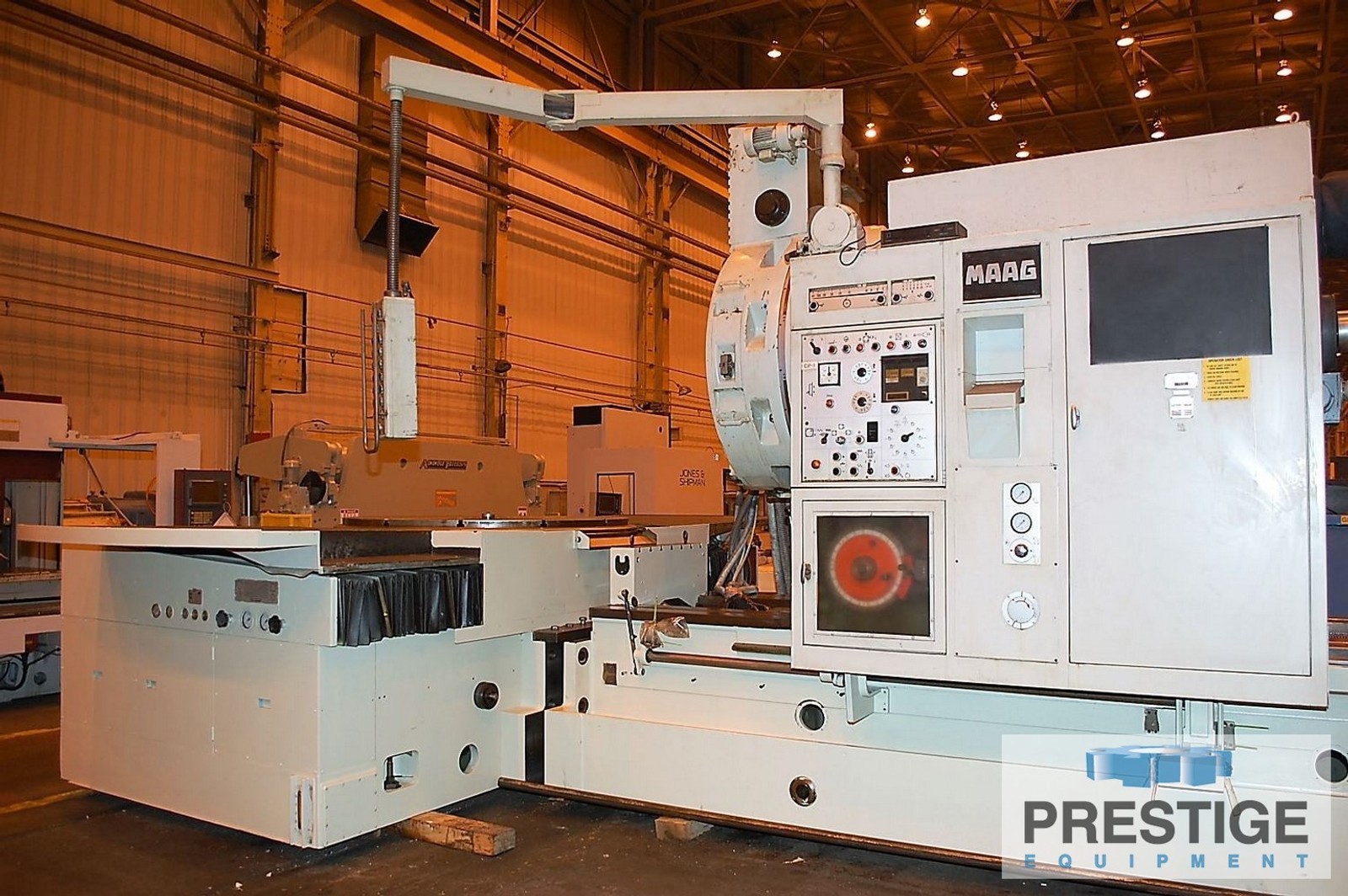

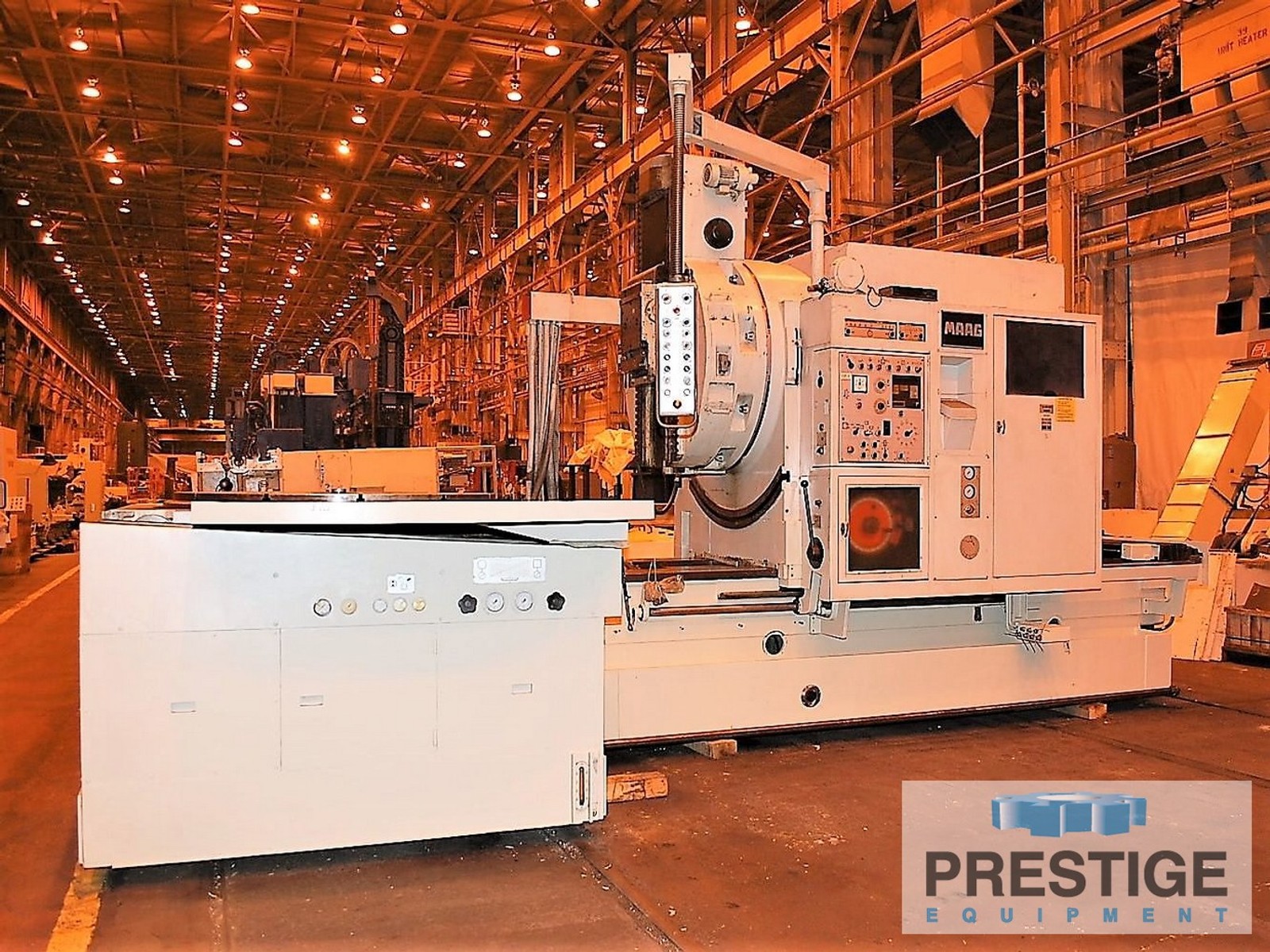

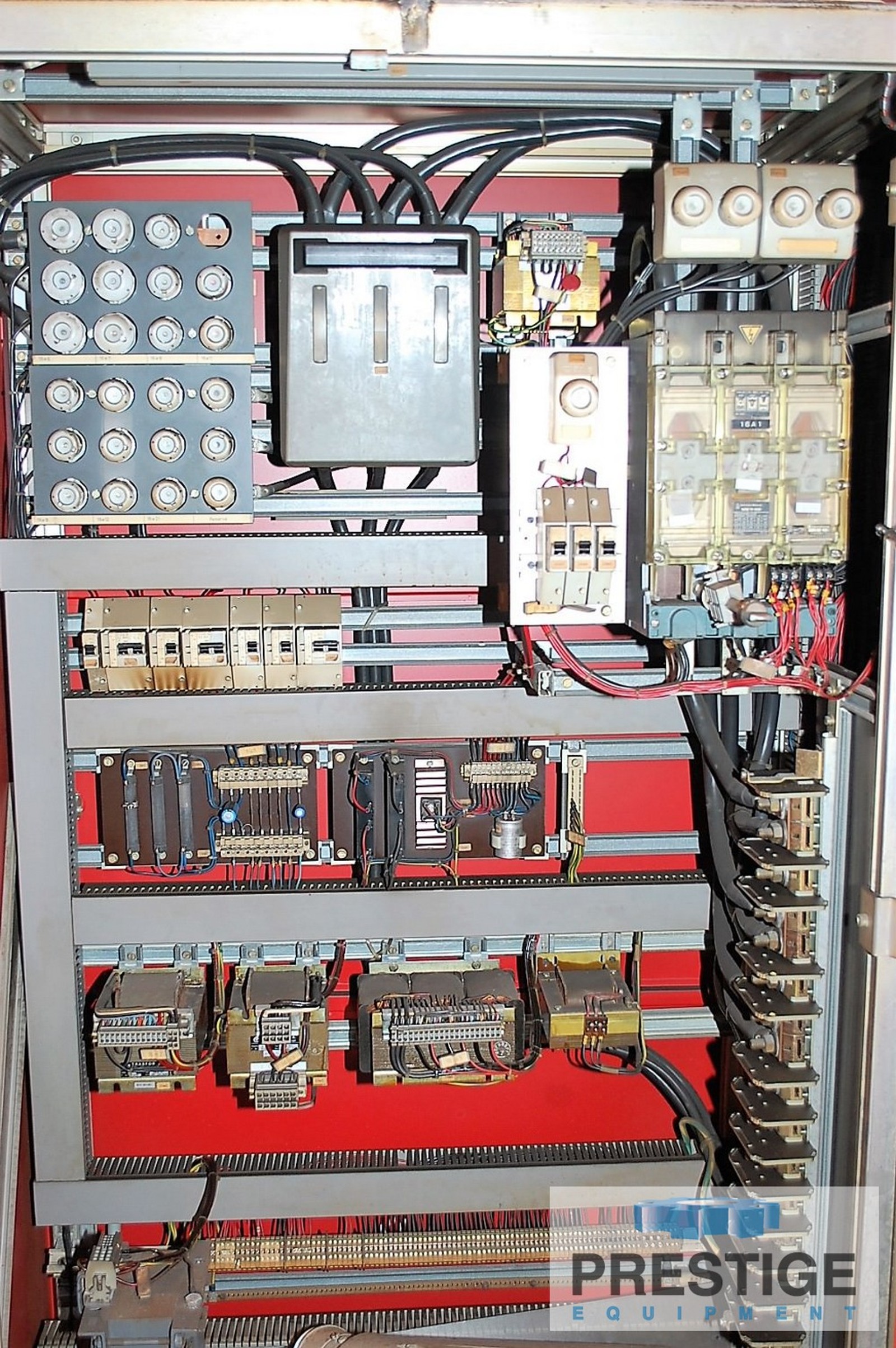

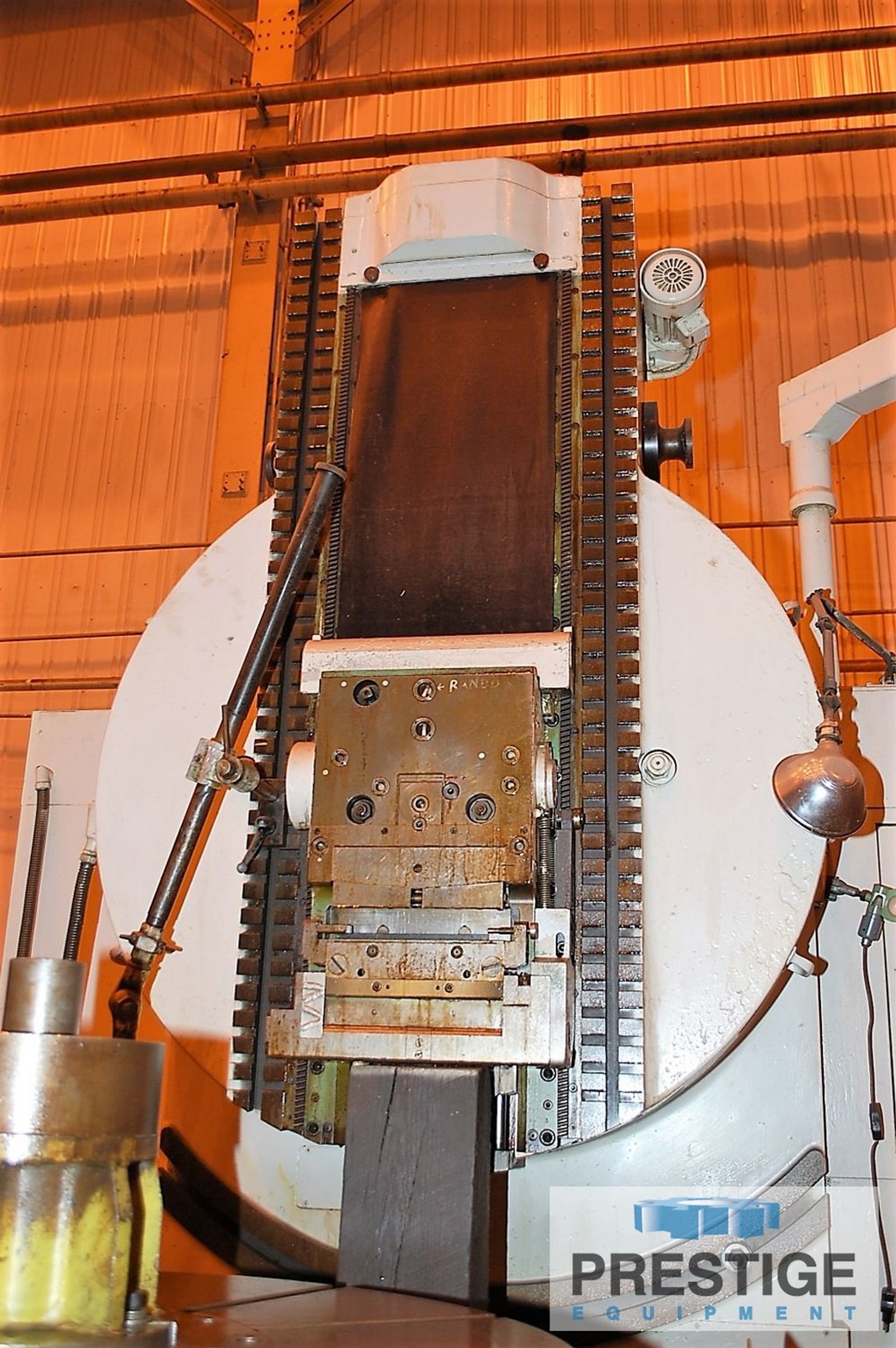

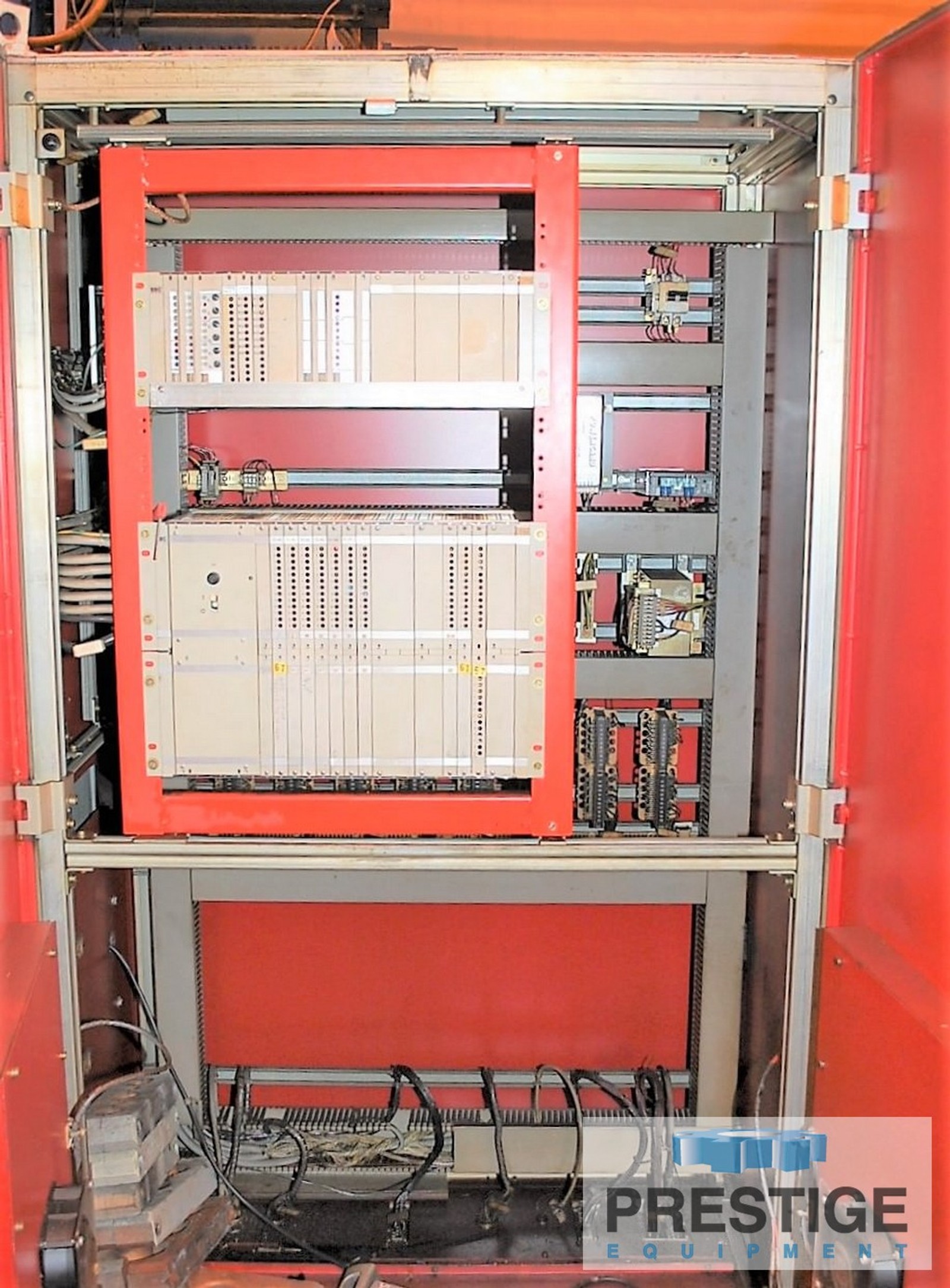

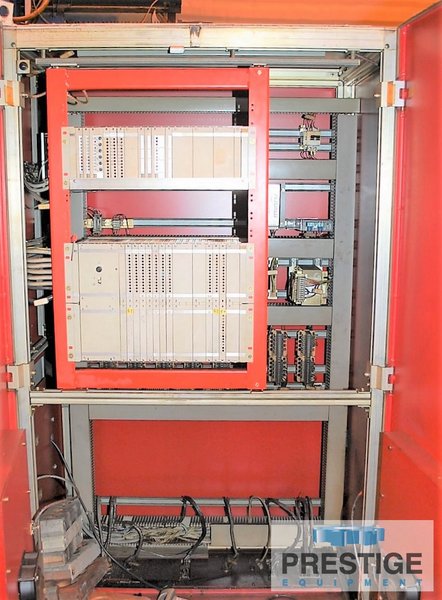

MAAG SH450/500S Large Capacity Gear Shaper

FEATURES:

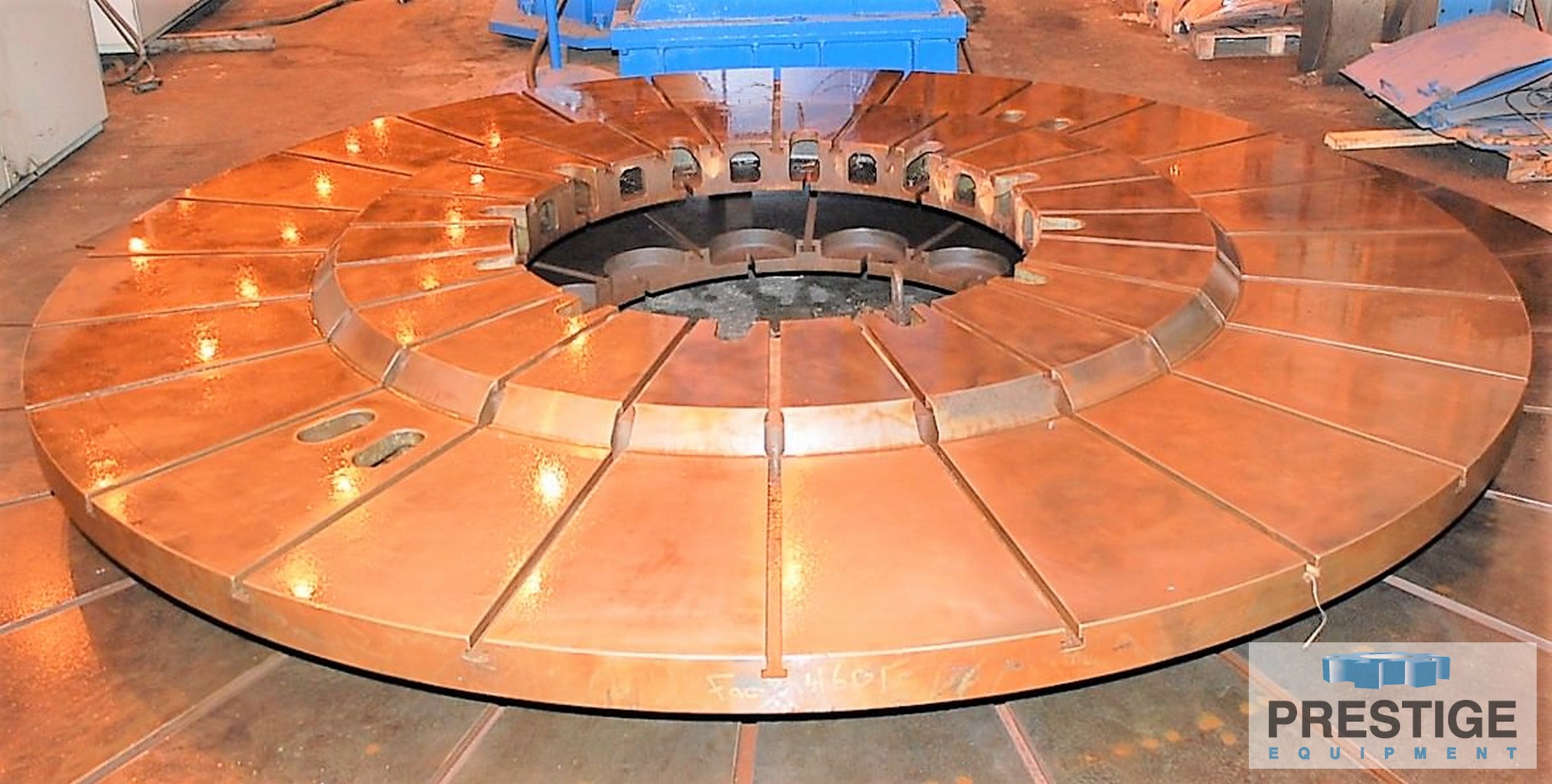

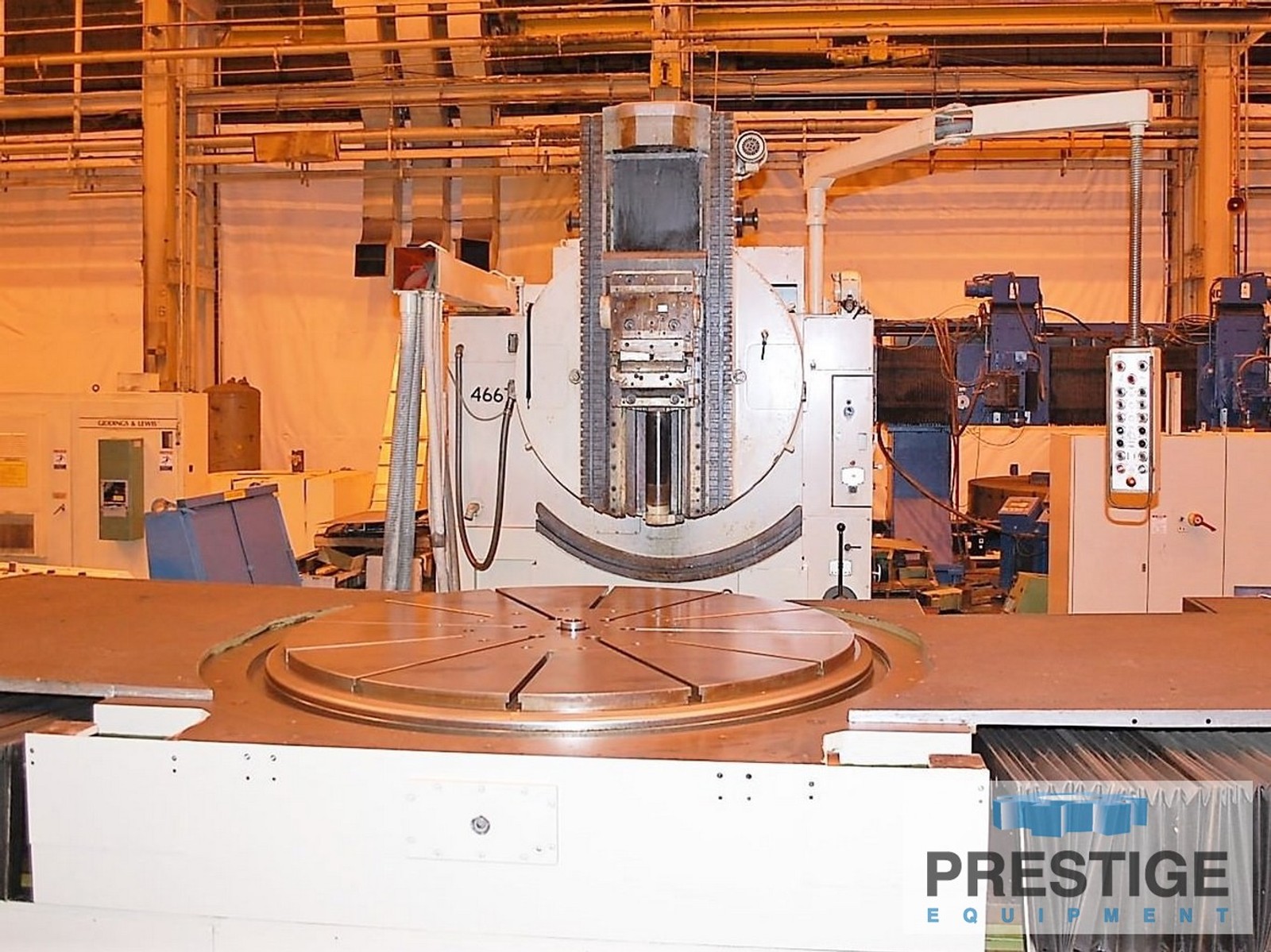

69" Dia. Built-In Rotary Table

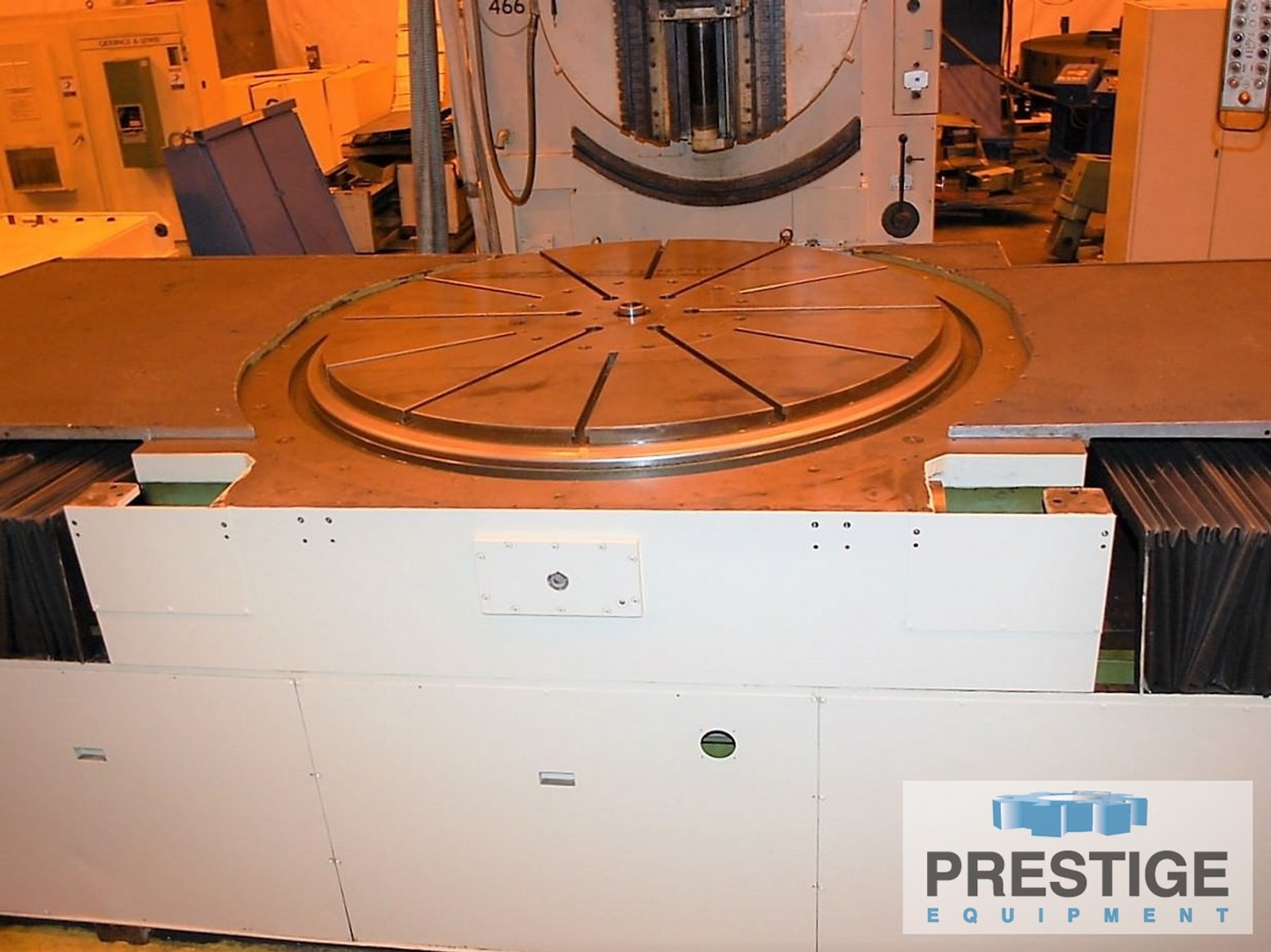

138" Dia. Additional Table / Sub Plate
186" Dia. Additional Table / Sub Plate

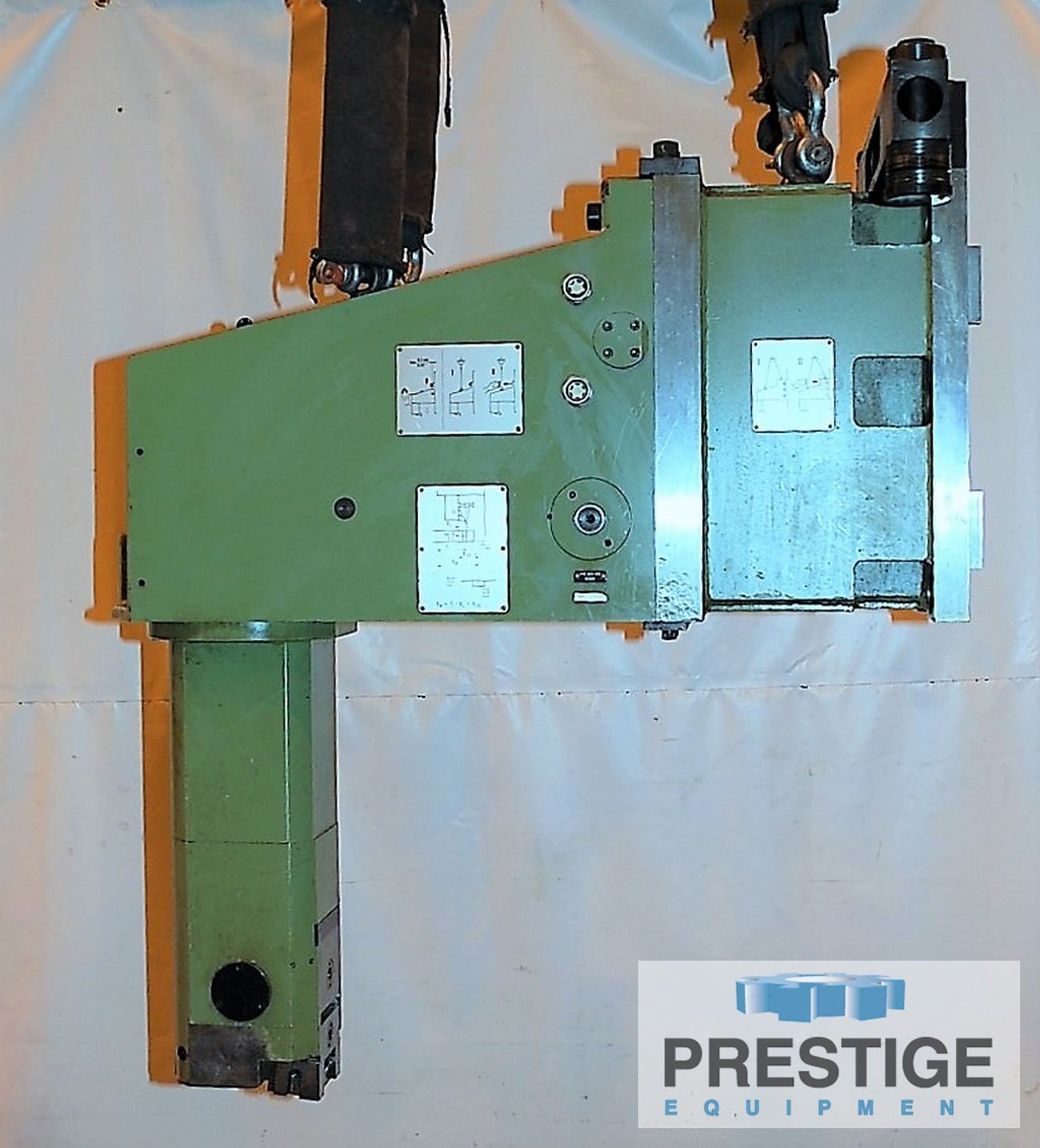

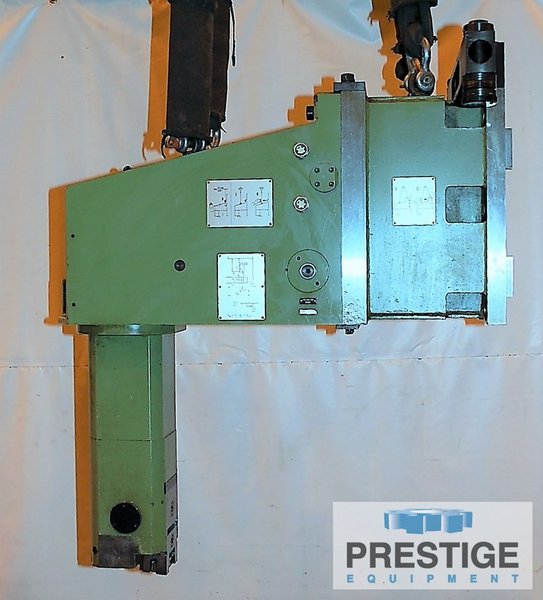

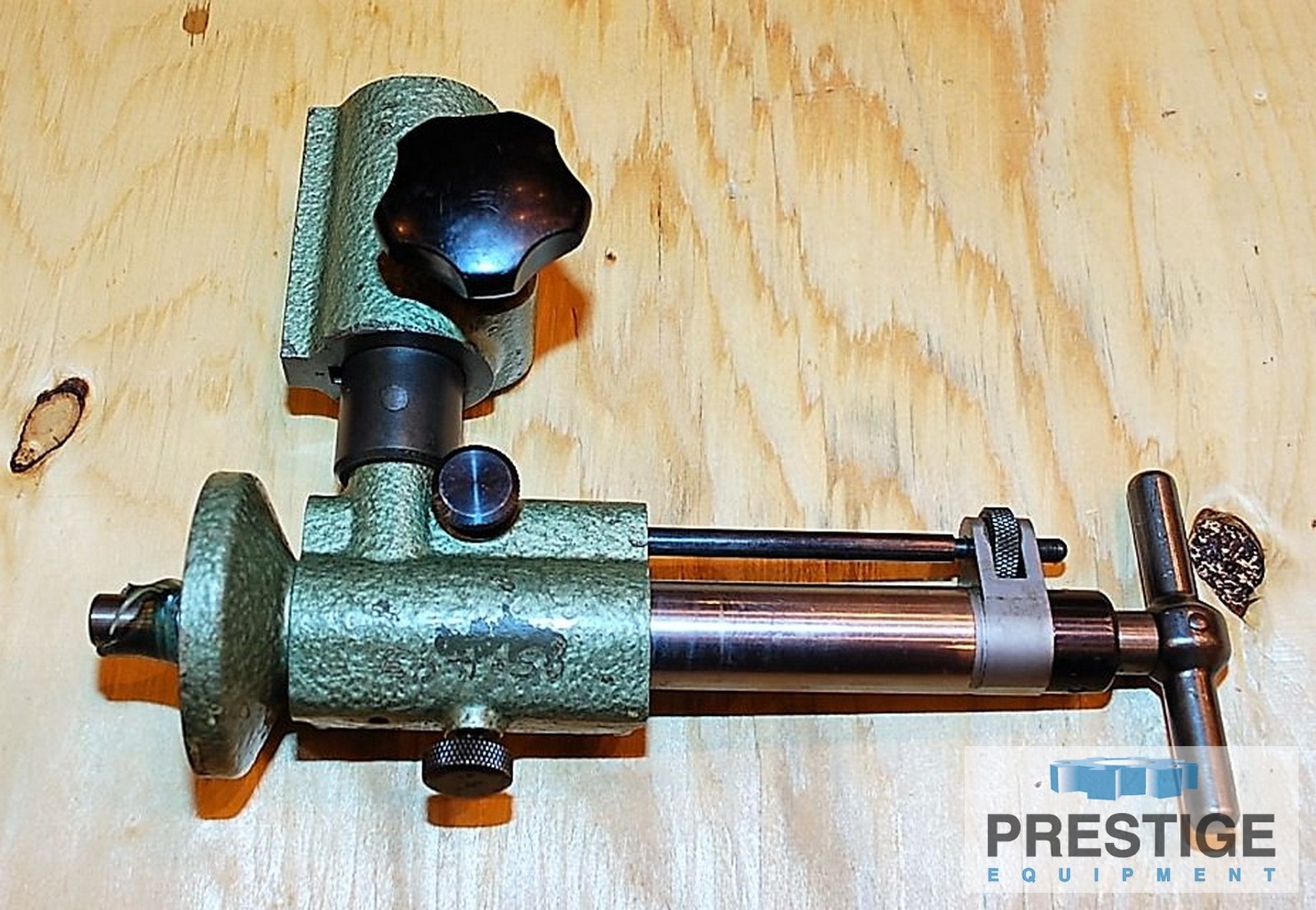

JVE Internal Attachment
Chip Conveyer
Change Gears
Coolant

SPECIFICATIONS:
Max. Tip Circle Diameter (Spur Gear) .. 206.55"
Min. Tip Circle Diameter (Spur Gear) .. 20.8"
Table Diameter ........................ 69"
Module Min Pitch w/Rack-Type Cutter ... .0875 DP (30)
Module Max Pitch w/Rack-Type Cutter ... 12.7 DP (2)
Module Max w/ Single-Tooth Cutter ..... .5 DP (50)
Min. Number of Teeth .................. 12
Max. Number of Teeth .................. 1000
Helix Angle ........................... Infinite
Max. Face Width (Spur Gear) ........... 26"
Max. Table Load ....................... 77000 lbs.
Max Ram Stroke ........................ 27"
Min Ram Stroke ........................ 2.75"
Diameter of Work Table Bore ........... 23.6"
Work Table Bore Length ................ 51.2"
Machine Footprint (L X W) ............. 344" x 246"
Machine Height ........................ 135"
Machine Weight ........................ 110,000 Lbs.

EQUIPPED WITH:
69" Dia. Built-In Rotary Table
138" Dia. Additional Table / Sub Plate
186" Dia. Additional Table / Sub Plate
JVE Internal Attachment
Cutting Coolant System
Chip Conveyer
Set of Change Gears

LOCATION:
Philadelphia, Pennsylvania

No Video Available

Want to request a quote from the owner of this listing?

Request a Quote
