Maag SH250, 98.4" Dia., 26" Face, ID Cutting, Infinite Helix Angle, AB PLC 1999, Change Gears, #20851

Manufacturer

MAAG

Category

Gear Machines

Type

GEAR SHAPERS

Stock

20851

Model

SH250

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #20851

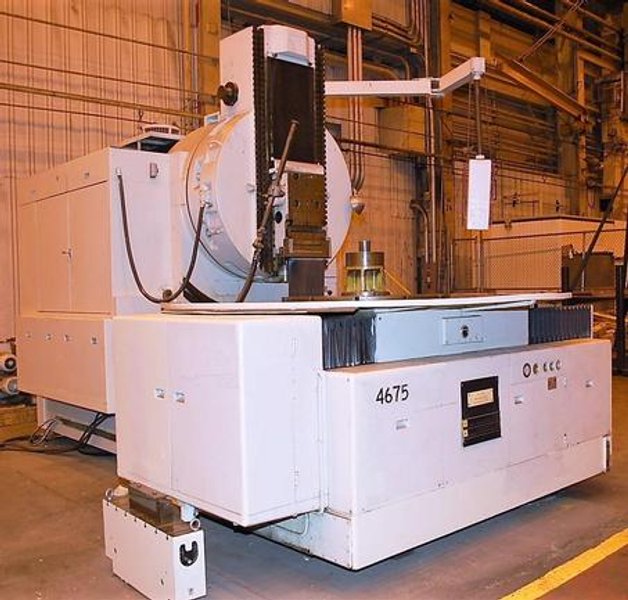

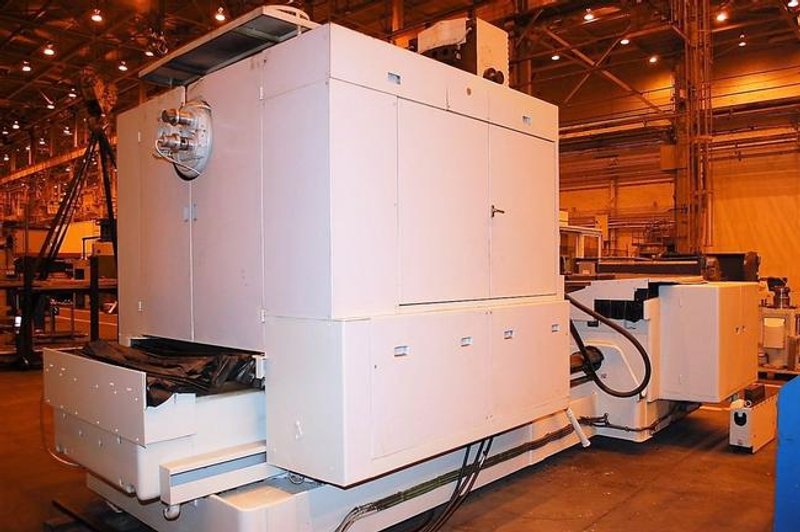

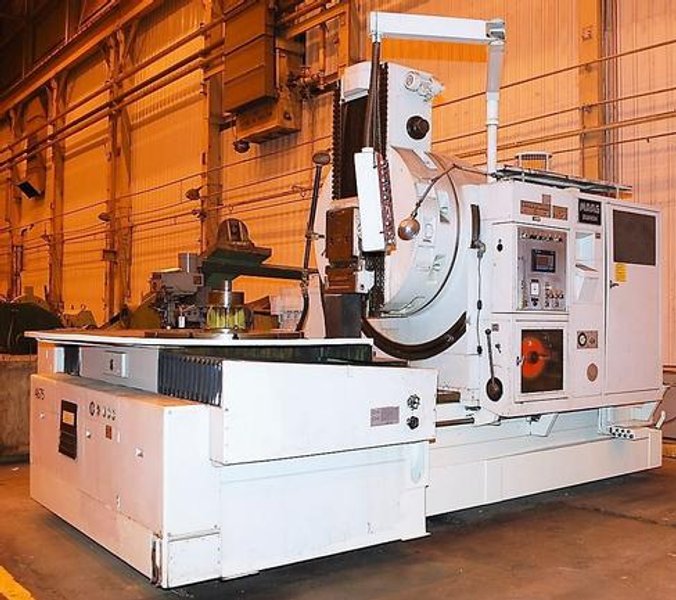

MAAG SH250 Large Capacity Gear Shaper

FEATURES:
Allen Bradley PLC Retrofit in 1999

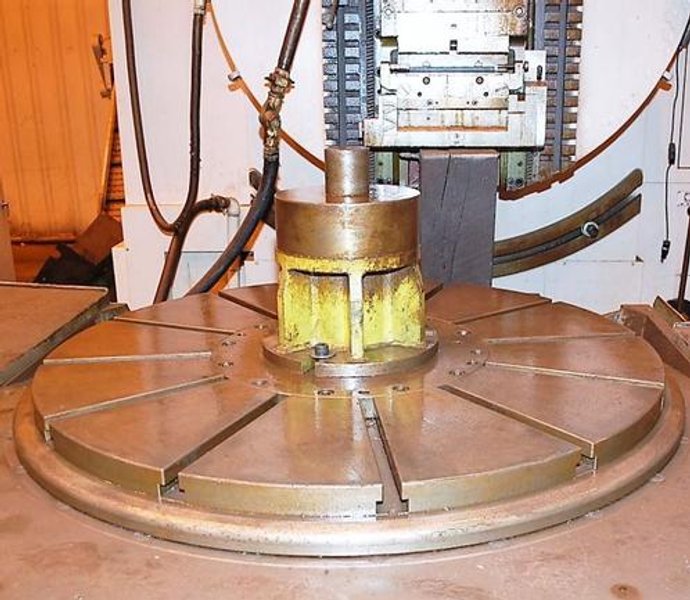

44" Dia. Built In Rotary Table
95" Dia. Additional Table/ Sub Plate
112"Dia. Additional Table / Sub Plate

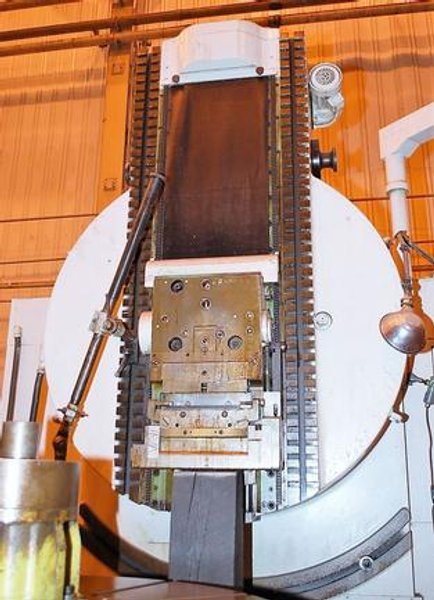

JVE Internal Attachment
Cutting Coolant System
Chip Conveyor
Set of Change Gears

SPECIFICATIONS:
Max. Tip Circle Dia. (Spur Gear) ........ 98.4"
Min. Tip Circle Dia. (Spur Gear) ........ 7.9"
Module Min Pitch w/ Rack-Type Cutter ... .0875 DP (30)
Module Max Pitch w/ Rack-Type Cutter ... 12.7 DP (2)
Module Max w/ Single-Tooth Cutter ...... .5 DP (50)
Min./ Max. Number of Teeth ............. 12/1000
Helix Angle ............................ Infinite
Max. Face Width (Spur Gear) ............ 26"
Max. Table Load ........................ 33000 lbs.
Max. Ram Stroke ........................ 27"
Min. Ram Stroke ........................ 2.75"
Diameter of Work Table Bore ............ 16.5"
Work Table Bore Length ................. 47.2"
Machine Footprint (L X W) .............. 235" x 169"
Machine Height ......................... 131"
Machine Weight ......................... 84,000 lbs.

EQUIPPED WITH:
Allen Bradley PLC Retrofit in 1999
44" Dia. Built In Rotary Table
95" Dia. Additional Table/ Sub Plate
112"Dia. Additional Table / Sub Plate
JVE Internal Attachment
Cutting Coolant System
Chip Conveyor
Set of Change Gears

NOTE:
Inspect In Our Philadelphia PA Warehouse

No Video Available
