5.12" Toshiba BF13AQ, X236,Y98,Z35", #50 Tpr, Pendant Ctrl, Hard Ways, 3-Ax DRO, #27469

Manufacturer

TOSHIBA

Category

Boring Mills

Type

BORING MILLS, HORIZONTAL, FLOOR TYPE

Stock

27469

Model

BF13AQ

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #27469

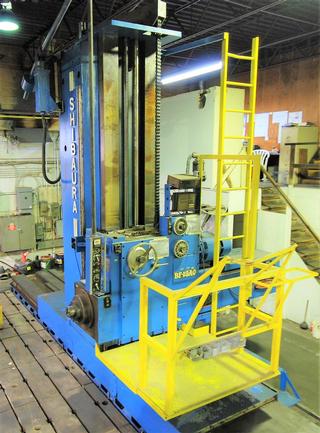

Toshiba Shibaura BF-13AQ 5.12" Floor Type Horizontal Boring Mill
Serial Number: 133787
Age: 1978

FEATURES:
Spindle & Quill Travel
Full Pendant Controls
Digital Readouts

CAPACITY:

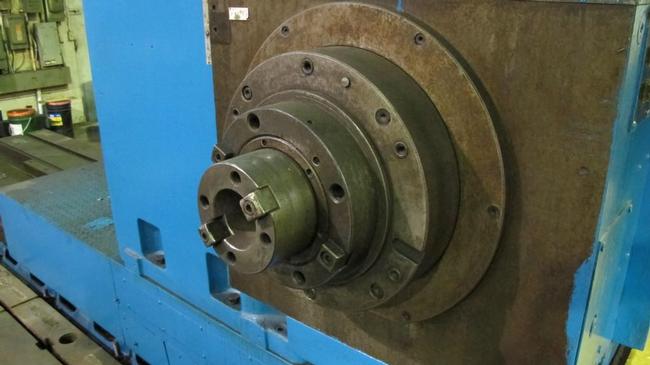

Spindle Diameter ...................... 5.12"
Quill Diameter ........................ 7.09"
Milling Spindle Sleeve Diameter ....... 13.4"
Vertical Travel Y-Axis ................ 98.42"
Column Travel, X-Axis ................. 236.22"
Spindle Travel, Z-Axis ................ 35.4"
Quill Travel, Z-2 Axis ................ 13.78"
Combined Spindle & Quill Travel ....... 35.4"
Spindle Taper ......................... #50
Spindle Speeds (24) ................... 4-800 RPM
Feeds (16) ............................ .0018-.315 IPR
Electrics ............................. 230/460/3/60
Approx Machine Foorprint .............. 322" x 135"
Machine Height ........................ 201"

EQUIPPED WITH:

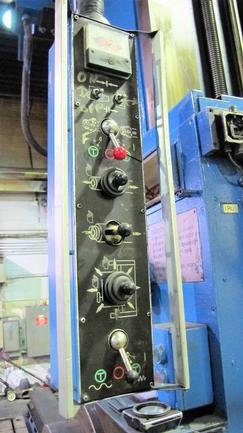

Full Pendant Controls
Operator's Platform

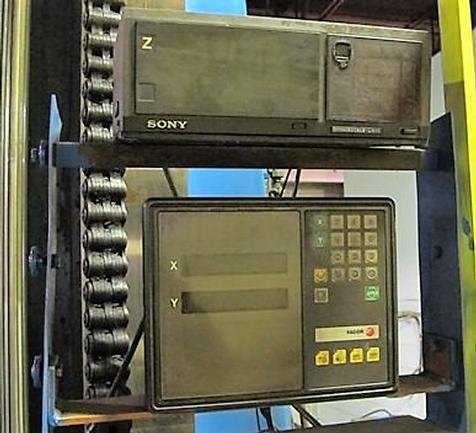

3-Axis Digital Readouts
Power Draw Bar

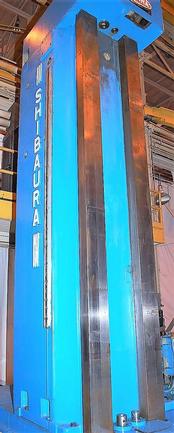

Hardened and Ground Ways on All Axes
Sliding Steel Way Covers on X-Axis
30 HP Spindle Drive Motor

NOTE:
Inspect In Our Philadelphia PA Warehouse
