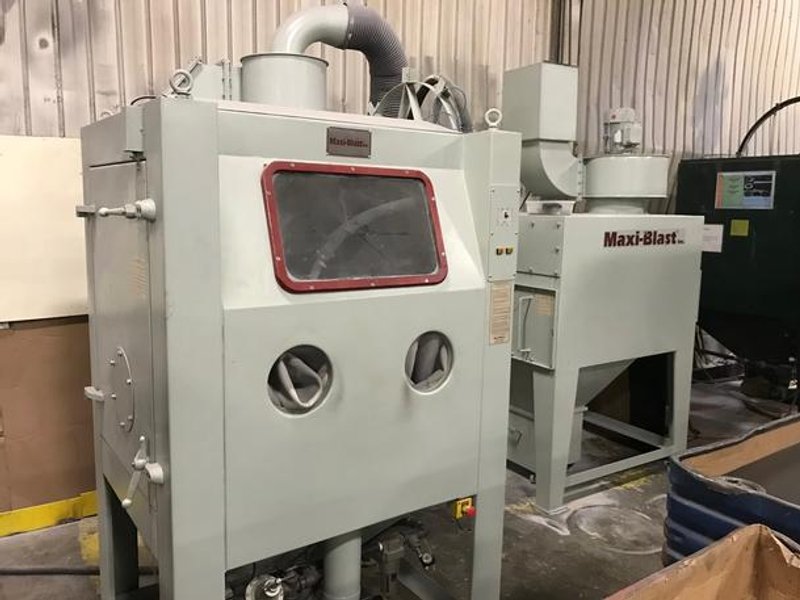

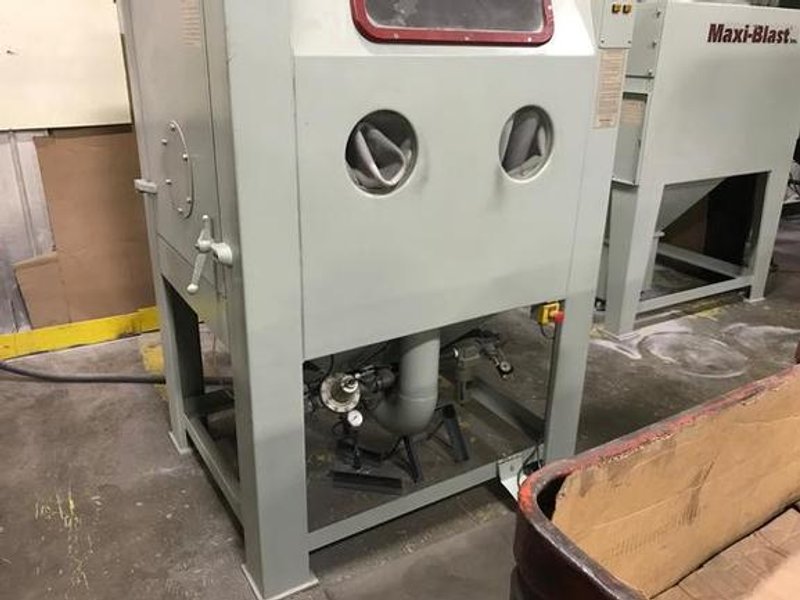

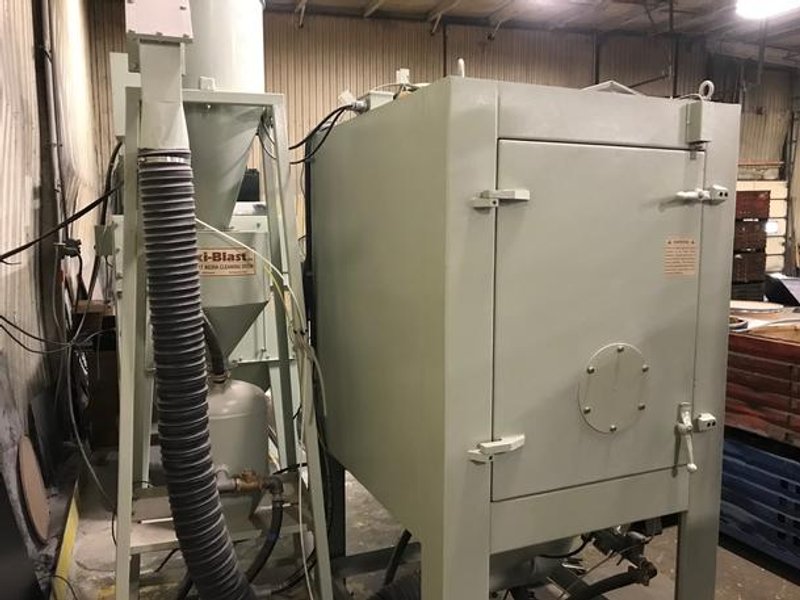

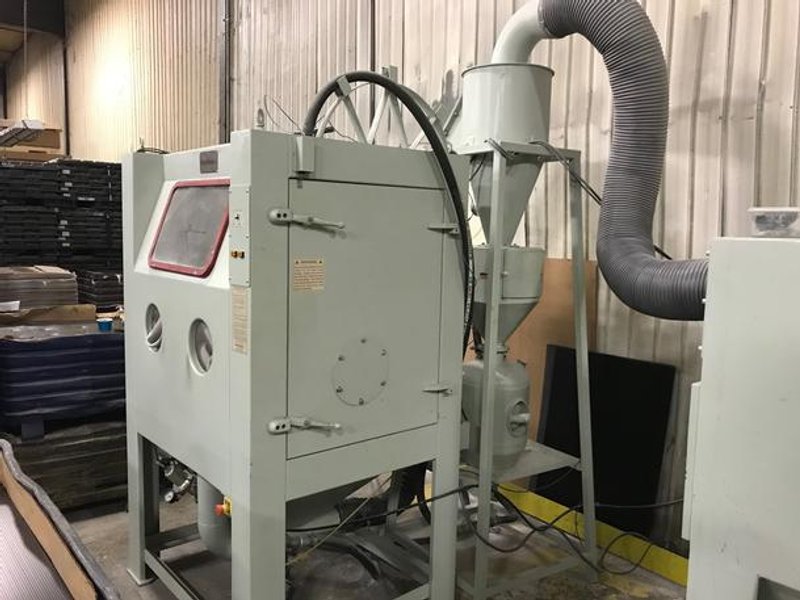

Maxi-Blast Pressure Dry Hone Cabinet, w/Dust Collector

Stock

4683

Model

None listed

Dealer Location

Michigan

Spec Sheet

Machine has less than 100 hours use

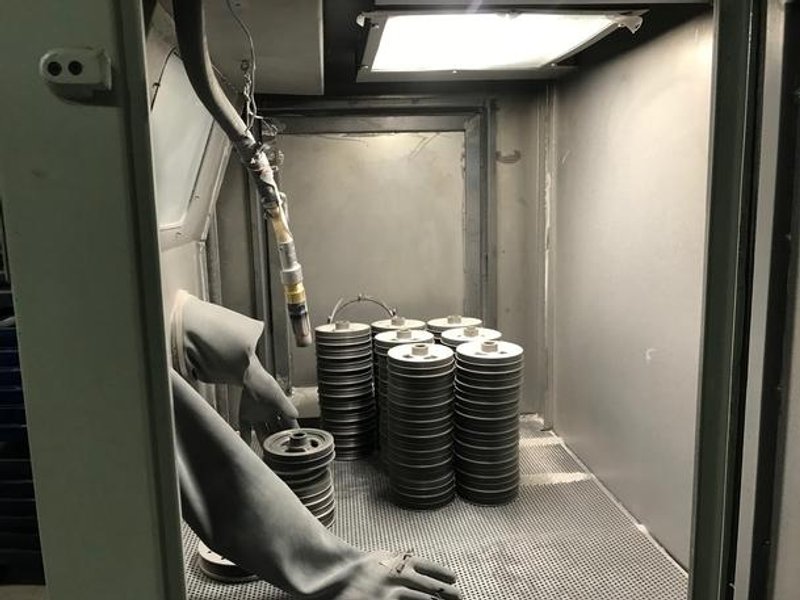

Inside Dimensions: 47" wide x 39" deep x 43" high

(2) inside Fluorescent lights

Two Doors, 27" x 36"

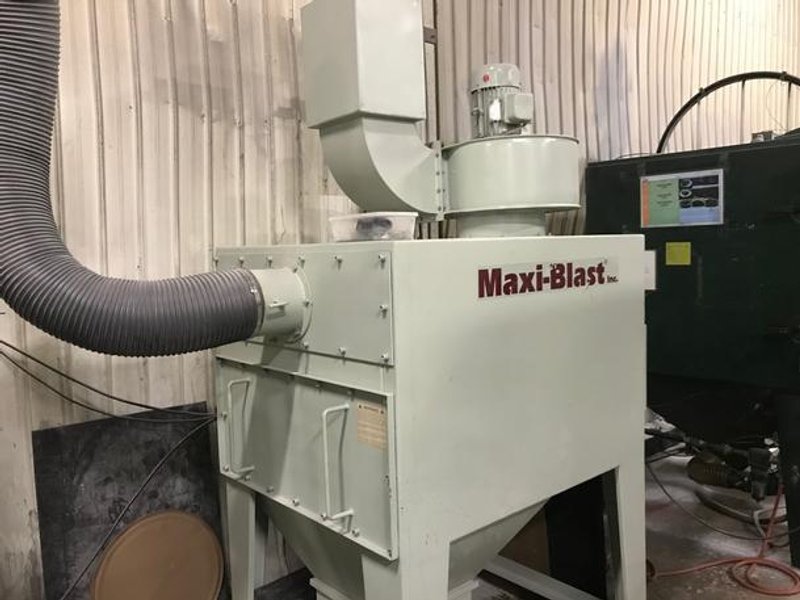

3 Hp, Dust Collector Blower, 1210 cfm

460V / 3Ph / 60 Hz electrics

115" x 94" x 106" Floor space cabinet and dust collector



Air Consumption table for Pressure Dry Blast:







Nozzle Diameter
CFM Spec.
PSI Setting
Air Comp. Size



 40 PSI
 60 PSI



 3/16"
23
33
10 HP


 1/4"
41
57
15 HP


 5/16"
64
90
25 HP


3/8"
92
128
40 HP
