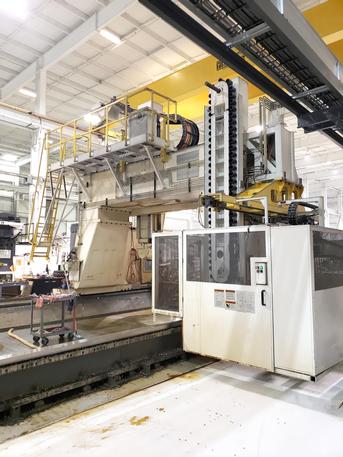

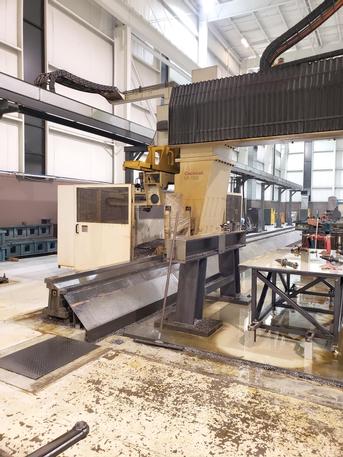

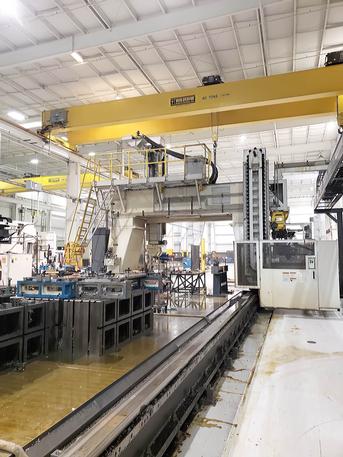

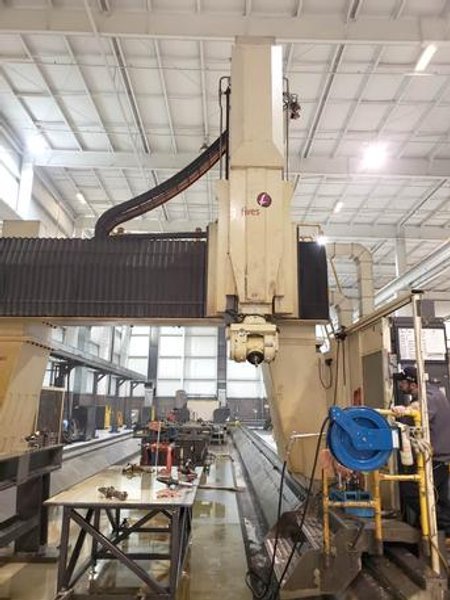

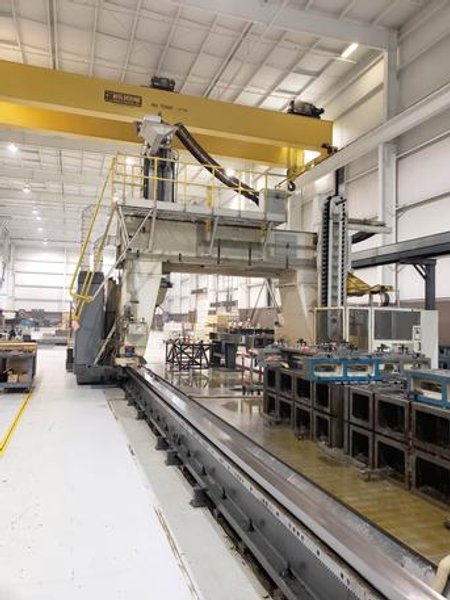

Cincinnati Mag/Fives U5-1500, 5 Face CNC Tvlg Gantry Milling Mach, 1152" X 144" X 60", '07

Manufacturer

CINCINNATI MAG

Category

Milling Machines

Type

MILLERS, GANTRY, CNC

Stock

4520

Model

U5-1500

Dealer Location

Michigan

Request a Quote
View Contact Information

Spec Sheet

CAPACITY:

X-Axis, Longitudinal Gantry Travel: 1152"

Y-Axis, Head Travel: 144"

Z-Axis, Ram Vertical Travel: 60"

Distance Between Columns: 199"

Distance Across Ways: 213.2"

Length of Rails: 1296"

Number of Work Plates: 16

Work Plate Size: 120" x 72"

Overall Work Plate Length: 1184.1"

Work Plate Width (Each): 120"

Overall Working Surface: 120" x 1184.1"
SPECIFICATIONS:

Ram Cross Section: 20" X 20"

Spindle Speeds, Vertical Head to 6000 RPM

Spindle Speeds, Right Angle Head to 6000 RPM

Spindle Drive Motor

Spindle Taper: CAT 50

Spindle Rotation: Programmable Bi-Directional

Speed Steps: 1 RPM Increments
5-AXIS GIMBAL HEAD:

Spindle Taper: No 50 Big Plus

Spindle Speeds: 6000 RPM

A-Axis: 100 Degrees/-90 Degrees

C-Axis: 360 Degrees

Power: 40 HP (Continuous Duty)

Distance, Ram Face to Pivot Point: 18.78"



Equipped With:

Siemens Sinumerik 840D "Powerline" CNC Control

63 Station Automatic Tool Changer

3 Station Head Stand

2) 5-Position Wine Racks

6,000 RPM Vertical Head, Big Plus

6,000 RPM Right Angle Head, Big Plus

6,000 RPM 5-Axis Gimbal Head

Hinge Belt Type Coolant and Chip System (X and Y Axis)

Thru Spindle Coolant

Flood Coolant

5-Station Tool Rack

Spindle Probe System

Overall Floor Space, L x W x H (Approx): 1296" x 390.1" x 294.4"

NOTE:

Inspect Under Power
