SMTCL, 31.5" X 118", Fanuc Oi Mate, 3-Jaw Chuck, 4-Pos Turret, Tailstock, 2012, #29030

Manufacturer

SMTCL

Category

Lathes

Type

LATHES, COMBINATION, CNC

Stock

29030

Model

None listed

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #29030

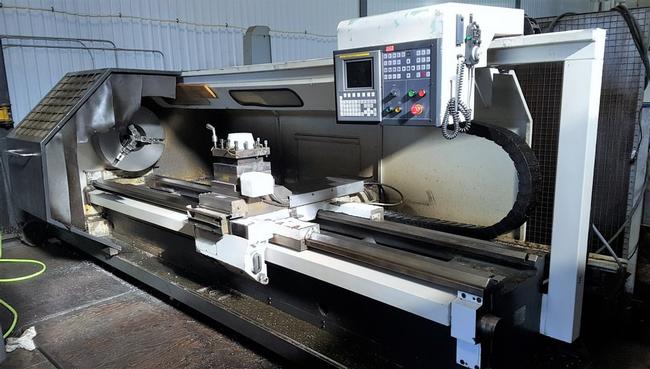

SMTCL 31.5" x 118.11" CNC Lathe

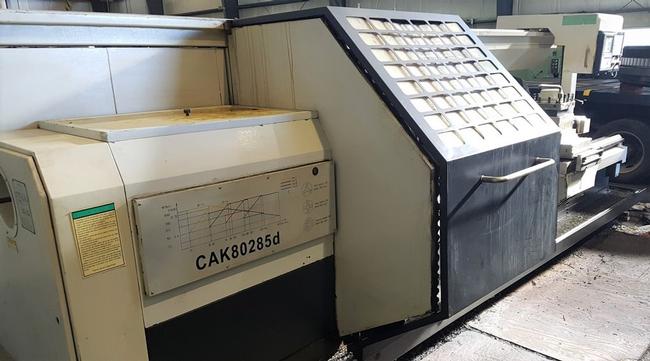

Model: CAK 80285D

FEATURES:

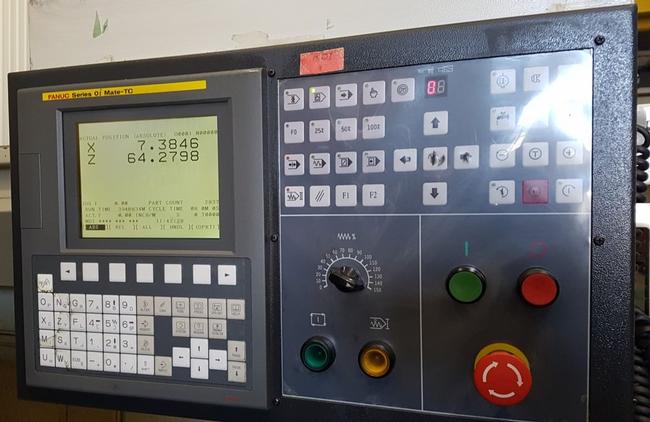

Fanuc Oi Mate TC CNC Control w/ Manual Guide
Manual Pulse Generator
NSK Spindle Bearings
Hardened Ways
12.4" 3-Jaw Chuck
Steady Rest
Tailstock

CAPACITY:
Swing Over Bed ........................ 31.49"
Swing Over Cross Slide ................ 18.89"
Maximum Turning Length ................ 112.2"
Maximum Center Distance ............... 118.11"
X-Axis Travel ......................... 16.53"
Z-Axis Travel ......................... 112.2"
Spindle Speeds (4-Ranges) ............. 17-1000 RPM
Spindle Bore .......................... 4.09"
Spindle Drive Motor ................... 15 HP
Tailstock Taper ....................... #5 MT
Tailstock Quill Travel ................ 9.84"
Tailstock Quill Diameter .............. 3.93"
Machine Weight ........................ 14,350 lbs

EQUIPPED WITH:
Fanuc Oi Mate TC CNC Control w/ Manual Guide
Manual Pulse Generator
NSK Spindle Bearings
Hardened Ways
12.4" 3-Jaw Chuck
Steady Rest
Tailstock

Note:
Inspect In Plant Under Power!
