96" X 120" G & L Rotary Table, Air Lift, 75K Capacity, 24" Table Height, #23389

Manufacturer

GIDDINGS & LEWIS

Category

Tables

Type

TABLES, ROTARY

Stock

23389

Model

None listed

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #23389

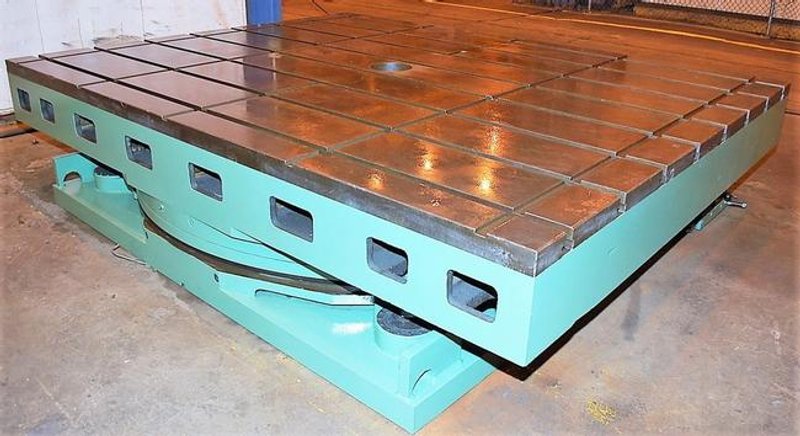

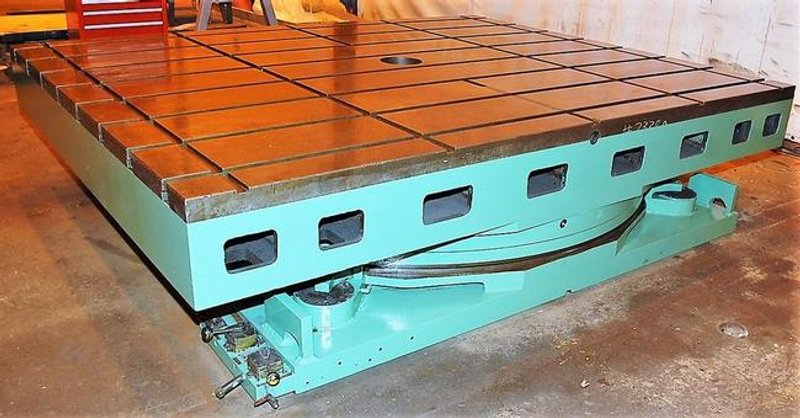

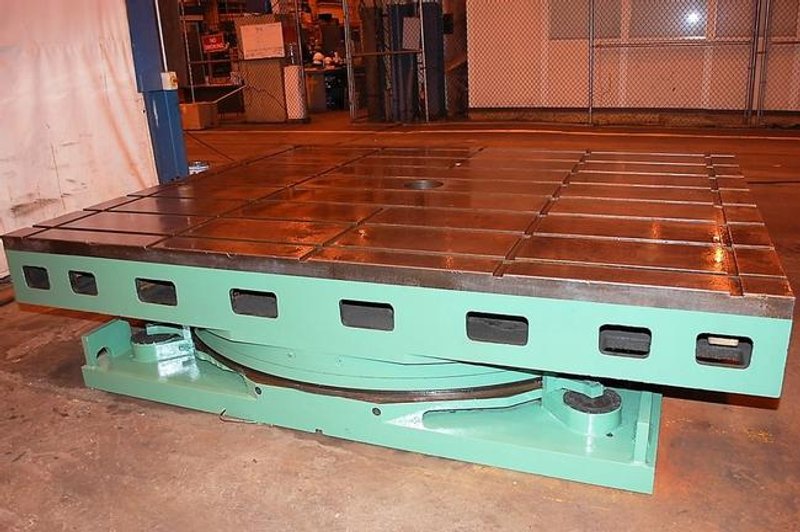

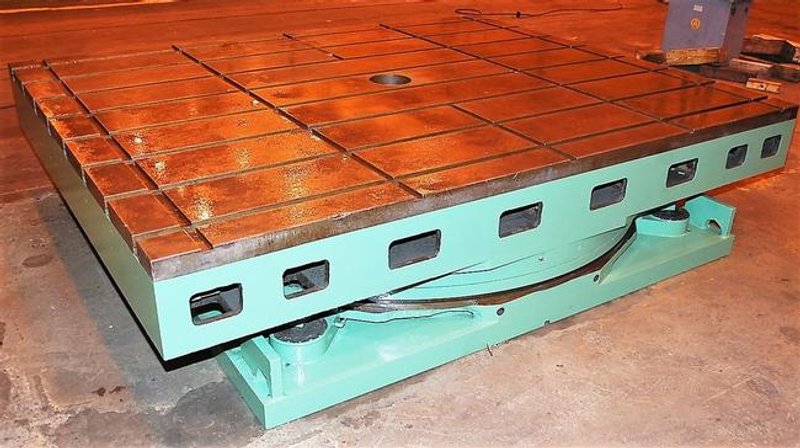

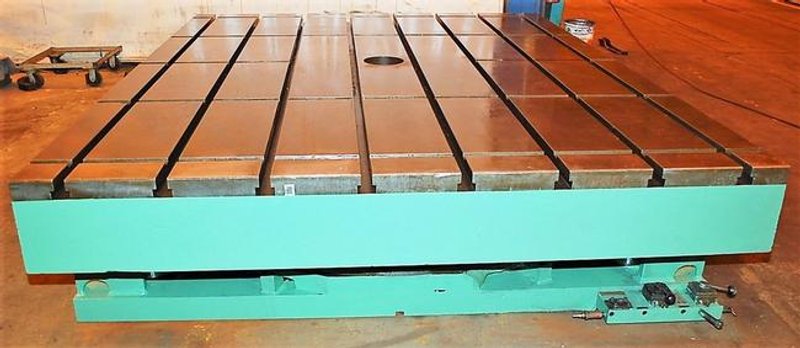

96" x 120" Giddings & Lewis Airlift Rotary Index Table

CAPACITY:
Table Size ............................ 96" X 120"
Table Height Overall .................. 28"
Number Of T-Slots ..................... 8
Width Of T-Slots, Top ................. 1.25"
Width Of T-Slots, Bottom .............. 2.25"
Depth Of T-Slots, Overall ............. 2.5"
Distance Between T-Slot Centers ....... 12"
Center Keyway Width ................... 1 1/4"
Cross Key Slots ....................... 5
Center Bore Diameter .................. 8"
Weight Capacity ....................... 75,000 LBS
Shot Pin Locations (degrees) .......... 90,180,270,360
Table Base Dimensions ................. 120" x 96"
Table Weight .......................... 39,000 lbs

EQUIPPED WITH:
Air Clamp
(4) Positive Stop, Shot Pins
360 Degree Scale with 1/2 Degree Increments
Fixture Locating Keyway
Centerbore In Table Platen

NOTE:
Inspect In Our Philadelphia PA Warehouse
