Mazak Integrex E1850V, 5-Axis,X120",71"Wk Ht,80ATC,2APC,10K RPM,PC-F 640T,'04,#22981

Manufacturer

MAZAK

Category

Boring Mills

Type

BORING MILLS, VERTICAL, CNC

Stock

22981

Model

INTEGREX

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #22981

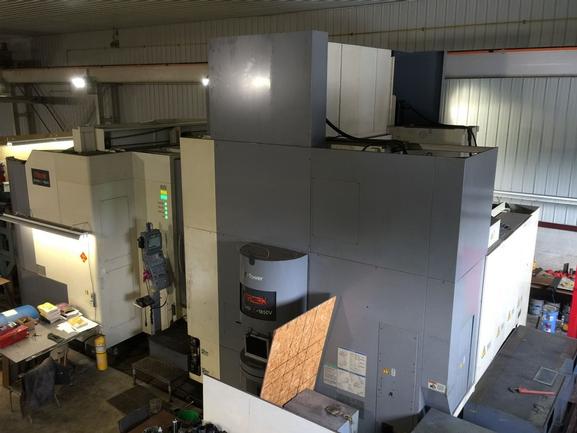

MAZAK Integrex E-1850 V12 5-Axis Combination
CNC Vertical/Horizontal/Turning Milling Center
Age: New 2003
Model: E-1850V

FEATURES:

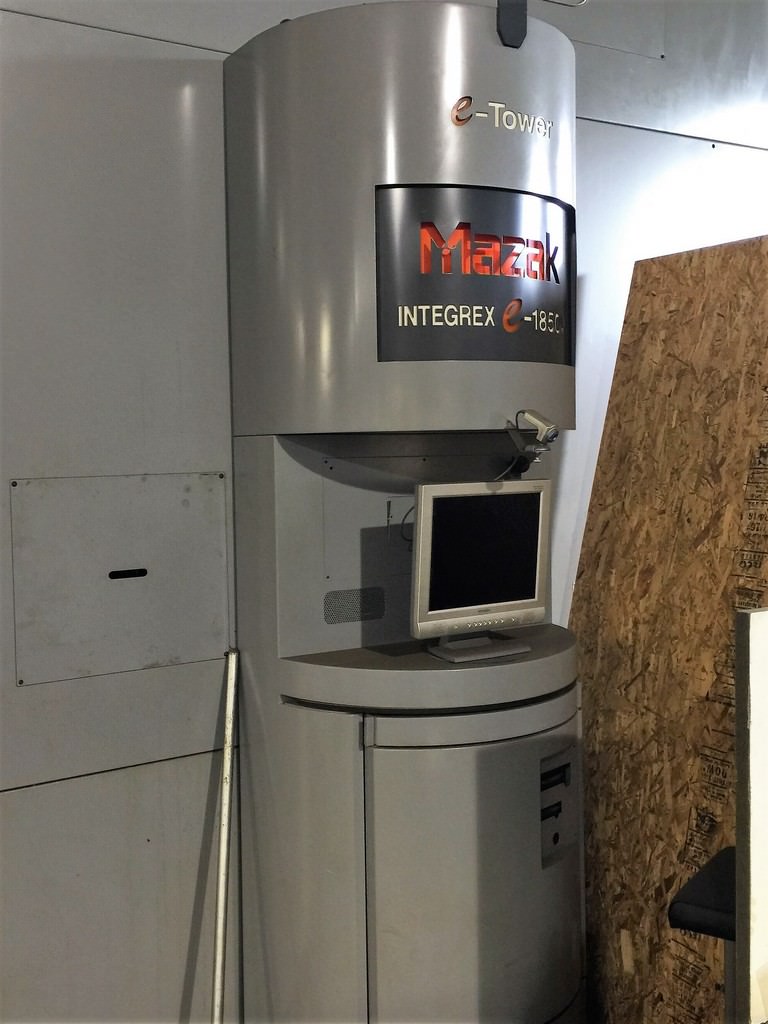

MAZATROL PC Fusion 640M with E-Tower
Combination 5-Axis CNC
Thru-Spindle Coolant
80 Station Automatic Tool Changer

CAPACITY:
Maximum Work Diameter ................. 92.5"
Maximum Work Height ................... 70.86"
Table Travel .......................... 120.27"
Spindle Travel, Left & Right .......... 72.8""
Spindle Travel, Up & Down ............. 41.73"
B-Axis Spindle Head Tilt, 150 Deg. .... -30/+120 Deg.
C-Axis Table Rotation ................. 360,000 Position
Milling Spindle Nose .................. CAT 50 Big Plus
Milling Spindle Motor ................. 50 HP / 40HP
Table Speed ........................... 600 RPM
Table Capacity ........................ 11,015 lbs
Table Motor ........................... 50 HP
Spindle Torque ........................ 339 Ft./Lbs.
Milling Spindle Speed ................. 35-10,000 RPM
Rapid Traverse ........................ 1575 IPM

EQUIPPED WITH:

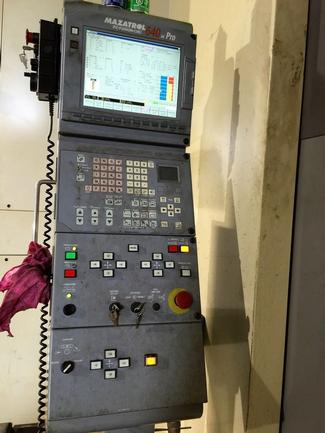

Mazatrol PC-Fusion-CNC 640M Pro CNC Control E-Tower
Full C-Axis Contouring Table

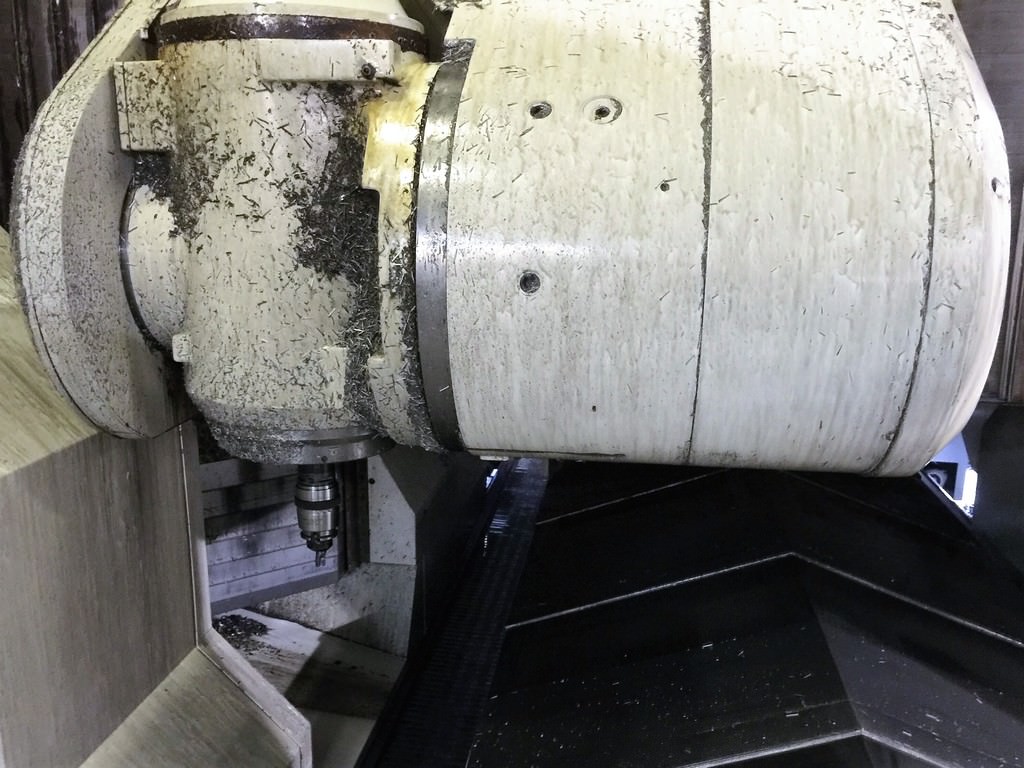

Full B-Axis 150 Deg. Tilt Spindle
5-Axis Tool Tip Point Control
80-Station Automatic Toolchanger

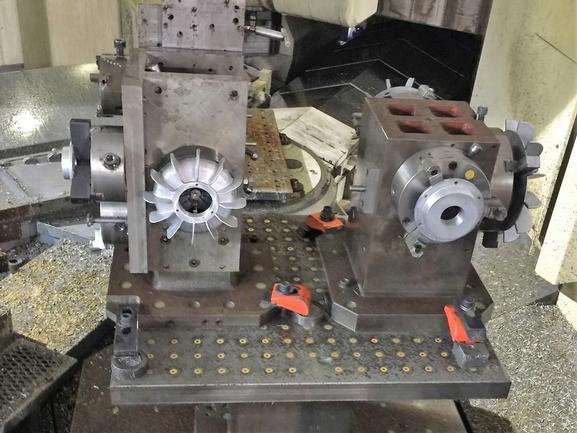

2-Station Pallet Changer w/ (1) 49" Square Pallet
Operator Door Interlock With Lock
Network Interface (For LAN and Modem)
3.5" Floppy Disc Drive
PCMCIA Interface
Inch/ Metric Conversion
E-Machine Die and Mold PKG. W/Ethernet OPE
Laser Measurement System for Rotary Tool
High Pressure Through Spindle Coolant 1000 PSI
Workpiece Air Blast
Automatic Tool Eye
Mazak Monitoring System
Chip Conveyor

HOURS:
Power On: 6,386
Cutting Hours: 1,392

NOTE:
Machine Coming Out of a R&D Shop
